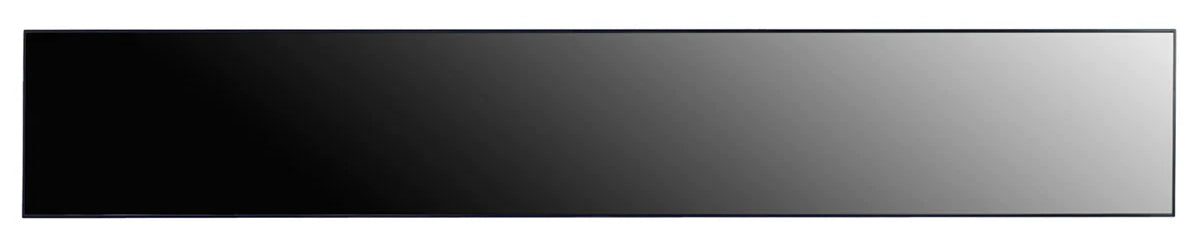

LG 86BH5F Digital signage display 2.18 m 3840x600 IPS Monitor

The LG 86BH5F Digital signage display 2.18 m delivers a crisp 3840x600 IPS monitor that handles everyday work and entertainment with ease.

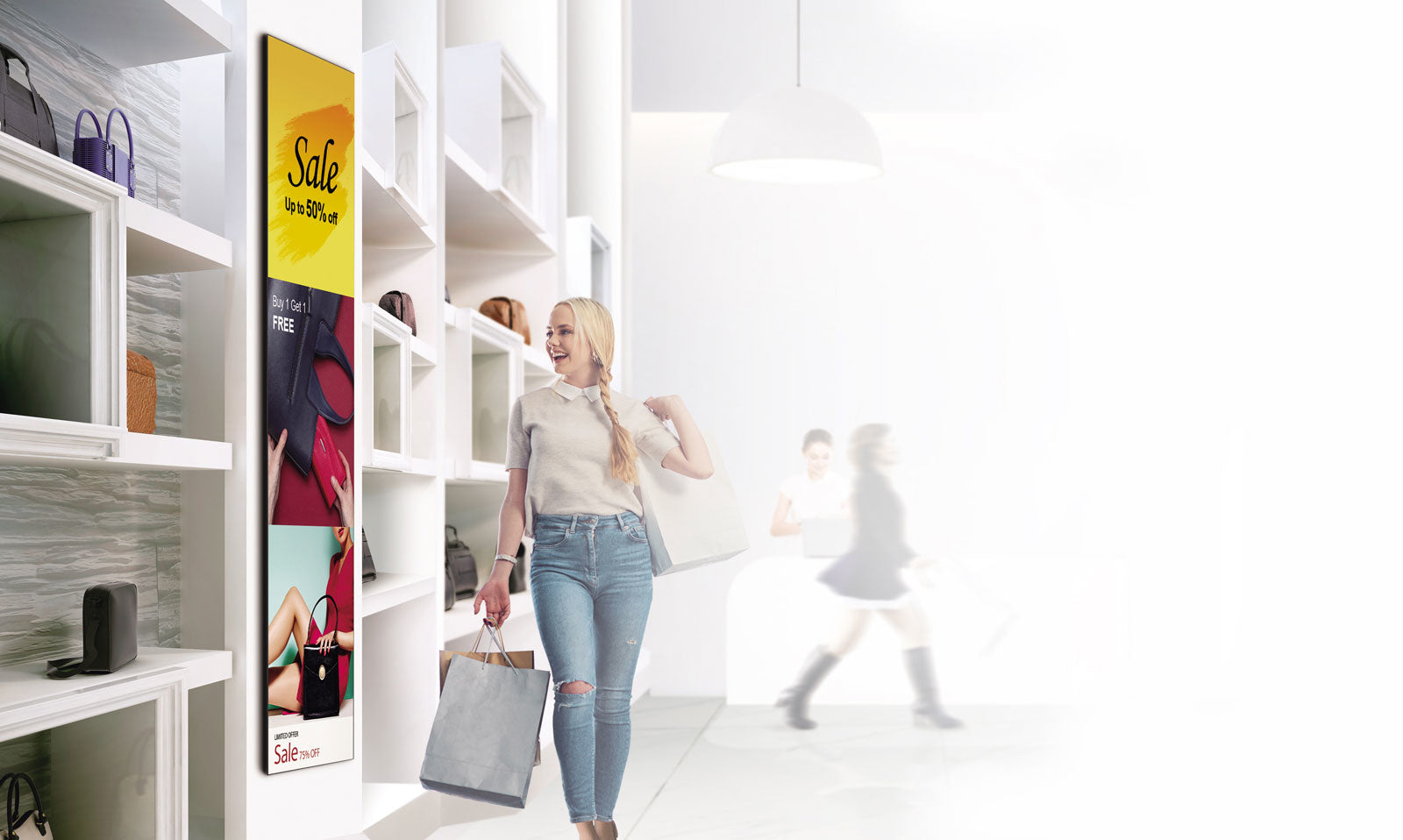

Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen
The 86-inch Ultra Stretch Signage 86BH5F is the ideal digital display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring virtually any unused and leftover space to life where conventional digital signage would not fit.

58:9 Extended Wide Format
The unique bar-type 58:9 wide screen provides much more flexibility in playing content than a conventional display with 16:9 ratio.

Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.

Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multiple content on one display by dividing it in up to four parts. It is very useful and convenient for delivering various advertisements or pieces of information at the same time without calibration.

Tiled Scene with Immersive View
The 86BH5F can show a tiled scene with up to 15x15 configuration. This is the best choice if you want to use a large screen, or provide high visual impact to your customers in a different way.

IP5X Certified Design
The IP5X Dustproof Certification ensures that the product is protected from dust, virtually eliminating the risk of performance degradation.

High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, the LG webOS Signage platform enhances user convenience with an intuitive GUI.

LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.

Real-Time Monitoring with Signage365Care
Easier and faster maintenance is available with Signage365Care,* our optional cloud service solution for remotely monitoring and managing the operating status of signage displays installed in client workplaces. It provides fault diagnosis and remote-control service, ensuring the stable operation of a client’s business.

Specifications

Display
Display technology	IPS
Display diagonal	2.18 m (86")
Display resolution	3840 x 600 pixels
Display brightness	500 cd/m²
Response time	8 ms
Contrast ratio (typical)	1100:1
Contrast ratio (dynamic)	500000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Panel life	50000 h
Native aspect ratio	58:9
Native refresh rate	60 Hz

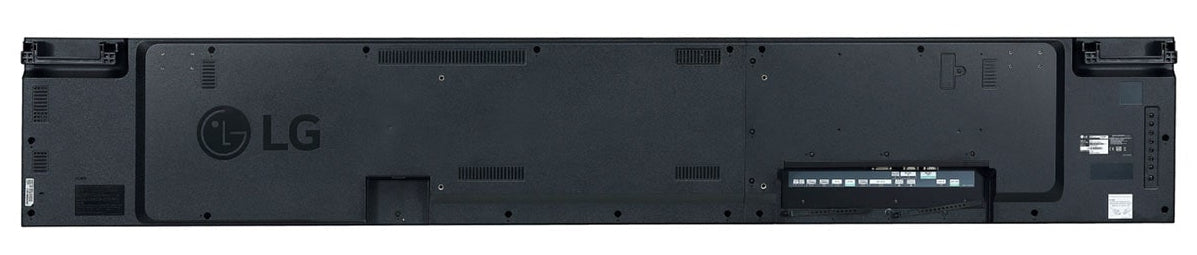

Ports & interfaces
DisplayPorts out	1
USB port	Yes
DisplayPorts in	1
DisplayPorts quantity	2
Ethernet LAN	Yes
HDMI ports quantity	3
DVI port	Yes
DVI-D ports quantity	1
Audio (L/R) in	1
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
USB version	2.0
USB ports quantity	2
Design
Product design	Digital signage flat panel
Bezel width (top)	5.9 mm
Bezel width (side)	4.4 mm
Bezel width (bottom)	5.9 mm
Product colour	Black
Panel mounting interface	600 x 200 mm
Certification	CB, NRTL, FCC Class "A", CE, KC, ErP
VESA mounting	Yes
Performance
Purpose	Retail
Power
Power consumption (typical)	100 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	142.6 kWh
Weight & dimensions
Width	2158.3 mm
Depth	81.7 mm
Height	348.5 mm
Weight	20.5 kg
Packaging data
Package width	2290 mm
Package depth	228 mm
Package height	599 mm
Package weight	38.2 kg
Batteries included	Yes
Remote control included	Yes
Cables included	DisplayPort
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 85%
Technical details
Power supply type	Internal
Logistics data
Harmonized System (HS) code	85285210
