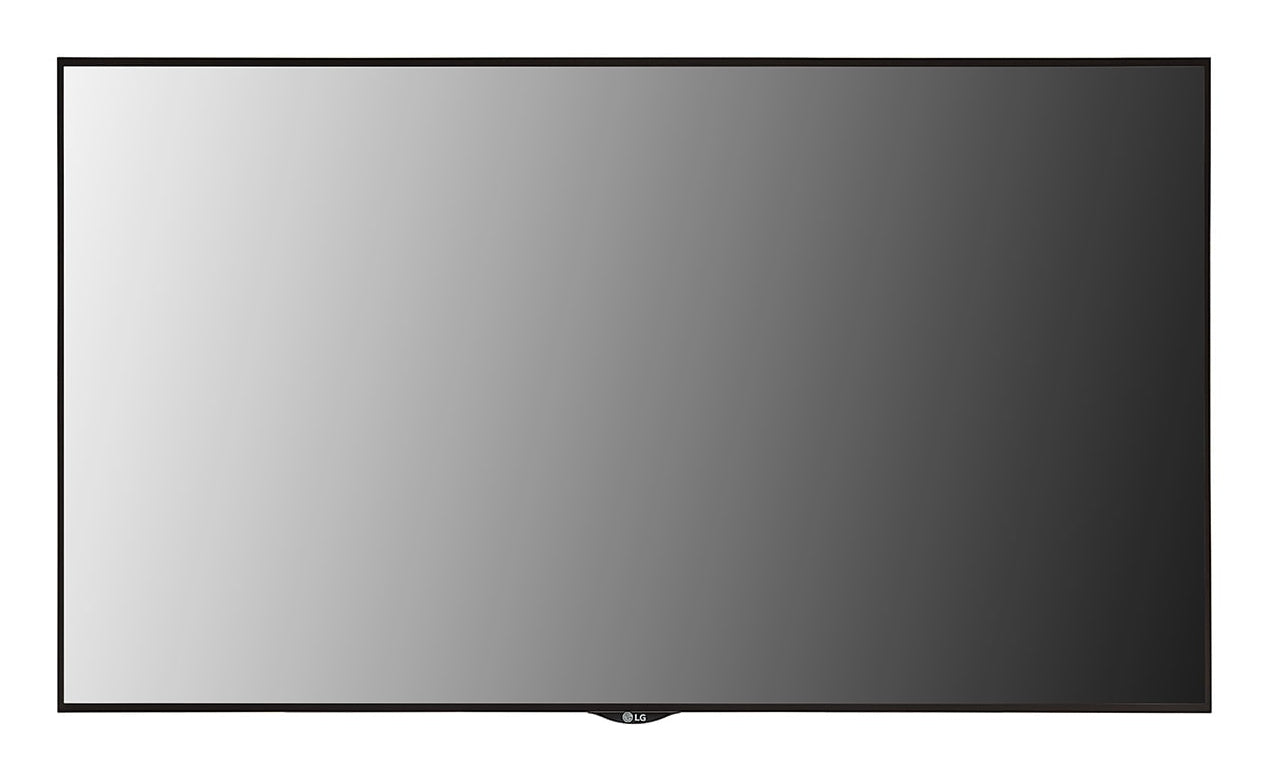

LG 75XS4P-B.AEU Digital signage flat panel 4K UHD IPS Monitor

The LG 75XS4P-B.AEU Digital signage flat panel delivers a crisp 4K UHD 3840x2160 IPS monitor that handles everyday work and entertainment with ease.

Attract Passing Customers with a Bright Display Presented Through a Window

World’s First UL Verification for Display Anti-Discoloration Characteristics
By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while safeguarding display quality and performance stability.

Window-facing Display
LG offers advanced technical solutions for cost-effective operations. The XS4P can maintain an astonishing brightness of 4,000 nits, yet has lower power consumption compared to RGB panels at the same brightness level.

Brightness Beyond the Window
A window-facing display requires higher nits, as it is exposed to direct sunlight through a window. The XS4P is designed especially for window-facing environments, providing brilliant brightness. Vibrant and dynamic content displayed through the window will attract customers to your business, despite the viewers wearing polarized sunglasses.

High-performance with webOS 6.0
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.

Remotely Managed, Real-time Mastery (Content Manager)
A significant advantage of window-facing displays over temporary displays is their ability to effortlessly manage frequently changing promotional content and pricing information. LG’s web-based content solution is intuitive and user-friendly, providing users with complete access to current and historical data anytime, anywhere, through their mobile devices. This allows users to monitor, adjust, and control the unit remotely in real-time.

Wide Range of Operating Temperature
The XS4P can be used under a wide range of operating temperature from 0℃ to 40℃.

Conformal Coating
The conformal coating with dust protection shields the circuit and power boards from dust, metal particles, moisture, and other contaminants, providing solid durability and long-term reliability.

Upgraded Quite Mode
The XS4P addresses concerns about display noise. It features an Upgraded Quiet Mode that operates at 2,500 nits with minimal fan noise.

Professional Content Partners
Pairing the XS4P Series with LG SW solutions would enhance its utilization.

Convenient Installation with Calculated Precision
The XS4P is equipped with a Leveler Tool that shows users the tilt of the device, allowing for precise display installation. Additionally, the Horizontal Sensor Tool assists users in verifying the correct installation direction. The XS4P even provides warning messages for proper installation if it is installed incorrectly.

Specifications

Display
LED backlight	Yes
Panel type	IPS
Display number of colours	1.07 billion colours
LED backlighting type	Direct-LED
Touchscreen	No
Display technology	LED
Display diagonal	190.5 cm (75")
Display resolution	3840 x 2160 pixels
Display brightness	4000 cd/m²
HD type	UHD+
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	500000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Panel life	50000 h
Native aspect ratio	16:9
Native refresh rate	60 Hz
Haze rate	3%

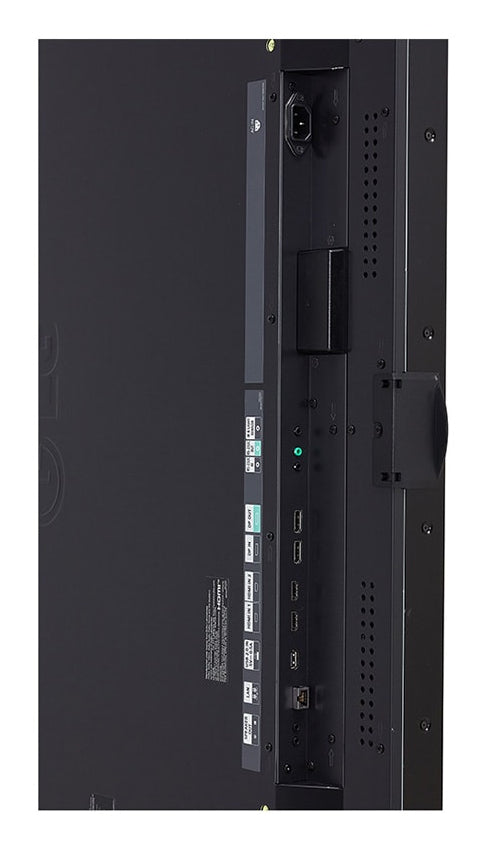

Ports & interfaces
USB connector type	USB Type-A
Remote (IR) output	1
Remote (IR) input	1
DisplayPorts out	1
USB port	Yes
DisplayPorts in	1
Number of speaker outputs	1
RS-232C	Yes
Infrared data port	Yes
DisplayPorts quantity	2
Ethernet LAN	Yes
HDMI ports quantity	2
DVI-D ports quantity	1
Audio (L/R) out	1
Ethernet LAN (RJ-45) ports	1
USB version	2.0
USB ports quantity	1
HDMI input ports quantity	2
Audio
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Placement supported	Outdoor
Orientation	Horizontal/Vertical
Bezel width (side)	1.38 cm
Product colour	Black
Panel mounting interface	600 x 400 mm
VESA mounting	Yes
Screen shape	Flat
Bezel colour	Black
Performance
Purpose	Retail
Operating hours (hours/days)	24/7
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
On Screen Display (OSD)	Yes
Number of OSD languages	22
HDCP	Yes
HDCP version	1.4/2.2
Power
Heat dissipation	2559 BTU/h
Power consumption (max)	790 W
Power consumption (off)	0.5 W
Power consumption (typical)	750 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Computer system
Computer system	Yes
Computer system type	System on Chip (SoC)
Operating system installed	WebOS
Internal memory	16 GB
Operating system version	6.0
Weight & dimensions
Display width	1679.2 mm
Display depth	104 mm
Display height	957.6 mm
Display weight	39.6 kg
Packaging data
Package width	1816 mm
Package depth	285 mm
Package height	1106 mm
Package weight	50 kg
Remote control included	Yes
Manual	Yes
Cables included	AC, HDMI
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 85%
Technical details
Introduction year	24
Features
Suitable for outdoor use	Yes
Heat dissipation (max)	2696 BTU/h

Downloads

• Datasheet (PDF)
