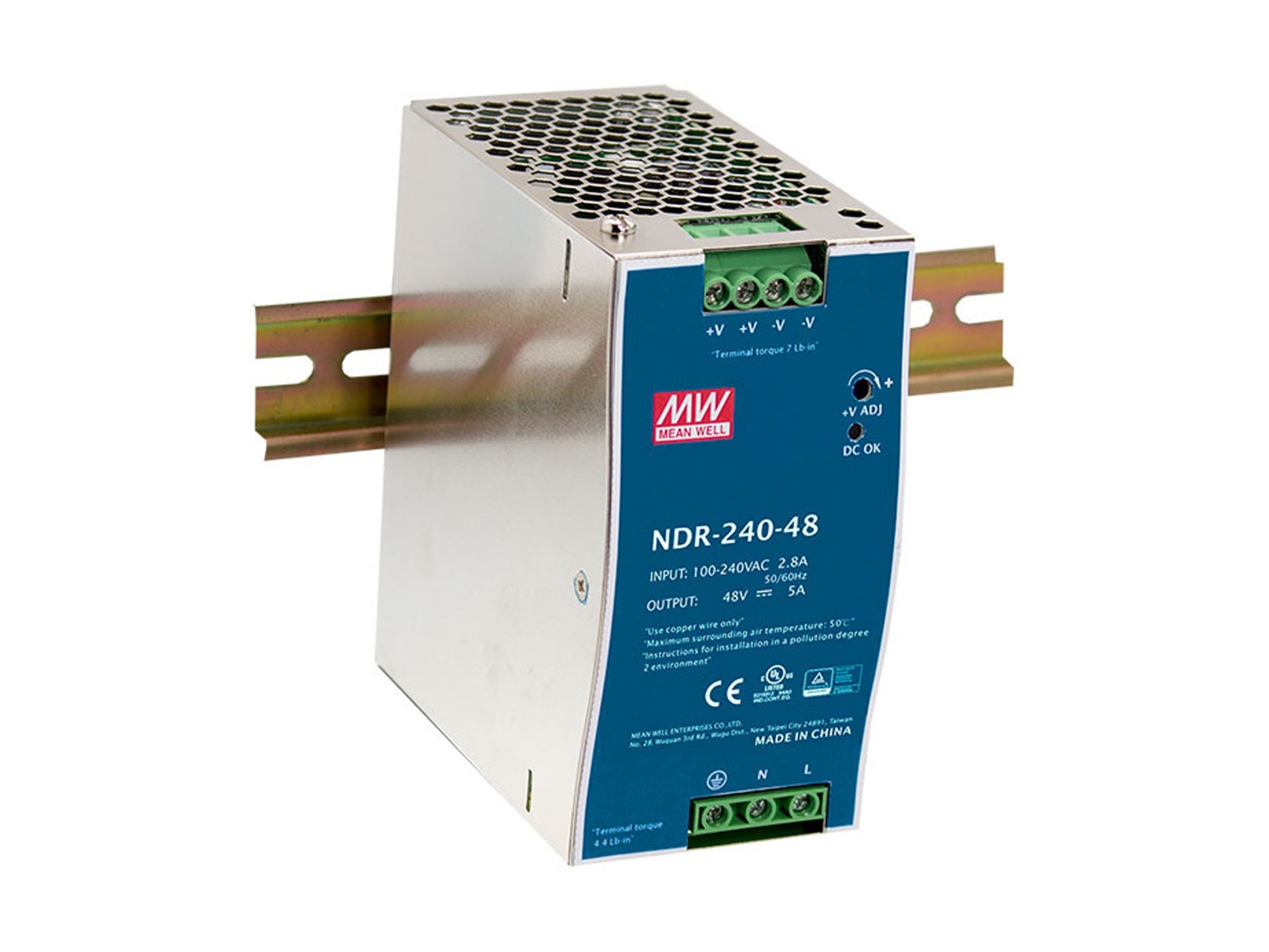

LevelOne 48V DC Industrial Power Supply, 240W, DIN-Rail, PoE Ready
LevelOne 48V DC Industrial Power Supply, 240W, DIN-Rail, PoE Ready
Regular price
£116.16 GBP
Regular price
Sale price
£116.16 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Reliable power for your system: the LevelOne 48V DC Industrial Power — wattage and connector details are in the spec table.
The POW-4851 is a DIN-rail industrial power supply is ruggedized, universal input voltage range and full compliance with all important safety and EMC standards. It can be operated at full load across an ambient temperature range of -20 to 70 Celsius degree without need of additional cooling to guarantee quality for harsh industrial environment. Moreover, this power unit has been designed specifically for use with Infinity Industrial PoE Ethernet series, also it meets the requirements for both PoE and PoE Plus as well.
Specifications
| Design | |
|---|---|
| Safety | IEC60068, EN60950-1, UL60950-1, EN55011, EN55022 (CISPR22) Class B, EN61000-3-2, EN61000-3-3, EN61000-4-2/3/4/5/6/8/11, EN61000-6-2, EN61204, EN55024 |
| Product colour | Blue, Silver |
| Country of origin | China |
| Power | |
| Total power | 240 W |
| AC input voltage | 90 - 264 V |
| Power protection features | Over voltage, Overload, Short circuit |
| Performance | |
| Mean time between failures (MTBF) | 230200 h |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Technical details | |
| Technical features | 48V DC Out |
| Weight & dimensions | |
| Width | 125.2 mm |
| Depth | 113.5 mm |
| Height | 63 mm |
| Weight | 1 kg |
| Packaging data | |
| Package depth | 113.5 mm |
| Package width | 125.2 mm |
| Package height | 63 mm |
| Package weight | 1 kg |
| Other features | |
| Maximum current | 5 A |
