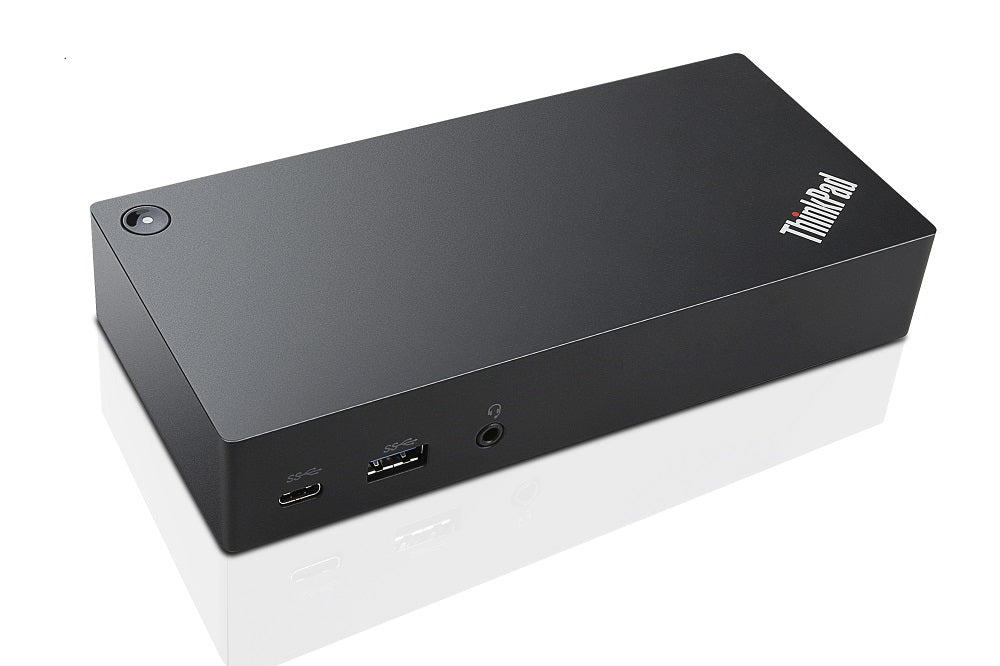

Lenovo ThinkPad USB-C Docking Station 90W
Lenovo ThinkPad USB-C Docking Station 90W
Couldn't load pickup availability
One cable, full desk: the Lenovo ThinkPad turns your laptop into a workstation with 90W charging over a single USB-C connection.
The ThinkPad USB-C Dock works with ThinkPad and Lenovo laptops, and utilises the same USB-C standard technology found on a wide range of popular laptops and devices. Experience all your productivity needs including video, data, and wired Ethernet, all while delivering continuous power to your laptop via a robust USB Type-C port. A single UHD display of 30Hz or dual FHD displays allow you to enjoy vivid video displays for more detailed work. And it's tailor-made for large enterprises with convenient manageability features like PXE boot, Wake-On LAN and MAC address pass-through. Simply connect your laptop or tablet with the dock and boost your productivity in no time.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| Headphone outputs | 0 |
| Connectivity technology | Wired |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum analog resolution | 1920 x 1200 pixels |
| Product colour | Black |
| Card reader integrated | No |
| Brand compatibility | Lenovo |
| Cable lock slot | Yes |
| Plug and Play | Yes |
| Charging function | Yes |
| Power | |
| Power supply type | External |
| Power supply | 90 W |
| Software | |
| Windows operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Weight & dimensions | |
| Weight | 290 g |
| Width | 171 mm |
| Depth | 80 mm |
| Height | 32.5 mm |
| Package weight | 950 g |
| Package width | 215 mm |
| Package depth | 160 mm |
| Package height | 75 mm |
| Packaging content | |
| Cables included | USB Type-C |
| AC adapter included | Yes |
