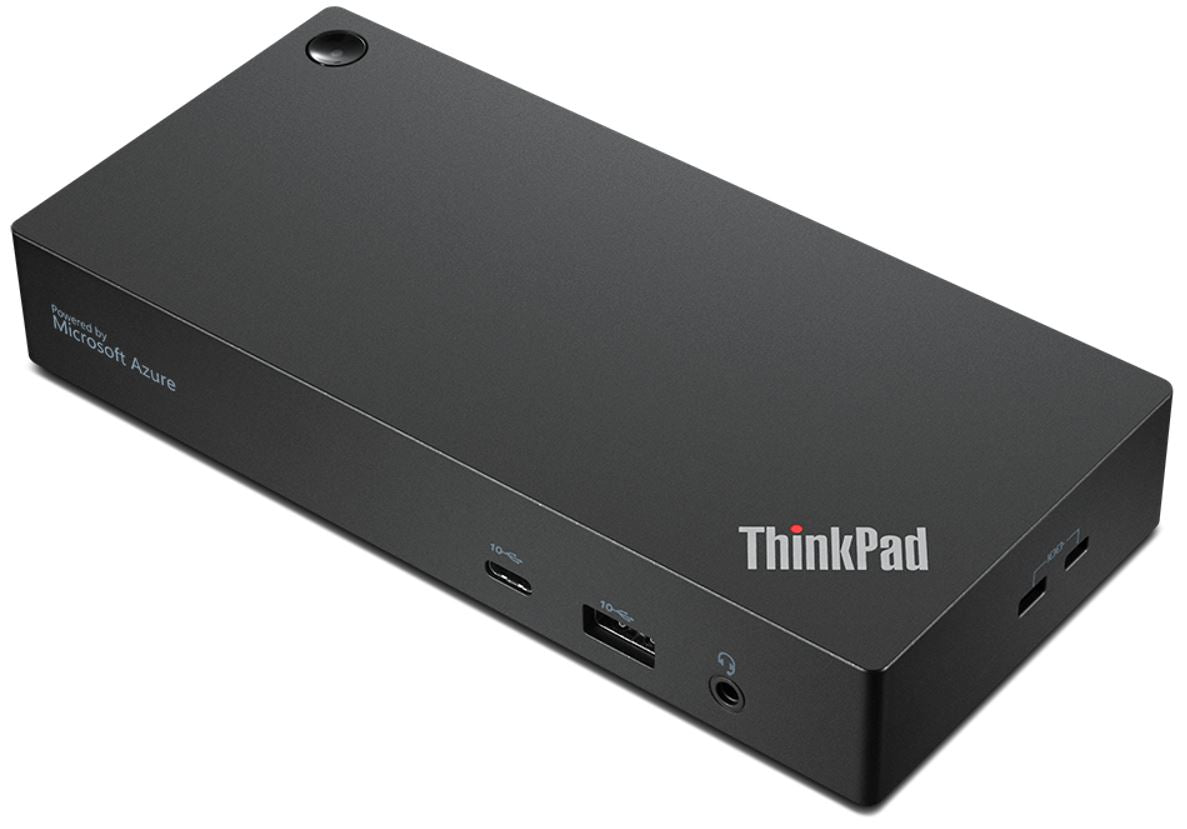

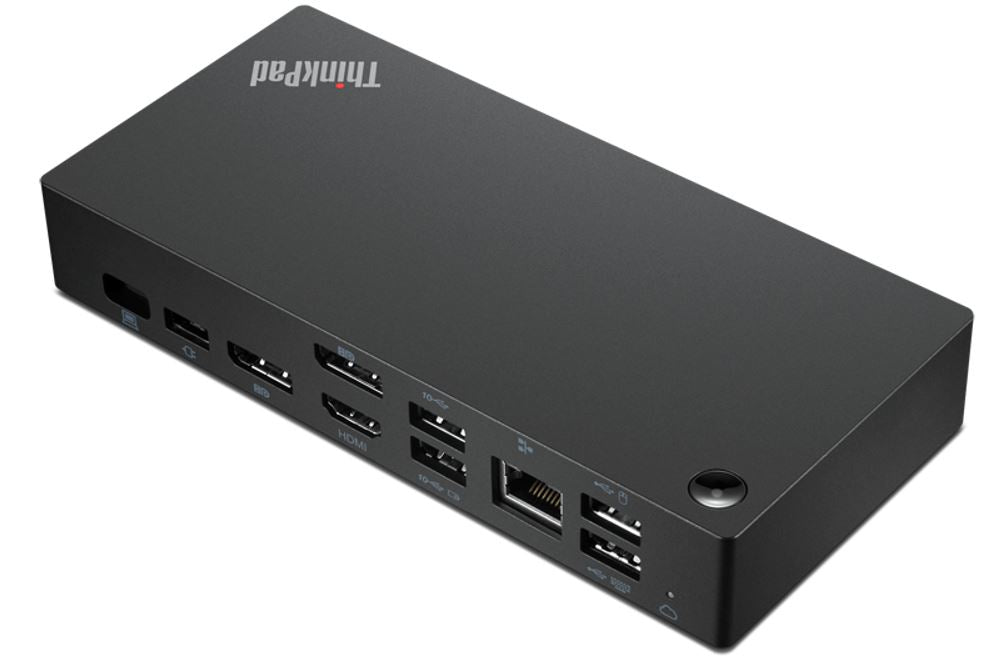

Lenovo ThinkPad Universal Smart Thunderbolt 4 Docking Station

One cable, full desk: the Lenovo ThinkPad Universal Smart turns your laptop into a workstation with all your peripherals connected over a single Thunderbolt 4 connection.

A SMARTER WAY TO WORK.
The robust way to maximize productivity and the workspace, the Lenovo™ ThinkPad® Universal Thunderbolt™ 4 Smart Dock (40B10 is the leader in our new series of docks offering a smarter way to work. Capable of driving 8k displays and 40Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 4 connectivity for commercial users and a new cloud-based management paradigm for IT managers. And it’s all powered by Microsoft Azure Sphere.

Specifications

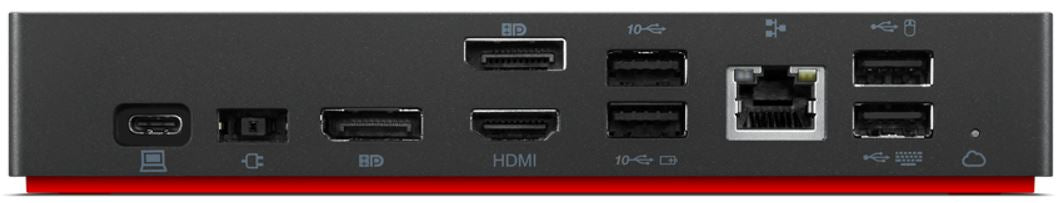

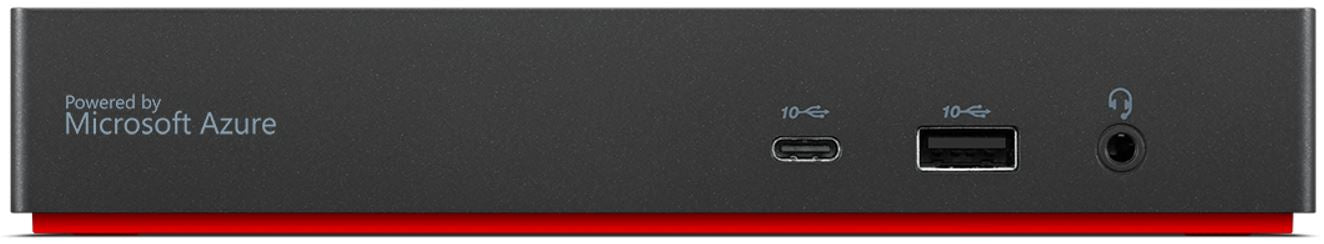

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Headphone connectivity	3.5 mm
Host interface	Thunderbolt 4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
DC-in jack	Yes
Connectivity technology	Wired
DisplayPort version	1.4
Thunderbolt 4 ports quantity	1
Network
Ethernet LAN	Yes
Performance
Number of displays supported	4
Product colour	Black
Data transfer rate	40 Gbit/s
Certification	cULus, FCC, ICES, NOM
Maximum refresh rate	60 Hz
Technical details
Harmonized System (HS) code	84733020
Power
Power source type	DC
Input current	6.75 A
Power consumption (max)	100 W
Software
Windows operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	460 g
Width	220 mm
Depth	80 mm
Height	30 mm
Package weight	1.23 kg
Package width	270 mm
Package depth	195 mm
Package height	85 mm

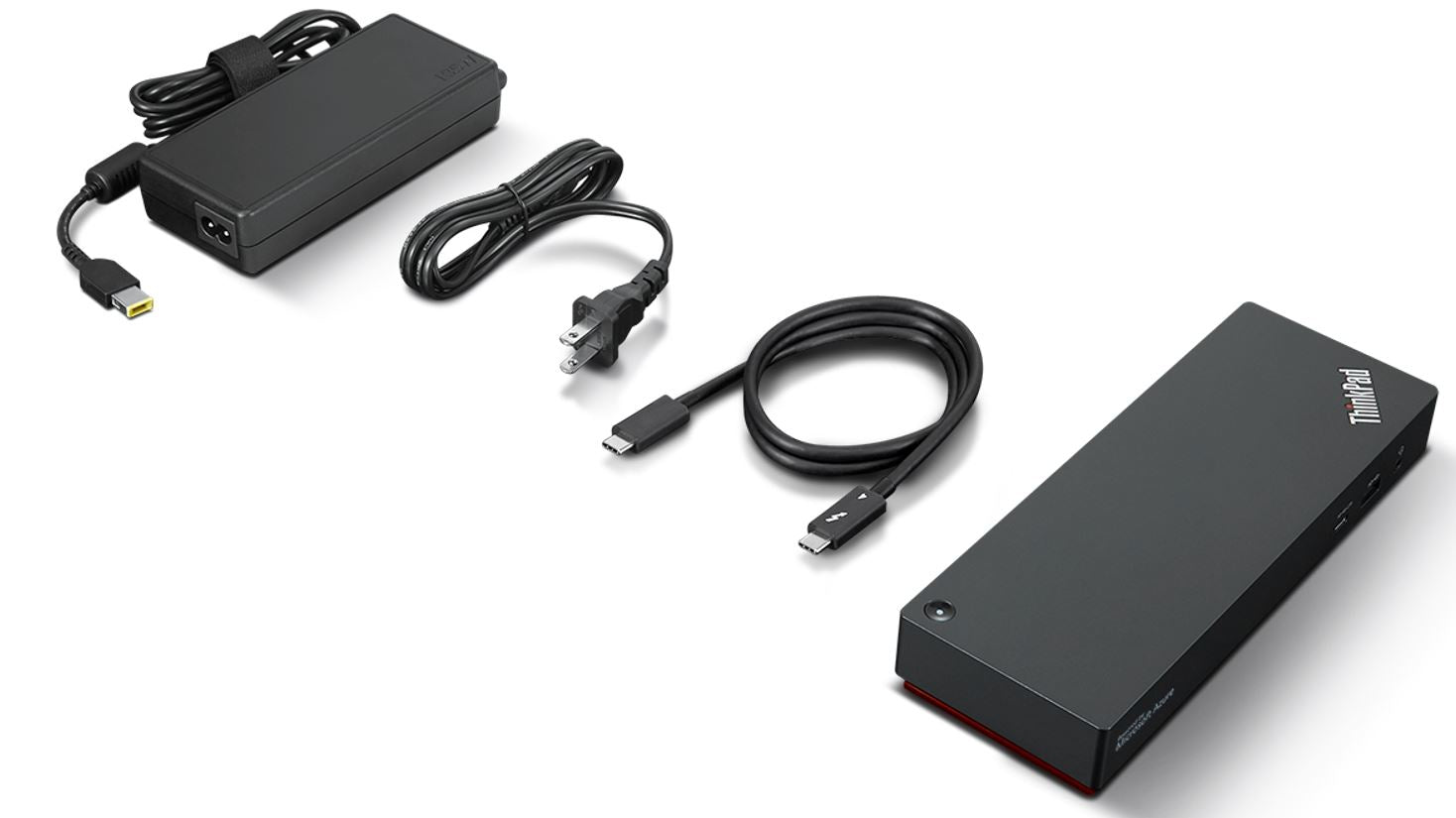

Packaging content
Cables included	AC, Thunderbolt
AC adapter included	Yes

Downloads

• Datasheet (PDF)
