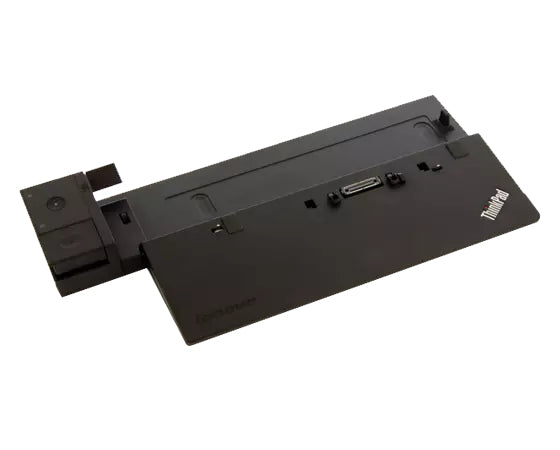

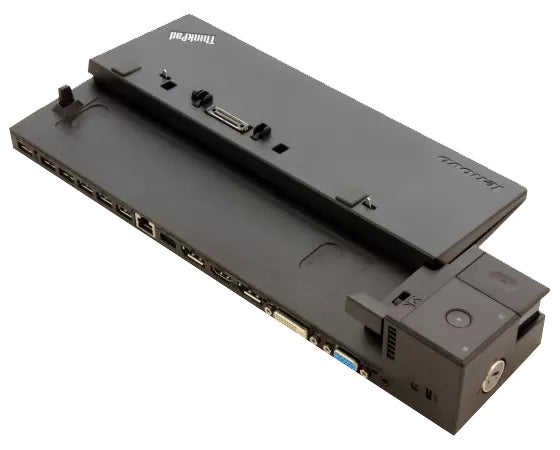

Lenovo ThinkPad Ultra Docking Station 90W (20090SA)
Lenovo ThinkPad Ultra Docking Station 90W (20090SA)
Couldn't load pickup availability
One cable, full desk: the Lenovo ThinkPad Ultra turns your laptop into a workstation with 90W charging.
With a single eject button the ThinkPad Ultra Dock includes a wide range of video, display and connectivity ports, so you can multi-task and be productive like never before. A variety of USB 2.0 and USB 3.0 ports provide connectivity and power for all your productivity accessories, including an always-on port for mobile device charging any time, even when your laptop's not present. Connect up to three monitors for the ultimate in workplace efficiency, and it's made for large enterprises with no-hassle, peace of mind features like MAC address pass-through and PXE boot, and has a lock slot for physical security. Driver-free, this dock delivers crystal clear video quality thanks to Lenovo technology to make office work convenient, easy, and productive.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Docking |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| Product colour | Black |
| Card reader integrated | No |
| Brand compatibility | Lenovo |
| Compatibility | ThinkPad |
| Cable lock slot | Yes |
| Certification | GOST (Russia),BSMI,EC-DoC,CE,UL,FCC,KC (Korea),UkrSEPRO,CB,NOM,sDOC,AS/NZS DoC,VCCI |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Power | |
| Power consumption (typical) | 90 W |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 920 g |
| Width | 345 mm |
| Depth | 162.5 mm |
| Height | 55.6 mm |
| Packaging content | |
| Quick start guide | Yes |
