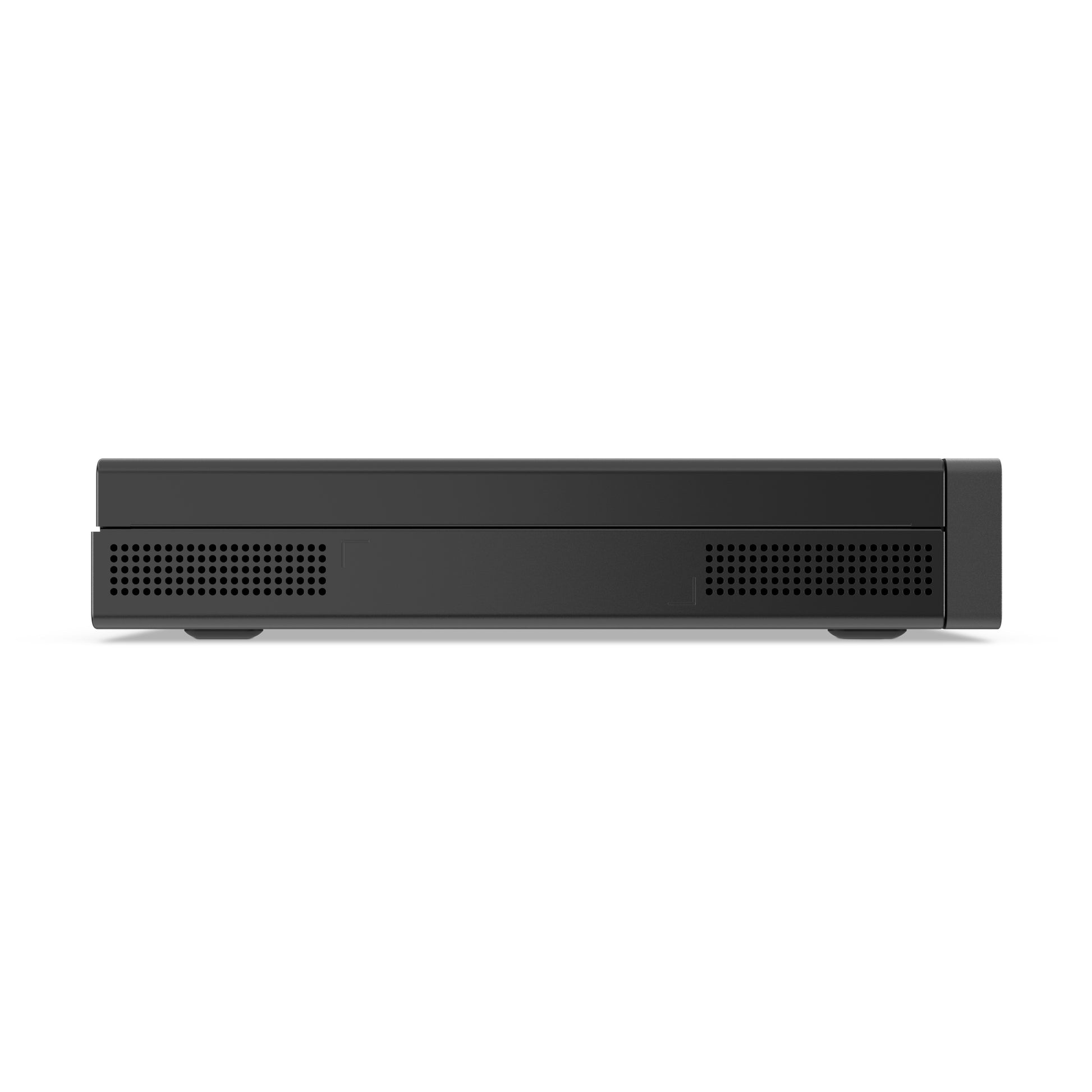

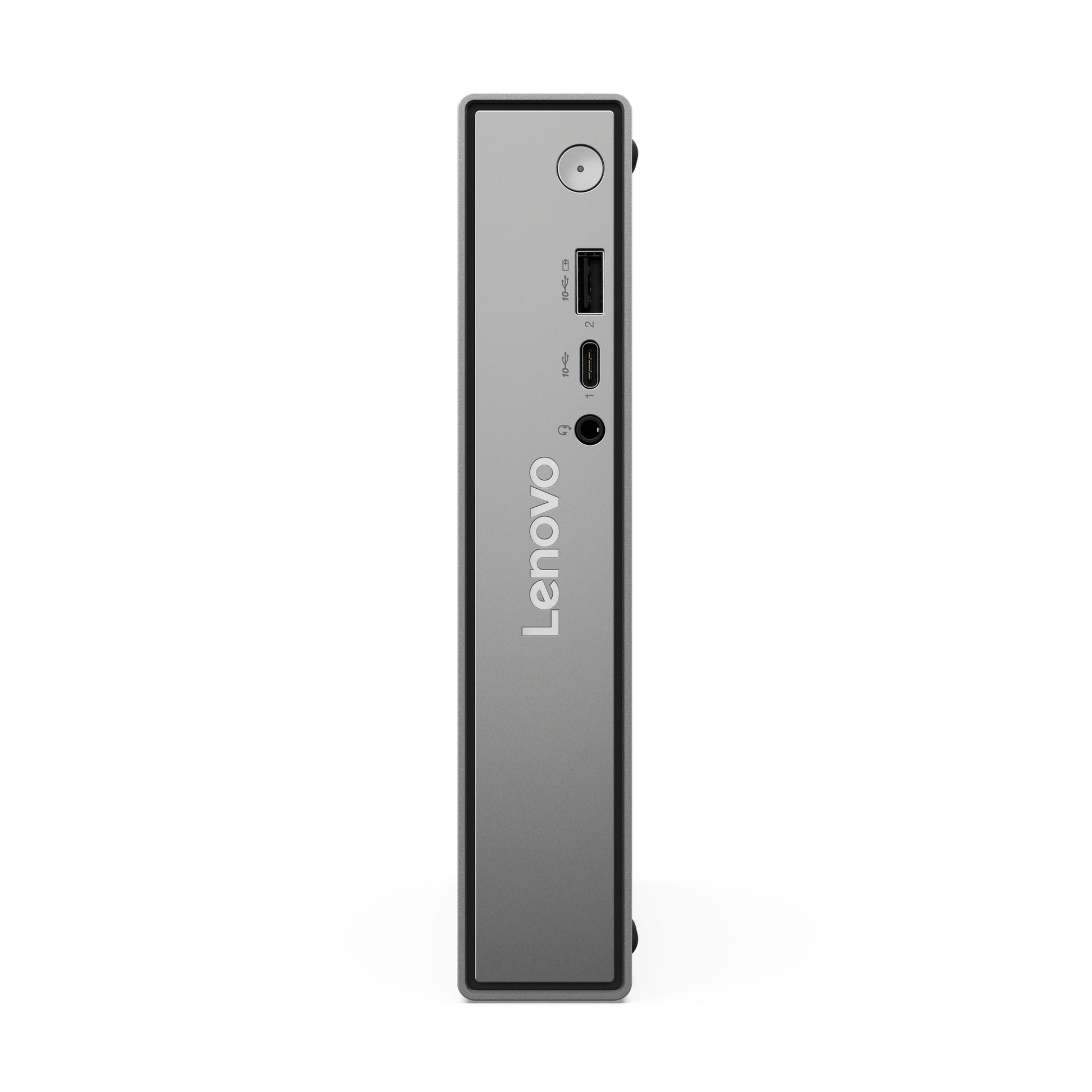

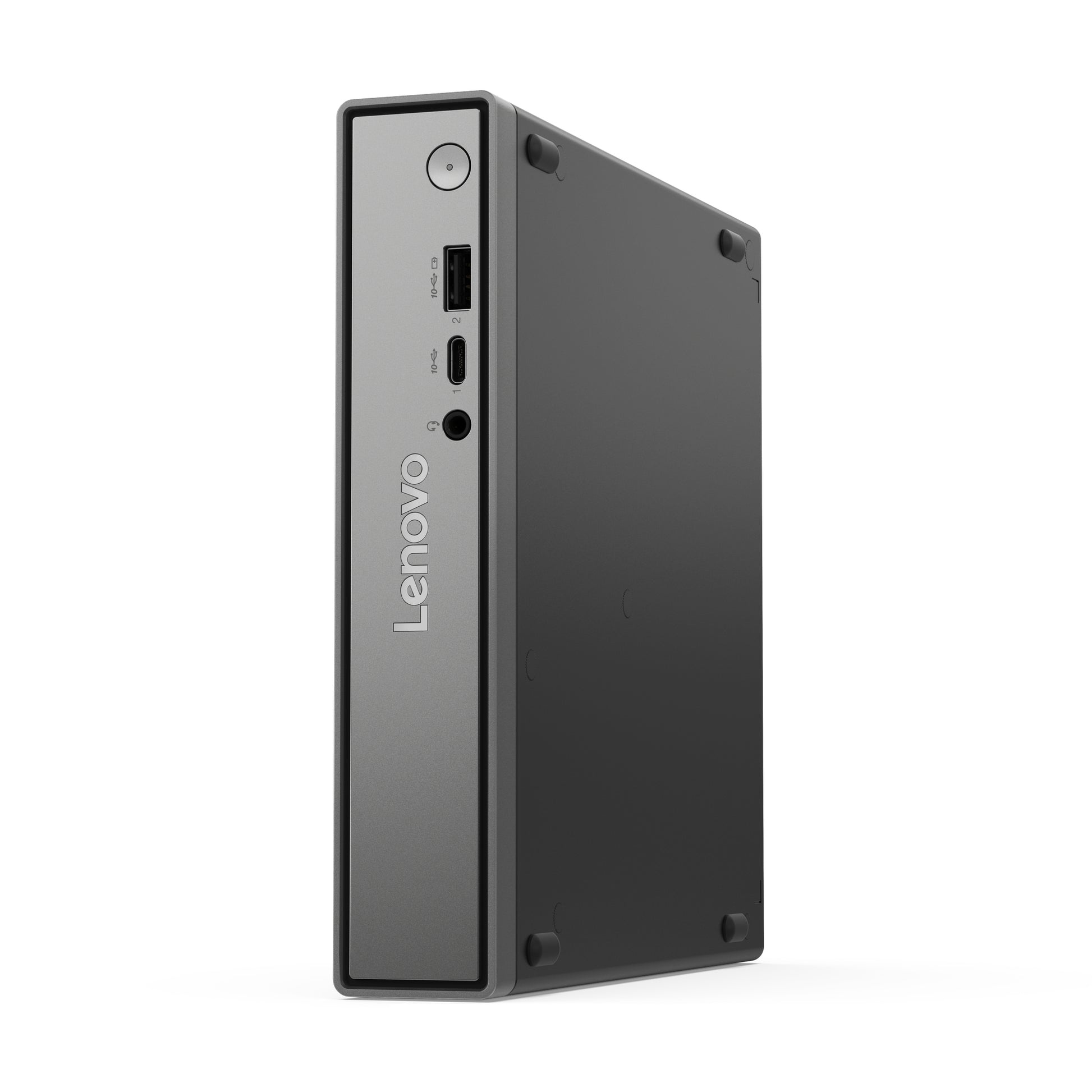

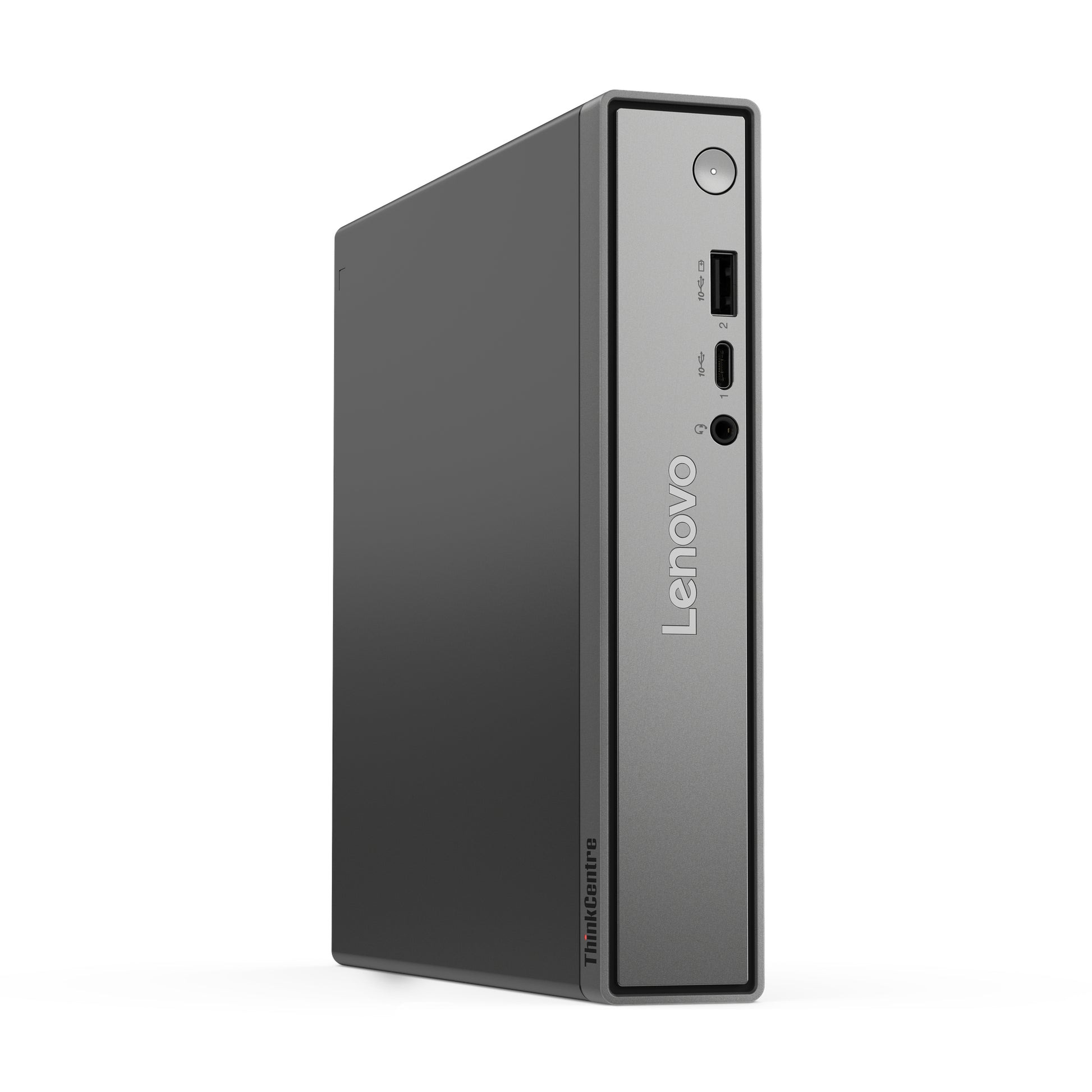

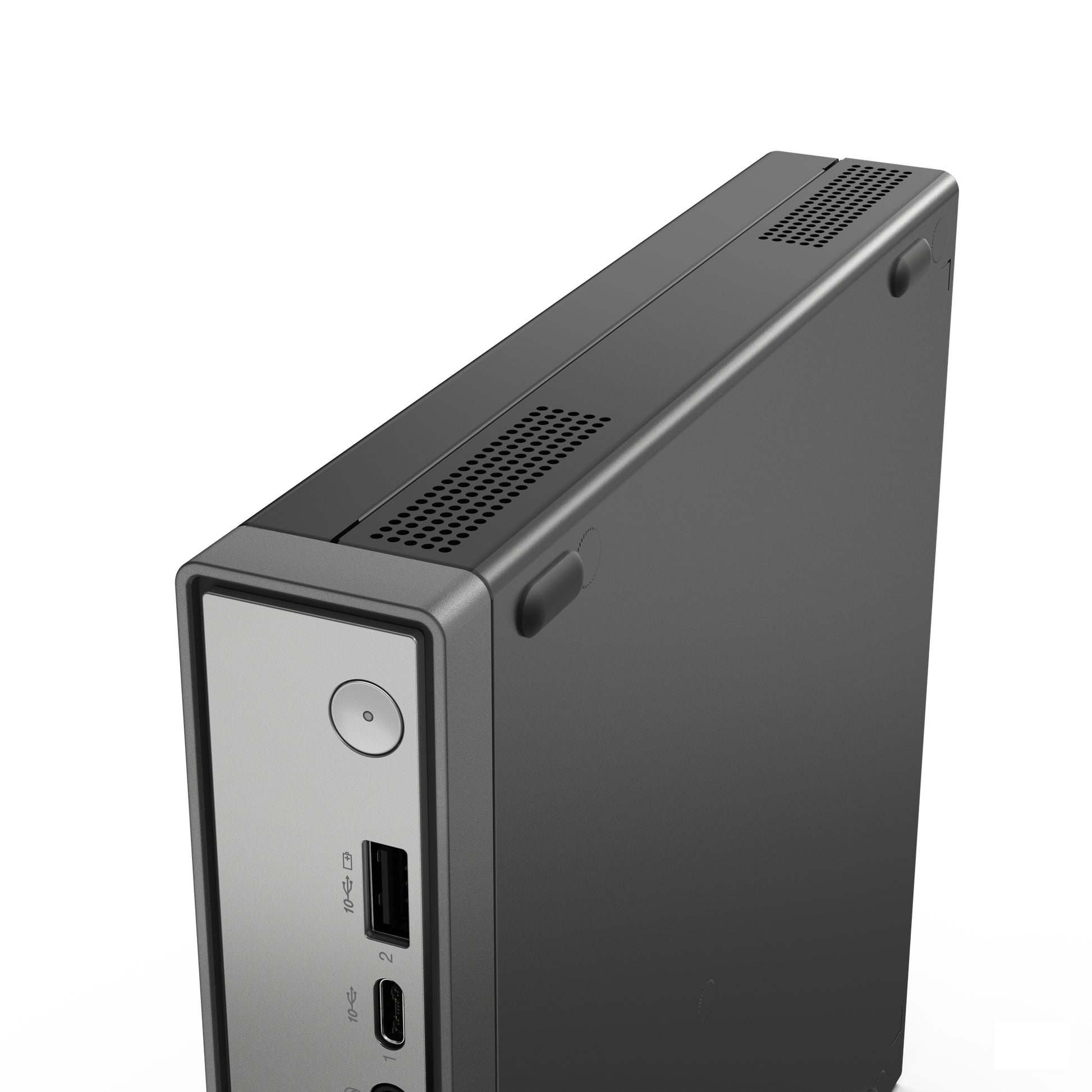

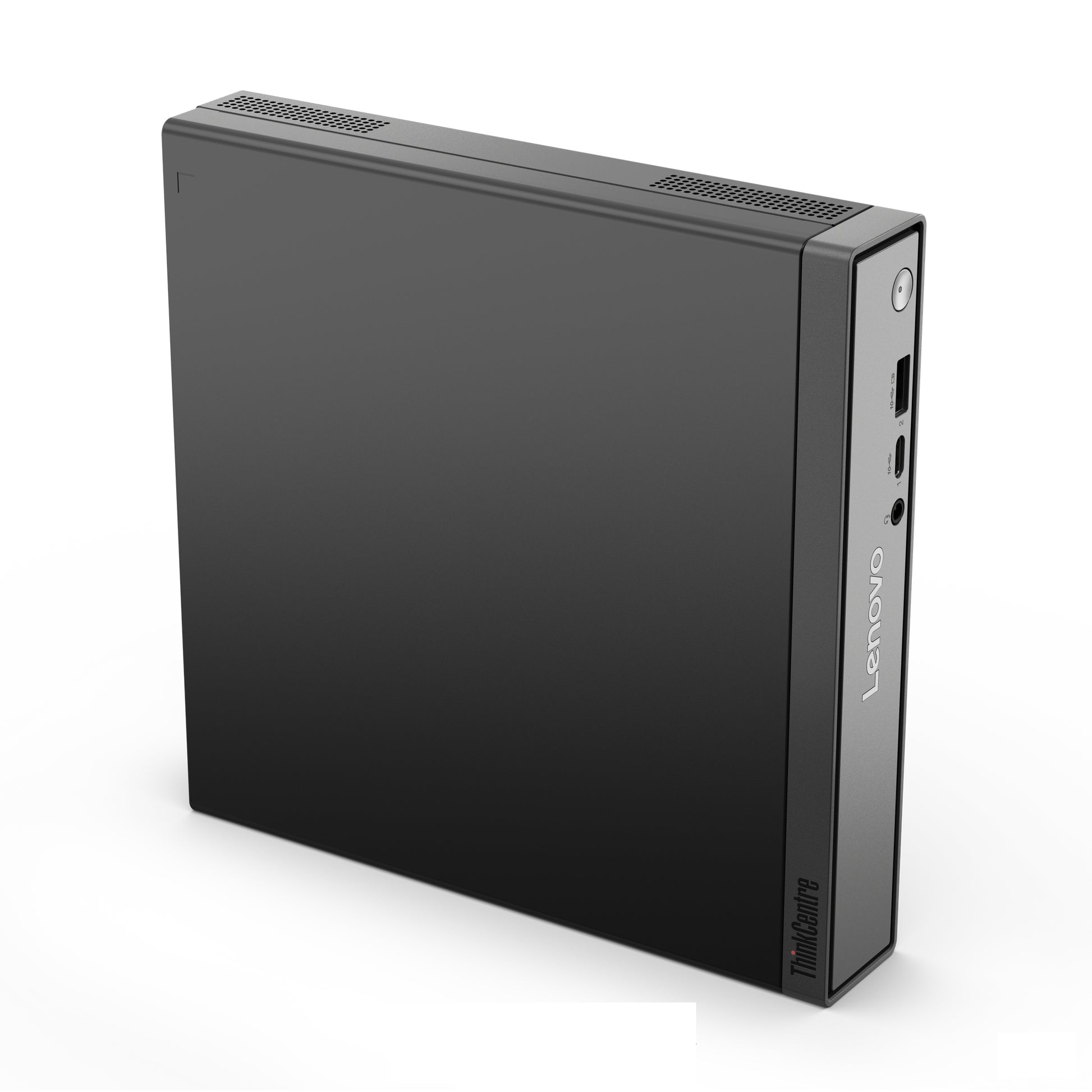

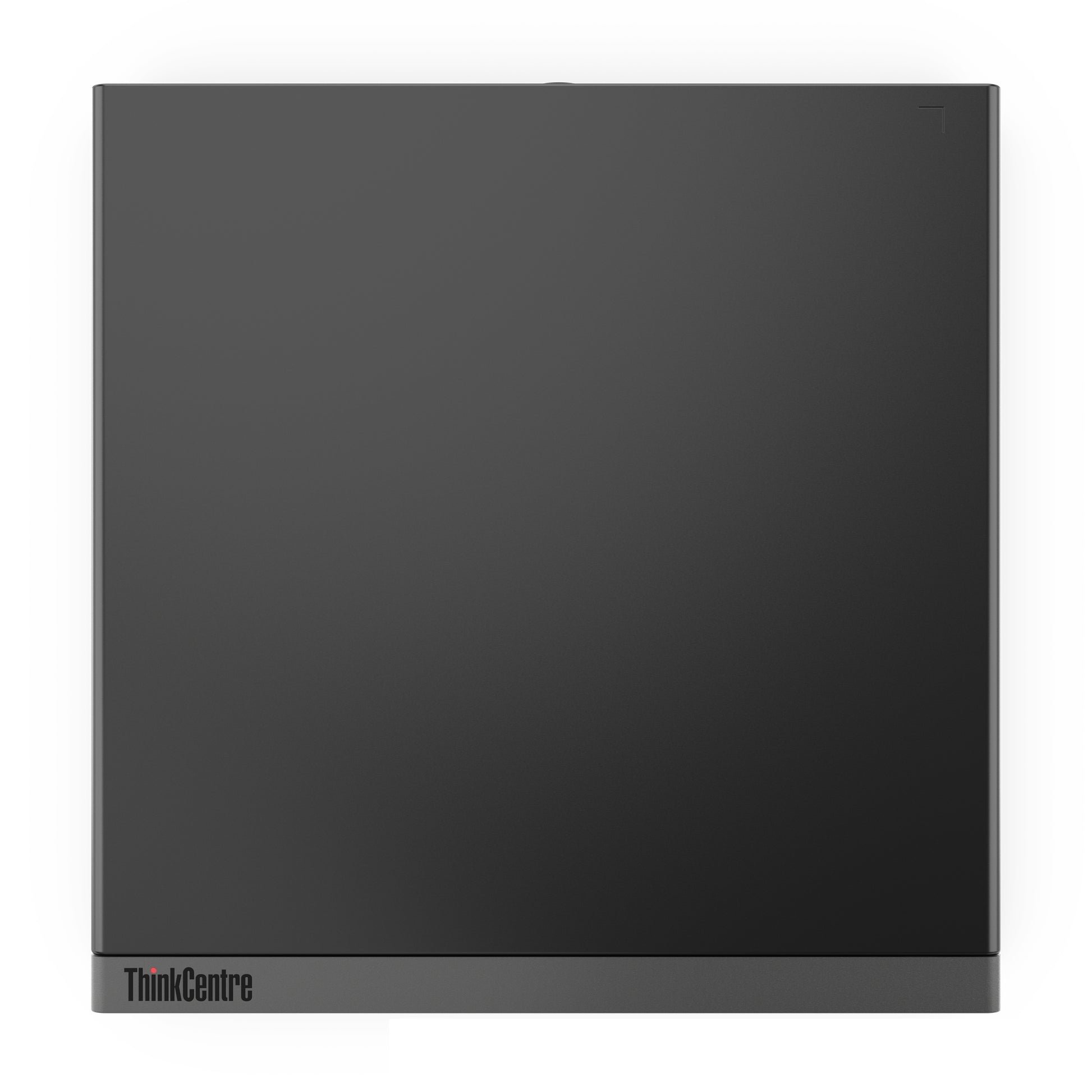

Lenovo ThinkCentre neo 55q Gen 6 Ryzen 5 220 16GB 512GB SSD Mini PC

Small enough to hide behind a monitor, the Lenovo ThinkCentre neo 55q Gen 6 still packs Ryzen 5 220 with 16GB RAM for full desktop duty.

Sleek, Space-Conscious AI-Based Tiny PC Tailored for SMB Needs
- Compact, modern design with AMD Ryzen™ 7 AI 200 series processors
- Versatile array of ports & AI efficiency to boost performance
- Enterprise-grade security with advanced features

Specifications

Processor
Processor generation	AMD Ryzen 200 Series
Processor cache type	L3
Processor cache	16 MB
Processor frequency	3.2 GHz
Processor model	220
Processor manufacturer	AMD
Processor boost frequency	4.9 GHz
Processor threads	12
Processor cores	6
Processor family	AMD Ryzen™ 5
Memory
Memory layout (slots x size)	1 x 16 GB
Internal memory	16 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	512 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	512 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	AMD Radeon
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon 740M
On-board GPU manufacturer	AMD
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.3
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Realtek RTL8852BE
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Realtek

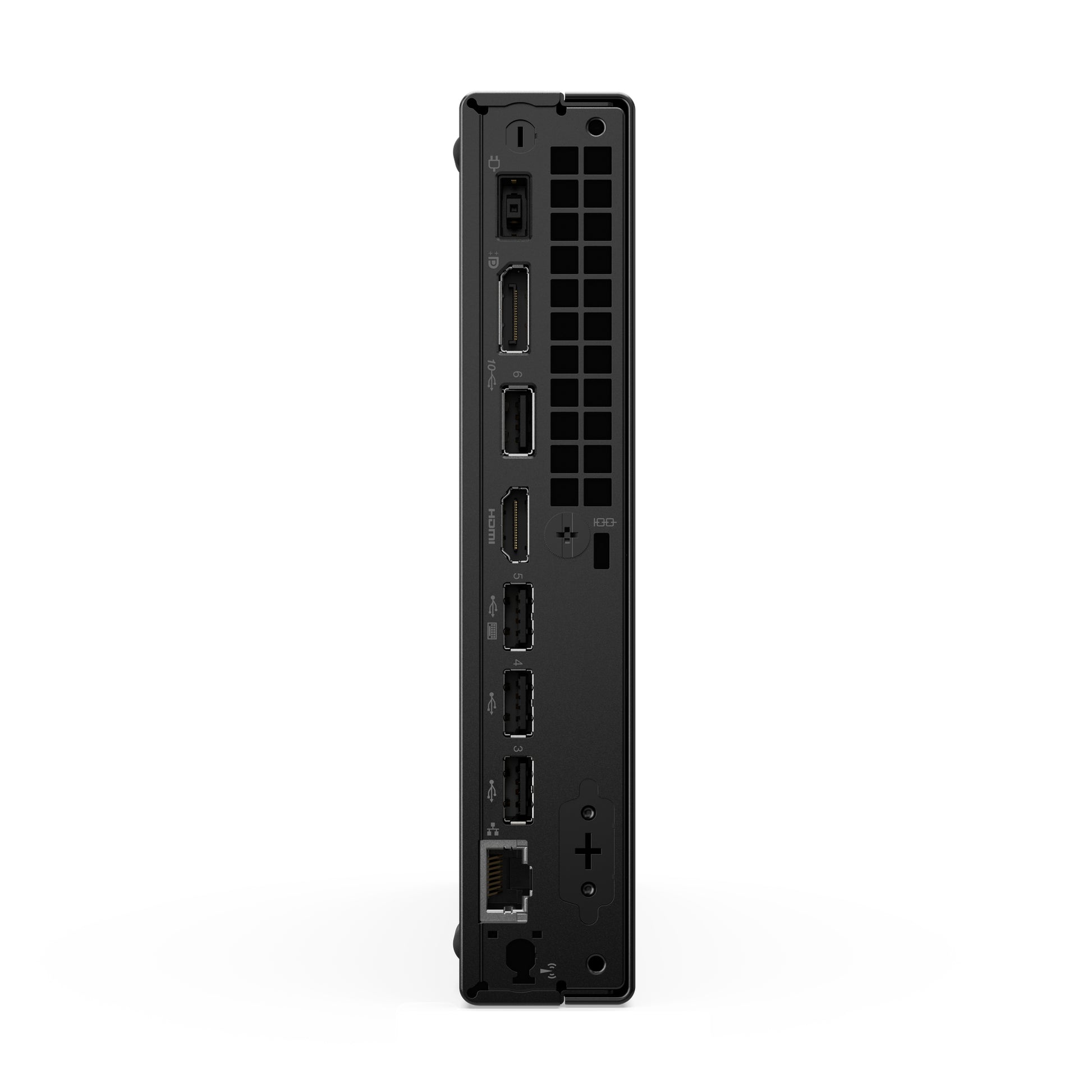

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI version	2.1
USB 2.0 ports quantity	3
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
DisplayPort version	1.4a
Technical details
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Mini PC
Audio system	High Definition Audio
Cable lock slot	Yes
Motherboard chipset	AMD SoC
Design
Volume	1 L
Colour name	Raven black
Performance
Audio chip	Realtek ALC256
Number of speakers	1
Password protection	Yes
Password protection type	HDD, Supervisor
Built-in speaker(s)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system language	English
Operating system installed	Windows 11 Pro
Power
Power supply	90 W
Operational conditions
Operating altitude	0 - 3048 m
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 35 °C
Non-operating altitude	0 - 12192 m
Certificates
Certification	ENERGY STAR 9.0 EPEAT Gold Registered ErP Lot 3/7 GREENGUARD RoHS / WEEE / REACH
Weight & dimensions
Width	179 mm
Depth	182.9 mm
Height	36.5 mm
Weight	890 g
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
