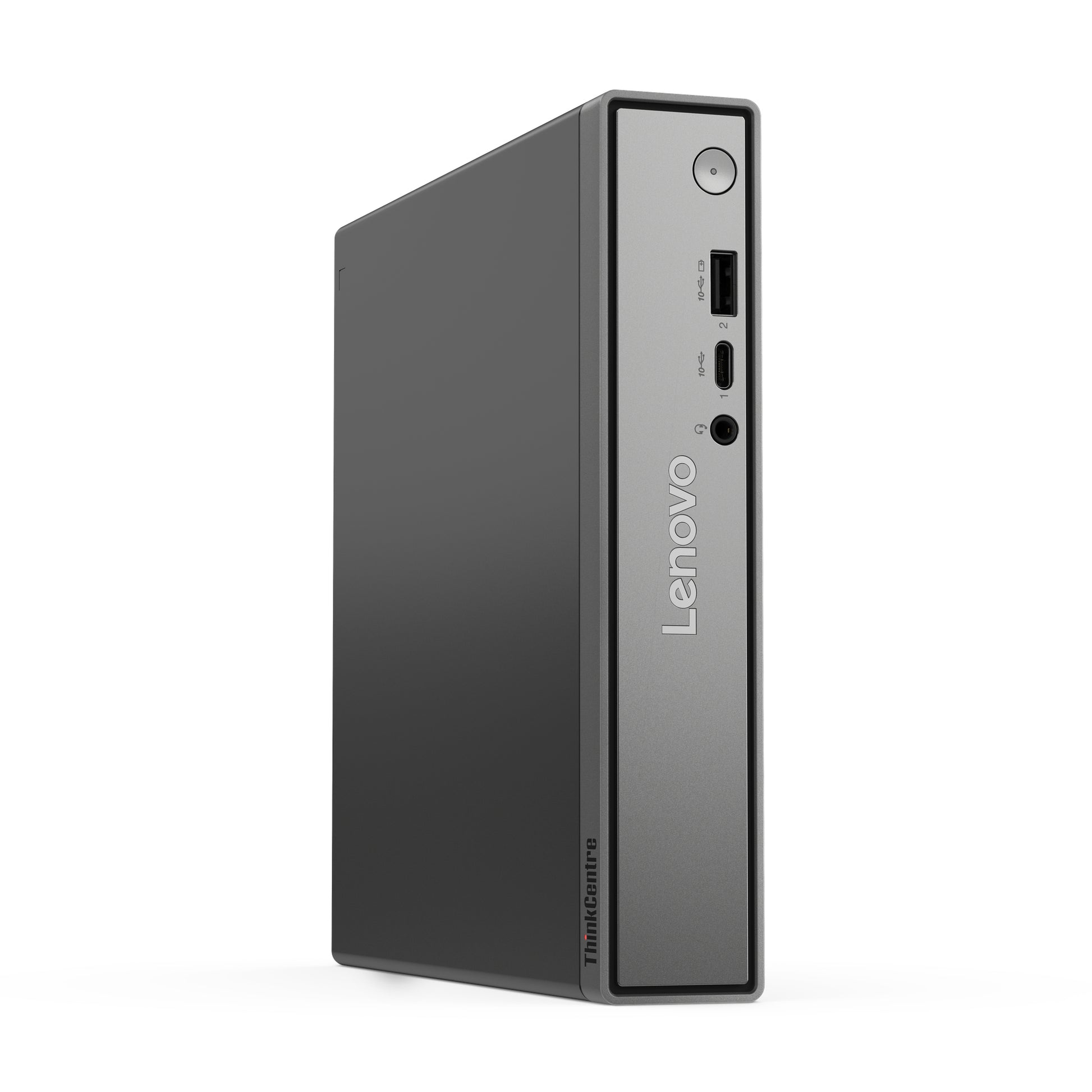

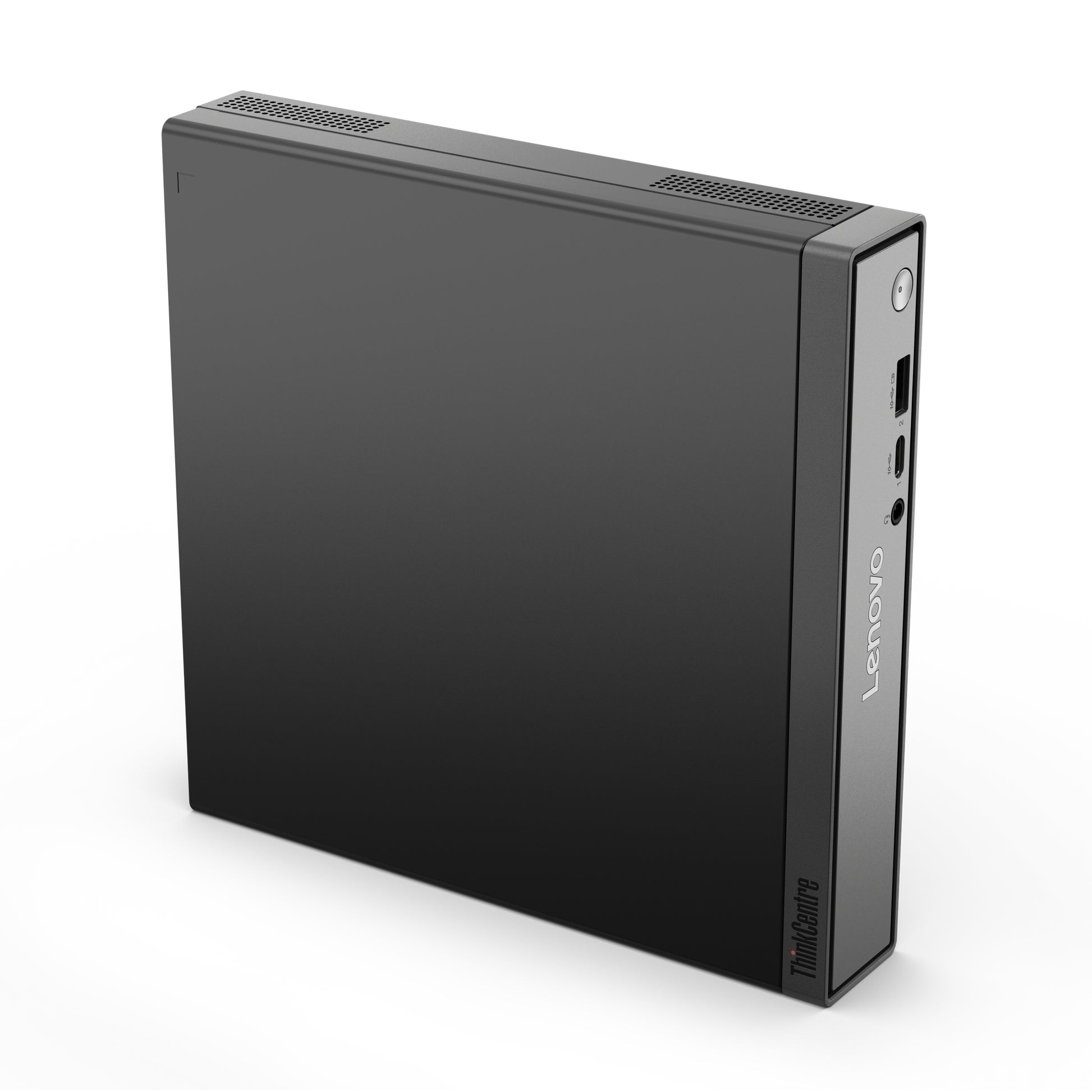

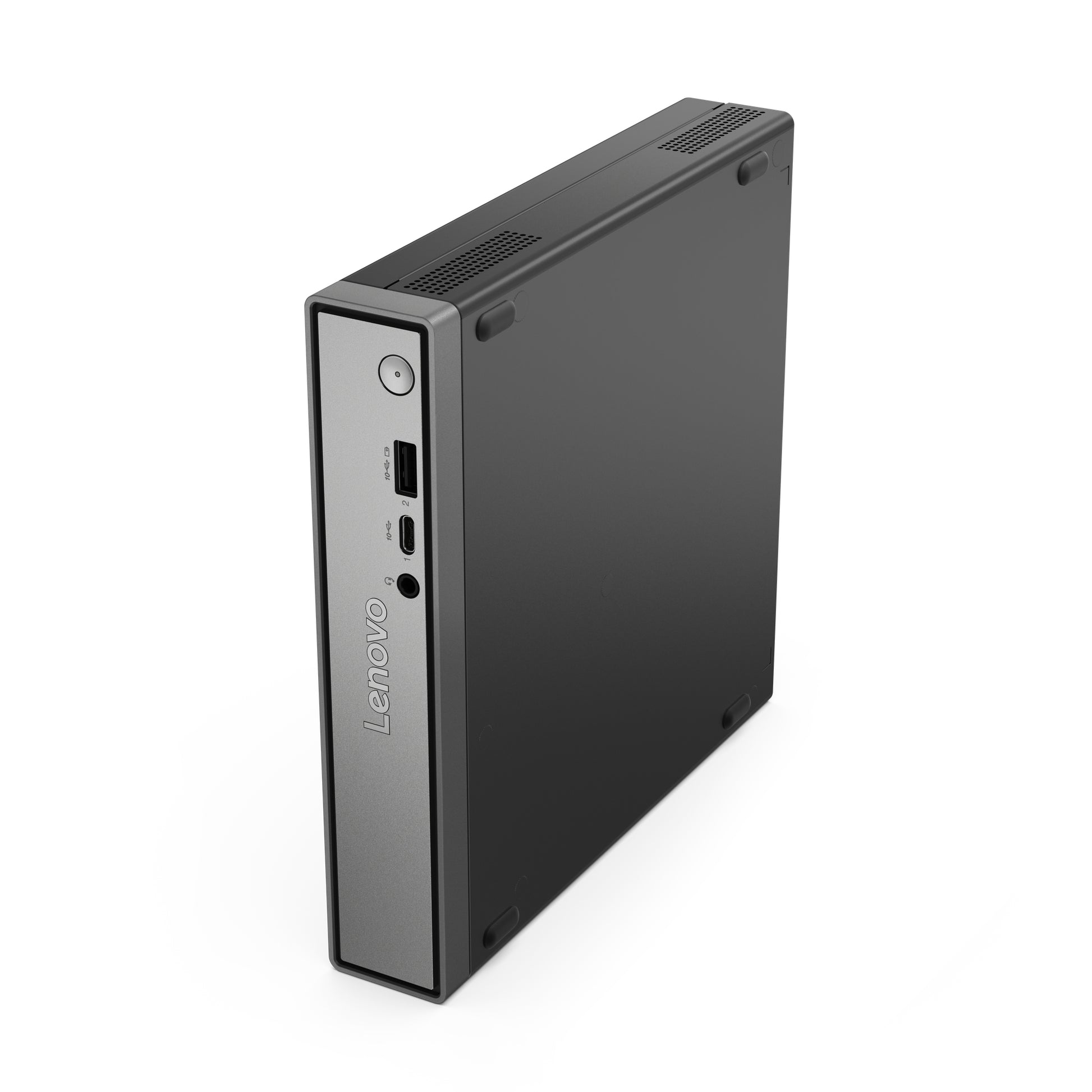

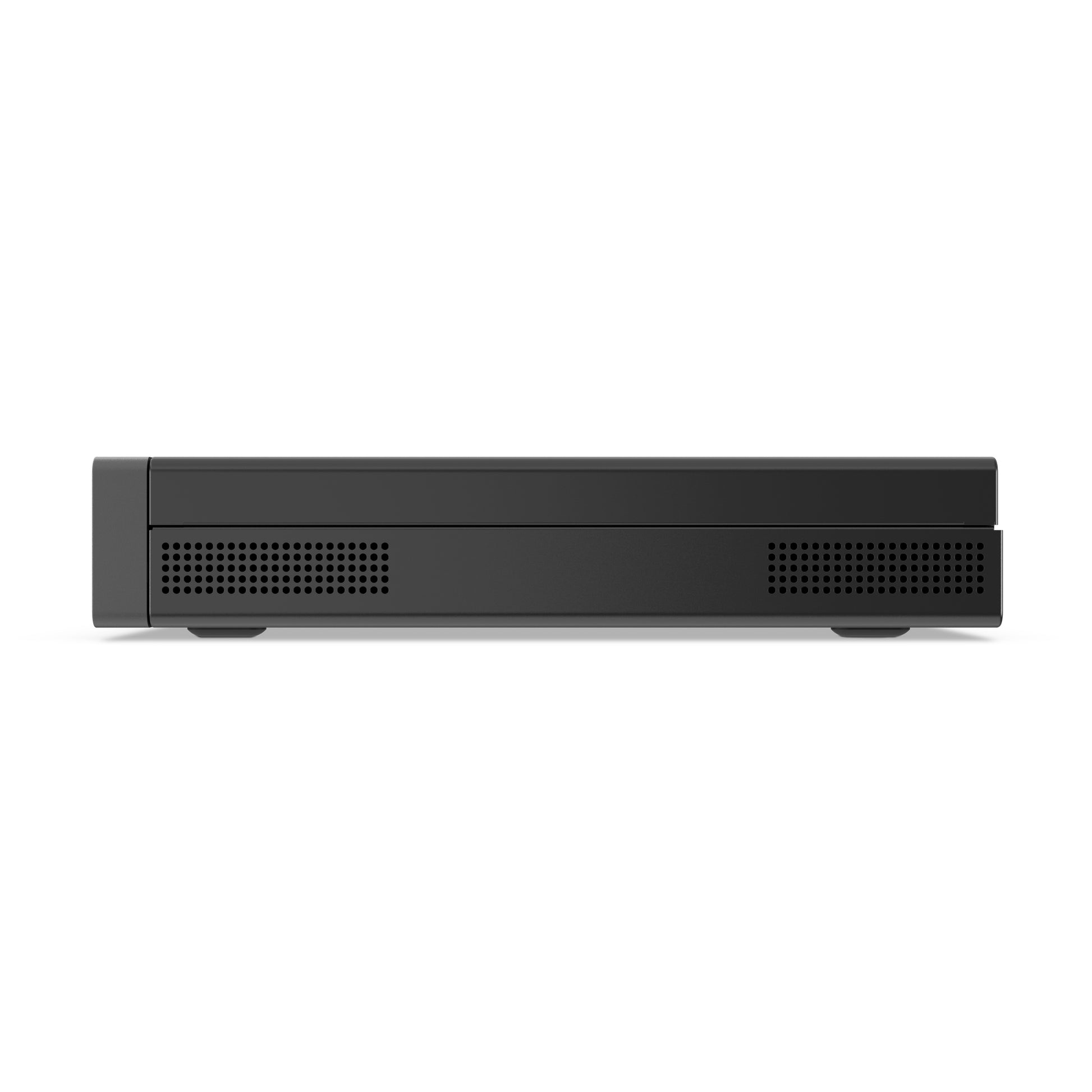

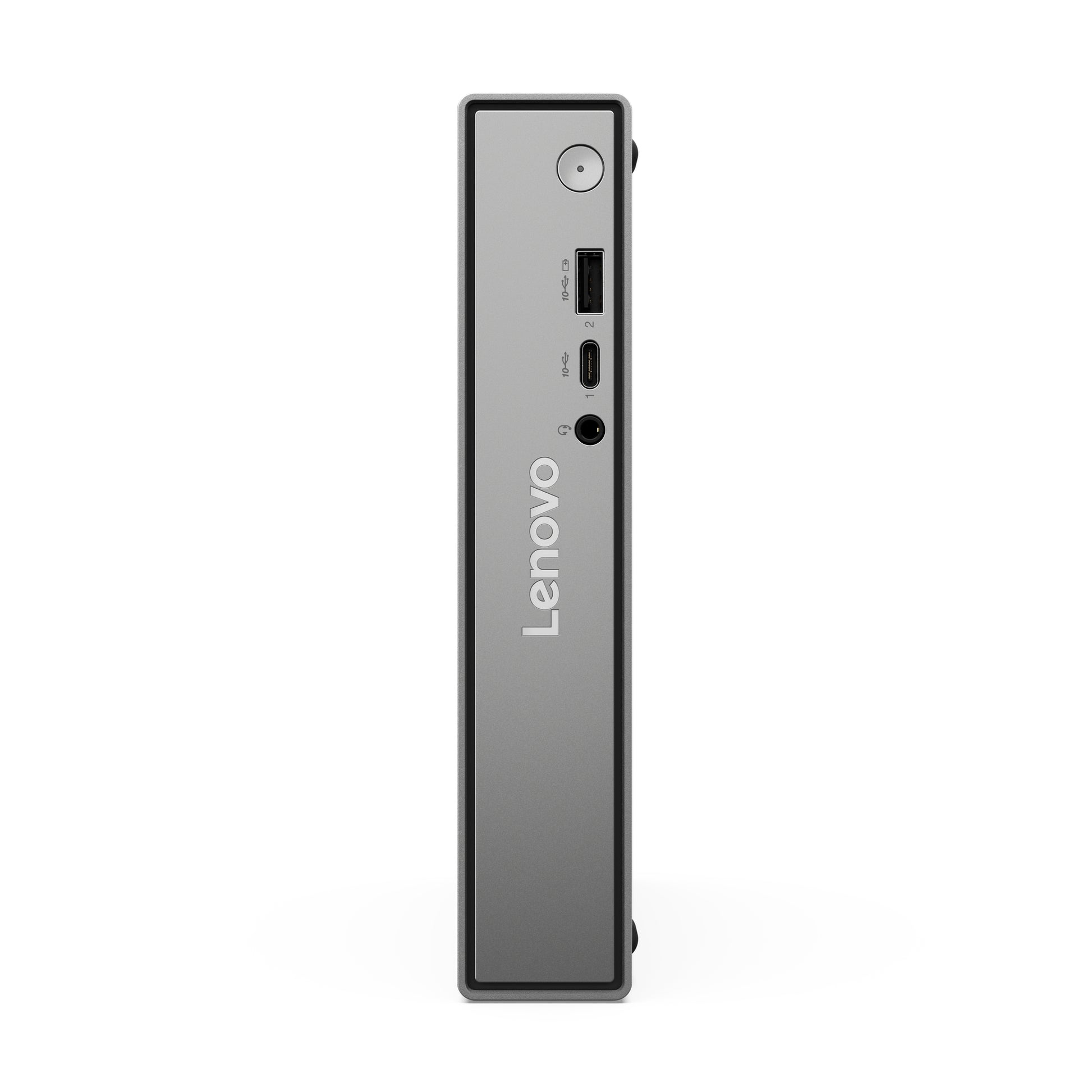

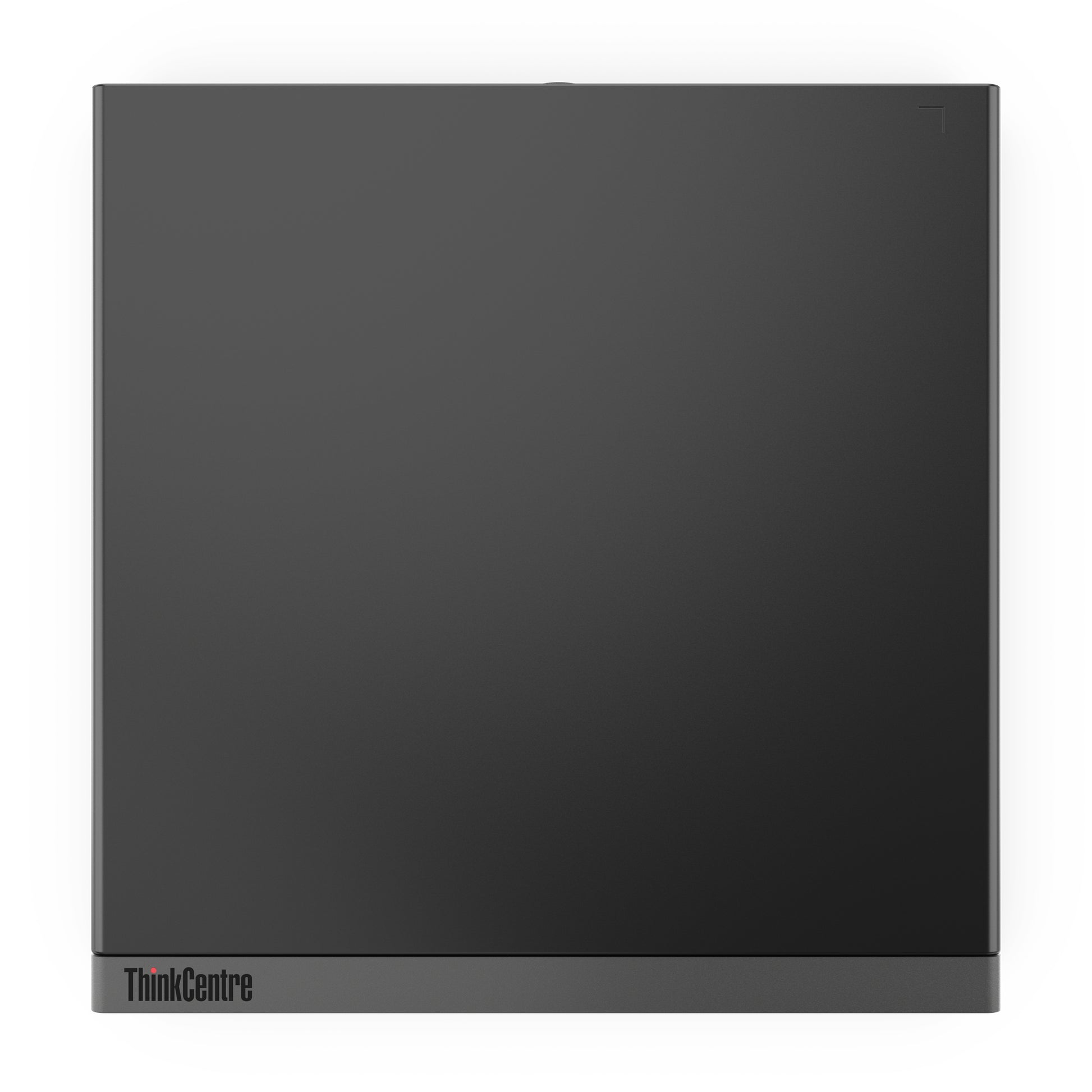

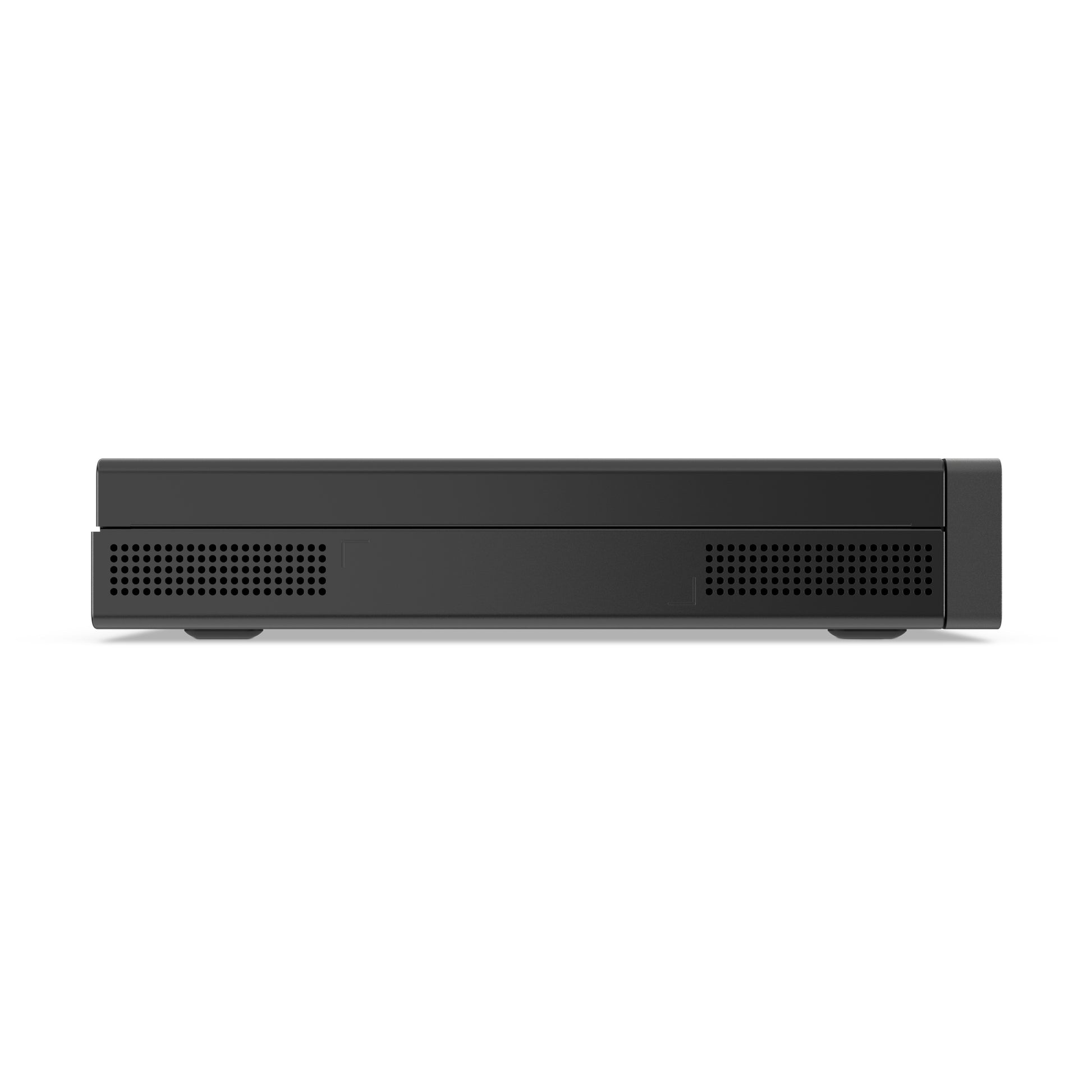

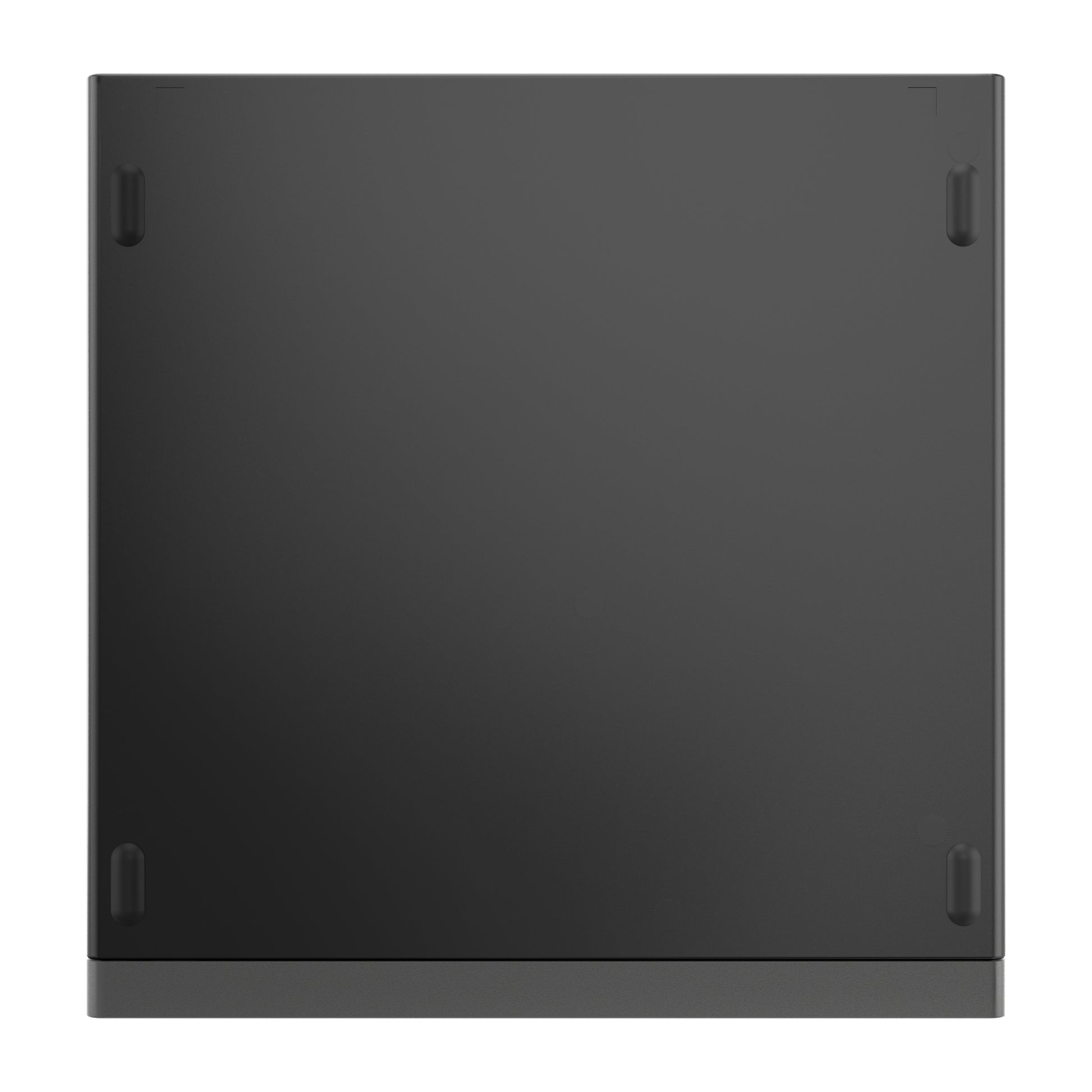

Lenovo ThinkCentre neo 50q Gen 5 Core 5 210H 8GB 256GB SSD Mini PC

Small enough to hide behind a monitor, the Lenovo ThinkCentre neo 50q Gen 5 still packs Core 5 210H with 8GB RAM for full desktop duty.

Tiny PC With Heavyweight Performance
- 1L Tiny PC with Intel® Core™ processing power
- ICE 7.0 for efficient device performance
- Ample connectivity options for multitasking

Specifications

Processor
Processor generation	Intel Core (Series 2)
Processor cache type	Smart Cache
Processor cache	12 MB
Processor model	210H
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.8 GHz
Processor threads	12
Processor cores	8
Processor family	Intel Core 5
Performance cores	4
Efficient cores	4
Performance-core base frequency	2.2 GHz
Efficient-core base frequency	1.6 GHz
Processor base power	45 W
Maximum turbo power	115 W
Efficient-core Max Turbo Frequency	3.6 GHz
Memory
Memory layout (slots x size)	1 x 8 GB
Internal memory	8 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	256 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	256 GB
SSD form factor	M.2
Total SSDs capacity	256 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® Graphics
On-board GPU manufacturer	Intel
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.4
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN data rates	100,1000 Mbit/s
WLAN controller model	Realtek RTL8922AE
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Realtek
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI version	2.1
USB 2.0 ports quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
DisplayPort version	1.4b
Technical details
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Mini PC
Audio system	High Definition Audio
Placement supported	Vertical
Cable lock slot	Yes
Motherboard chipset	Intel SoC
Design
Volume	1 L
Performance
Audio chip	Realtek ALC256
Number of speakers	1
Password protection	Yes
Password protection type	BIOS, HDD, Supervisor
Built-in speaker(s)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system language	English
Operating system installed	Windows 11 Pro
Power
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Power supply	90 W
Operational conditions
Operating altitude	0 - 3048 m
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 35 °C
Non-operating altitude	0 - 12192 m
Certificates
Certification	ENERGY STAR 9.0 RoHS compliant TCO Certified, generation 10
Weight & dimensions
Package width	240 mm
Package depth	250 mm
Package height	186 mm
Width	179 mm
Depth	182.9 mm
Height	36.5 mm
Package weight	2.03 kg
Weight	1.13 kg
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
