Lenovo

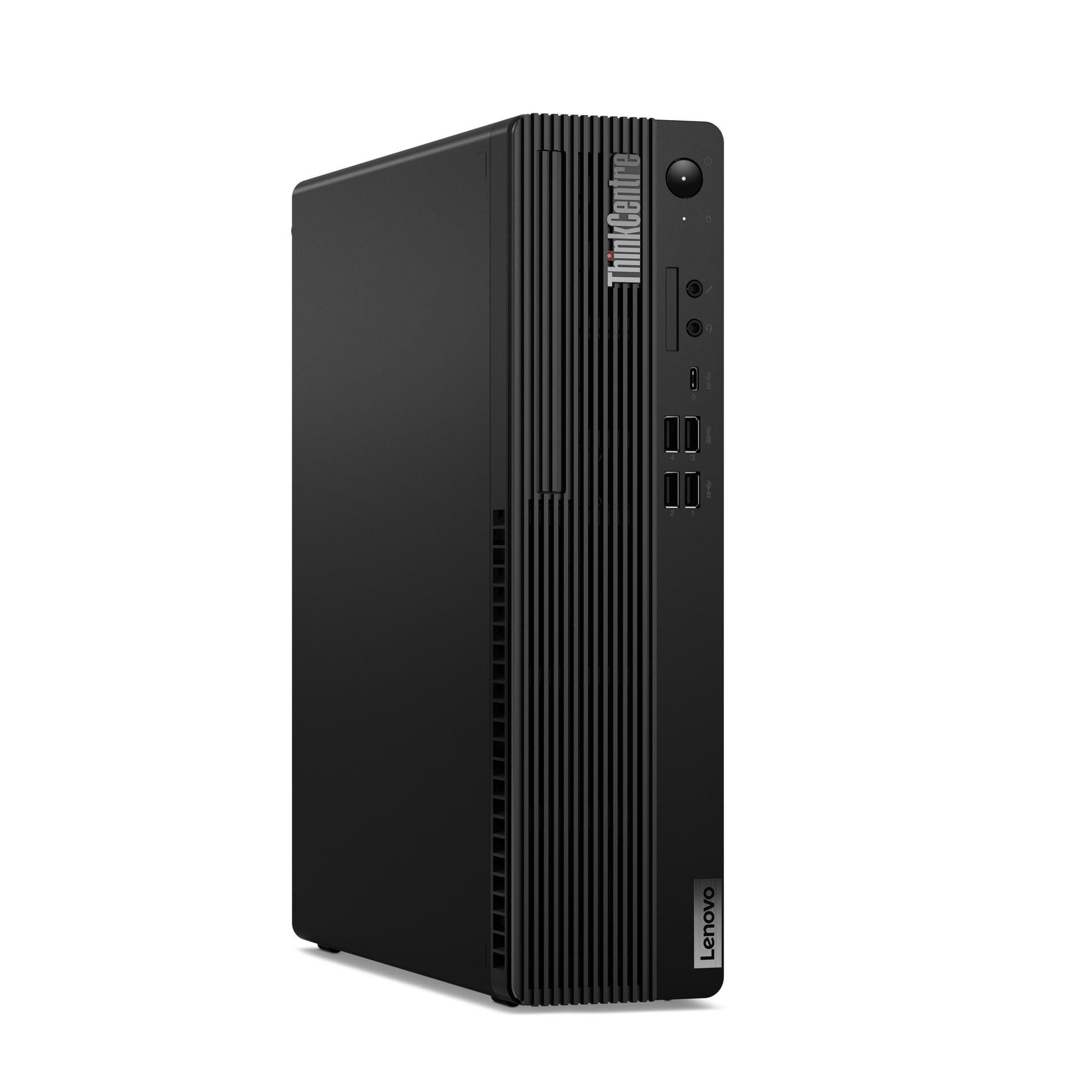

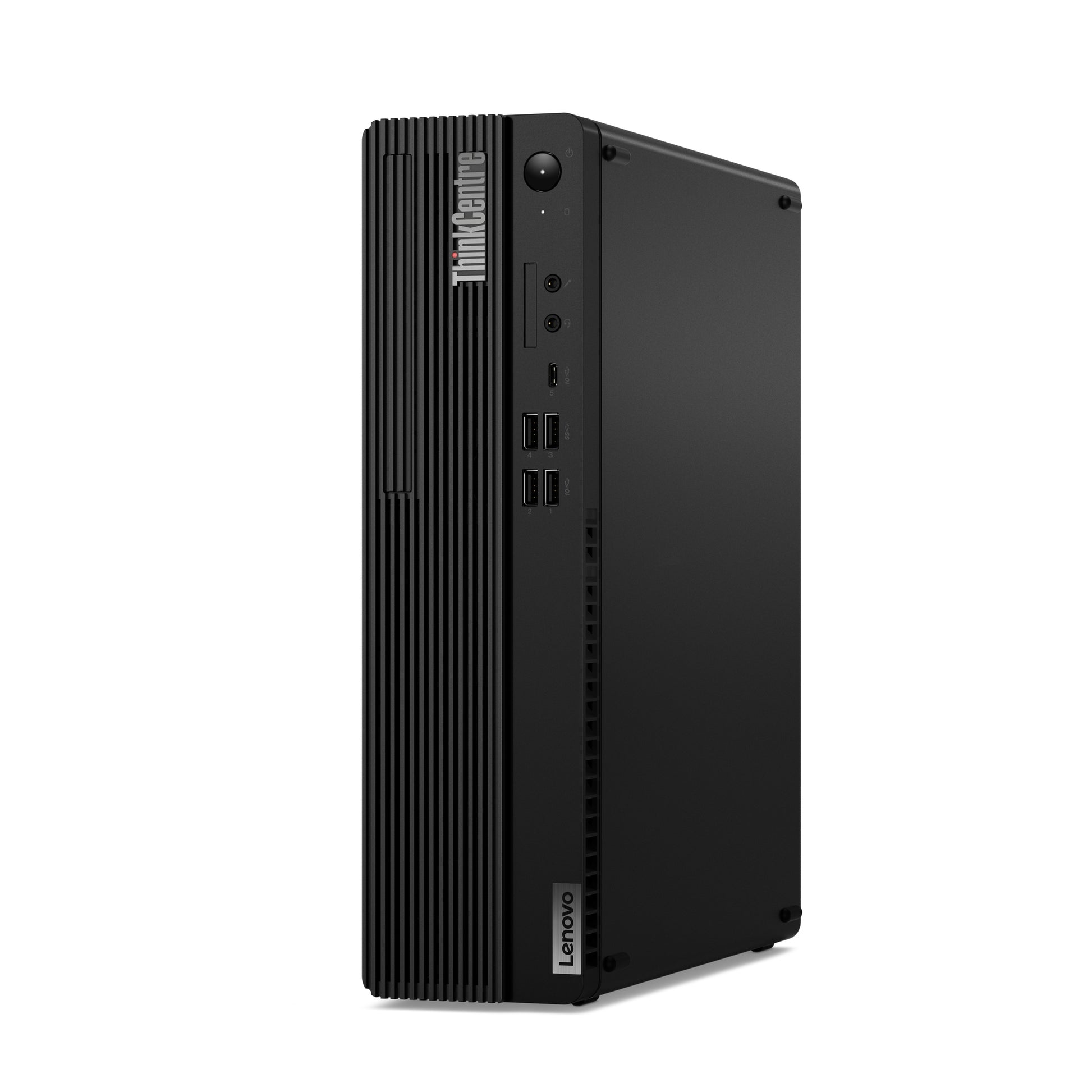

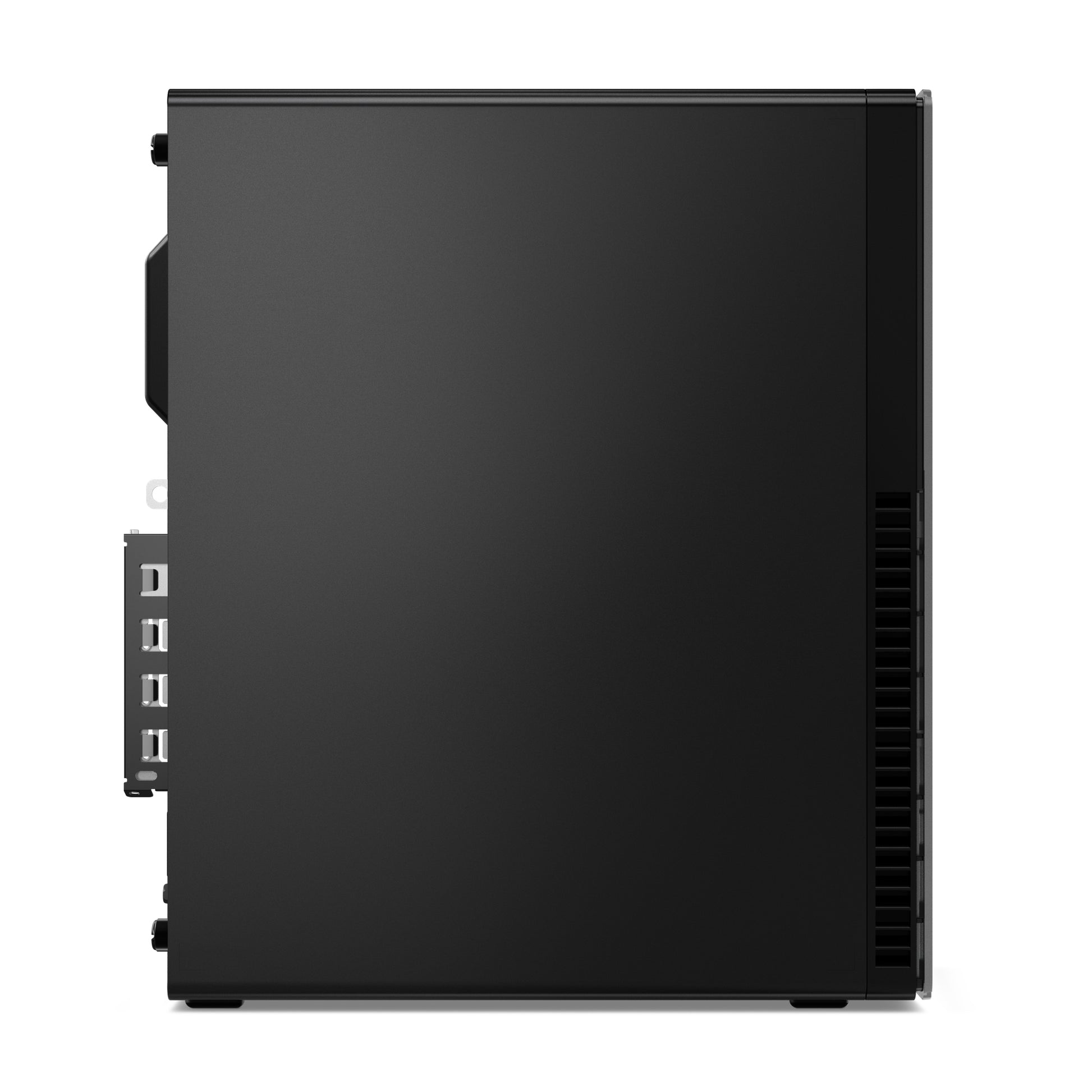

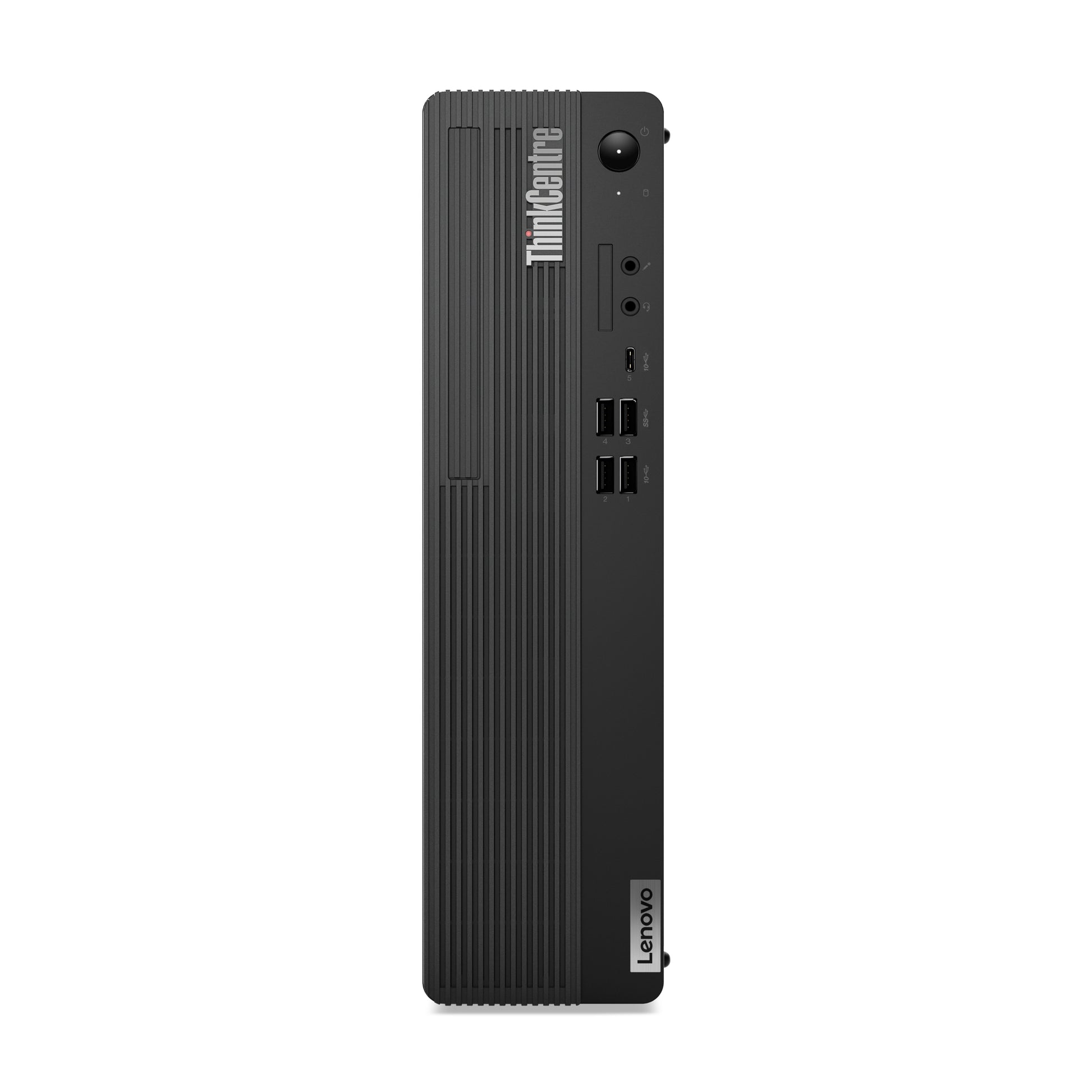

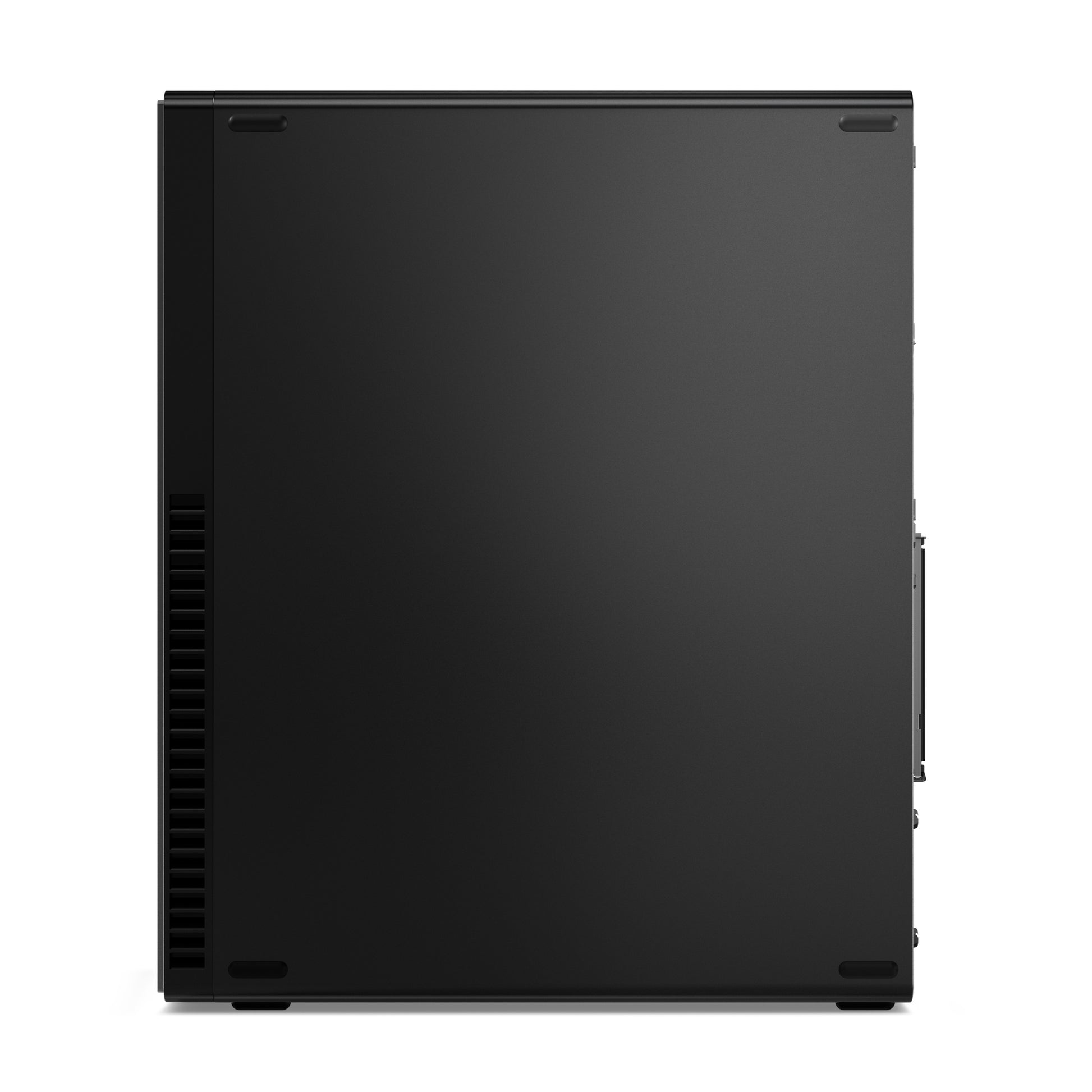

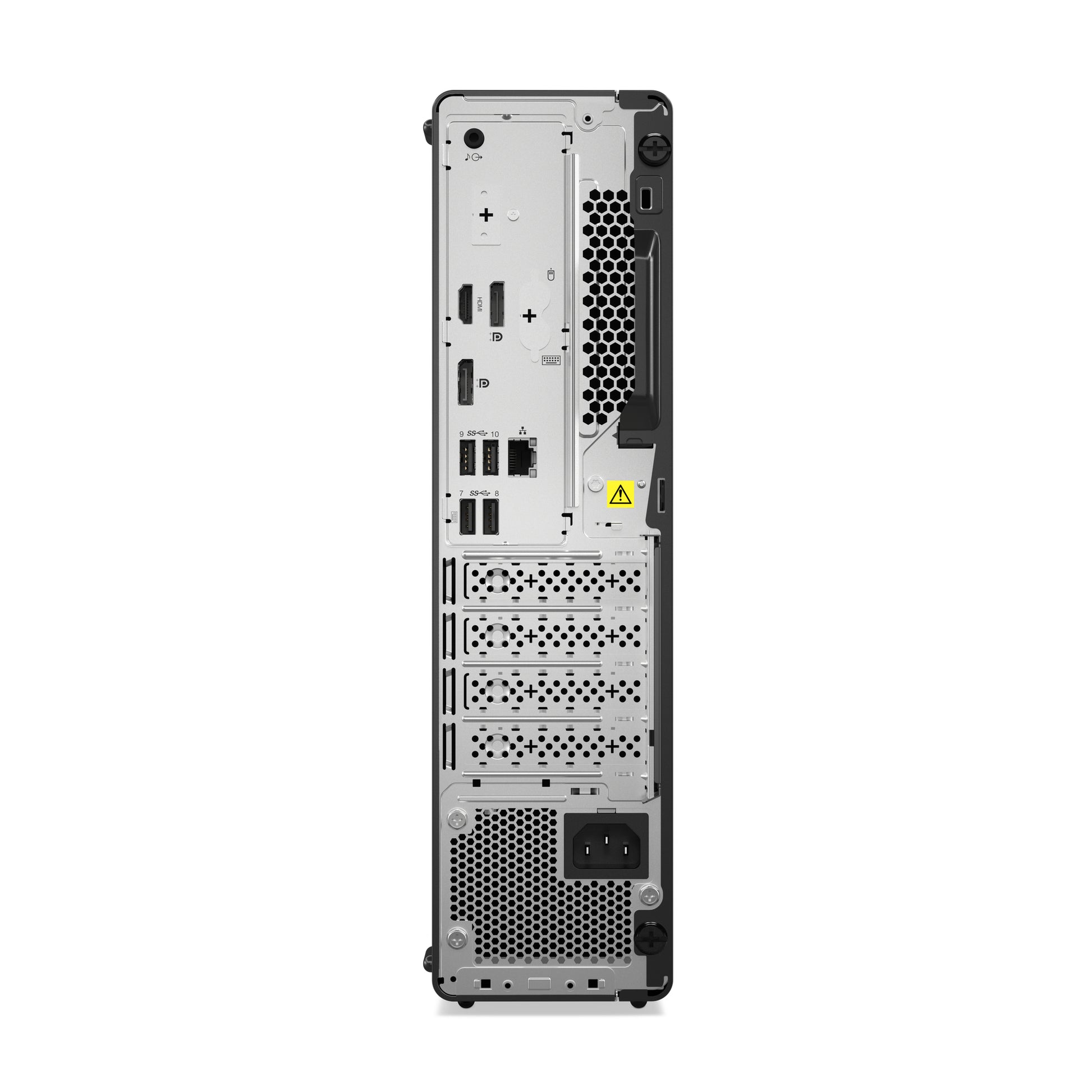

Lenovo ThinkCentre M90s Gen 5 Core i7-14700 16GB 512GB SSD SFF Desktop PC
Lenovo ThinkCentre M90s Gen 5 Core i7-14700 16GB 512GB SSD SFF Desktop PC
Regular price
£1,032.50 GBP
Regular price
Sale price
£1,032.50 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Office-ready out of the box, the Lenovo ThinkCentre M90s Gen 5 runs the daily workload on Core i7-14700, 16GB RAM and 512GB SSD.
Intel Core i7-14700, 20C (8P + 12E)/28T, Max Turbo up to 5.4GHz, P-core 2.1/5.3GHz, E-core 1.5/4.2GHz, 33MB Intel Smart Cache, 1x 16GB UDIMM DDR5-4400, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel UHD Graphics 770, Intel Wi-Fi 6E AX211 802.11ax 2x2 + BT5.3 vPro, Windows 11 Pro
Specifications
| Processor | |
|---|---|
| Processor frequency | 2.1 GHz |
| Processor model | i7-14700 |
| Processor manufacturer | Intel |
| Processor boost frequency | 5.3 GHz |
| Processor threads | 28 |
| Processor cores | 20 |
| Processor family | Intel® Core™ i7 |
| Memory | |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Memory slots | 4x DIMM |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4400 MHz |
| Storage | |
| Storage media | SSD |
| Optical drive type | DVD±RW |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Card reader integrated | Yes |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board GPU manufacturer | Intel |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 0 |
| Microphone in | Yes |
| Line-out | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| Technical details | |
| Cable lock slot type | Kensington |
| Product type | PC |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Black |
| Chassis type | SFF |
| Audio system | High Definition Audio |
| Cable lock slot | Yes |
| Motherboard chipset | Intel Q670 |
| Design | |
| Volume | 8.2 L |
| Performance | |
| Audio chip | Realtek ALC897Q-CG |
| Number of speakers | 1 |
| Software | |
| Operating system language | English |
| Operating system installed | Windows 11 Pro |
| Power | |
| Power supply | 310 W |
| Certificates | |
| Certification | TCO,RoHS |
| Weight & dimensions | |
| Width | 92.5 mm |
| Depth | 297.7 mm |
| Height | 339.5 mm |
| Weight | 5.3 kg |
| Packaging content | |
| Mouse included | Yes |
| Keyboard included | Yes |
| Mouse connectivity | Wired |
| Keyboard connectivity | Wired |
