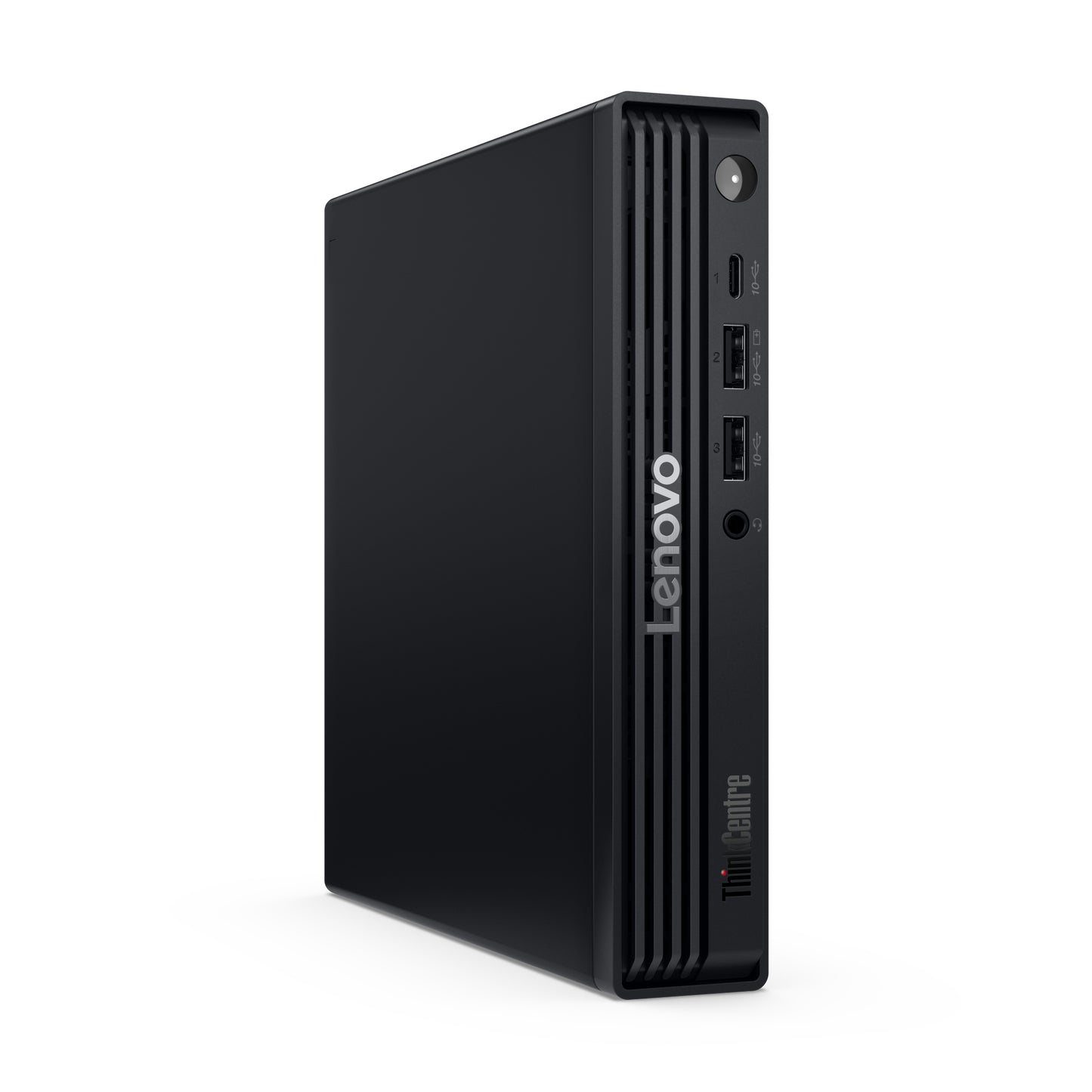

Lenovo ThinkCentre M70q Gen 6 Core Ultra 5 225T 16GB 512GB SSD Mini PC

Small enough to hide behind a monitor, the Lenovo ThinkCentre M70q Gen 6 still packs Core Ultra 5 225T with 16GB RAM for full desktop duty.

ENSURED PRODUCTIVITY FOR PROFESSIONALS
AI-Assisted Performance

Supercharge your workflow with the ThinkCentre M70q Gen 6 Tiny PC. Powered by Intel® Core™ Ultra processors, it features Intel vPro® for security and IT manageability. Lenovo AI Now drives AI acceleration, while the AI Turbo Engine allocates workloads between CPU, GPU, and NPU for peak performance. Plus, WiFi 7 ensures blazing-fast connectivity.

BIG POWER & FLEXIBILITY
Multitask Like a Pro

Enjoy unmatched productivity with faster USB speeds and multiple ports. Connect the ThinkCentre M70q Tiny PC to up to four displays to power through tasks with vast memory and expandable storage. With an optional USB-C® (Thunderbolt™ 4) port and Neural Processing Unit (NPU), enhance hybrid and digital workplace expansion for a broadened ecosystem.

ALL-AROUND SAFETY IN PLACE
Robust Security & Manageability

This secured-core PC (L3) features ThinkShield security, encompassing hardware and software solutions. Get additional safeguards with a self-healing BIOS, dTPM chip, Kensington Security Slot™, and Smart USB Protection. Choose Intel vPro® security for advanced threat protection while securing your data and business with ThinkCentre Customization.

DURABILITY YOU CAN RELY ON
Intentional Engineering to Boost Efficiency

This PC uses the US Department of Defense MIL-STD-810H for a balance of reliability and durability. With TüV anti-dust, low surface, and shock-resistance certifications, it stands strong in tough environments, while ensuring safety through IEC Electrical Safety and Electromagnetic certifications, offering first-class manageability for any workspace.

CREDIBILITY & COLLABORATION
Sustainability

Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Specifications may vary depending upon region / model.

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache type	Smart Cache
Processor cache	20 MB
Processor model	225T
Processor manufacturer	Intel
Processor boost frequency	4.9 GHz
Processor threads	10
Processor cores	10
Processor family	Intel Core Ultra 5
Performance cores	6
Efficient cores	4
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.9 GHz
Processor base power	35 W
Maximum turbo power	114 W
Efficient-core Max Turbo Frequency	4.4 GHz
Performance-core Max Turbo Frequency	4.9 GHz
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, WebNN, Windows ML
Total processor performance up to	23 TOPs
NPU performance up to	13 TOPs
Memory
Memory layout (slots x size)	1 x 16 GB
Internal memory	16 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	512 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	512 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® Graphics
On-board GPU manufacturer	Intel
Performance
Password protection	Yes
Password protection type	BIOS, HDD, Power on, Supervisor
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Built-in speaker(s)	Yes
Motherboard chipset	Intel B860
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC233VB
Number of speakers	1
Audio system	High Definition Audio
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.2
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Wake-on-LAN ready	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Intel Wi-Fi 6 AX203
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
LAN controller	Intel® I219-LM
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI version	2.1
USB 2.0 ports quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
DisplayPort version	1.4a
Power
Power supply	90 W
Technical details
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Sustainability certificates	ENERGY STAR, TCO
Compliance certificates	RoHS
Design
Volume	1 L
Colour name	Raven black
Software
Operating system language	English, German, Dutch, French, Italian
Operating system installed	Windows 11 Pro
Display
Display included	No
Operational conditions
Operating altitude	0 - 3048 m
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 35 °C
Non-operating altitude	0 - 12192 m
Weight & dimensions
Package width	250 mm
Package depth	490 mm
Package height	128 mm
Width	179 mm
Depth	182.9 mm
Height	36.5 mm
Package weight	3.2 kg
Weight	1.18 kg
Packaging content
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Certificates
Certification	ENERGY STAR,TCO,RoHS
