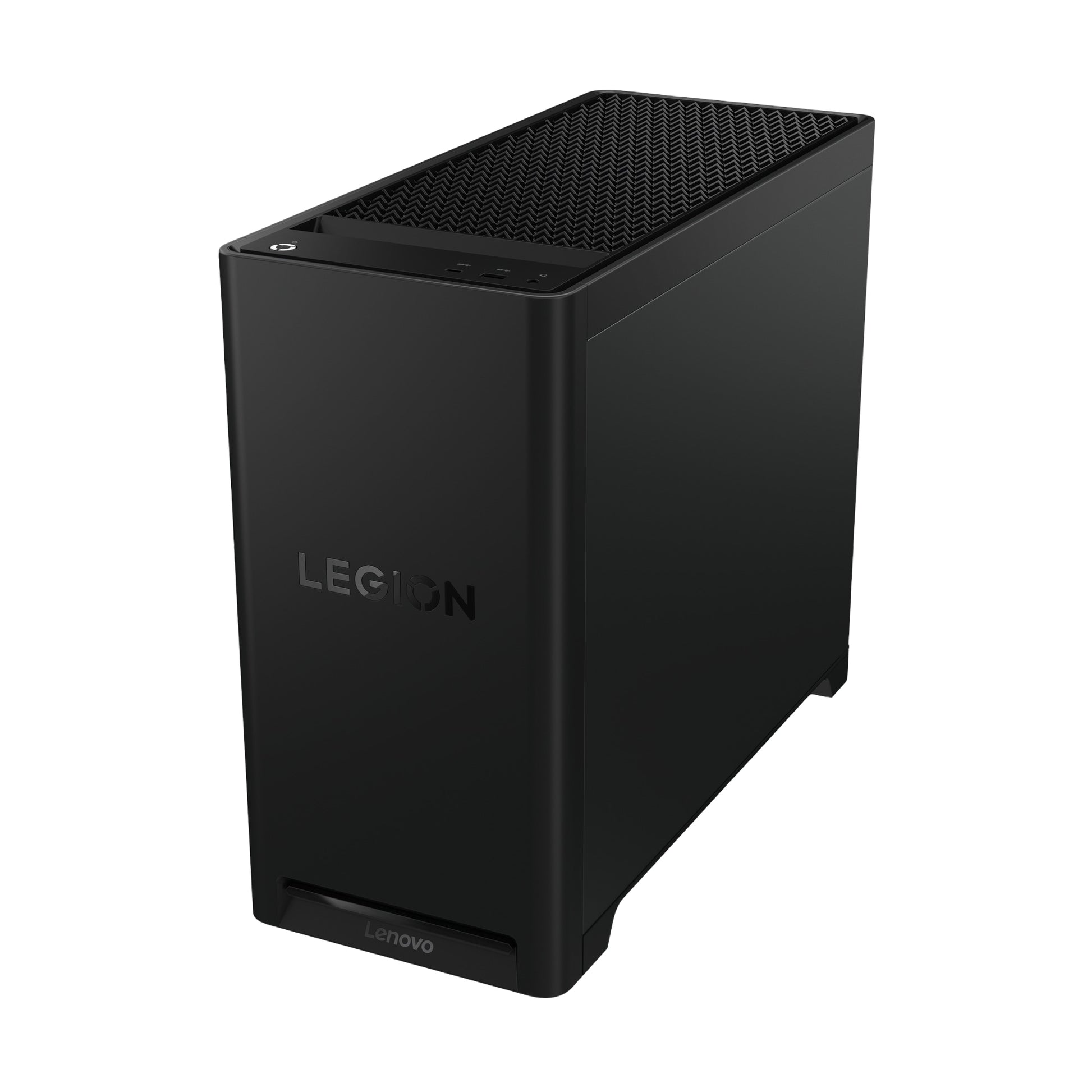

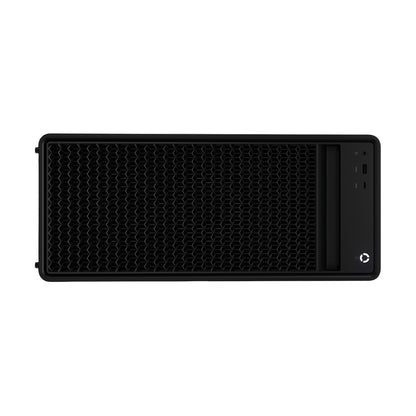

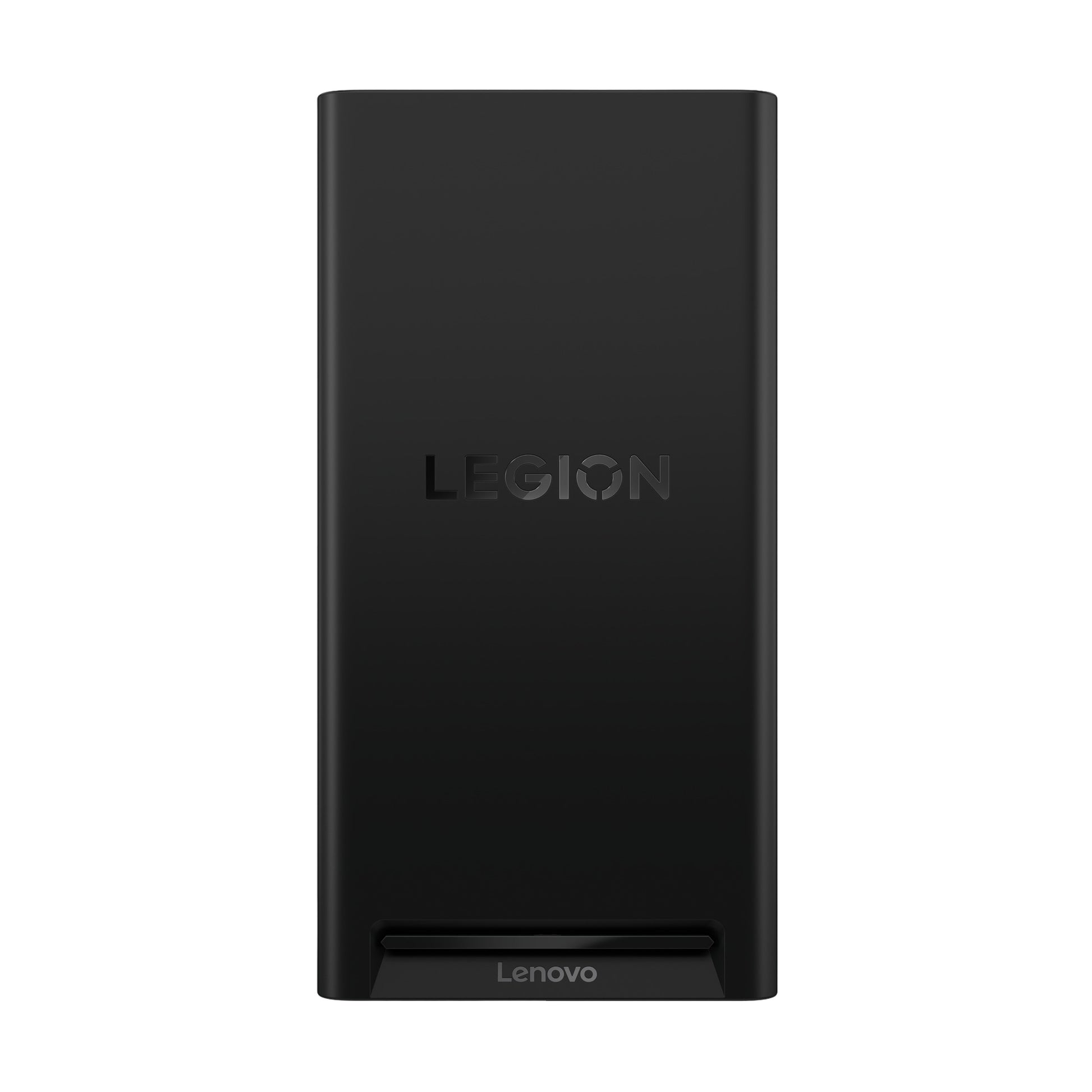

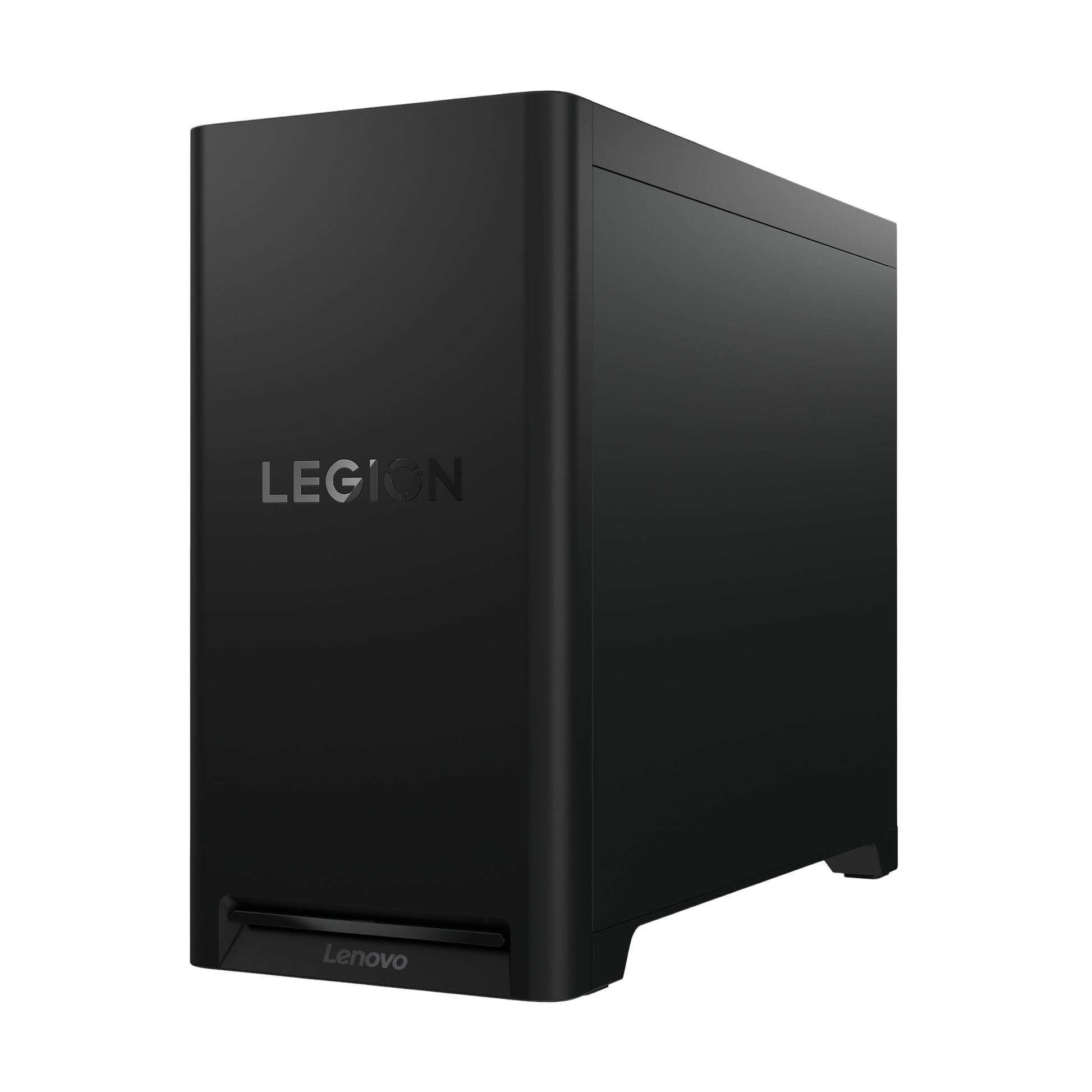

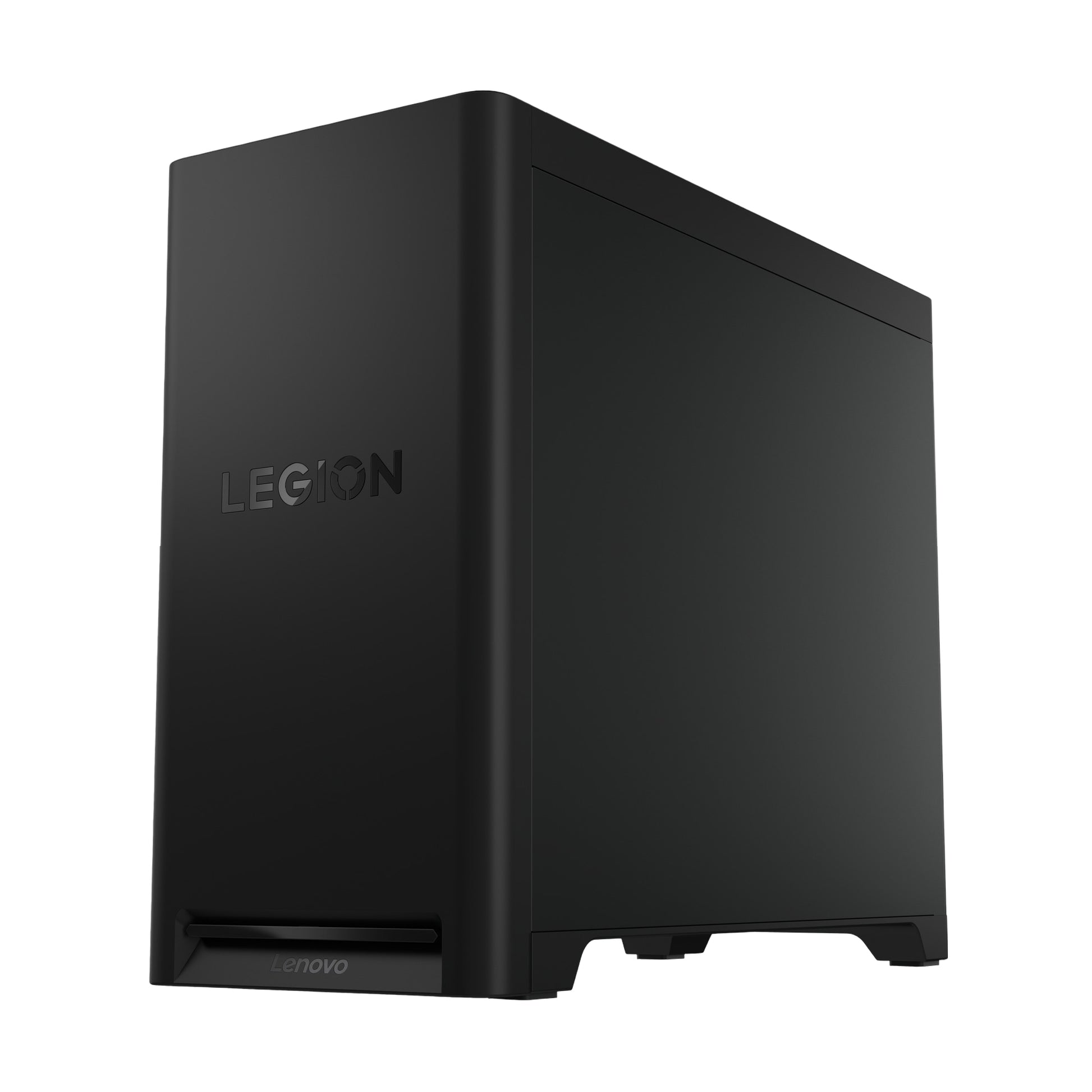

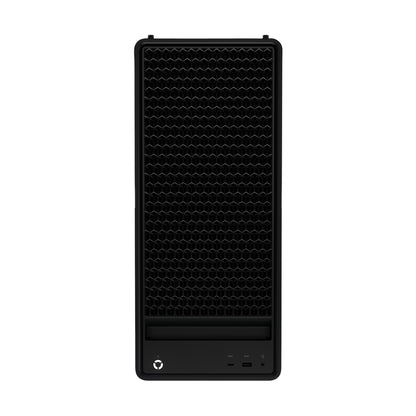

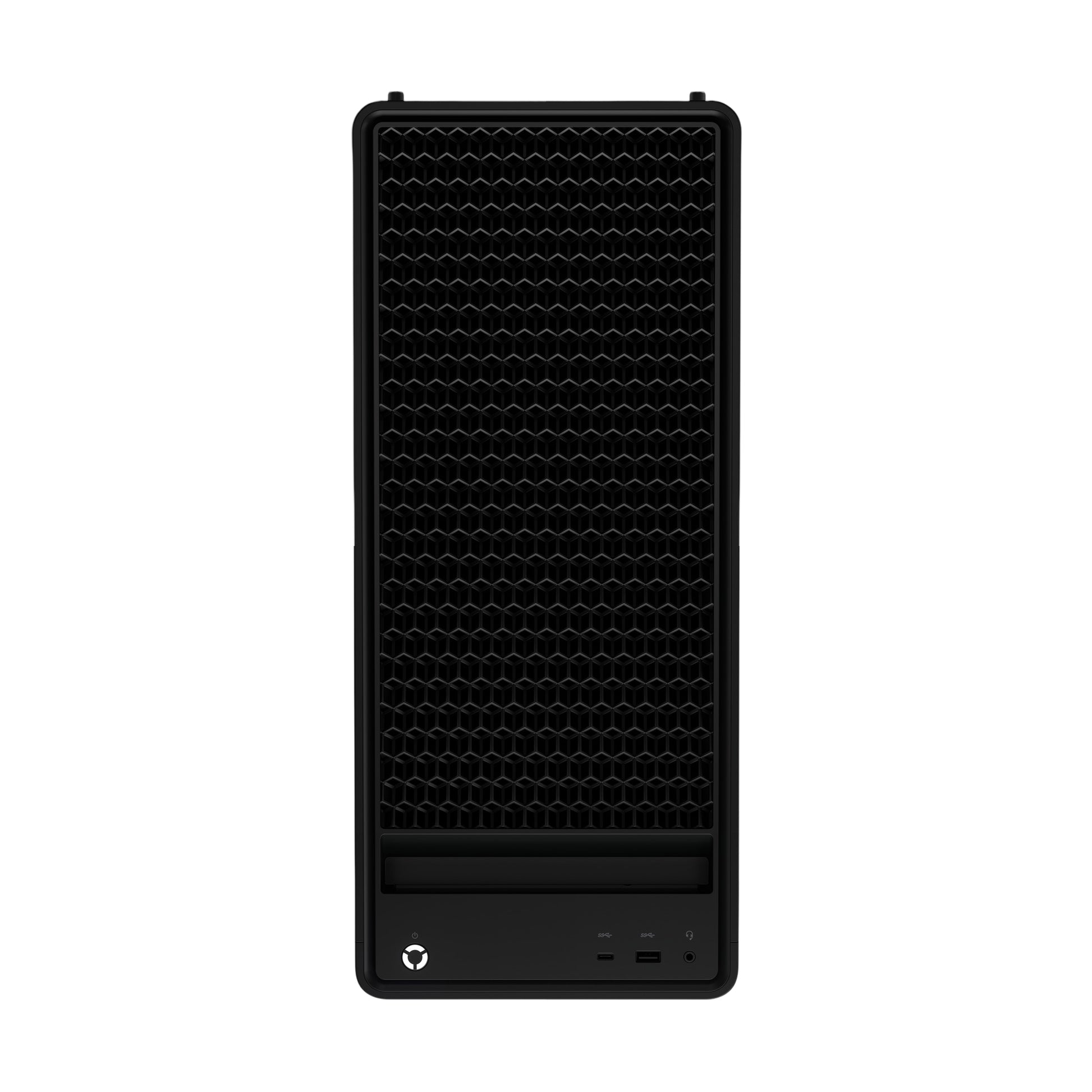

Lenovo Legion T5 30IAX10 Core Ultra 7 255HX 16GB 1TB SSD NVIDIA GeForce RTX 5060 Tower PC

With discrete NVIDIA GeForce RTX 5060 graphics behind its Core Ultra 7 255HX, the Lenovo Legion T5 30IAX10 takes on gaming, creative work and GPU-accelerated tasks head-on.

- Game & stream fast with superior performance of Intel® Core™ Ultra processors
- Enjoy high-FPS gaming with NVIDIA® GeForce RTX® 50 Series GPUs
- Improved Legion Coldfront cooling with up to 180W air cooling or up to 230W liquid cooling
- Future-proof your rig with a tool-less side panel for easy upgrades
- Load games faster & multitask seamlessly with expandable memory & storage

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache	30 MB
Processor model	255HX
Processor manufacturer	Intel
Processor boost frequency	5.2 GHz
Processor threads	20
Processor cores	20
Processor family	Intel Core Ultra 7
Performance cores	8
Efficient cores	12
Performance-core base frequency	2.4 GHz
Efficient-core base frequency	1.8 GHz
Processor base power	55 W
Maximum turbo power	160 W
Efficient-core Max Turbo Frequency	4.5 GHz
Performance-core Max Turbo Frequency	5.2 GHz
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	33 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Memory
Memory layout (slots x size)	1 x 16 GB
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Storage
Storage media	SSD
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	1 TB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	1 TB
SSD form factor	M.2
Total SSDs capacity	1 TB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	8 GB
On-board graphics card family	Intel® Graphics
On-board graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 5060
Discrete graphics memory type	GDDR7
On-board graphics card model	Intel® Graphics
Discrete GPU manufacturer	NVIDIA
On-board GPU manufacturer	Intel
Performance
Product type	PC
Trusted Platform Module (TPM)	Yes
Motherboard chipset	Intel HM870
Audio chip	Realtek ALC623
Audio system	High Definition Audio
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.4
Wi-Fi standards	Wi-Fi 7 (802.11be)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Power
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Power supply	500 W
Technical details
Product colour	Black
Chassis type	Tower
Design
Volume	30 L
Colour name	Eclipse Black
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 11 Home
Display
Display included	No
Operational conditions
Operating altitude	0 - 3048 m
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 35 °C
Non-operating altitude	0 - 12192 m
Weight & dimensions
Width	211 mm
Depth	490.4 mm
Height	414 mm
Weight	15 kg
Certificates
Certification	RoHS
