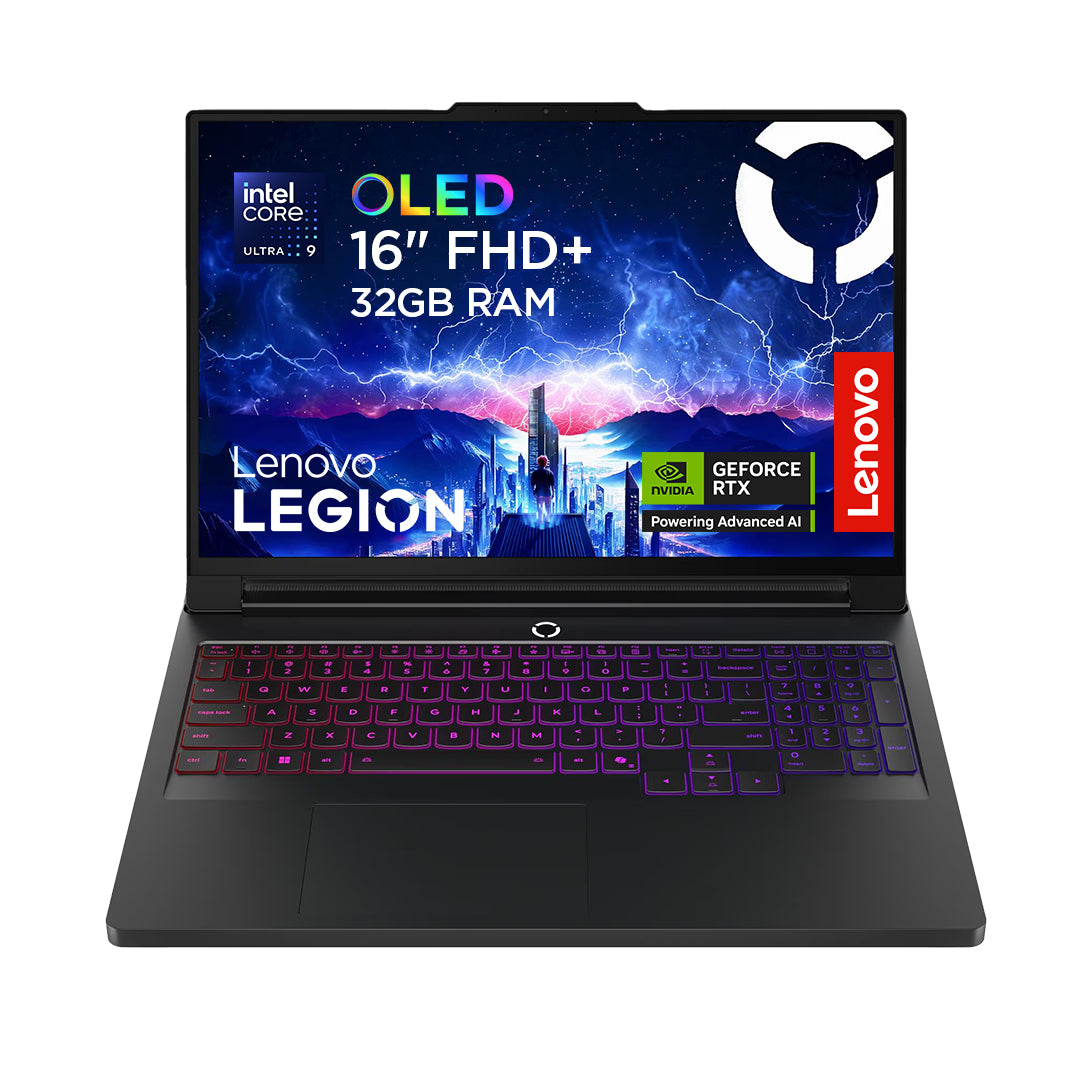

Lenovo Legion Pro 7 16IAX10H 16" Core Ultra 9 275HX 32GB 1TB SSD Laptop

Built for gaming, the Lenovo Legion Pro 7 16IAX10H combines its Core Ultra 9 275HX and 16" display for smooth, immersive play.

Out-Play. Out-Perform. Out-Pro.
Unlock your eSports potential with this 16″ AI-enhanced gaming laptop that’s built to keep you at the top of the rankings no matter what lobby you’re in.- Includes Intel® Core™ Ultra processors for superior performance
- Features GeForce RTX™ 50 series GPUs with NVIDIA DLSS 4
- Advanced Lenovo AI Engine+ for real-time optimizations

Specifications

Design
Colour name	Eclipse Black
Product type	Laptop
Housing material	Aluminium
Form factor	Clamshell
Product colour	Black
Country of origin	China
Display
HD type	WQXGA
Display surface	Gloss
Panel type	OLED
LED backlight	Yes
Display brightness	500 cd/m²
Touchscreen	No
Display resolution	2560 x 1600 pixels
Display diagonal	40.6 cm (16")
Maximum refresh rate	240 Hz
RGB colour space	DCI-P3
High Dynamic Range (HDR) technology	Dolby Vision
Colour gamut	100%
Native aspect ratio	16:10
High Dynamic Range (HDR) supported	Yes
Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache	36 MB
Processor model	275HX
Processor boost frequency	5.4 GHz
Processor cores	24
Processor threads	24
Motherboard chipset	Intel HM870
Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor base power	55 W
Maximum turbo power	160 W
Efficient-core base frequency	2.1 GHz
Performance-core base frequency	2.7 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core Max Turbo Frequency	5.4 GHz
Performance cores	8
Efficient cores	16
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	36 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Memory
Memory form factor	SO-DIMM
Internal memory	32 GB
Memory layout (slots x size)	2 x 16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	6400 MHz
Maximum internal memory	32 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express
Card reader integrated	No
Total storage capacity	1 TB
Total SSDs capacity	1 TB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	16 GB
On-board graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 5080
Discrete graphics memory type	GDDR7
Discrete GPU manufacturer	NVIDIA
Audio
Audio chip	Realtek ALC3306
Number of microphones	2
Audio system	Nahimic Audio
Number of built-in speakers	4
Speakers manufacturer	Nahimic
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	5.4
WWAN	Not installed
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Keyboard
Pointing device	Touchpad
Numeric keypad	Yes
Keyboard backlit	Yes
Keyboard language	English
Keyboard backlit colour	RGB
Keyboard backlit zone	Per-key RGB
Software
Operating system language	English
Operating system architecture	64-bit
Trial software	Office
Operating system installed	Windows 11 Home
Technical details
Power cord included	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	99.9 Wh
Continuous video playback time	6.25 h
Fast charging	Yes
Fast charging time (50%)	30 min
Fast charging time (90%)	80 min
Power
AC adapter power	400 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Type-C required charging power (min)	95 W
USB Type-C required charging power (max)	100 W
Security
Trusted Platform Module (TPM)	Yes
Fingerprint reader	No
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Certificates
Certification	RoHS
Weight & dimensions
Width	364.4 mm
Depth	275.9 mm
Height (front)	2.19 cm
Height (rear)	2.67 cm
Weight	2.57 kg
Packaging data
Package width	555 mm
Package height	83 mm
Package depth	354 mm
AC adapter included	Yes
Packaging content
Packaging content	4 Switchable Keycaps
