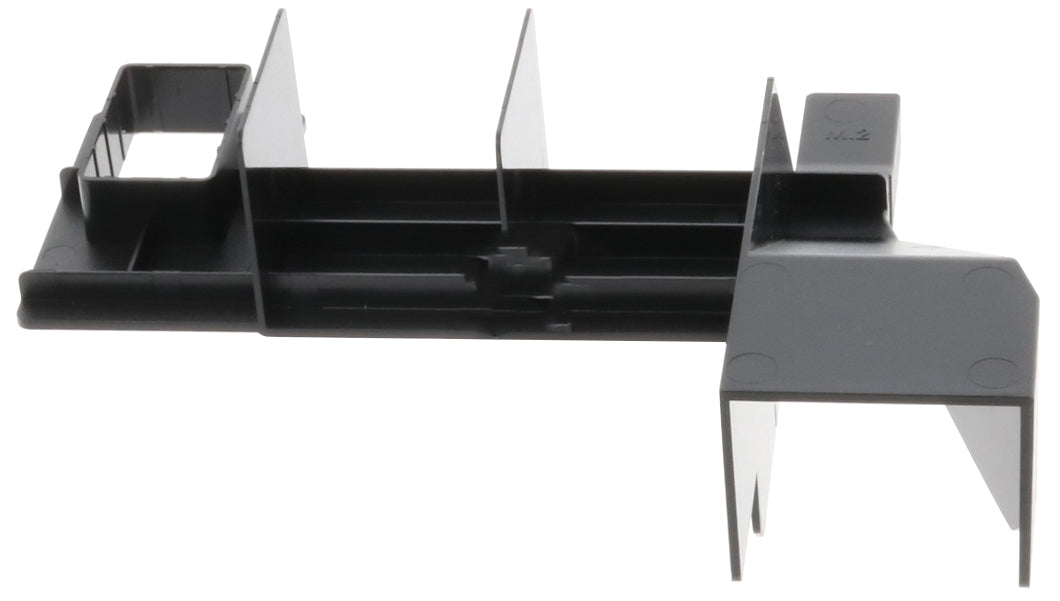

Lenovo 4XH7A08791 computer cooling system part/accessory Mounting kit

Keep temperatures in check with the Lenovo 4XH7A08791 computer cooling system — fitment and noise details are in the spec table.

M.2 is a solid-state drive (SSD) form factor primarily used as an operating system boot solution. Lenovo ThinkSystem servers support M.2 drives either with the addition of a upported M.2 adapter or directly on the system board.

On the ThinkSystem SR150, SR250 and ST250, a single M.2 drive is installed directly on the system board.

On all other support ThinkSystem servers, the M.2 drives install into an M.2 adapter which in turn is installed in a dedicated slot on the system board of the server. With two M.2 drives configured, the drives are configured by default as a RAID-1 mirrored pair for redundancy.

- Single M.2 Adapter, which supports one M.2 drive; available as the ThinkSystem M.2 Enablement Kit
- Dual M.2 Adapter, which supports one or two M.2 drives; available as the ThinkSystem M.2 with Mirroring Enablement Kit

A Dual M.2 Adapter with one 128GB M.2 drive partially inserted is shown in the following figure. The second M.2 drive is installed on the other side of the adapter.

Specifications

Features
Fan diameter	No
Product colour	Black, Blue, Green
Type	Mounting kit
Compatible processor series	Not supported
Weight & dimensions
Width	80 mm
Depth	22 mm
Packaging data
Quantity per pack	1 pc(s)

Downloads

• Datasheet (PDF)
