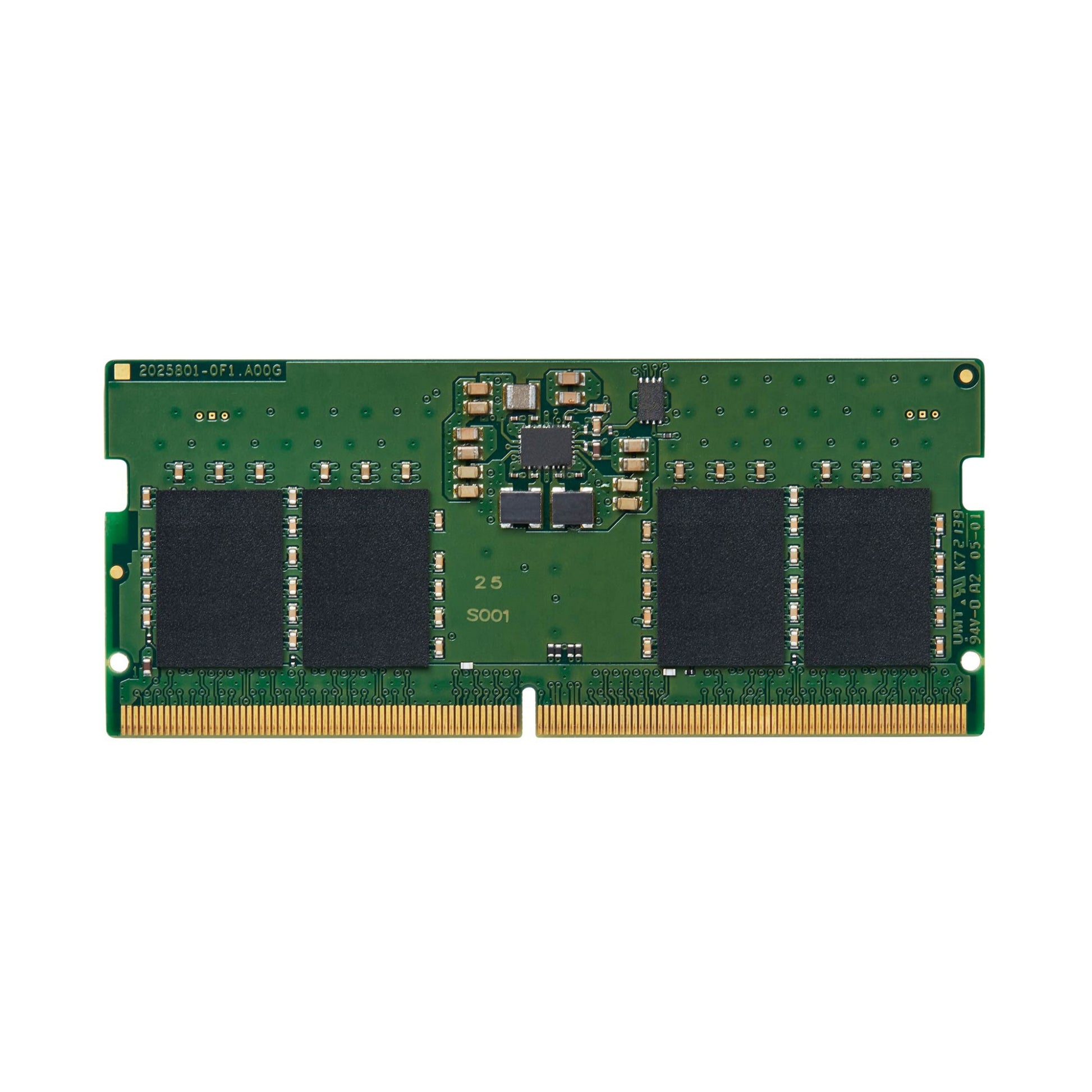

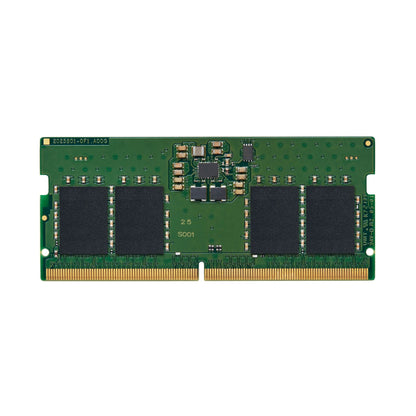

Kingston Technology ValueRAM 8GB (1x8GB) DDR5 5600MT/s SO-DIMM Laptop RAM

Give your laptop or mini PC a lift: this Kingston Technology ValueRAM SO-DIMM adds 8GB DDR5 for smoother multitasking on the move.

KVR56S46BS6-8 8GB, 1Rx16 1G x 64-Bit, PC5-5600 CL46 262-Pin SODIMM
Kingston ValueRAM's KVR56S46BS6-8 is a 1G x 64-bit (8GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.

Features
Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
PCB: Height 1.18” (30.00mm)
RoHS Compliant and Halogen-Free

Specification

Product Type
Memory Module

Capacity
8 GB

Memory Type
DDR5 SDRAM - SO-DIMM 262-pin

Upgrade Type
Generic

Data Integrity Check
On-die ECC

Speed
5600 MHz (PC5-44800)

Latency Timings
CL46 (46-45-45)

Features
Single rank, unbuffered

Voltage
1.1 V

Lead Plating
Gold

Compliant Standards
RoHS, UL 94 V-0, halogen-free, JEDEC

Manufacturer Warranty
Limited Lifetime Warranty

Specifications

Power
Memory voltage	1.1 V
Memory
Buffered memory type	Unregistered (unbuffered)
Memory layout (modules x size)	1 x 8 GB
Internal memory	8 GB
Component for	Laptop
Memory form factor	262-pin SO-DIMM
CAS latency	46
Lead plating	Gold
Module configuration	1024M x 64
SPD profile	Yes
Memory ranking	1
ECC	No
Internal memory type	DDR5
Features
On-Die ECC	Yes
Memory data transfer rate	5600 MT/s
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-55 - 100 °C
Technical details
Doesn't contain	Halogen
Compliance certificates	RoHS
Weight & dimensions
Width	69.6 mm
Height	30 mm

Downloads

• Datasheet (PDF)
