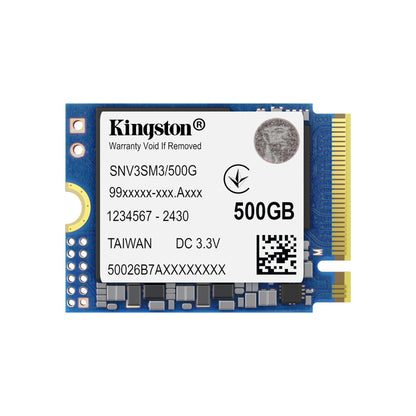

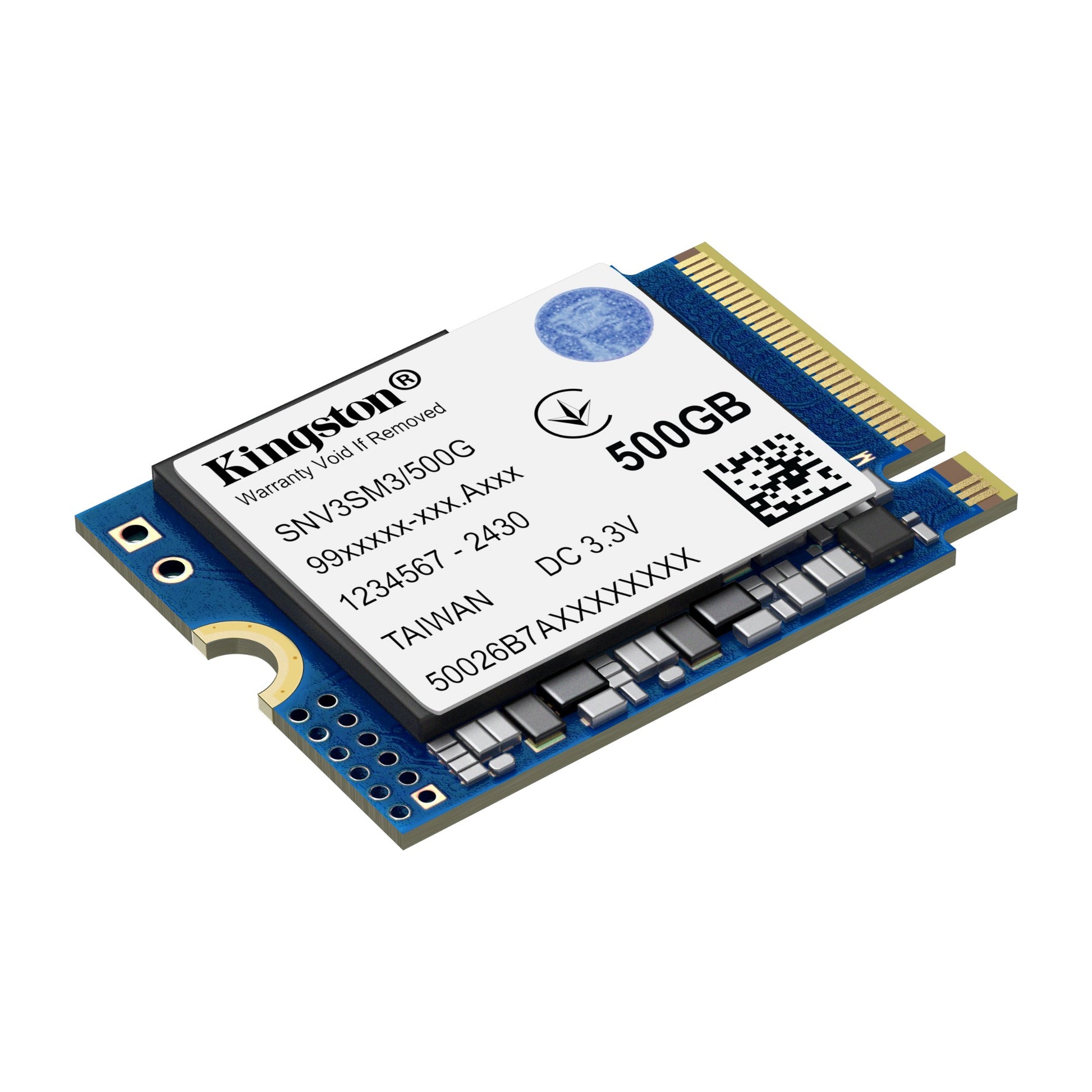

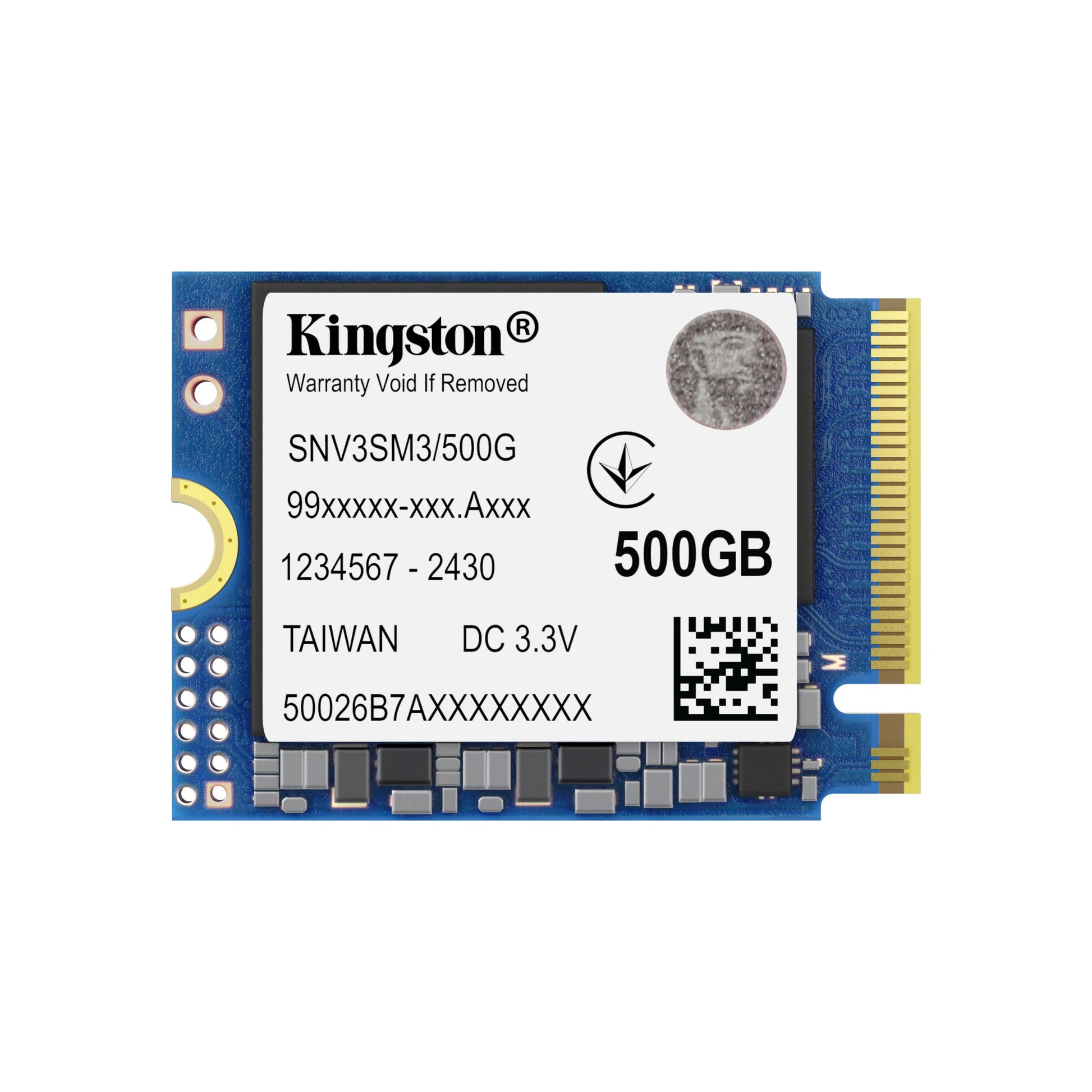

Kingston Technology SNV3SM3/500G 500GB M.2 NVMe PCIe Gen4 SSD

Upgrade to solid-state speed: the Kingston Technology SNV3SM3/500G delivers 5000MB/s read over its NVMe PCIe Gen4 interface for quicker boots, loads and transfers.

For high-speed, low-power storage needs
Kingston’s NV3 PCIe 4.0 NVMe SSDs are next-gen storage solutions powered by a Gen 4x4 NVMe controller, delivering read/write speeds of up to 6,000/5,000MB/s*. They come in both compact, single-sided M.2 2280 (22x80mm) and 2230 (22x30mm) sizes to expand storage in small-form-factor systems like laptops and handheld gaming consoles*****. They offer lower power consumption and reduced heat, optimising your system's performance without compromising value. Available in capacities from 500GB– 4TB** to give you all the space you need for applications, documents, photos, videos, games and more.


Gen 4x4 NVMe PCIe performance
Upgrade your system with read/write speeds up to 6,000/5,000MB/s*.

Small size, big performance
NV3 2280 and 2230 easily integrate into thin laptops and ultra-small PCs with M.2 connectors and limited space.

Increased storage space
Available in a variety of high capacities up to 4TB**, providing ample space to store files, videos, documents, and games with room to spare.

Store more, play more
With NV3 2230 upgrade compatible handheld gaming systems to get in the game faster*****.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	500 GB
Memory type	3D NAND
Data transmission
Read speed	5000 MB/s
Write speed	3000 MB/s
Endurance
Mean time between failures (MTBF)	200000 h
Features
Interface	PCI Express 4.0
Component for	Notebook/Game console
NVMe	Yes
TBW rating	160
SSD form factor	M.2
M.2 SSD size	2230 (22 x 30 mm)
Weight & dimensions
Width	30 mm
Weight	2.6 g
Height	2.3 mm
Depth	22 mm
Package width	101.6 mm
Package depth	8.13 mm
Package height	114.3 mm
Package weight	11.94 g
Packaging data
Master (outer) case width	120.7 mm
Master (outer) case length	171.4 mm
Master (outer) case height	114.3 mm
Master (outer) case gross weight	384.15 g
Products per master (outer) case	25 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Non-operating vibration	20 G
Technical details
Country of origin	China, Taiwan
