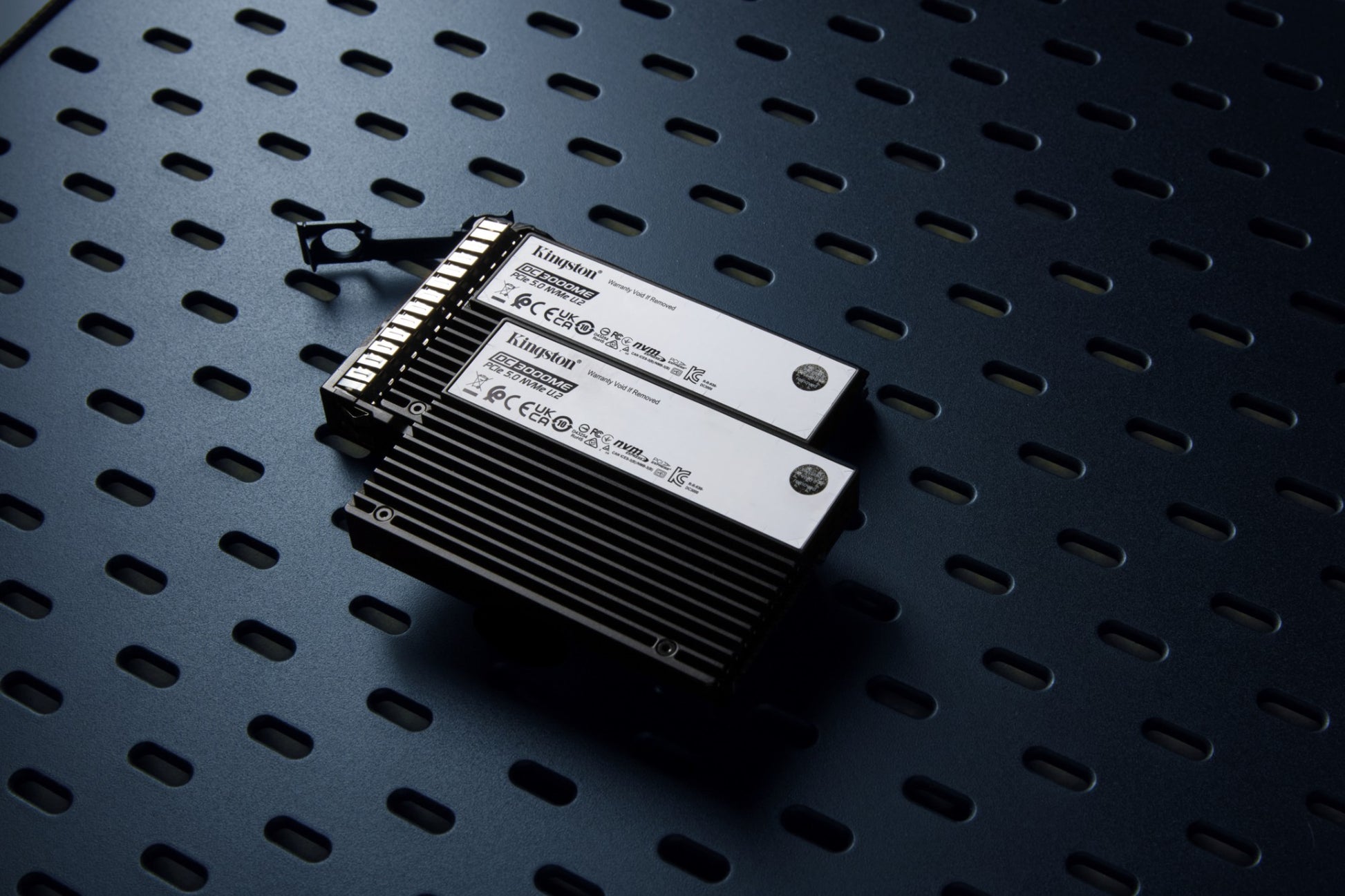

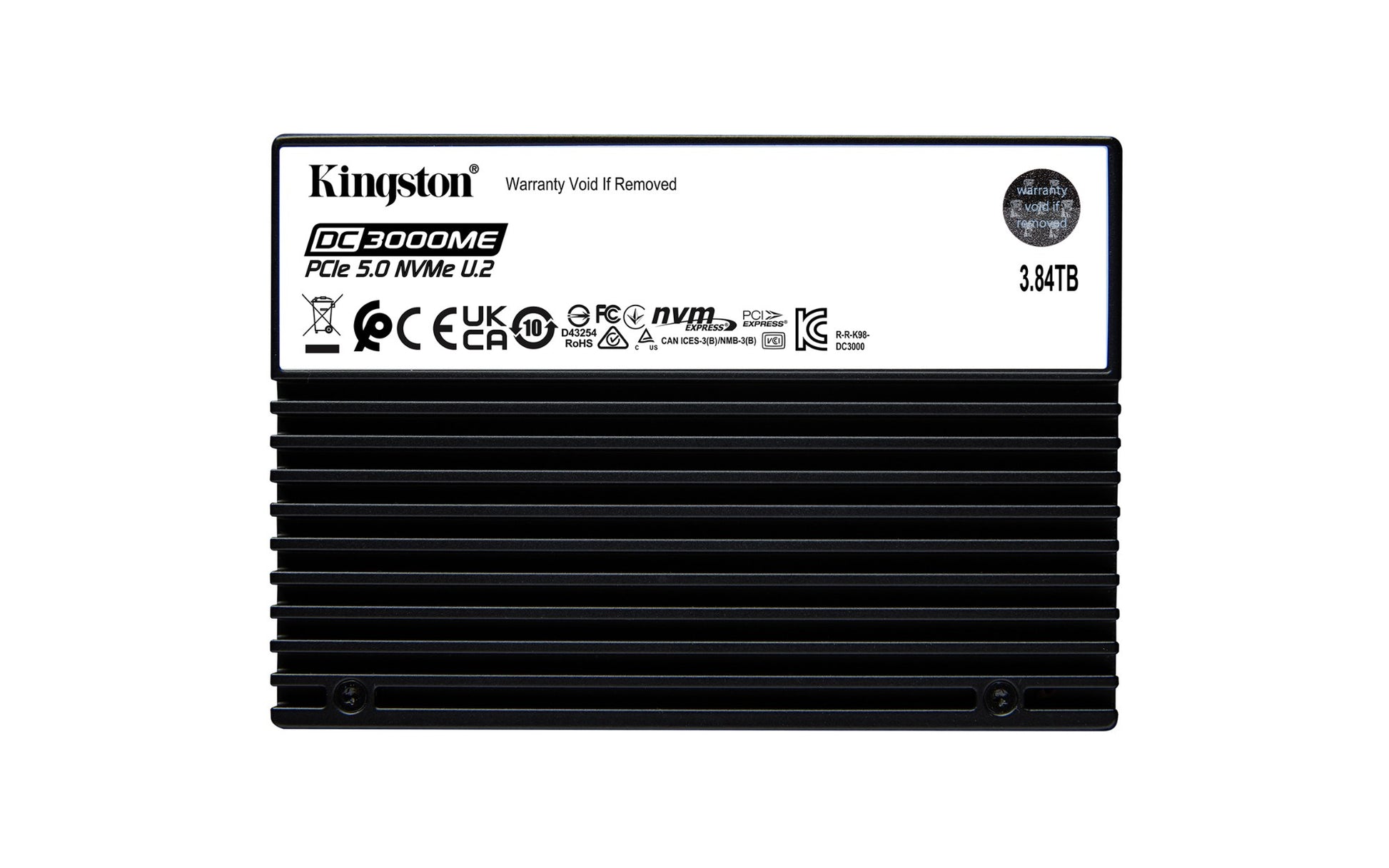

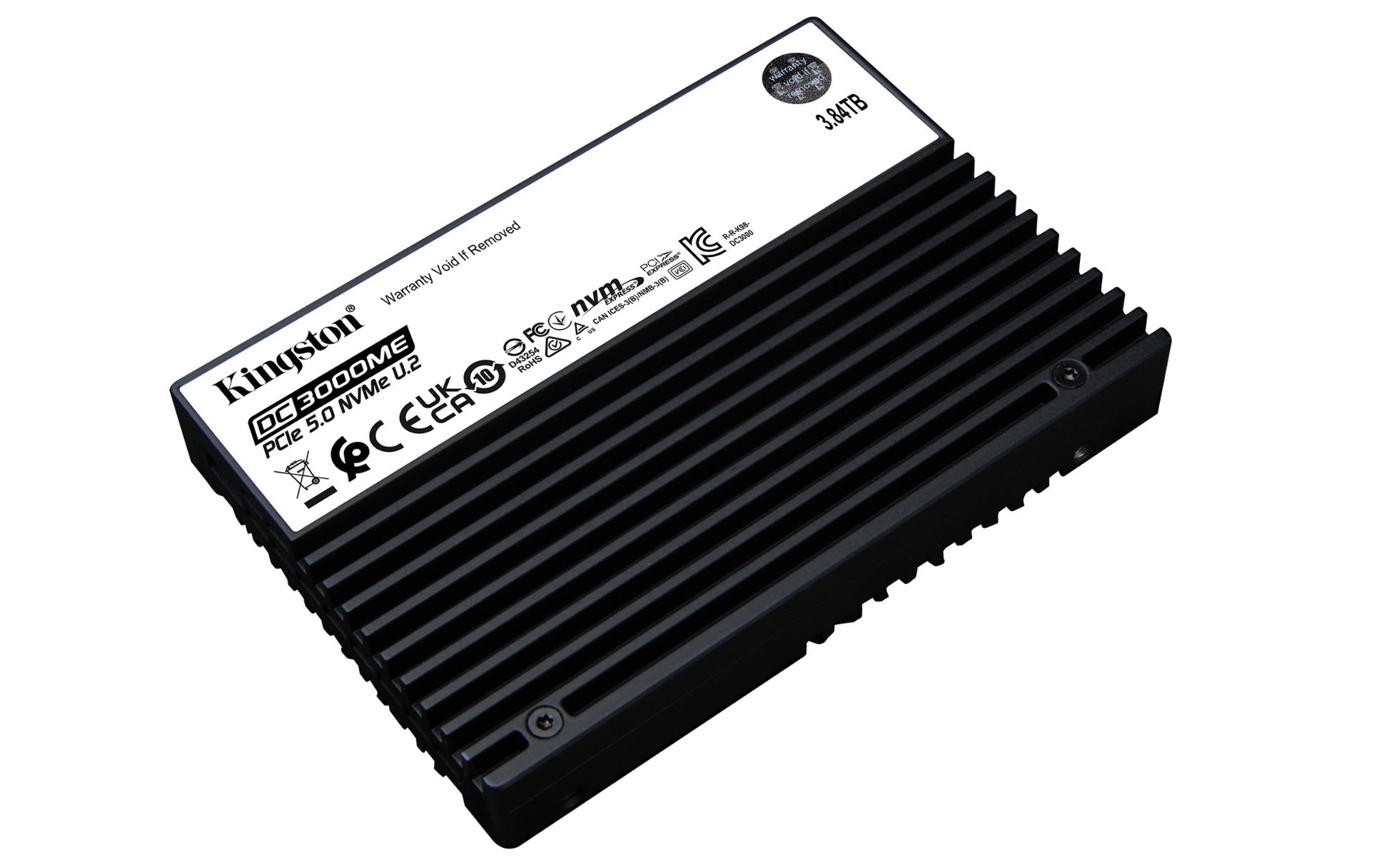

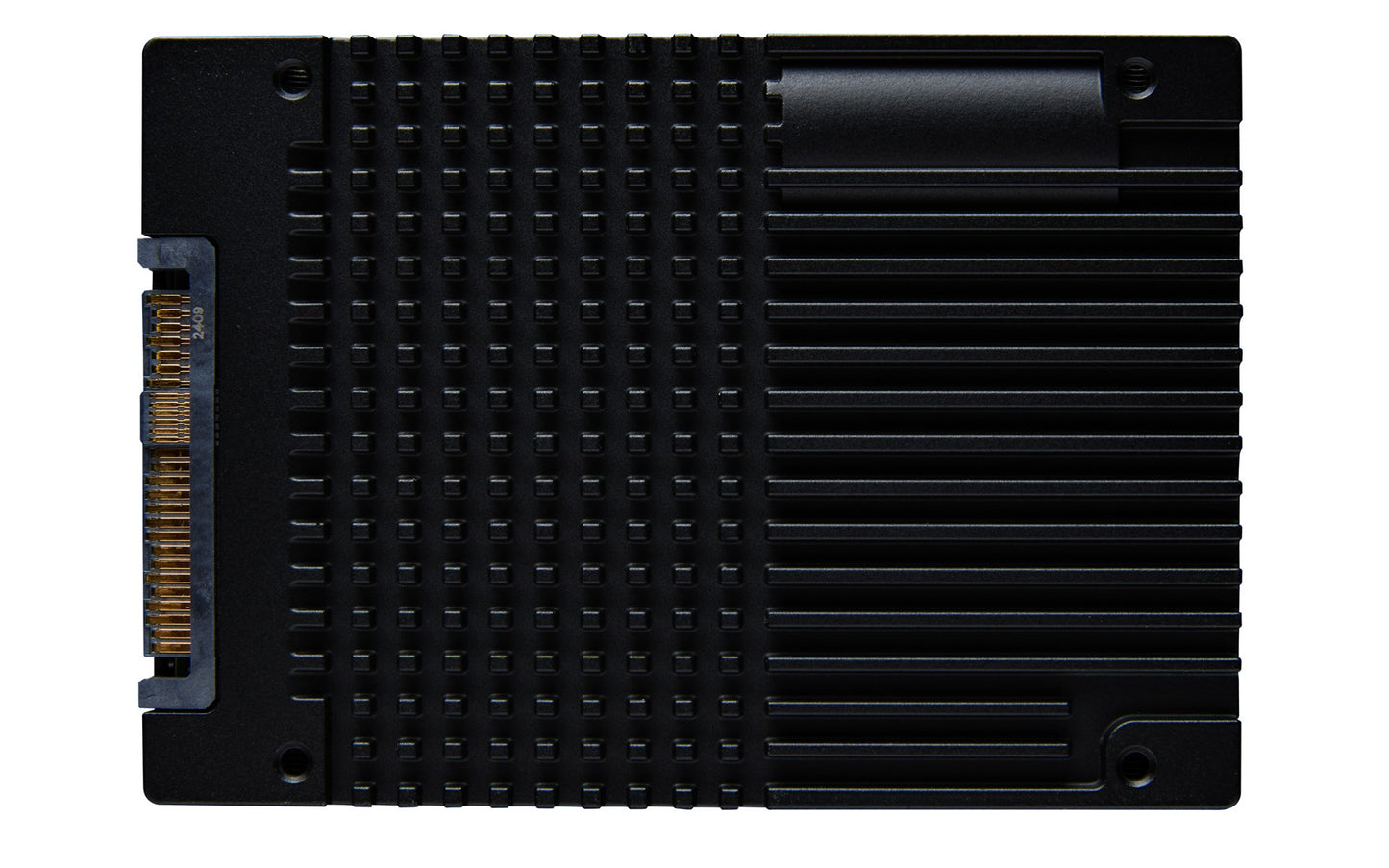

Kingston Technology SEDC3000ME/3T8 3.84TB NVMe PCIe Gen5 Enterprise SSD

Upgrade to solid-state speed: the Kingston Technology SEDC3000ME/3T8 delivers 4000MB/s read over its NVMe PCIe Gen5 interface for quicker boots, loads and transfers.

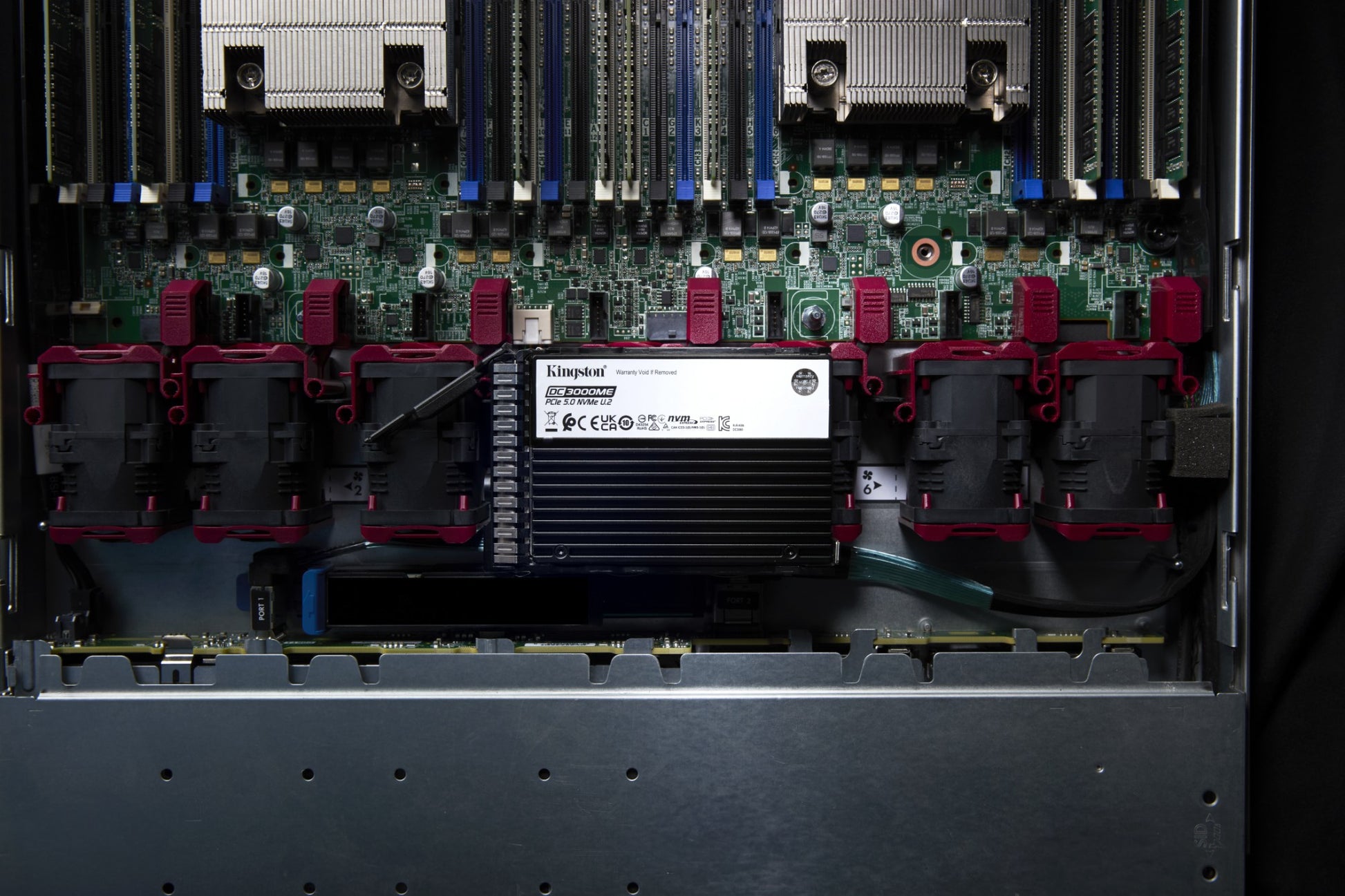

PCIe 5.0 NVMe U.2 for Server Applications
Kingston’s DC3000ME U.2 data center SSD features a high-speed PCIe 5.0 NVMe interface and utilizes 3D eTLC NAND, making it well suited for a wide range of server applications such as AI, HPC, OLTP, databases, cloud infrastructure and edge computing. DC3000ME includes on-board power loss protection to safeguard data in the event of sudden power loss and AES 256-bit encryption for ultimate data security. DC3000ME utilizes the latest high-speed PCIe 5.0 interface and is backward-compatible with PCIe 4.0 servers and backplanes. Like all of Kingston’s data center SSDs, DC3000ME is designed to deliver I/O consistency and low latency as the key design criteria that system integrators, hyperscale data centers and cloud service providers can depend on. DC3000ME is offered in 3.84TB, 7.68TB, 15.36TB and 30.72TB* capacities and is backed by Kingston's legendary technical support and a 5-year limited warranty.

Applications and workloads
DC3000ME is ideal for running a wide range of server applications and workloads including:
- AI
- HPC
- Cloud services
- Edge computing
- Software defined storage
- RAID
- General server use

Enterprise PCIe 5.0 performance
Delivers I/O consistency and low latency with sustained speeds of up to 14,000MB/s read and 2,800,000 read IOPS**.

Optimal storage and efficiency
High capacity options available offering an exceptional balance of consistent I/O delivery and ultra-high performance. Optimized to handle a wide range of server workloads efficiently.

On-board Power Loss Protection (PLP)
Enterprise-class protection to reduce possibility of data loss or corruption on ungraceful power fails including NVMe-MI 1.2b out-of-band management, end-to-end data protection, TCG Opal 2.0.

AES 256-bit encryption
Secure sensitive data with AES 256-bit hardware-based encryption and TCG Opal 2.0.

Specifications

Hard drive
SSD capacity	3.84 TB
Memory type	3D eTLC
Data transmission
Read speed	14000 MB/s
Write speed	5800 MB/s
Random write (4KB)	300000 IOPS
Random read (4KB)	2700000 IOPS
Write latency	10 µs
Read latency	70 µs
Security
Security algorithms	256-bit AES, TCG Opal 2.0
Endurance
Mean time between failures (MTBF)	2000000 h
Features
Interface	PCI Express 5.0
Component for	Server
NVMe	Yes
Power loss protection	Yes
TBW rating	7008
Hardware encryption	Yes

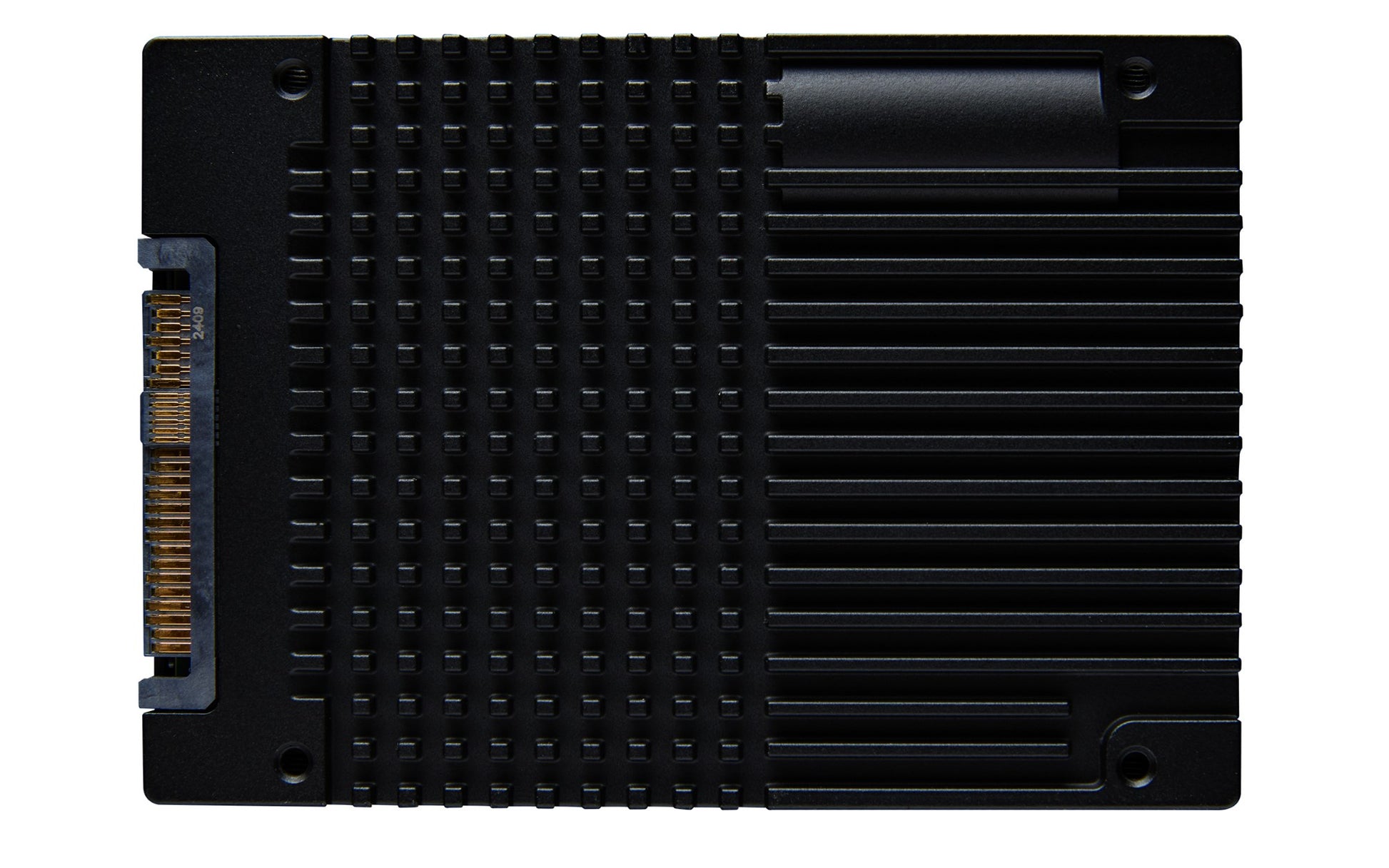

SSD form factor	U.2
Market segment	Server
Drive writes per day (DWPD)	1
Power
Power consumption (write)	24 W
Power consumption (read)	8.2 W
Power consumption (idle)	8 W
Weight & dimensions
Width	69.8 mm
Weight	146.2 g
Height	14.8 mm
Depth	100.5 mm
Package width	129.5 mm
Package depth	16.8 mm
Package height	184.2 mm
Package weight	180.44 g
Packaging data
Master (outer) case width	135.9 mm
Master (outer) case length	203.2 mm
Master (outer) case height	69.8 mm
Master (outer) case gross weight	1.13 kg
Products per master (outer) case	6 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Non-operating vibration	10 G
