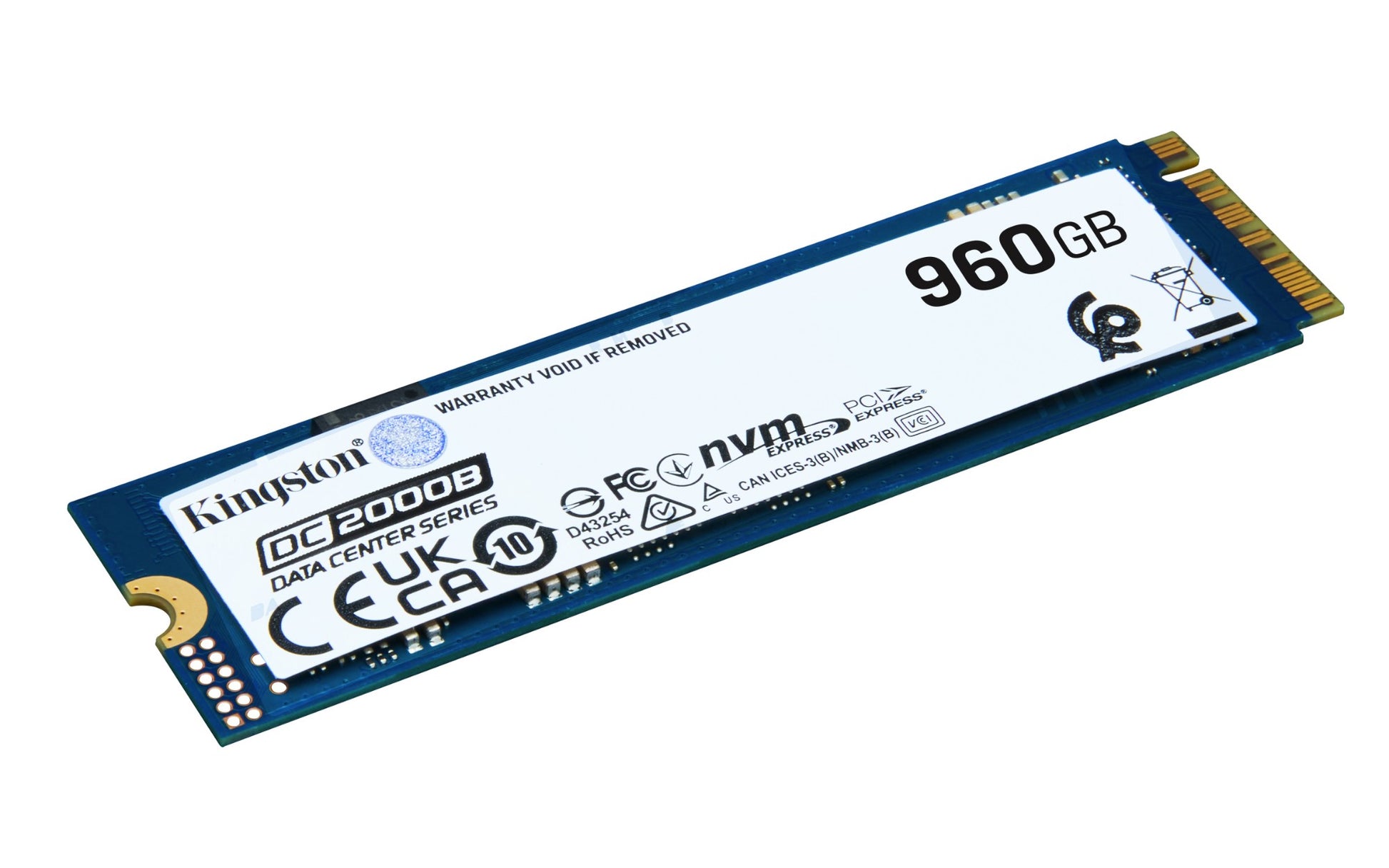

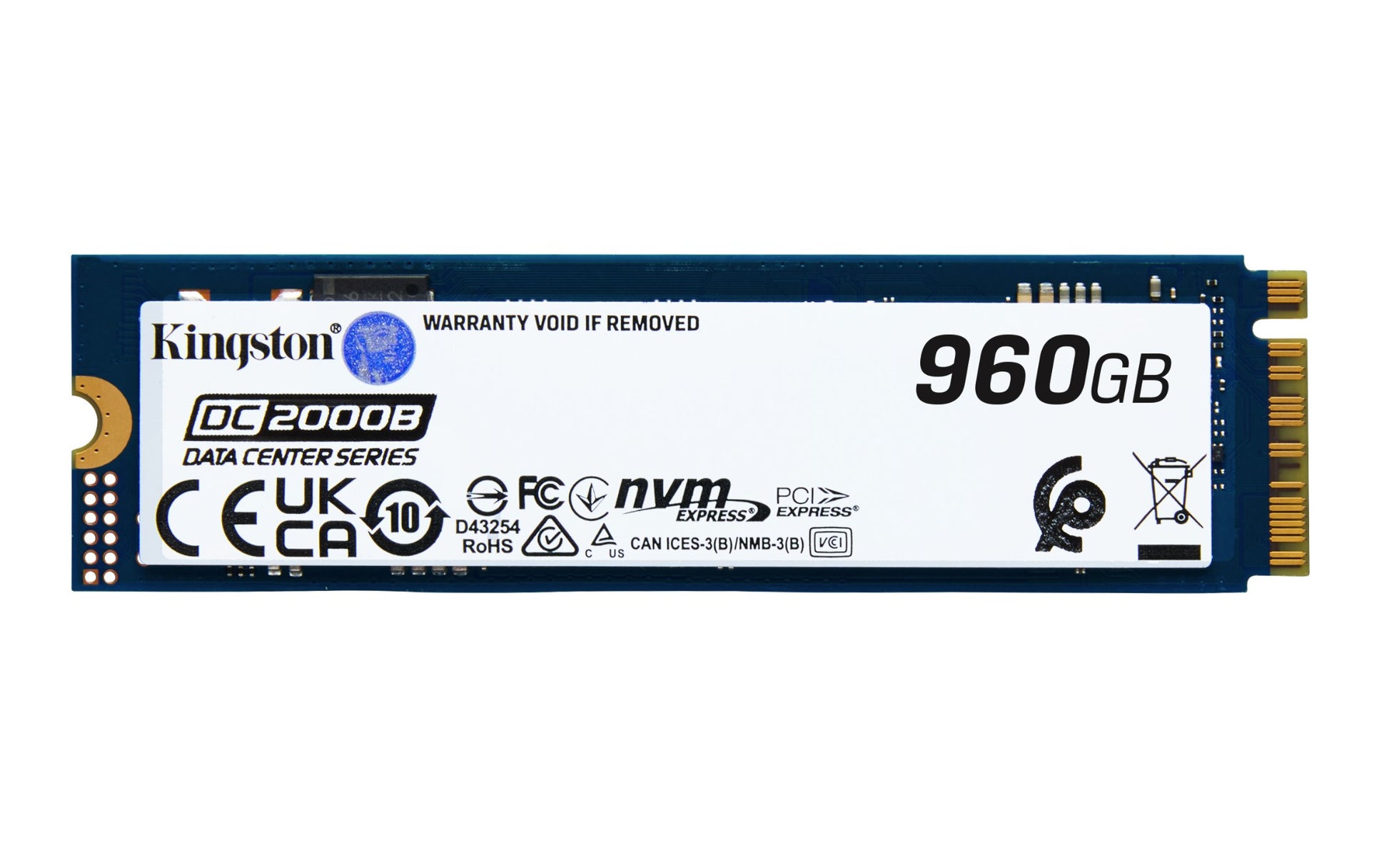

Kingston Technology SEDC2000BM8/960G 960GB M.2 NVMe PCIe Gen4 Enterprise SSD

£749.09 GBP

Sale Sold out

Taxes included.

Condition New

Upgrade to solid-state speed: the Kingston Technology SEDC2000BM8/960G delivers 7000MB/s read over its NVMe PCIe Gen4 interface for quicker boots, loads and transfers.

Enterprise class for server applications
Kingston’s DC2000B SSD is a high-performance boot drive designed for data centers using the latest Gen 4x4 PCIe interface with 3D TLC NAND. With low latency, IOPS consistency and hardware-based power loss protection, it ensures reliability and efficiency. Available in capacities of up to 960GB, it's ideal for enterprise server boot and caching applications.

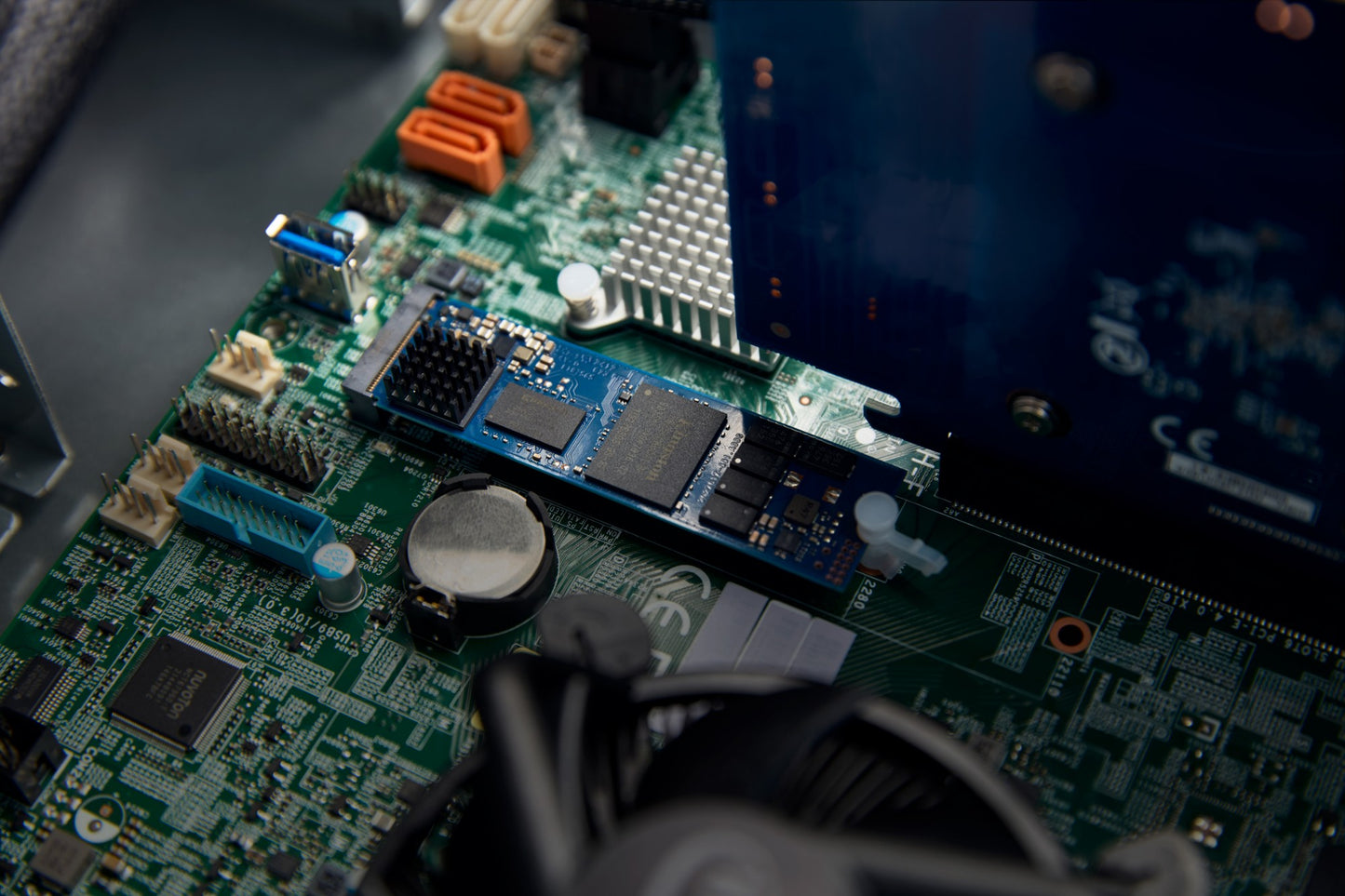

Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD using a Gen 4x4 PCIe controller and 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a 5-year warranty."

PCIe 4.0 NVMe performance
Utilises PCIe Gen 4x4 lanes for high-performance speeds.

On-board power loss protection (PLP)
Reduce the possibility of data loss and/or corruption due to unexpected power-off.

Low latency and IOPS consistency
Firmware optimised to deliver low latency and IO consistency for high duty cycle workloads.

Designed for data center environments
Optimised to meet the demands of server boot applications with low latency and IO consistency as the key design criteria.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	960 GB
Memory type	3D TLC
Data transmission
Read speed	7000 MB/s
Write speed	1300 MB/s
Random write (4KB)	47000 IOPS
Random read (4KB)	540000 IOPS
Write latency	20 µs
Read latency	70 µs
Endurance
Mean time between failures (MTBF)	2000000 h
Features
Interface	PCI Express 4.0
Component for	Server
NVMe	Yes
TBW rating	700
S.M.A.R.T. support	Yes
SSD form factor	M.2
H/W PLP function	Yes
M.2 SSD size	2280 (22 x 80 mm)
Drive writes per day (DWPD)	0.4
Power
Power consumption (write)	7.8 W
Power consumption (read)	3.36 W
Average power consumption (write)	7.36 W
Average power consumption (read)	3.26 W
Design
Cooling type	Heatsink
Weight & dimensions
Width	22 mm
Weight	11 g
Height	8.9 mm
Depth	80 mm
Package width	129.5 mm
Package depth	14.2 mm
Package height	184.2 mm
Package weight	35.77 g
Packaging data
Master (outer) case width	135.9 mm
Master (outer) case length	203.2 mm
Master (outer) case height	69.8 mm
Master (outer) case gross weight	292.62 g
Products per master (outer) case	6 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Non-operating vibration	20 G
Technical details
Country of origin	China, Taiwan
