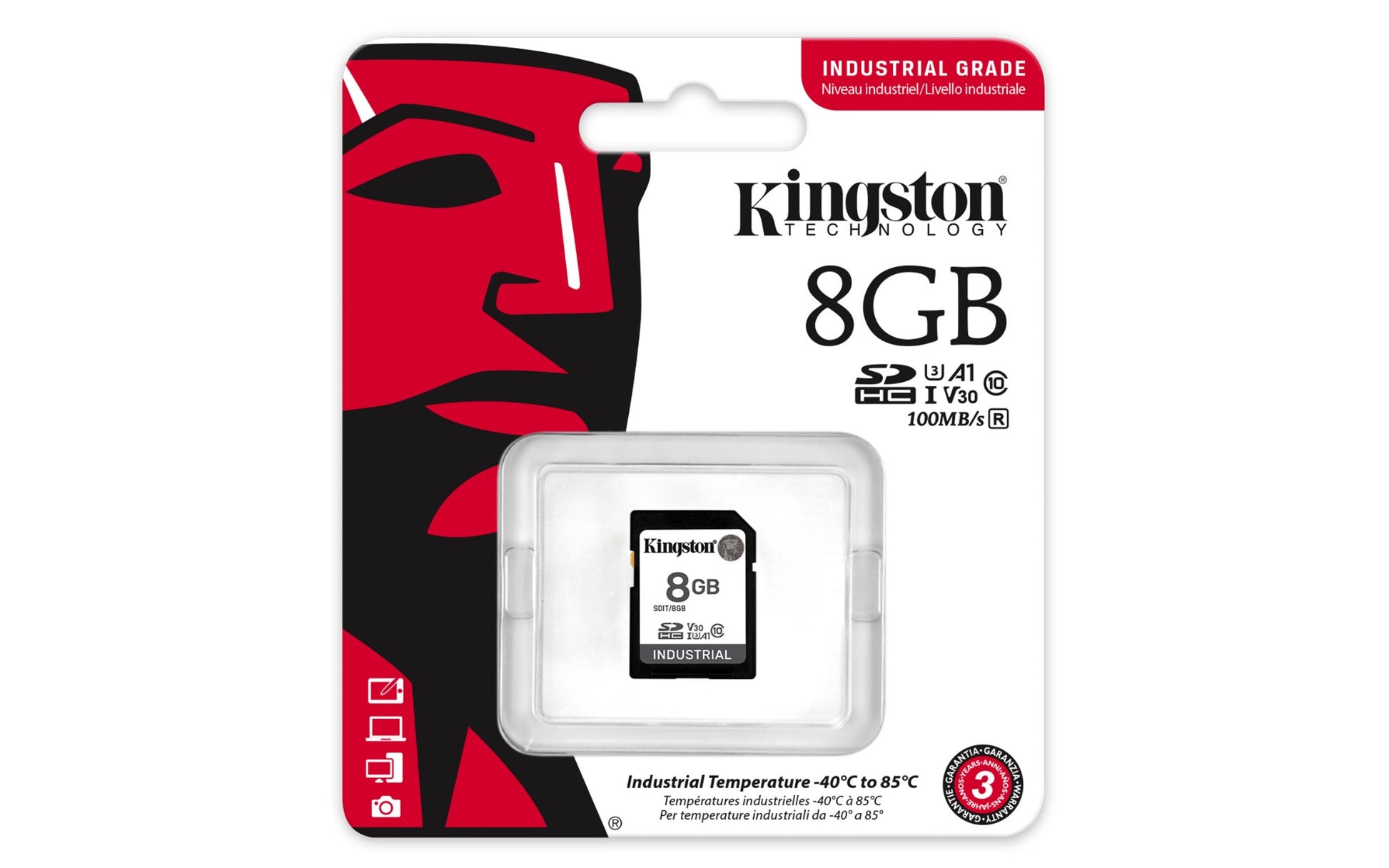

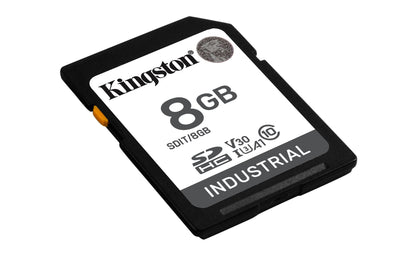

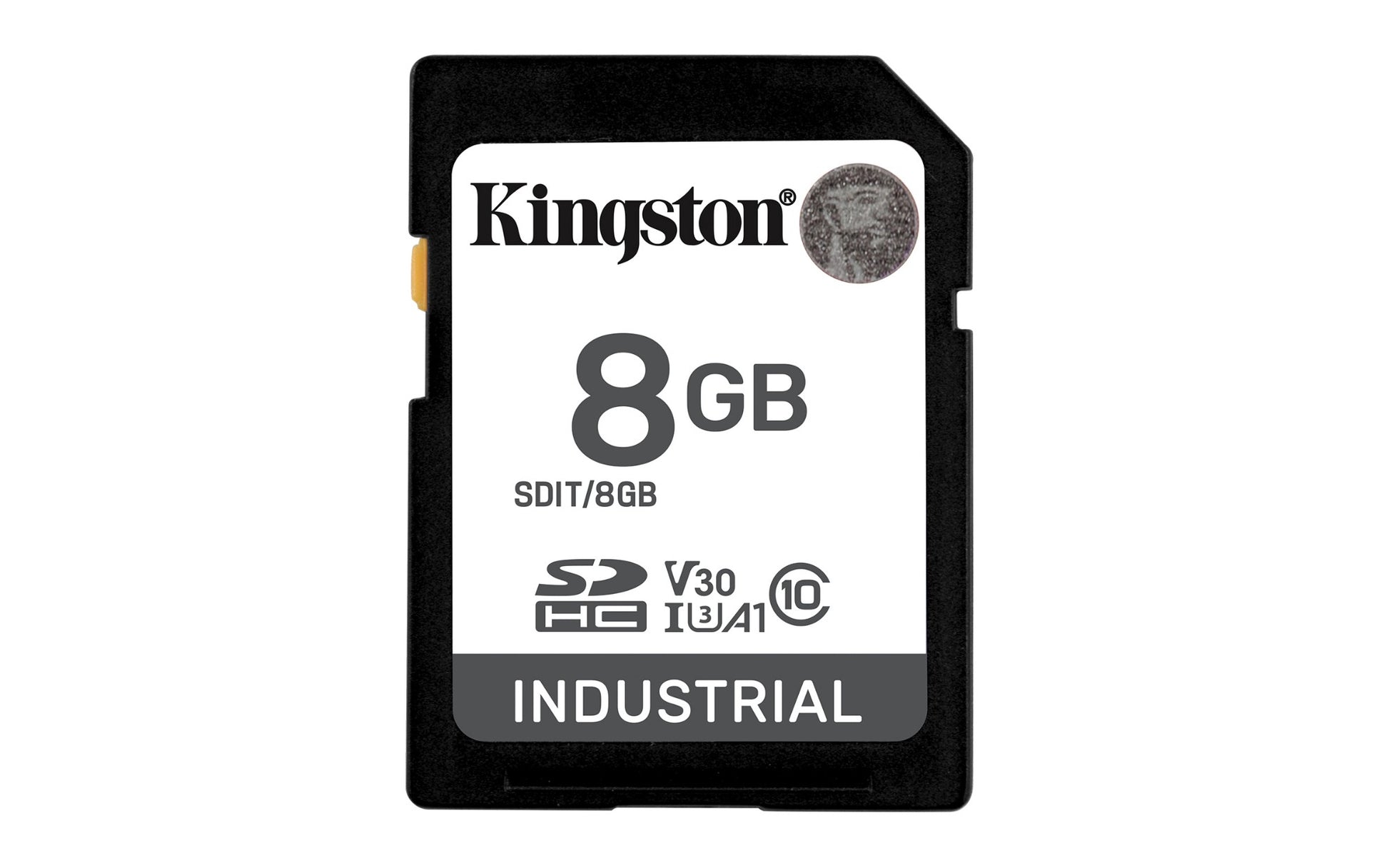

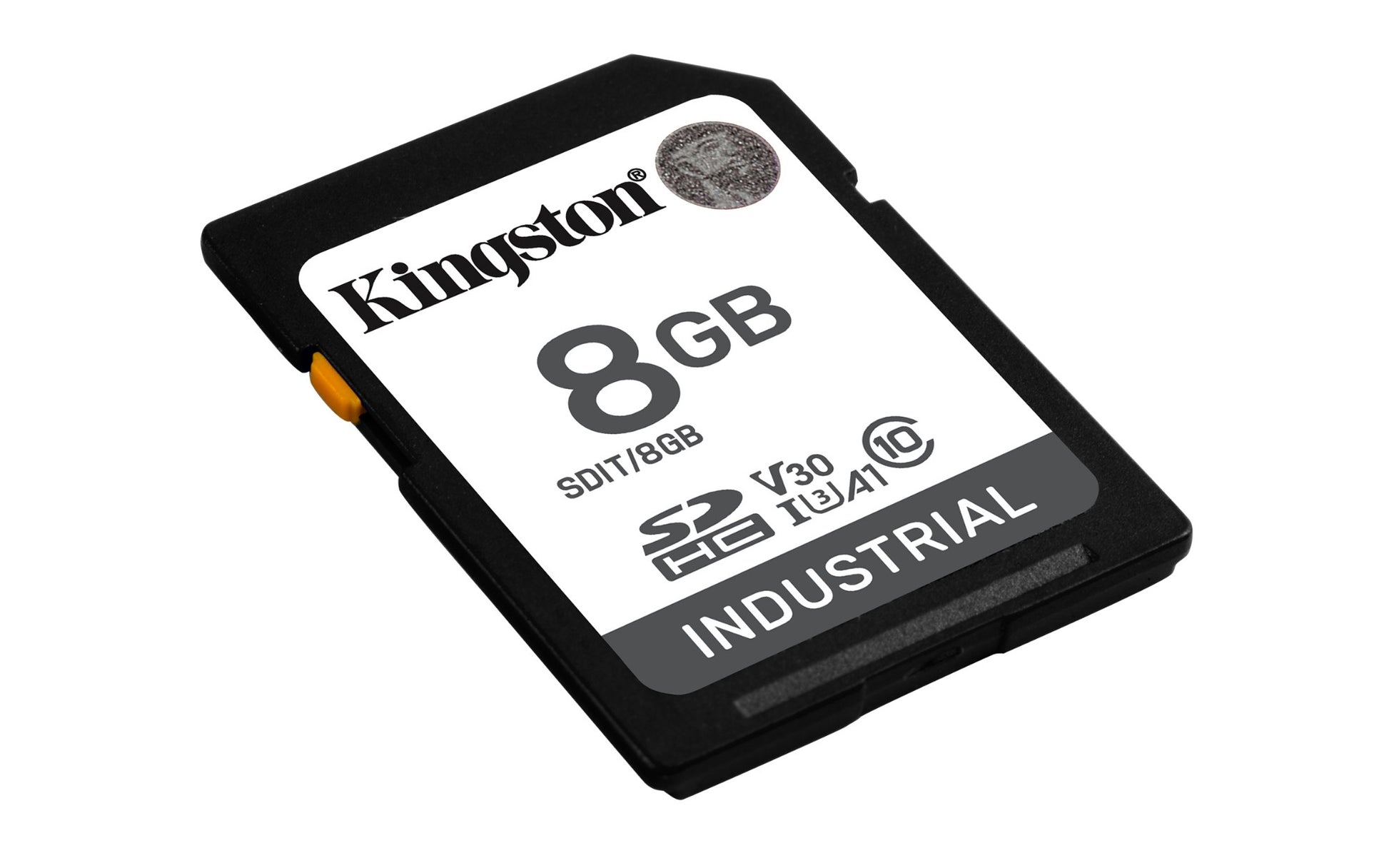

Kingston Technology SDIT/8GB HDD

Dependable storage for desktops and external enclosures — the Kingston Technology SDIT/8GB keeps your files, media and backups on fast, proven hardware.

Ideal for extreme conditions
Kingston’s Industrial SD card delivers superior endurance and reliability across industrial applications including automation, telecommunication, data systems, building management and POS systems. It is designed and tested to withstand the most demanding environmental factors. With an operating temperature of -40°C to 85°C, Kingston’s Industrial SD card can operate normally in extended temperature ranges. The card utilises the industry-leading pSLC mode to provide reliable read speeds of up to 100MB/s*. It is rated up to 1920 TBW** with 30K P/E cycles and has a built-in feature set specific to endurance, performance and industrial needs. Kingston’s Industrial SD is available in capacities from 8GB–64GB***.

Durable in extreme environments*****
Designed and tested to be waterproof, temperature proof and X-ray proof.

High endurance and reliability
Up to 1920 TBW** and rated to endure 30K P/E cycles to meet requirements for a wide range of industrial applications.

UHS-I compliant
Speeds of up to 100MB/s* with U3, V30 and A1 support for Android-based applications

Industrial-grade built-in features
Wear levelling, bad block management and an optional health monitoring tool to manage the lifespan of your card****.

Specifications

Memory
Capacity	8 GB
Read speed	100 MB/s
Write speed	80 MB/s
Internal memory type	UHS-I
Supported file systems	exFAT
Flash memory class	Class 10
Flash card type	SDXC
UHS Speed Class	Class 3 (U3)
Video Speed Class	V30
Application performance class	A1
Design
Product colour	Black
Protection features	Temperature proof, Waterproof, X-ray proof
Technical details
Memory voltage	3.3 V
Country of origin	China, Taiwan
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Weight & dimensions
Weight	2.31 g
Width	31.8 mm
Depth	23.9 mm
Height	2.03 mm
Packaging data
Package width	101.6 mm
Package height	114.3 mm
Package depth	5.59 mm
Package weight	13.83 g
Quantity per pack	1 pc(s)
Logistics data
Products per master (outer) case	25 pc(s)
Master (outer) case width	114.3 mm
Master (outer) case length	120.7 mm
Master (outer) case height	94 mm
Master (outer) case gross weight	396.02 g

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
