Kingston Technology 16GB (1x16GB) DDR5 5600MT/s ECC Server RAM
Kingston Technology 16GB (1x16GB) DDR5 5600MT/s ECC Server RAM
Regular price
£614.18 GBP
Regular price
Sale price
£614.18 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Built for servers and workstations, this Kingston Technology DDR5 module brings 16GB ECC memory that catches errors before they corrupt data.

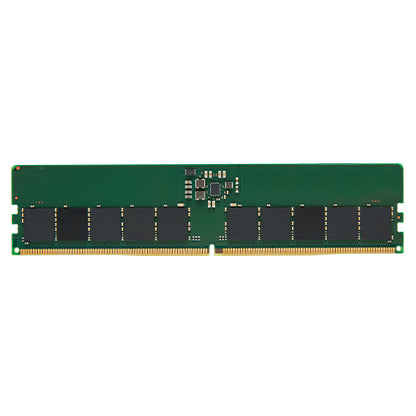

Kingston's KSM56E46BS8KM-16HA is a 2G x 72-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on ten 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Specifications
| Power | |
|---|---|
| Memory voltage | 1.1 V |
| Design | |
| Product colour | Black, Green |
| JEDEC standard | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Doesn't contain | Halogen |
| Compliance certificates | RoHS |
| Memory | |
| Buffered memory type | Unregistered (unbuffered) |
| Row Precharge Time (TRP) | 16 |
| Memory layout (modules x size) | 1 x 16 GB |
| Internal memory | 16 GB |
| Component for | Server |
| Memory form factor | 288-pin DIMM |
| CAS latency | 46 |
| Lead plating | Gold |
| Module configuration | 2048M x 72 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| SPD profile | Yes |
| Memory ranking | 1 |
| ECC | Yes |
| Internal memory type | DDR5 |
| Programming power voltage (VPP) | 1.8 V |
| Features | |
| On-Die ECC | Yes |
| Memory data transfer rate | 5600 MT/s |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 95 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Weight & dimensions | |
| Width | 133.3 mm |
| Height | 31.2 mm |
