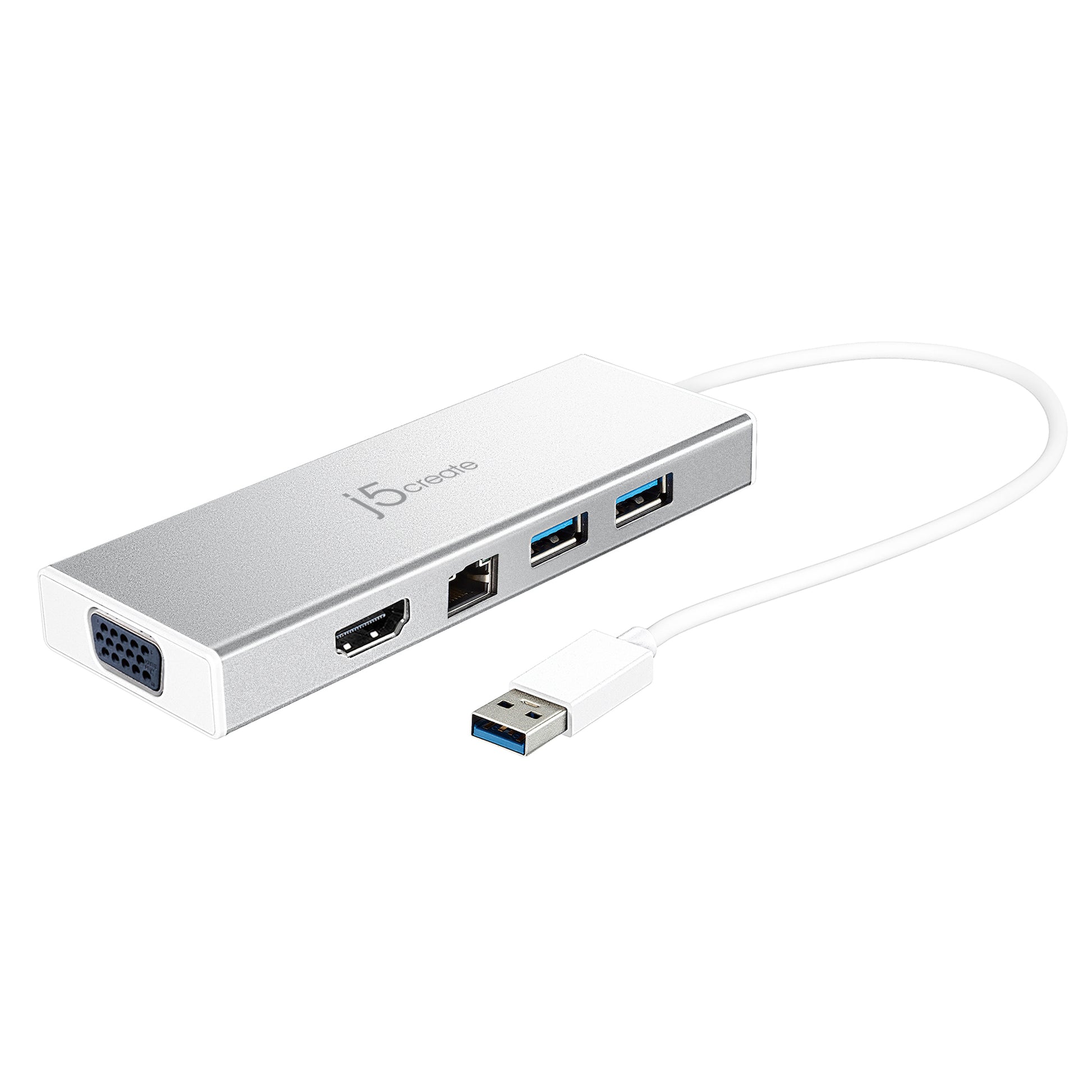

j5create JUD380 USB™ Mini Docking Station

£55.40 GBP

Sale Sold out

Taxes included.

Condition New

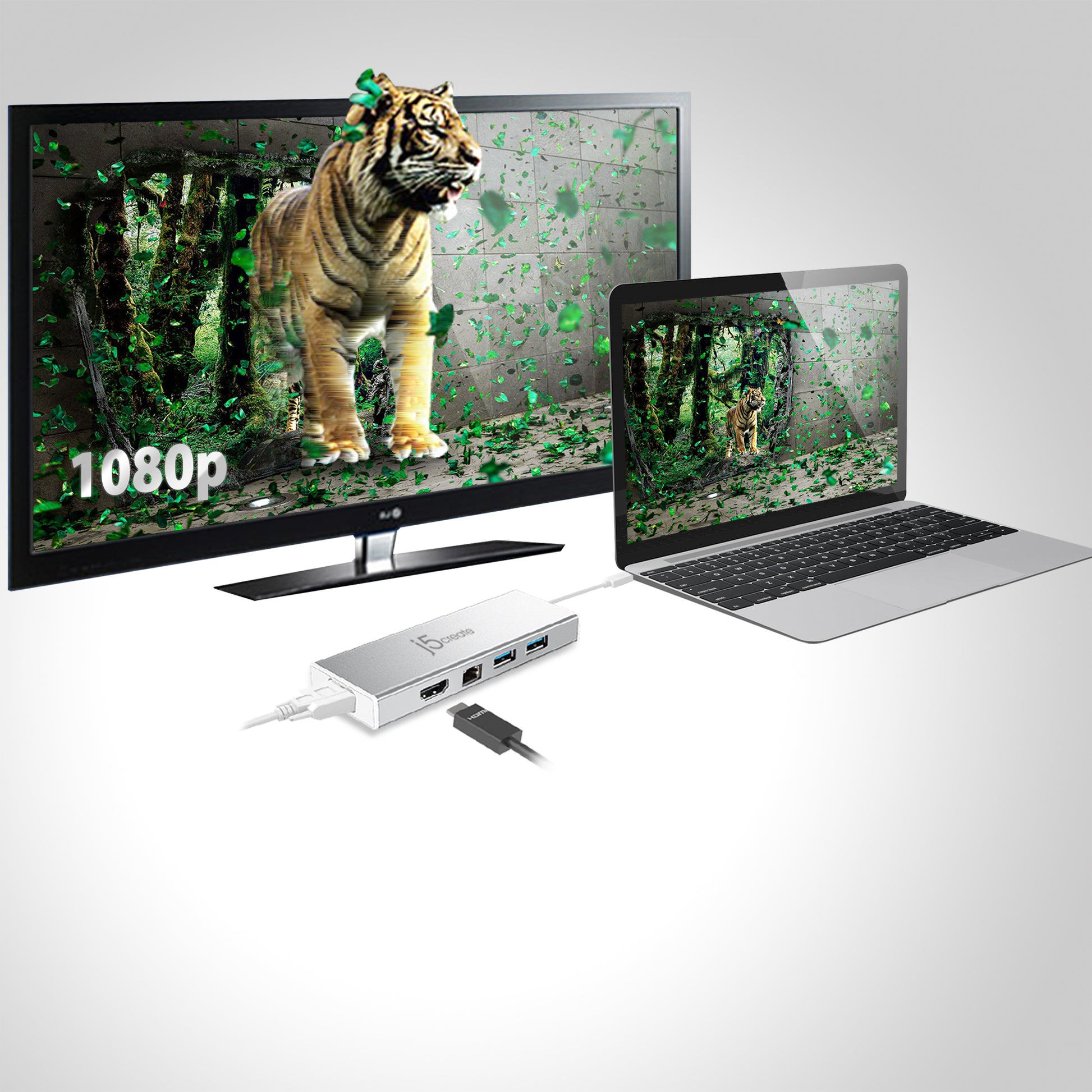

One cable, full desk: the j5create JUD380 USB™ Mini turns your laptop into a workstation with external displays over a single USB connection.

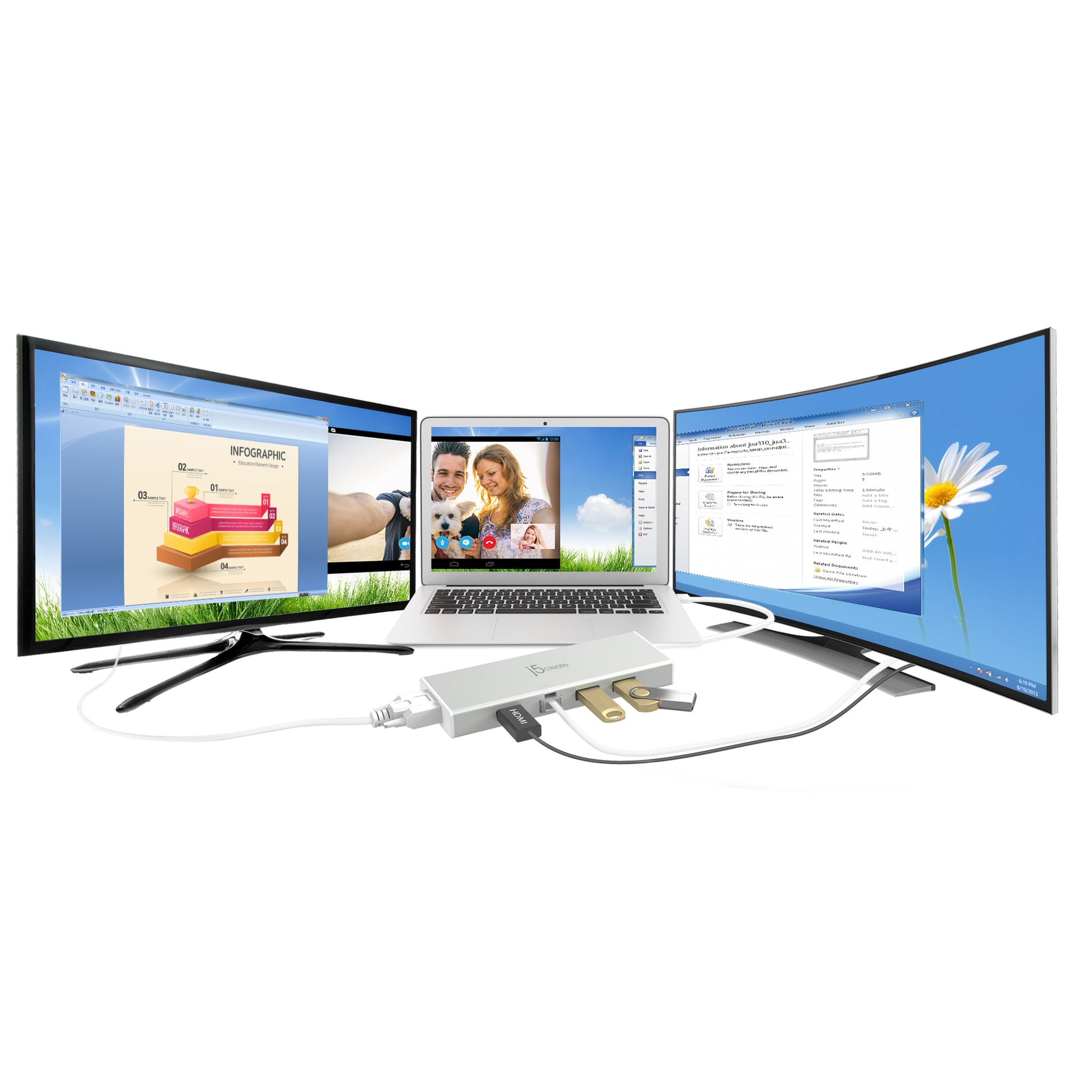

This dual-monitor USB™ 3.0 mini docking station features two USB™ 3.0 Type-A ports for connecting extra peripherals, an HDMI™ & VGA output port, providing up to 2048 x 1152 resolutions, as well as an integrated RJ45 Ether port for a reliable wired network connection.

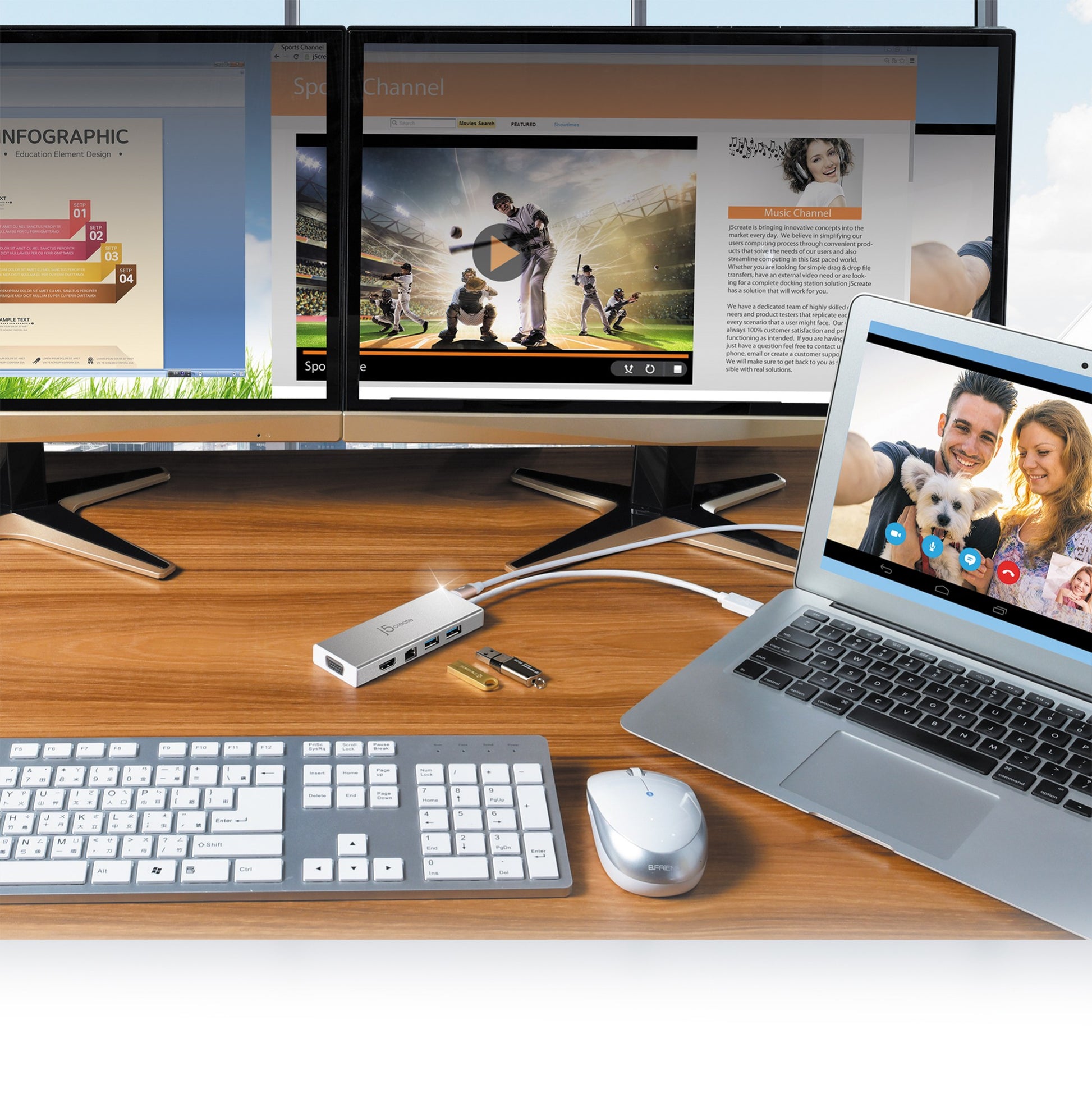

With its space-saving, travel-friendly design, you can quickly set up a workstation while on the go!

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Micro-USB 2.0 ports quantity	1
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Performance
Maximum digital resolution	2048 x 1152 pixels
Number of displays supported	2
Country of origin	Taiwan
Product colour	Silver
Card reader integrated	No
Brand compatibility	Any brand
Compatibility	Compatible with USB™-enabled macOS® & Windows® laptops, for example: Macbook™ Pro 2016 & Newer Surface Pro™ 7 Surface Go™ Surfacebook™ 2 Backwards compatible with USB™ 2.0 and 1.1 hosts and devices.
Plug and Play	Yes
Charging function	Yes
Certification	CE
Housing material	Aluminium
Colour name	Silver
Technical details
Master (outer) case GTIN (EAN/UPC)	24712795081347
User guide	Yes
Products per master (outer) case	18 pc(s)
Master (outer) case width	226 mm
Master (outer) case gross weight	4.03 kg
Master (outer) case length	445 mm
Master (outer) case height	190 mm
Products per shipping (inner) case	6 pc(s)
Power
Power source type	USB
Input current	0.9 A
Power consumption (typical)	2.25 W
Output current	0.45 A
USB cable length	0.2 m
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%
Weight & dimensions
Weight	82.6 g
Width	119.6 mm
Depth	42.8 mm
Height	14.2 mm
Package weight	180.5 g
Package width	193 mm
Package depth	125 mm
Package height	225 mm
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Drivers included	Yes
Quick start guide	Yes
Cables included	USB
Logistics data
Shipping (inner) case width	16.5 cm
Shipping (inner) case length	21.2 cm
Shipping (inner) case height	13.7 cm
Shipping (inner) case net weight	1.2 kg
Export Control Classification Number (ECCN)	EAR99
