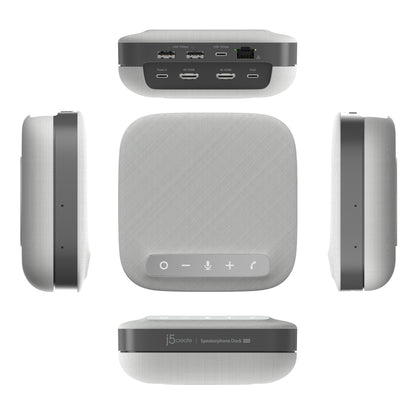

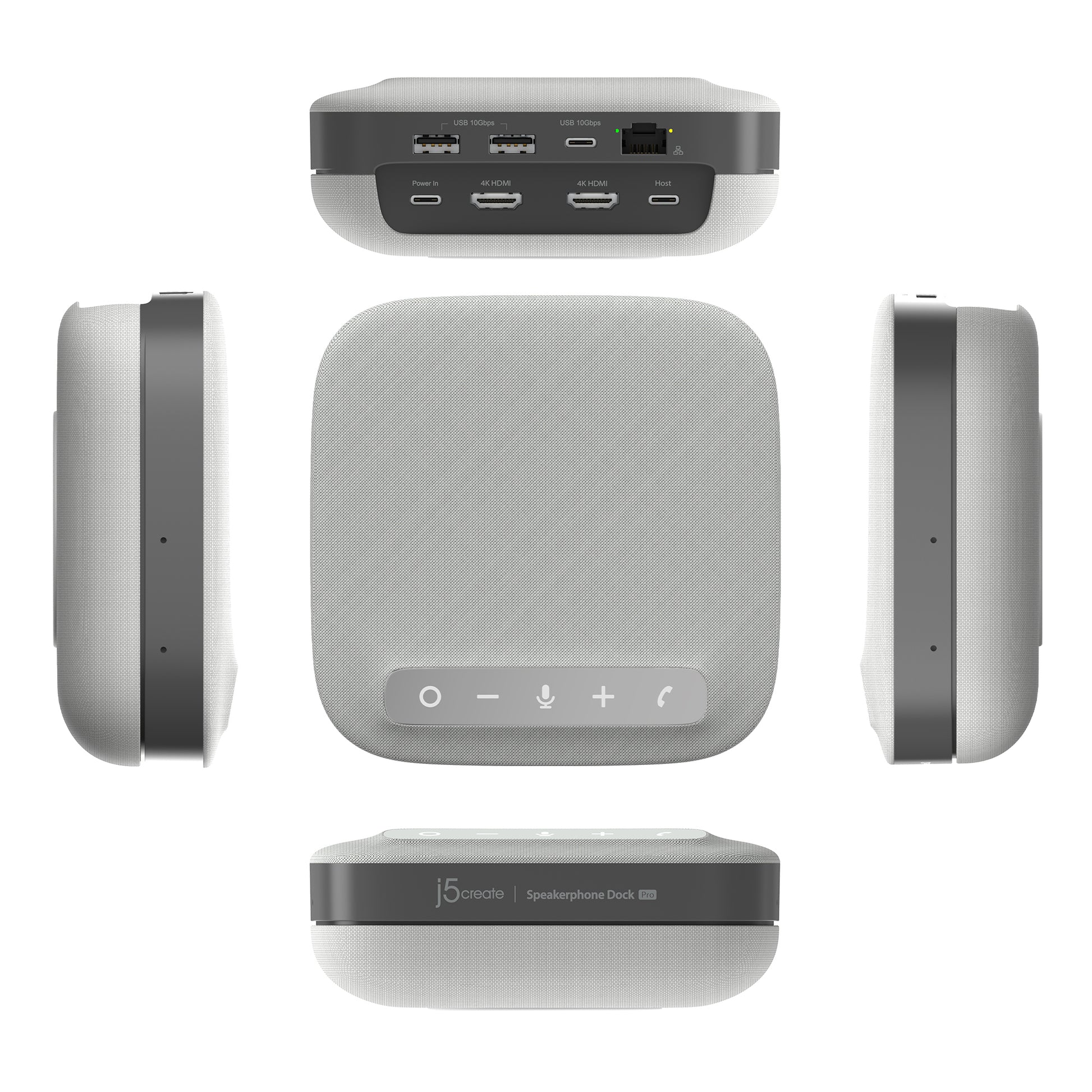

j5create JCDS337 USB-C® Speakerphone Docking Station

One cable, full desk: the j5create JCDS337 USB-C® Speakerphone turns your laptop into a workstation with all your peripherals connected over a single USB-C connection.

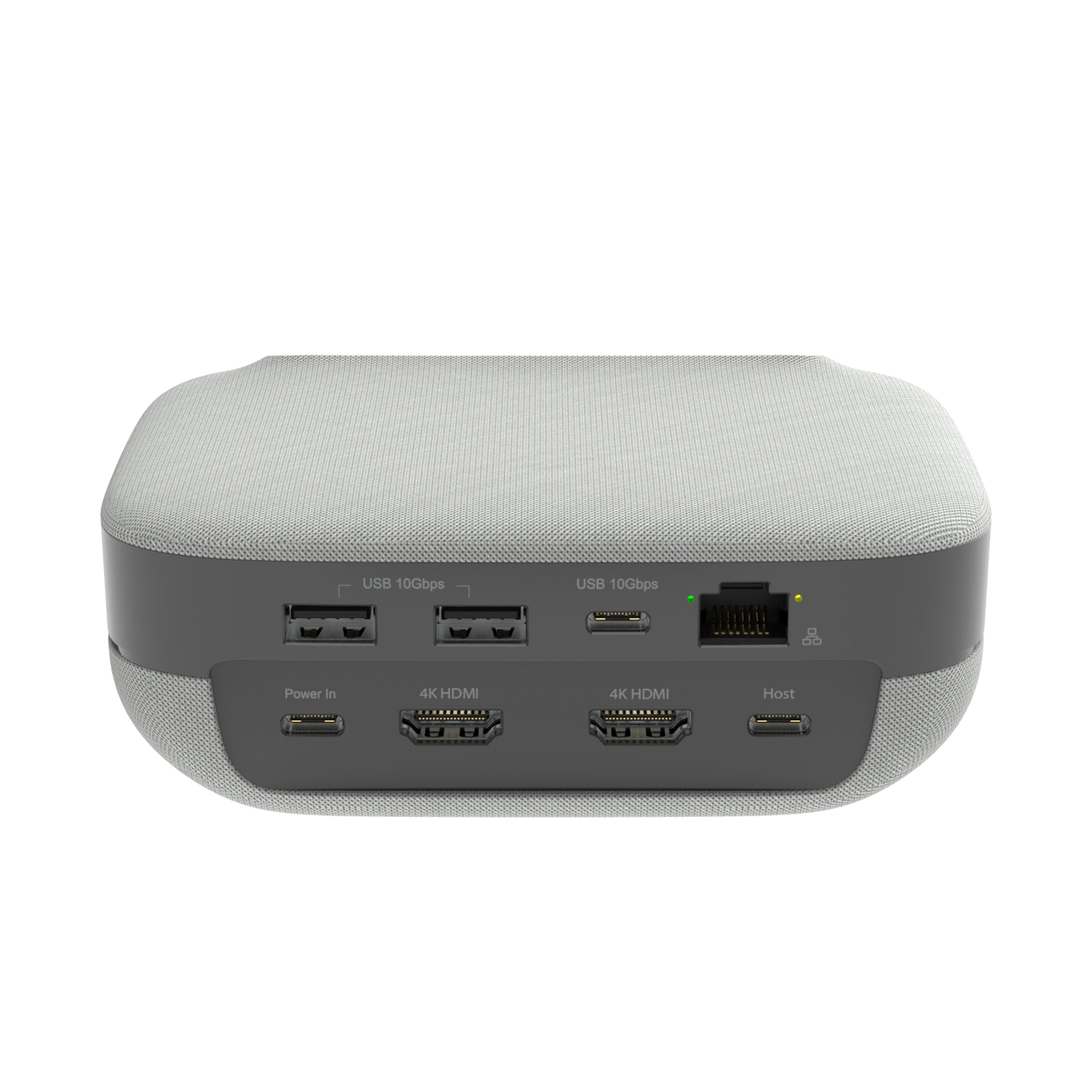

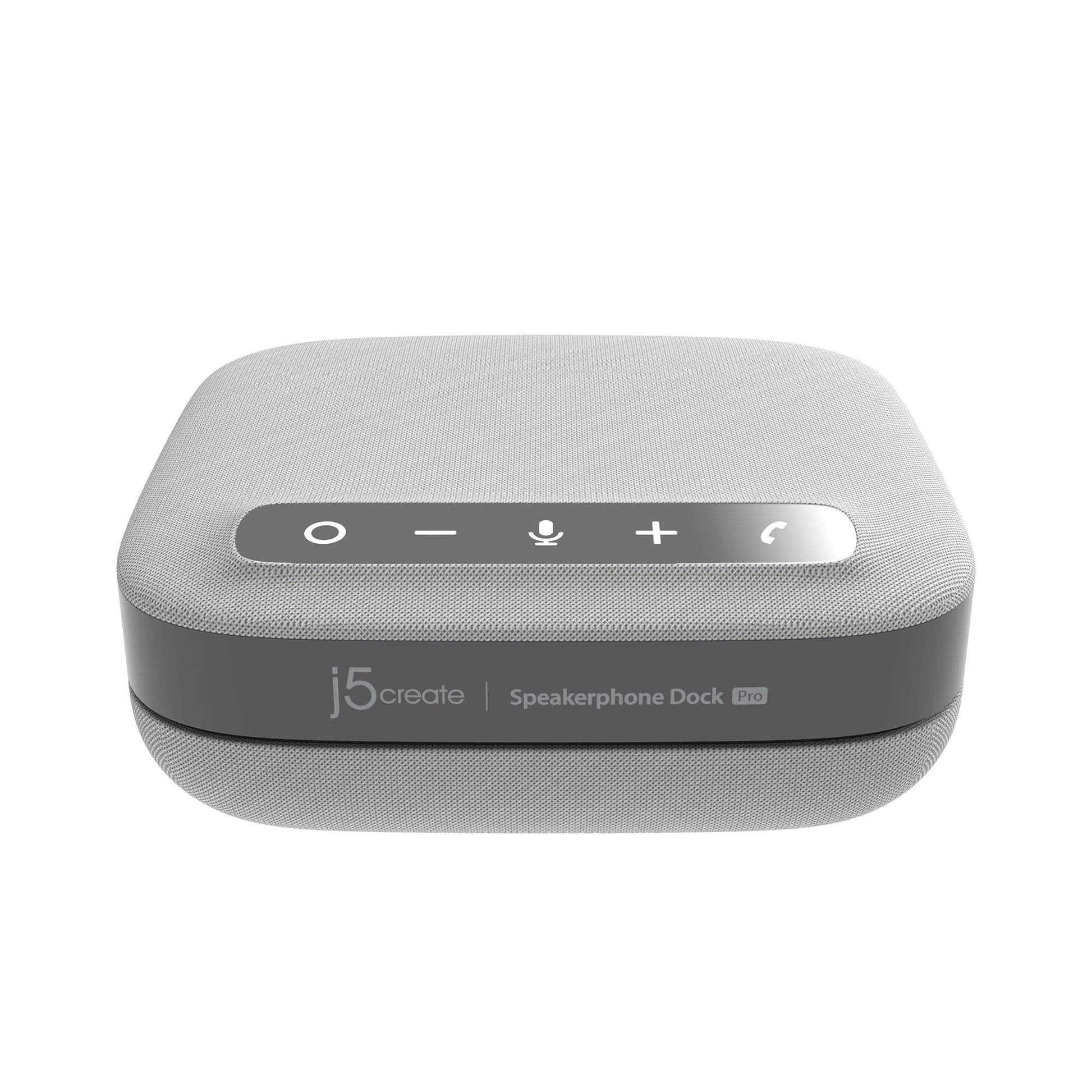

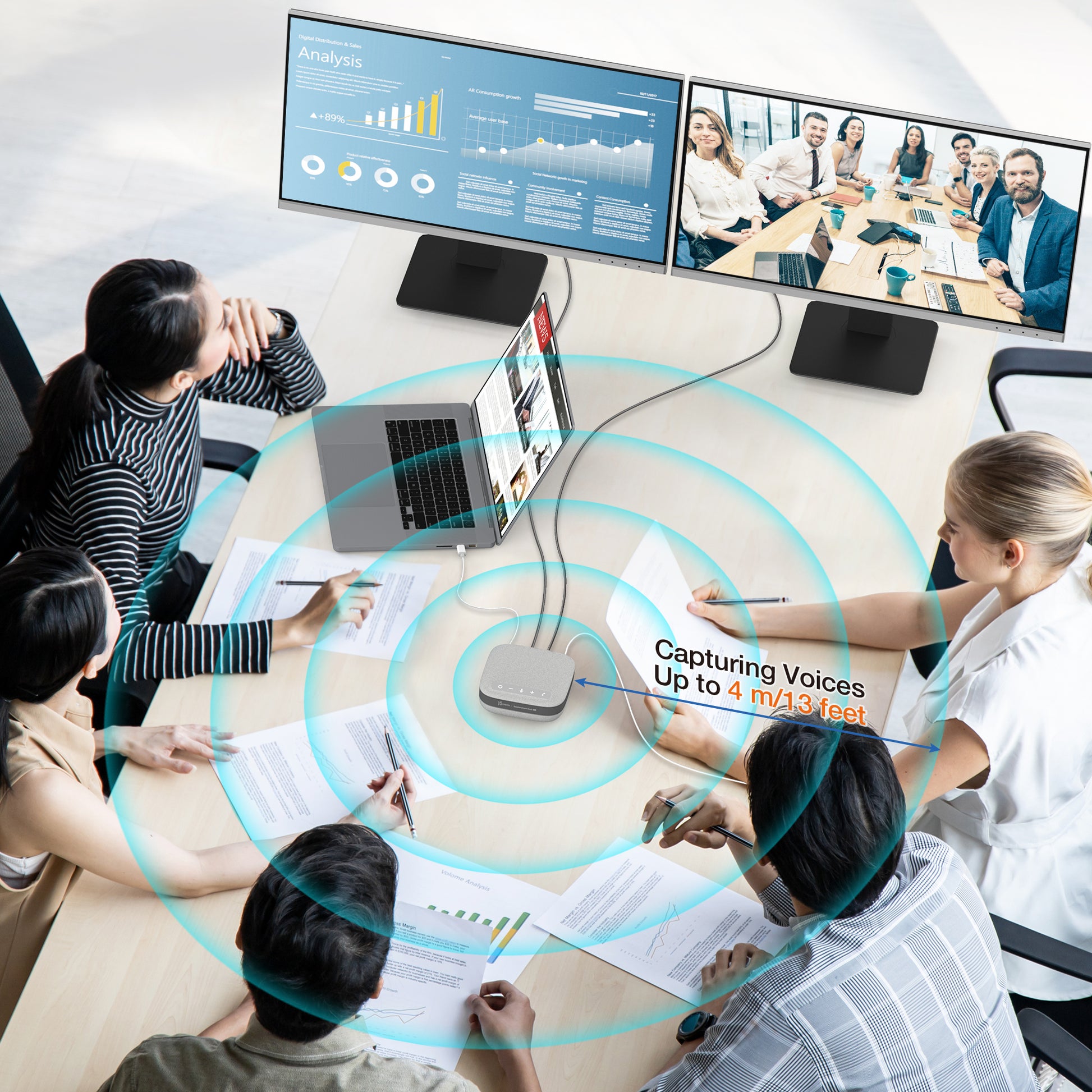

The USB-C® Dual 4K Speakerphone Dock Pro that turns your laptop into a full workstation and conferencing device. Includes two 4K HDMI™ outputs and one Type-C Power In port that supports up to 100W Power Delivery for charging laptops with a Type-C power adapter. Has two USB™ Type-A 10Gbps ports, and one USB-C® 10Gbps port for connecting a variety of USB™ devices. The docking station is also equipped with an RJ45 Gigabit Ethernet port for high-speed network connectivity. The speaker & microphone function provides crystal-clear audio for conference calls. Four omnidirectional microphones are included to pick up voices from around the conference table and uses Acoustic Echo Cancellation to eliminate echo and unwanted background noise. The built-in buttons make it simple to initiate calls, hang up and mute/unmute and adjust the volume. The speakerphone dock is small and lightweight for easy placement and transportation. It’s plug-and-play and ready to use with your favorite video conferencing apps. All docking and speakerphone functions are combined into one compact docking station, so you will have all the connections you need to stay productive!

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	85 W
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Maximum digital resolution	3840 x 2160 pixels

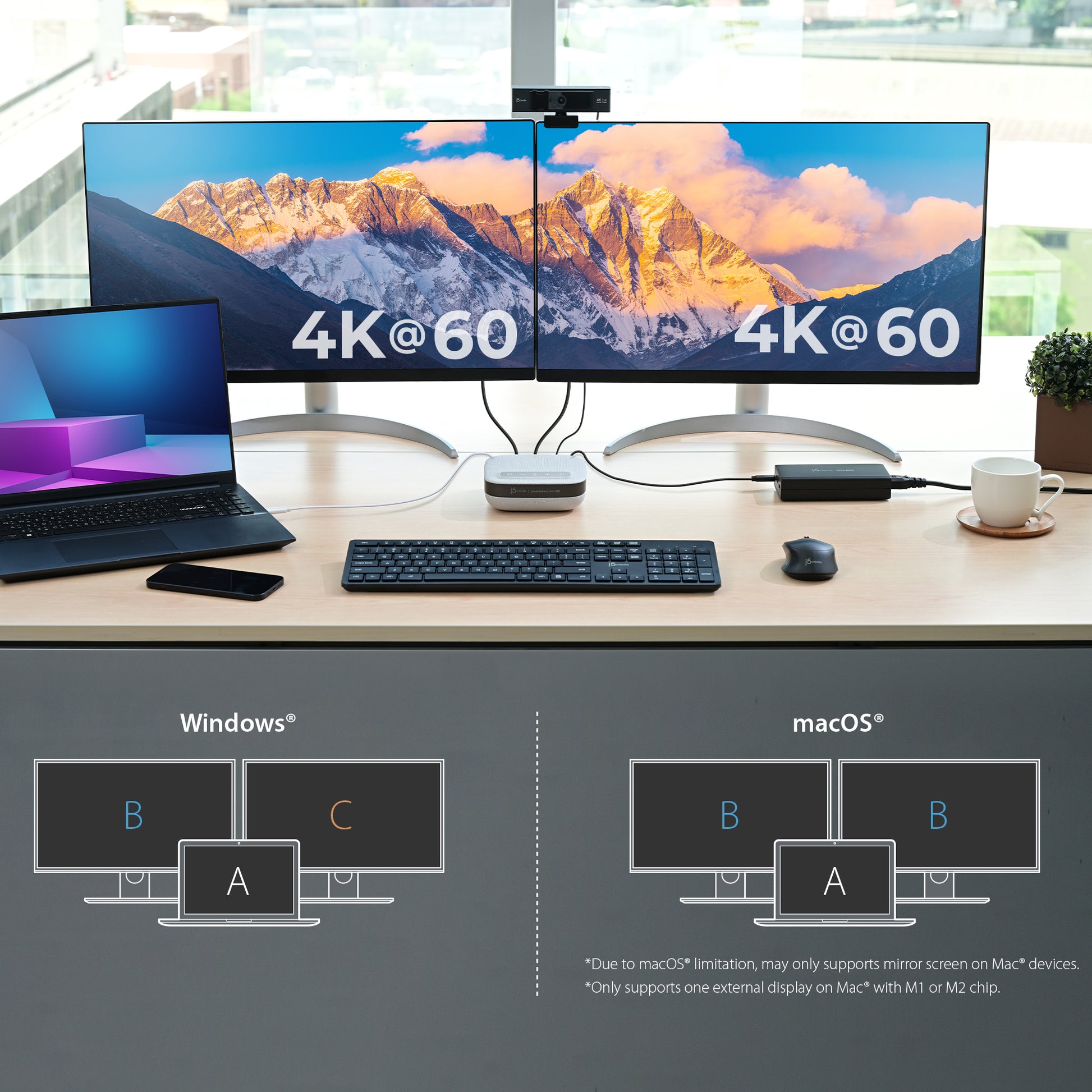

Number of displays supported	2
Number of speakers	1
Country of origin	Taiwan
Product colour	Grey, White
Card reader integrated	No
Built-in speaker(s)	Yes
Speaker power	5 W
LED indicators	Yes
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Display modes	Mirror
Colour name	Dark Grey, White
Maximum refresh rate	144 Hz
High Dynamic Range (HDR) supported	Yes
Audio
Speaker frequency range	150 - 20000 Hz
Sound pressure level	80 dB
Built-in microphone	Yes
Number of microphones	4
Microphone frequency	100 - 8000 Hz
Technical details
Cable length	1 m
Sustainability compliance	Yes
Master (outer) case GTIN (EAN/UPC)	24712795087738
Compliance certificates	CE, REACH, RoHS
Products per master (outer) case	4 pc(s)
Master (outer) case width	186 mm
Master (outer) case length	249 mm
Master (outer) case height	174 mm
Power
Input current	5 A
Output voltage	20 V
Output current	4.25 A
Software
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Yes
Mobile operating systems supported	Android, iOS
Operational conditions
Operating temperature (T-T)	0 - 48 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%
Weight & dimensions
Weight	384.5 g
Width	130 mm
Depth	47.8 mm
Height	130 mm
Package weight	684.8 g
Package width	170.5 mm
Package depth	154 mm
Package height	56 mm
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Packaging content	1 - JCDS337 USB-C® Dual 4K Speakerphone Dock Pro 1 - USB-C® cable (Length: 100 cm / 3.3 ft.) 1 - Quick Installation Guide (QIG)
Cables included	USB Type-C
Logistics data
Export Control Classification Number (ECCN)	EAR99
Master (outer) case net weight	3 kg
