j5create JCD542-N USB-C® HDMI™ Docking Station

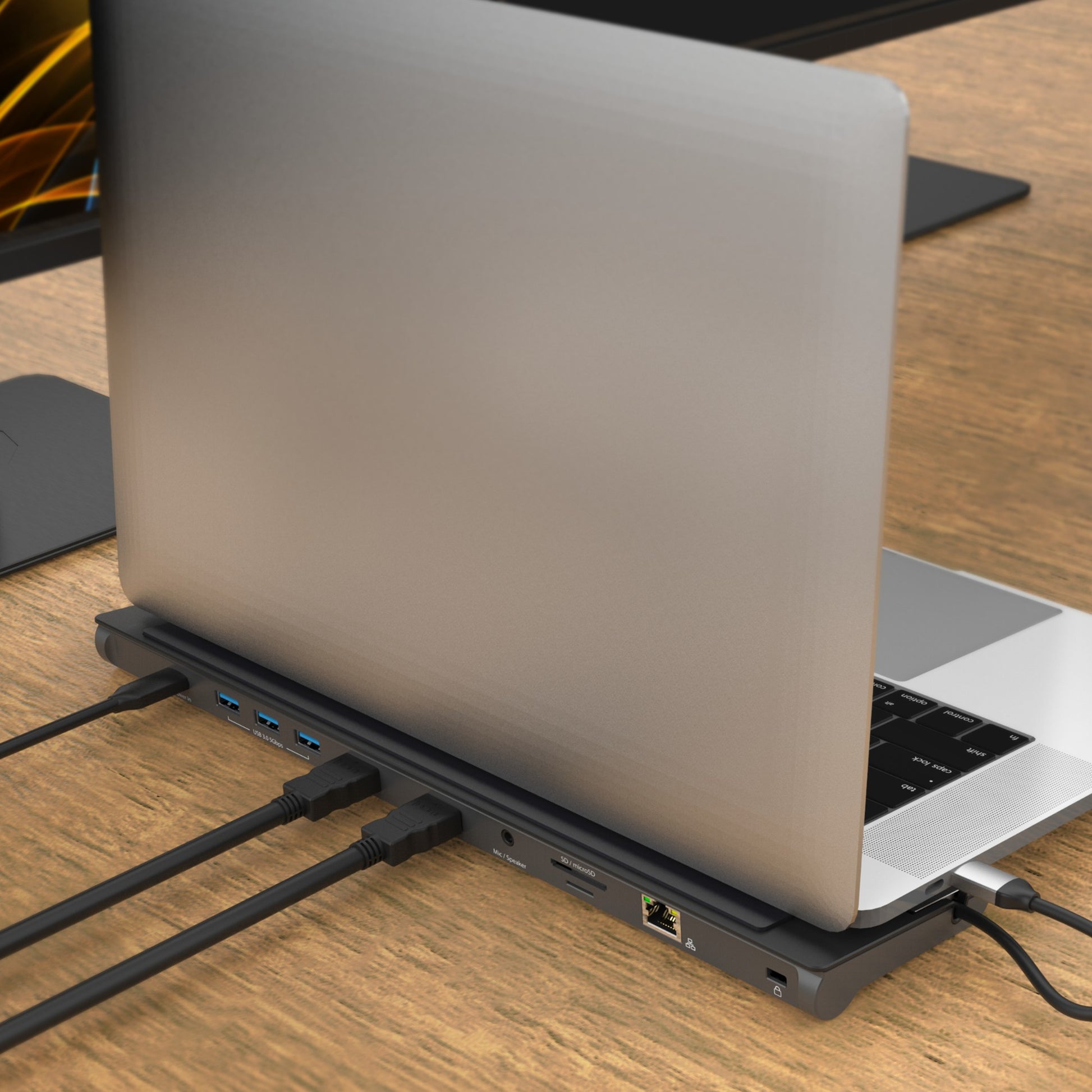

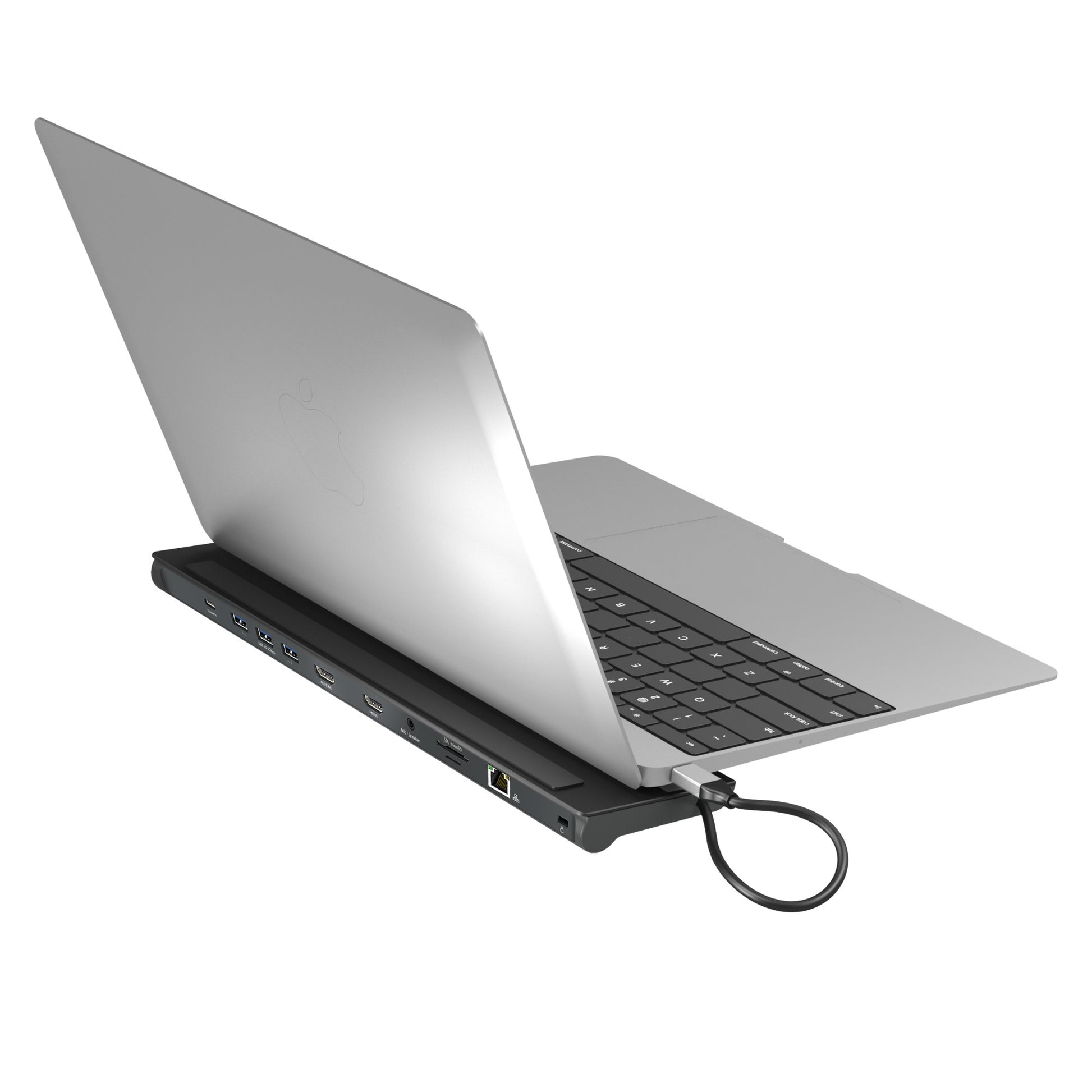

One cable, full desk: the j5create JCD542-N USB-C® HDMI™ turns your laptop into a workstation with external displays over a single USB-C connection.

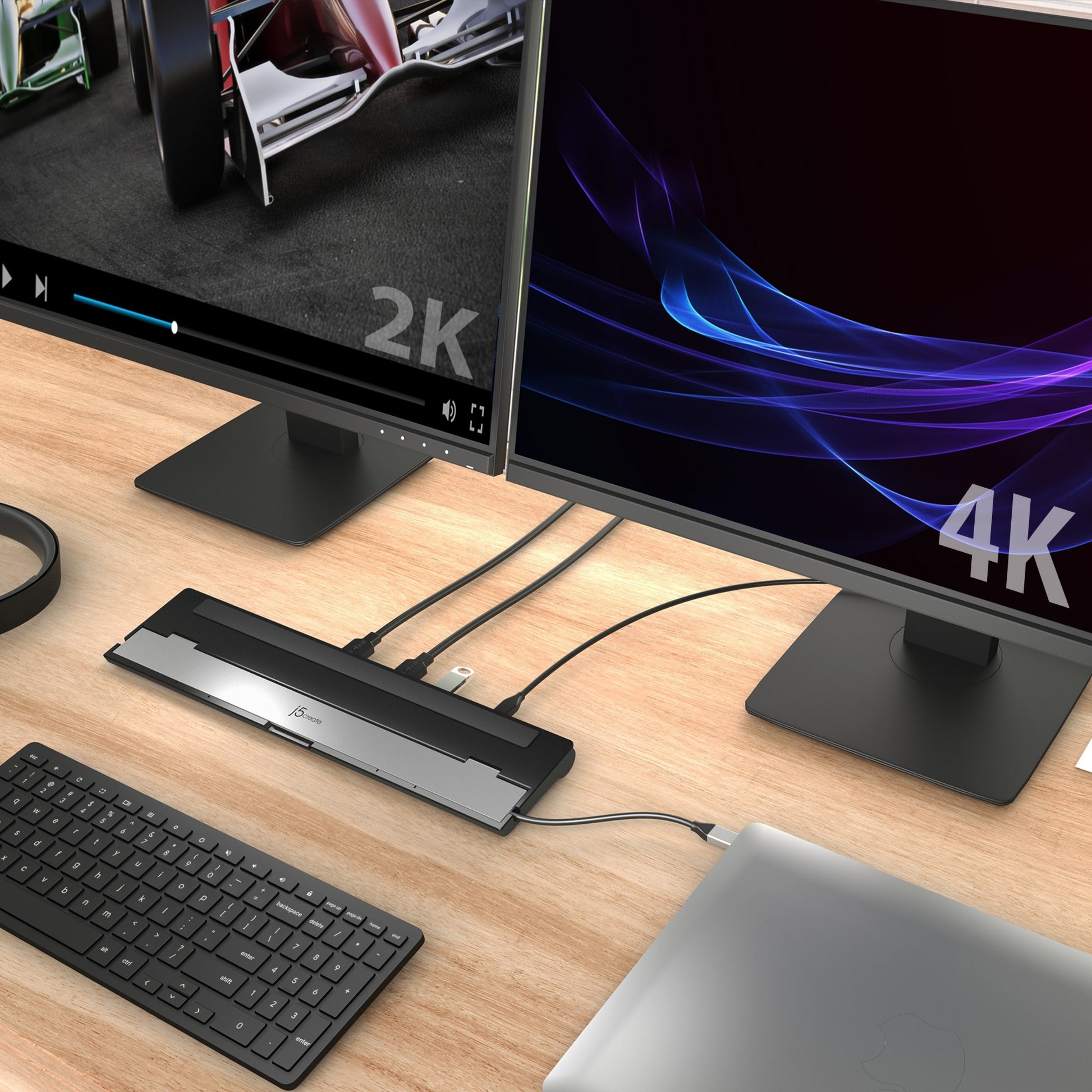

This dual display docking station adds dual HDMI™ monitors, with resolution support up to 4K (3840 x 2160) on one display and up to 2K (2048 x1152) or 1080p on the other display. You can also use your laptop screen for three displays in total, making it easy to access multiple applications at once.

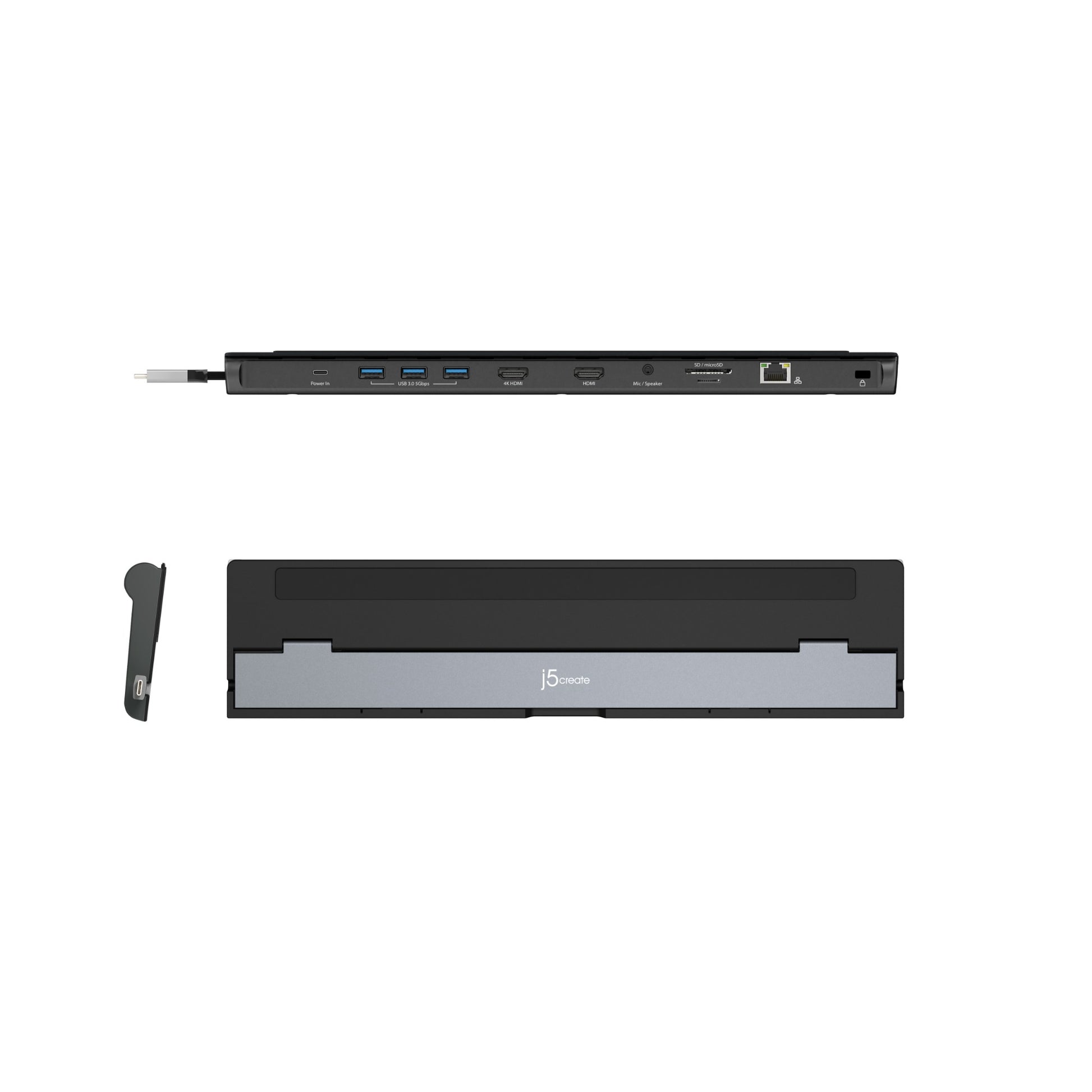

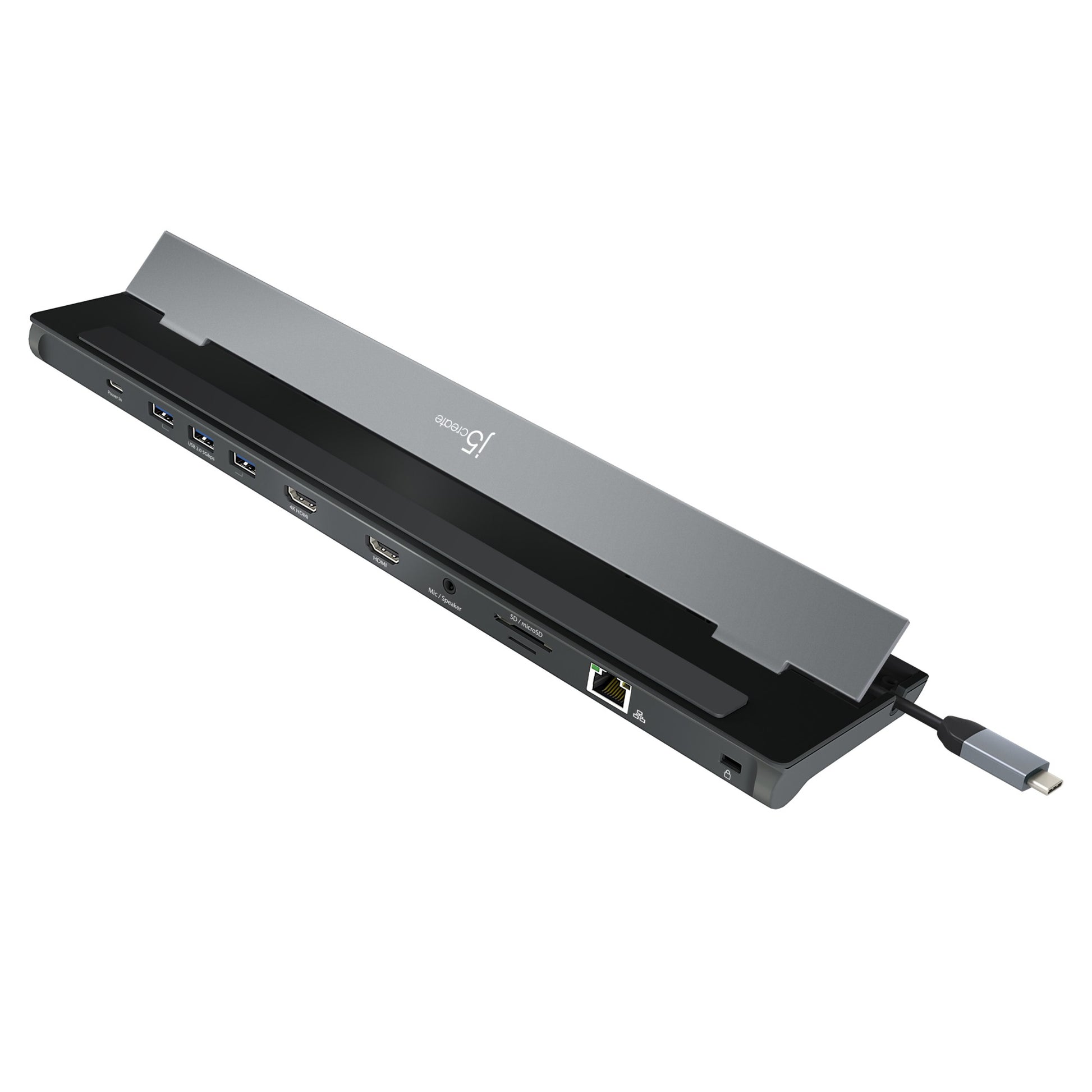

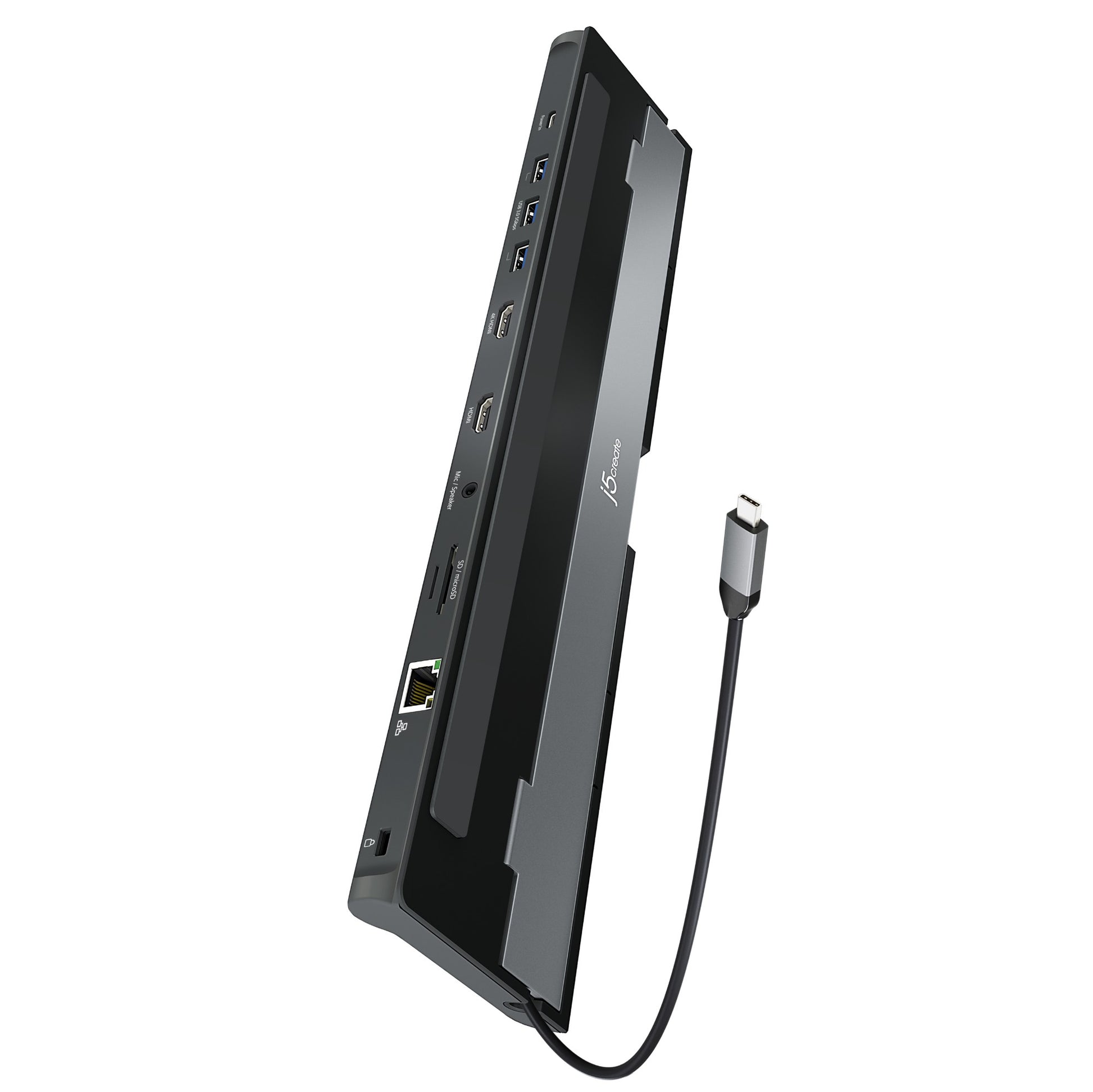

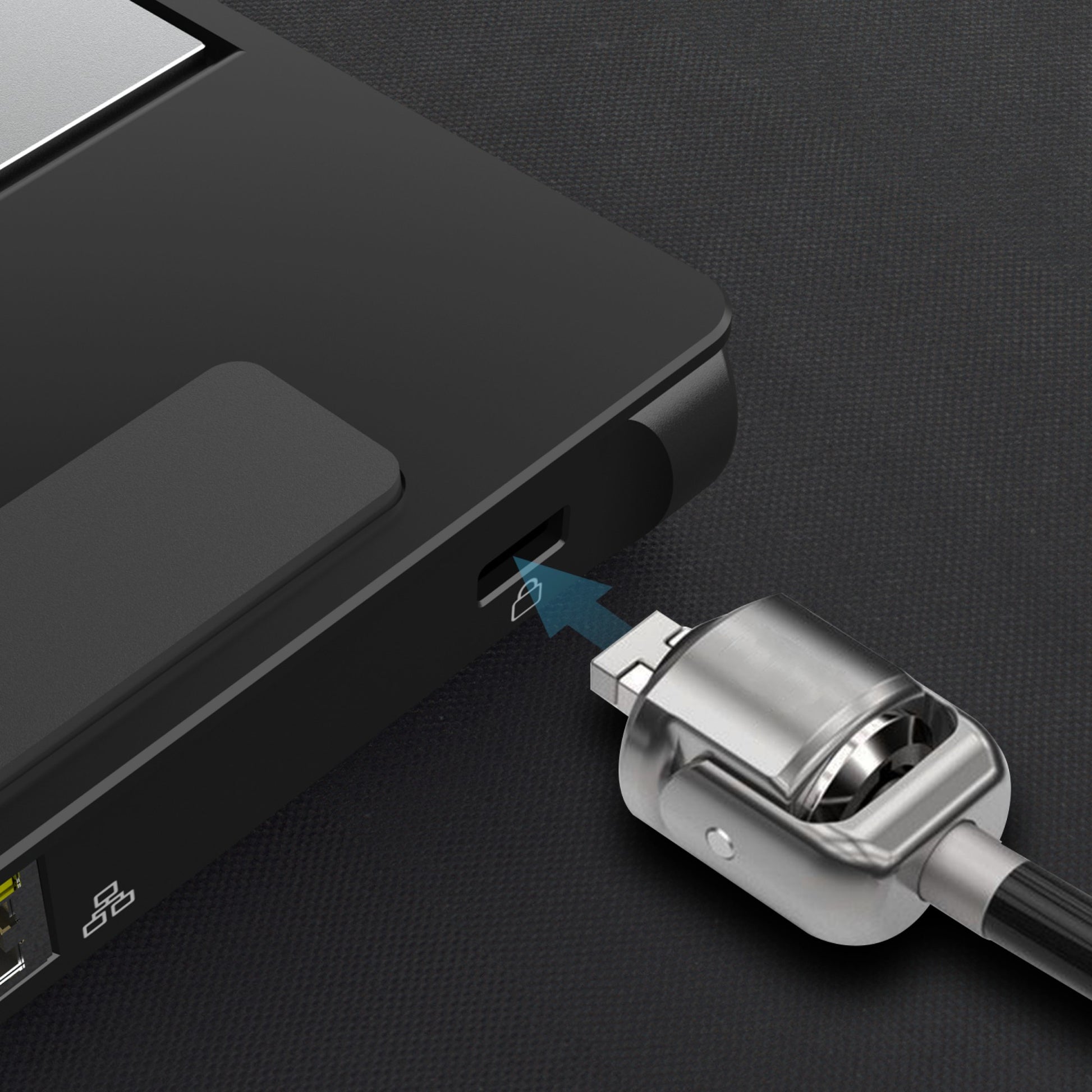

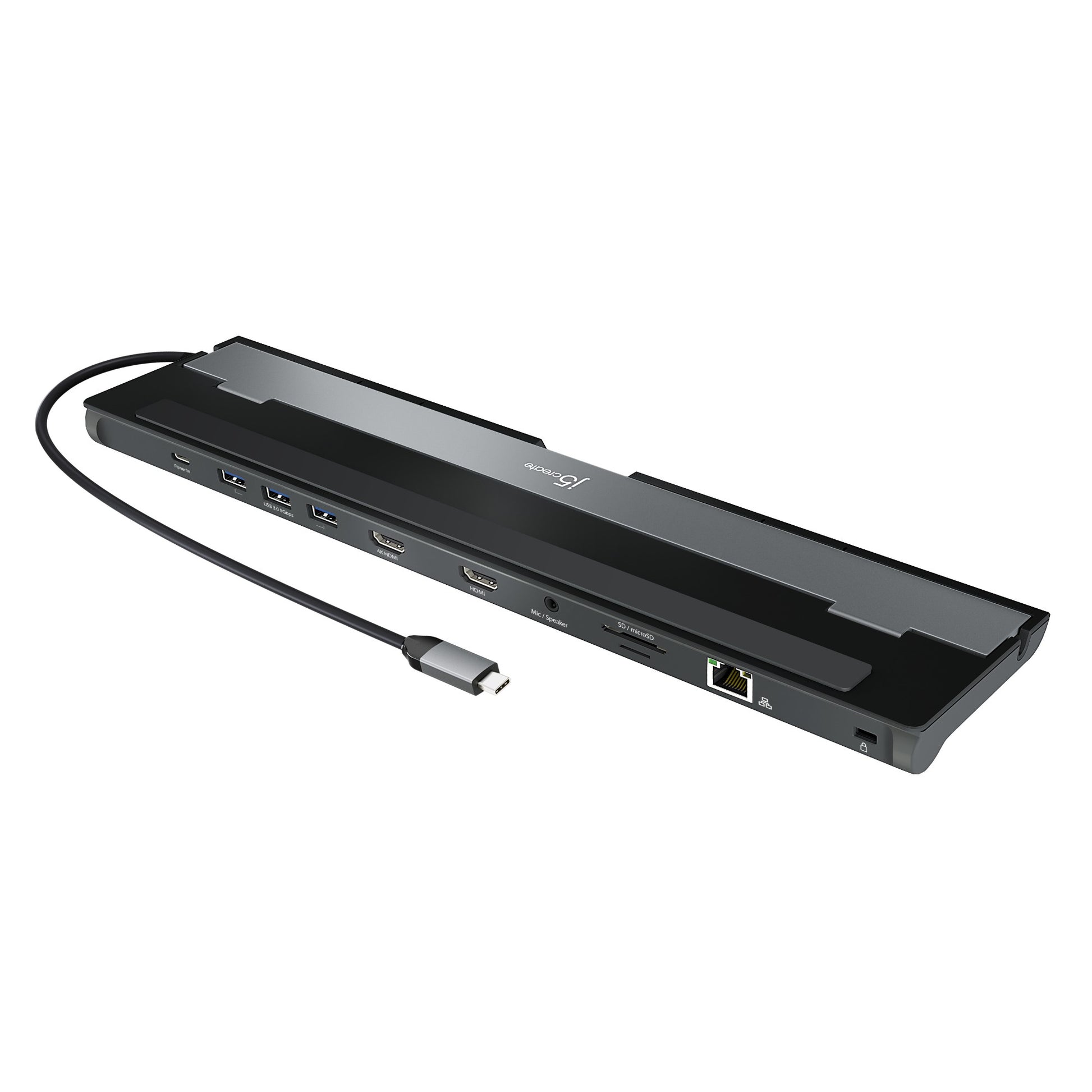

This USB™ 3.0 docking station comes equipped with all the connections you need including three USB™ 3.0 ports, a RJ45 Gigabit Ethernet port, memory card reader/writer, combo audio jack, and a USB-C® port supporting up to 100W Power Delivery. It also includes a security lock slot to protect against theft, making it perfect for use in business organizations. With its slim and heat-dissipating design along with the double-sided cable storage compartment, this USB-C® dock ensures an easy connection regardless of your USB-C® port’s location and can easily fit into any workspace environment.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
USB Type-C DisplayPort Alternate Mode	Yes
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Number of displays supported	2
Country of origin	Taiwan
Product colour	Black, Grey
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
HD type	4K Ultra HD
Housing material	Aluminium
Maximum refresh rate	30 Hz
Hub interfaces	3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Technical details
Maximum operating temperature	40 °C
Cable length	0.45 m
Power
Power supply type	USB
Power consumption (typical)	4.5 W
Output voltage	20 V
Output current	0.9 A
Software
Windows operating systems supported	Windows 10
Mac operating systems supported	Mac OS X 10.11 El Capitan
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 65 °C
Weight & dimensions
Weight	307 g
Width	82.5 mm
Depth	350.2 mm
Height	22 mm
Package weight	405 g
Package width	88.3 mm
Package depth	358 mm
Package height	28 mm
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Quick start guide	Yes
Packaging content	1 x JCD542 USB-C® Dual HDMI™ Docking Station, 1 x Quick Installation Guide (QIG)
Manual	Yes
Cables included	USB Type-C

Downloads

• Datasheet (PDF)
