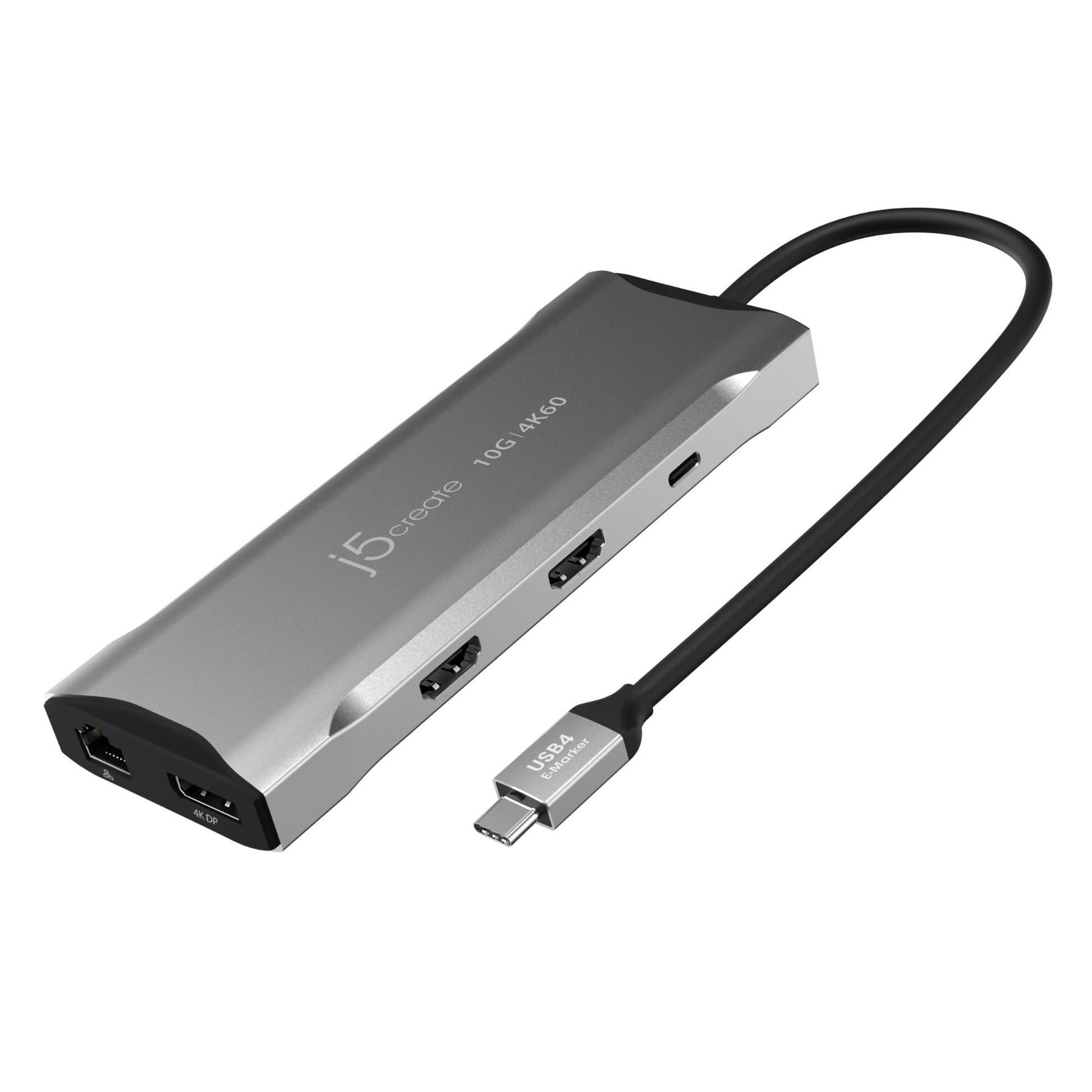

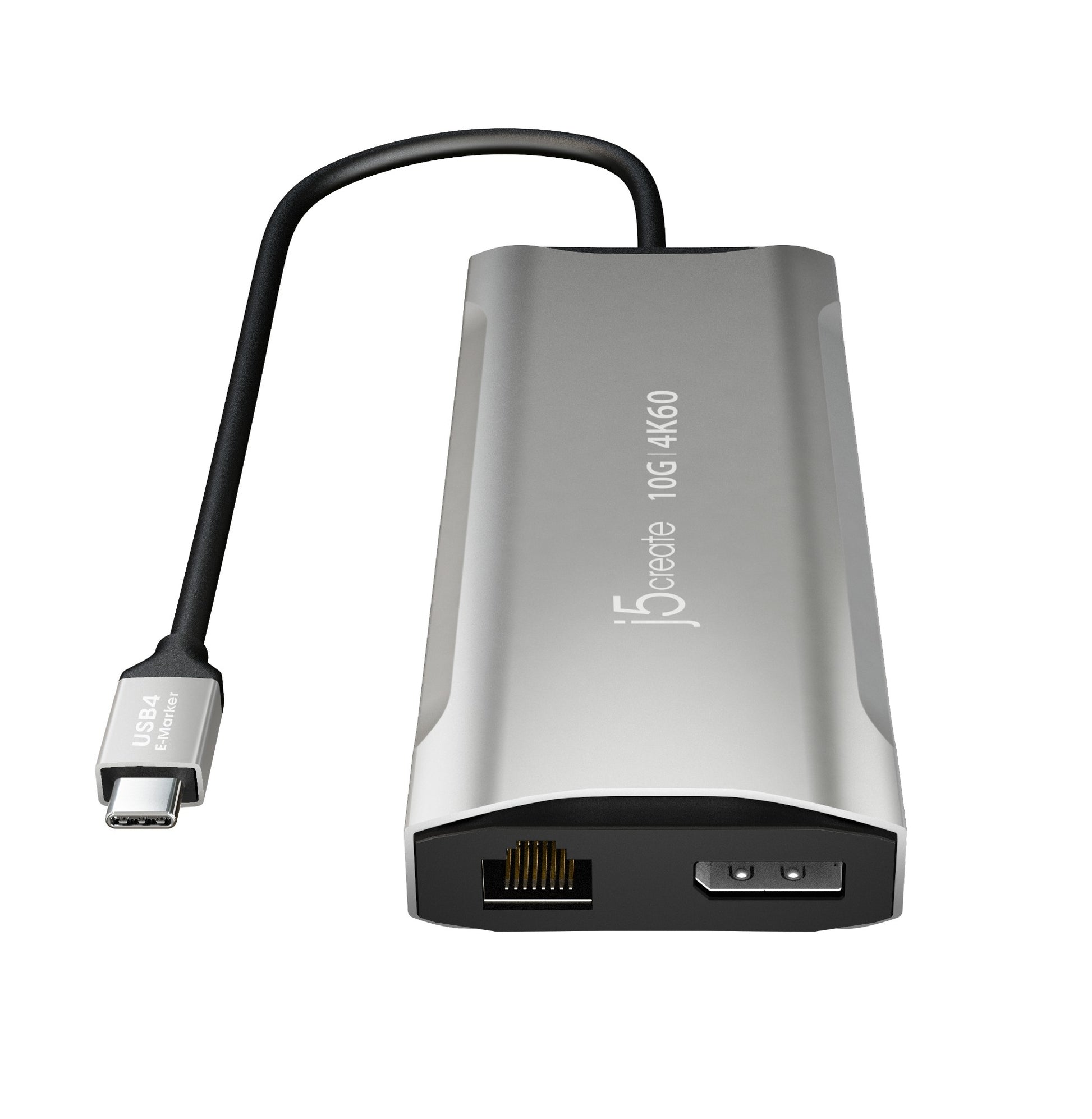

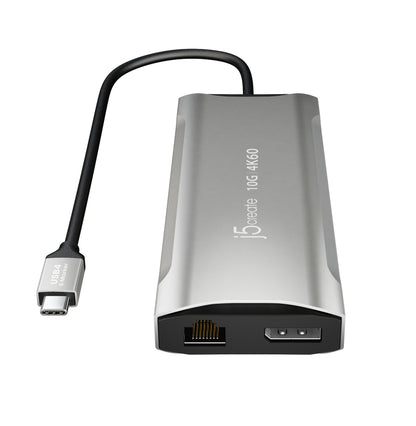

j5create JCD397-N 4K60 Elite USB-C Docking Station

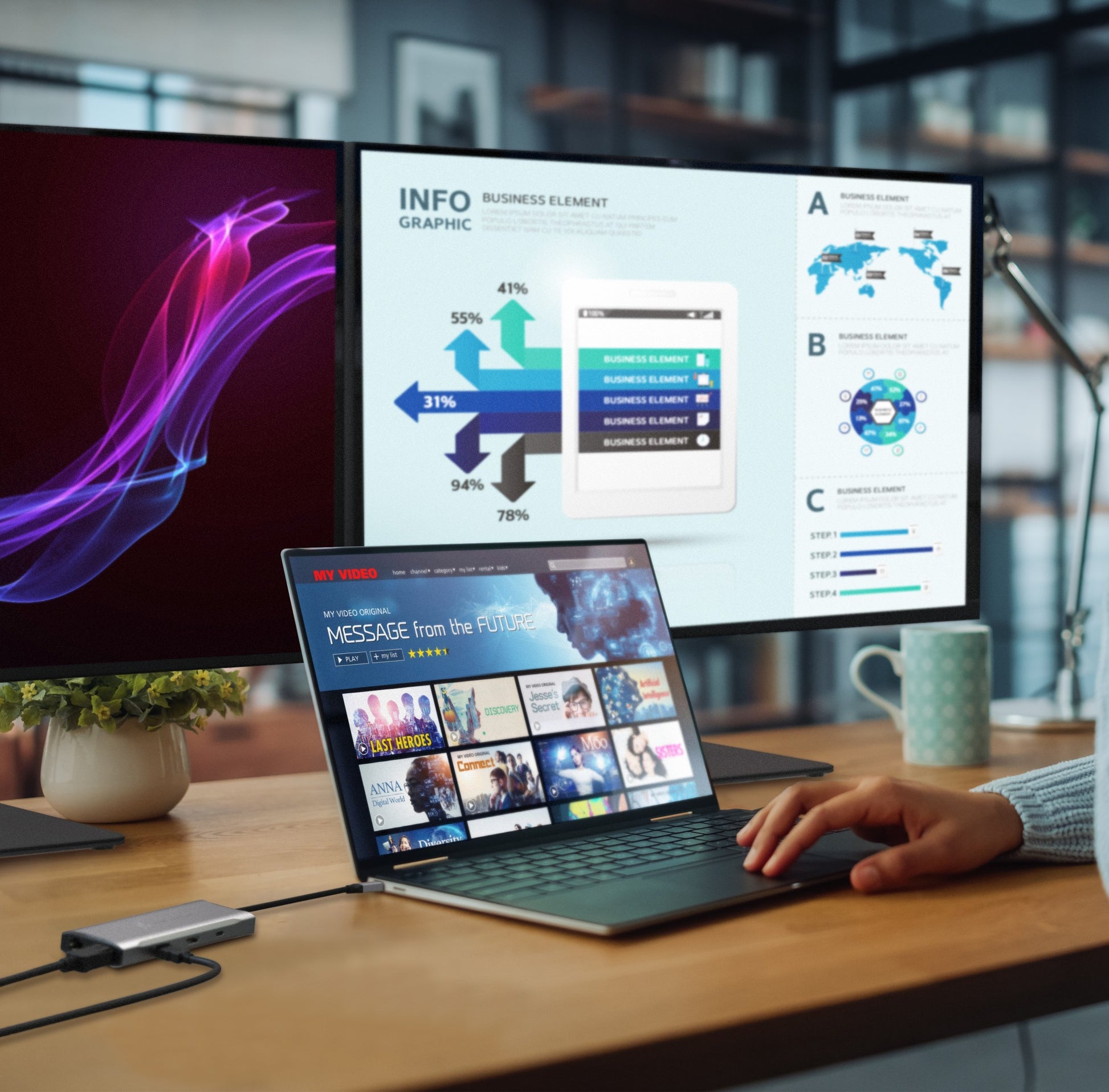

One cable, full desk: the j5create JCD397-N 4K60 Elite turns your laptop into a workstation with triple displays over a single USB-C connection.

Equipped with an advanced USB-C® E-Mark chip, this multi-monitor mini dock is compatible with USB4™ hosts and devices, featuring everything you need, from triple video outputs to 10Gbps USB™ ports, as well as 100W Power Delivery pass-through charging.

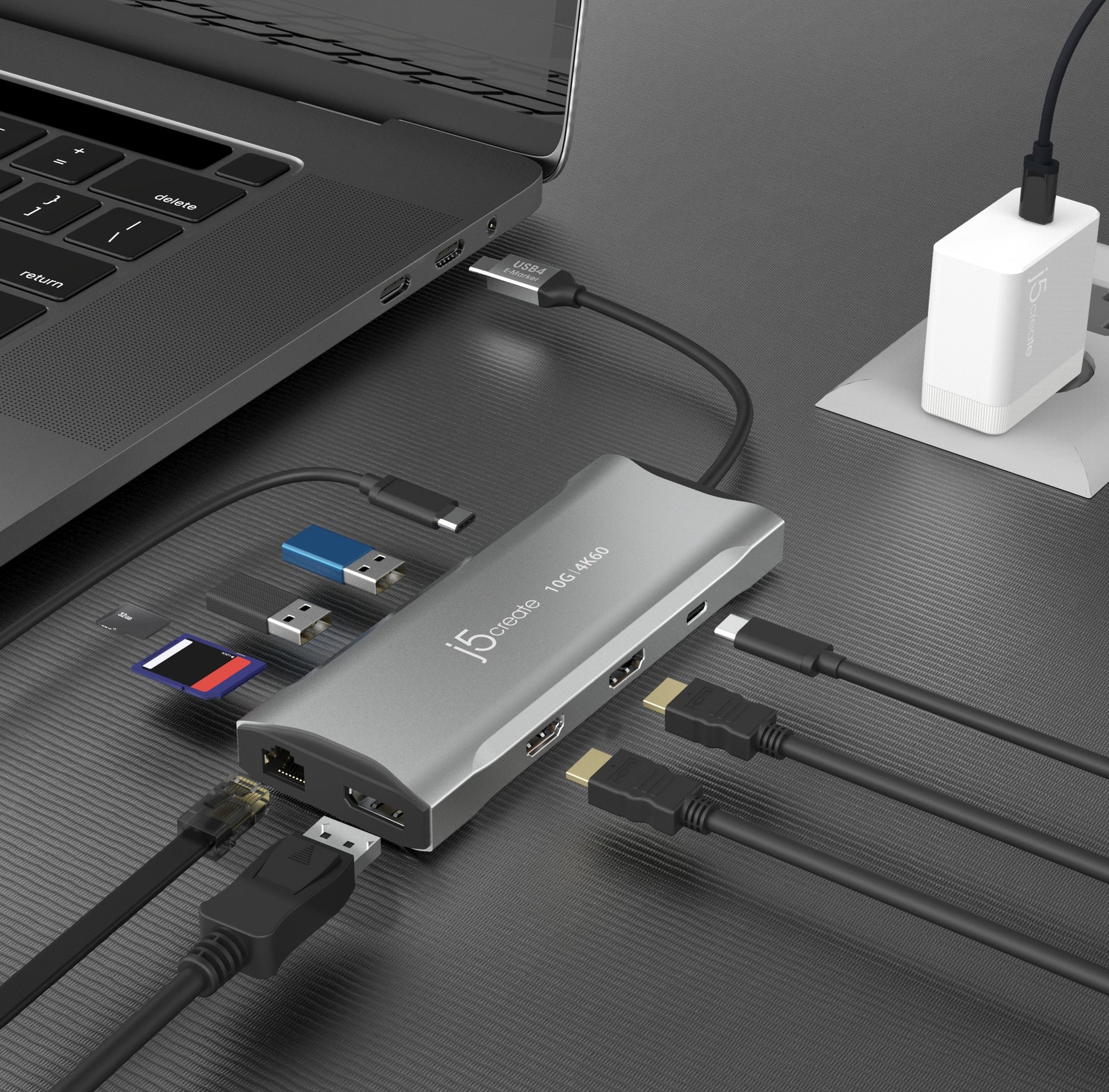

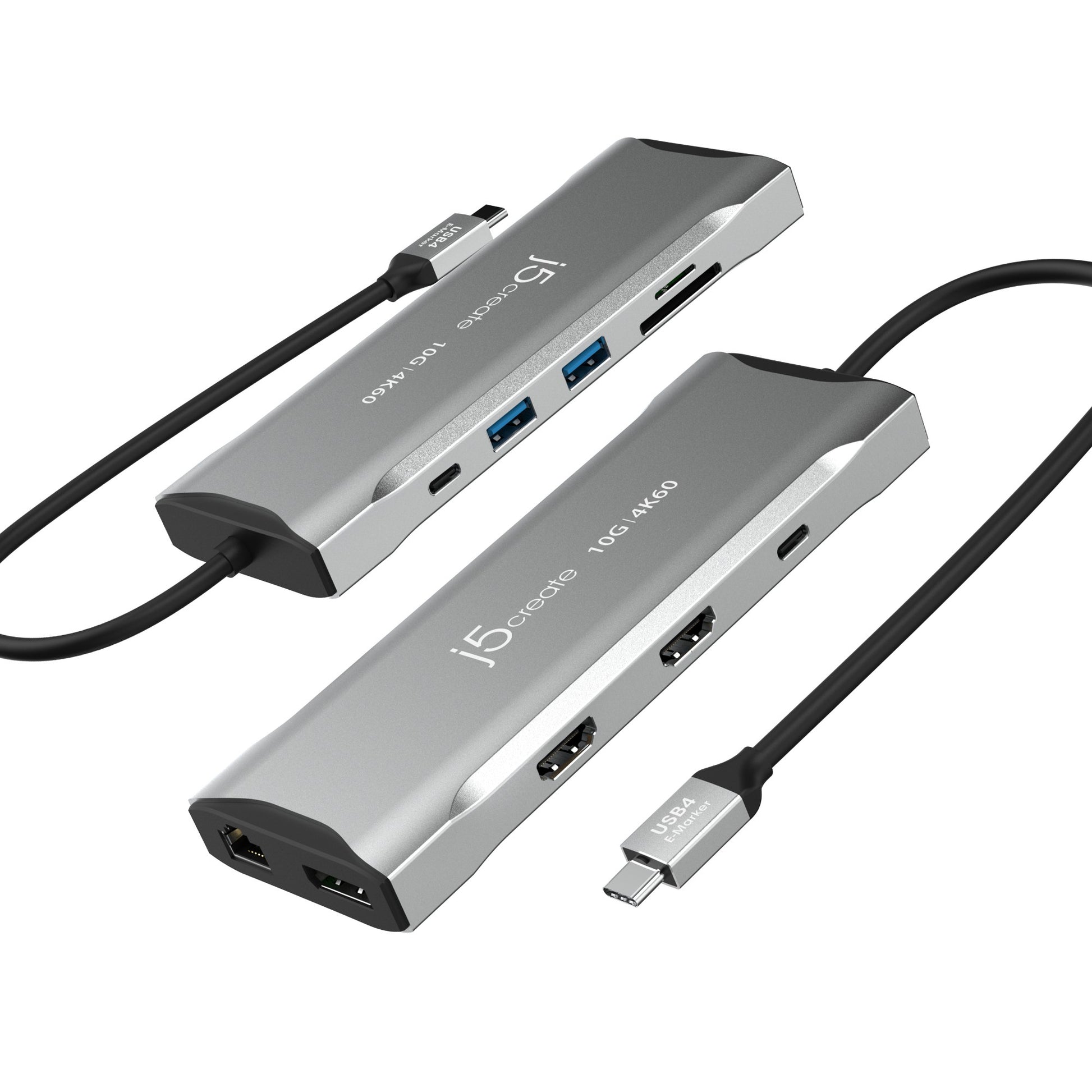

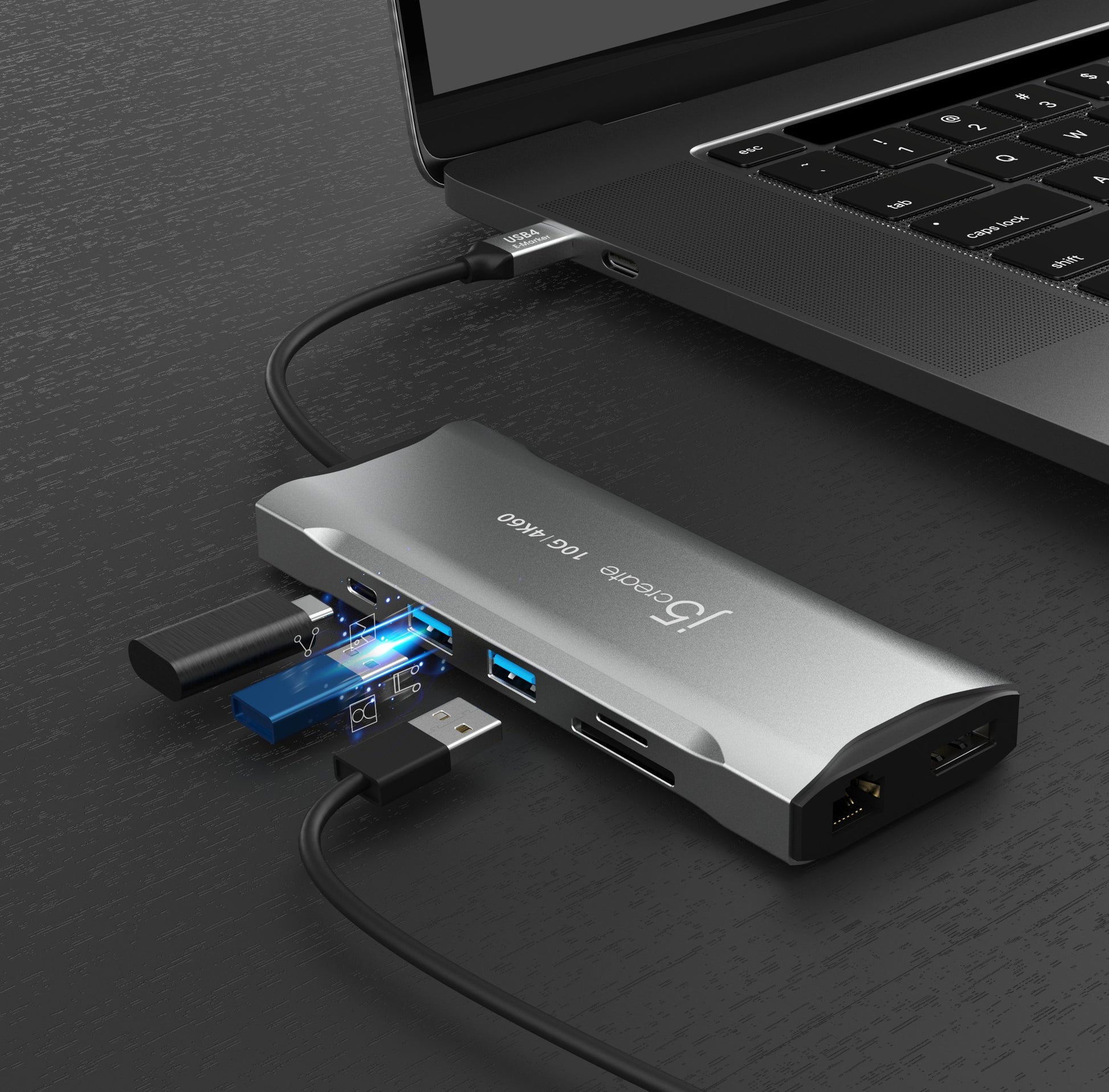

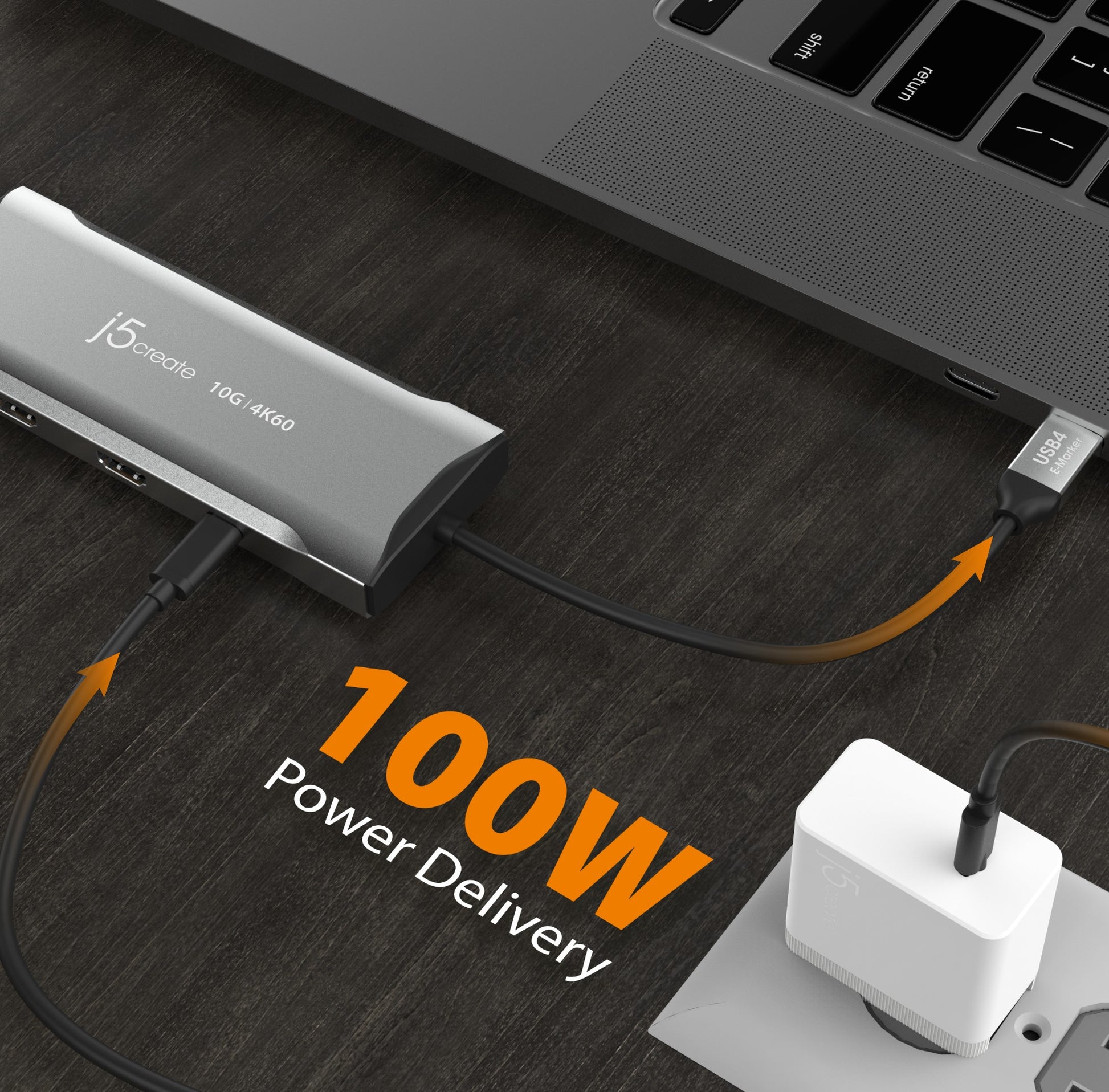

This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI™ and a DisplayPort™ output. It provides three USB™ SuperSpeed 10 Gbps ports (2 USB-C® and 1 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
HDMI version	2.0
DisplayPorts quantity	1
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
DisplayPort version	1.4a
USB Type-C DisplayPort Alternate Mode	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
Country of origin	Taiwan
Product colour	Grey
Card reader integrated	Yes

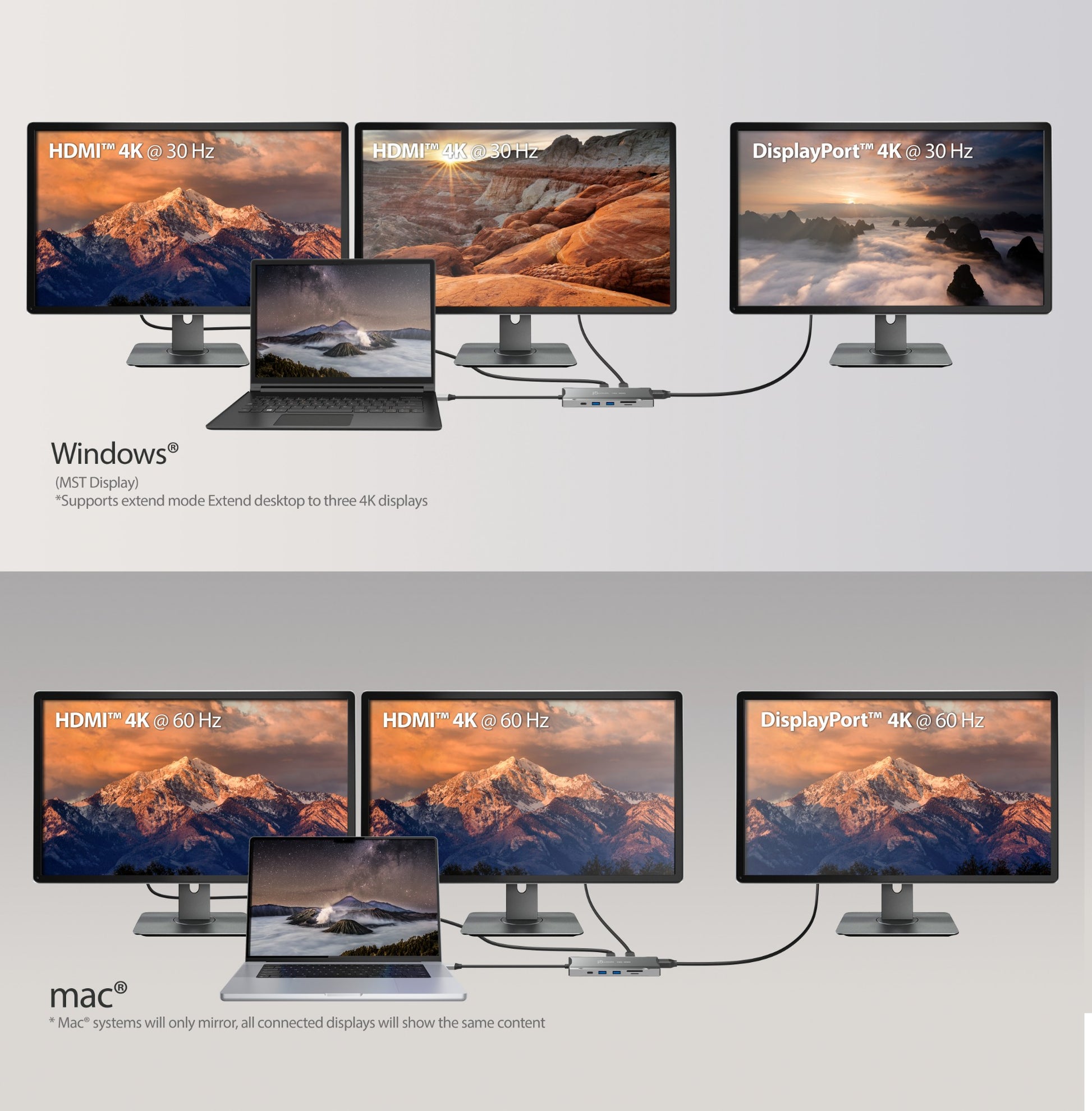

Compatibility	Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0. The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve triple-monitor configuration.
Plug and Play	Yes
Data transfer rate	10 Gbit/s
Compatible memory cards	MicroSD (TransFlash), SD
Charging function	Yes
HD type	4K Ultra HD
Housing material	Aluminium
Display modes	Extended, Mirror, Primary display
Colour name	Space Grey
Maximum refresh rate	240 Hz
Technical details
Master (outer) case GTIN (EAN/UPC)	24712795086328
Special features	Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a Dual 4K HDMI™ output, DP display output.
Products per master (outer) case	18 pc(s)
Master (outer) case width	226 mm
Master (outer) case gross weight	3.8 kg
Master (outer) case length	445 mm
Master (outer) case height	190 mm
Products per shipping (inner) case	6 pc(s)
Power
Power source type	USB
Power consumption (typical)	4.16 W
Output voltage	5 V
Output current	0.79 A
Power connector	USB Type-C
USB cable length	0.2 m
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%
Weight & dimensions
Weight	121.4 g
Width	55 mm
Depth	17 mm
Height	148 mm
Package weight	151 g
Package width	193 mm
Package depth	125 mm
Package height	22.5 mm
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Quick start guide	Yes
Manual	Yes
Cables included	USB Type-C
Logistics data
Shipping (inner) case width	16.5 cm
Shipping (inner) case length	21.2 cm
Shipping (inner) case height	13.7 cm
Shipping (inner) case net weight	1.06 kg
Export Control Classification Number (ECCN)	EAR99

Downloads

• Datasheet (PDF)
