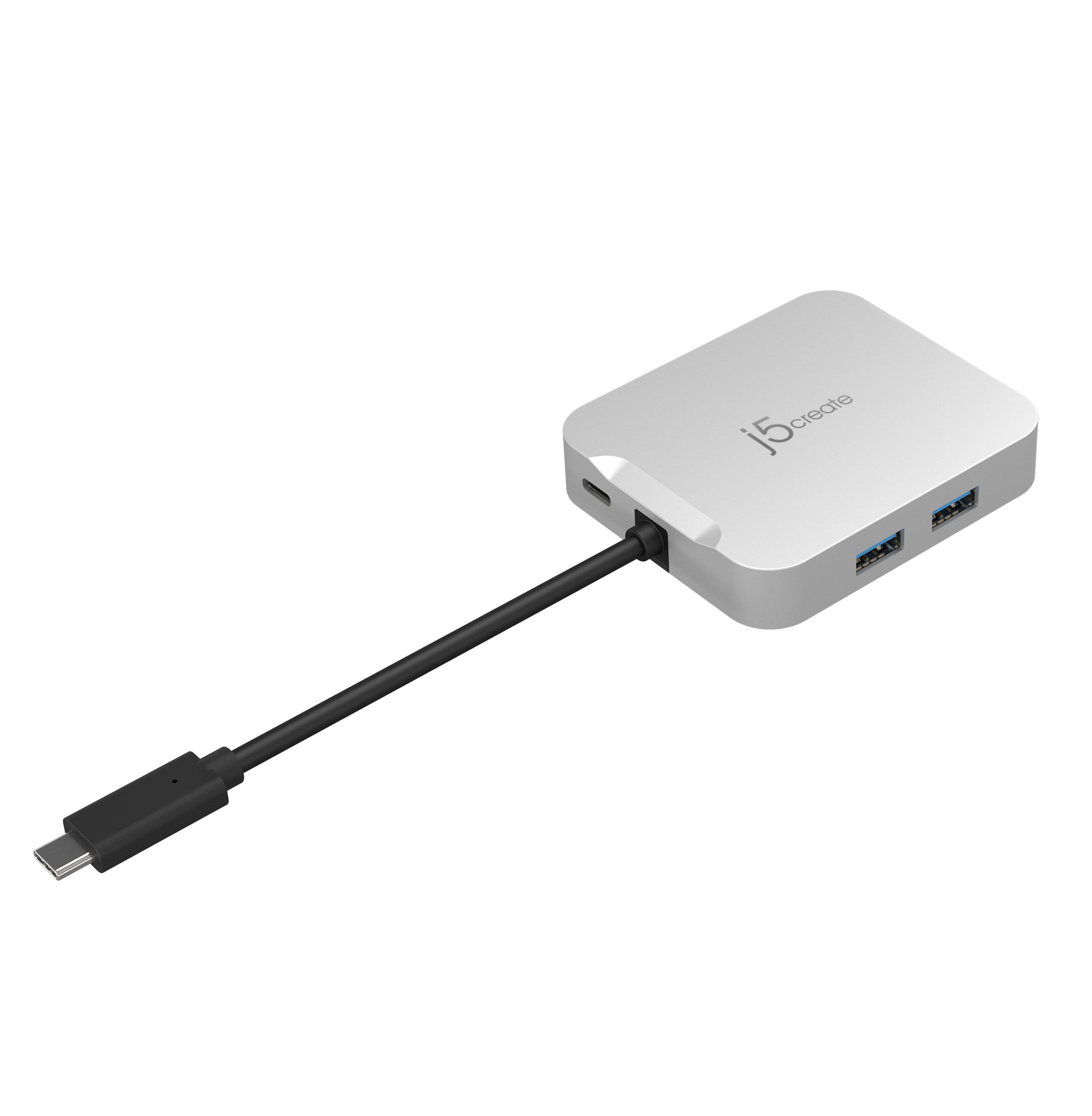

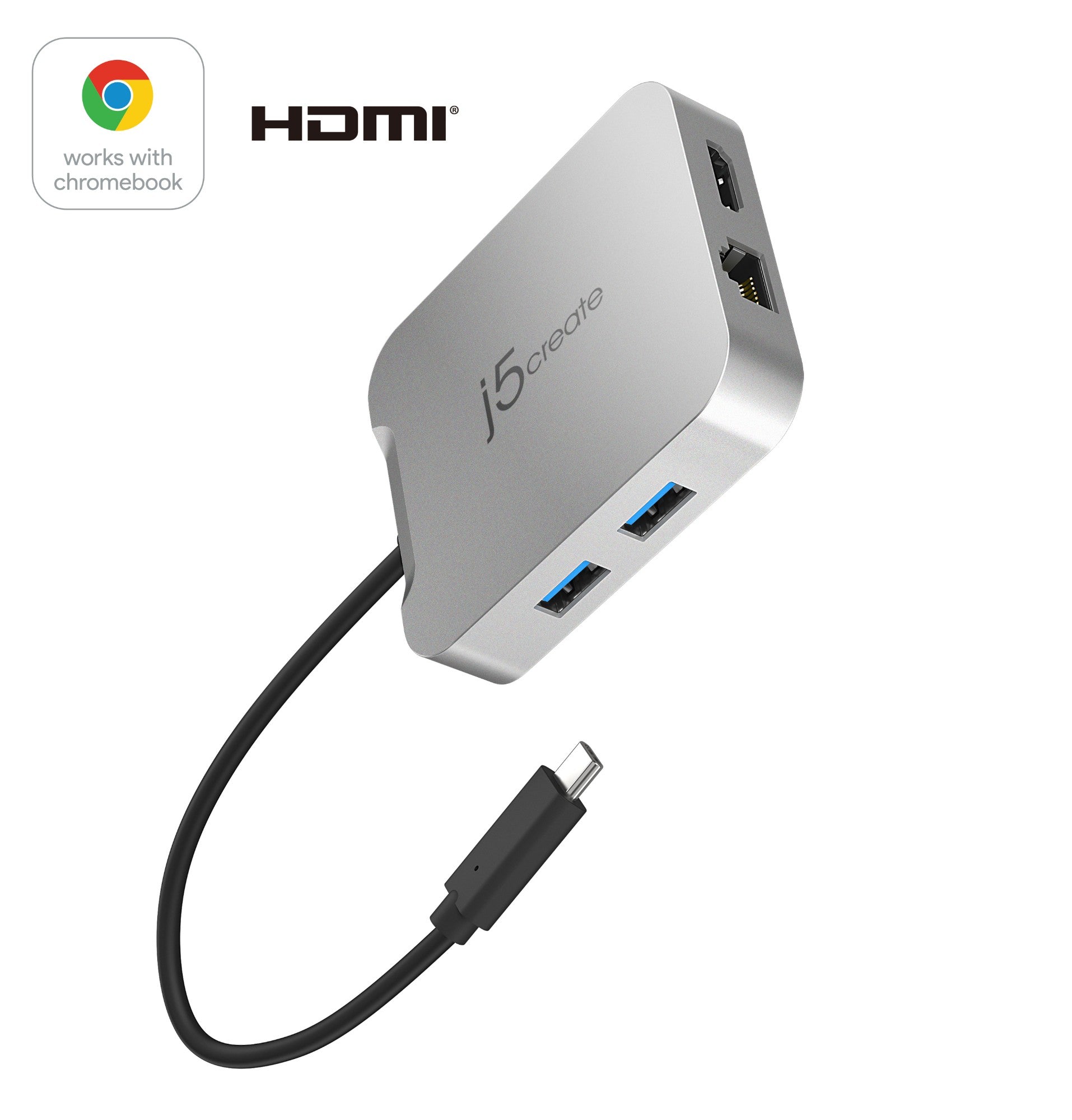

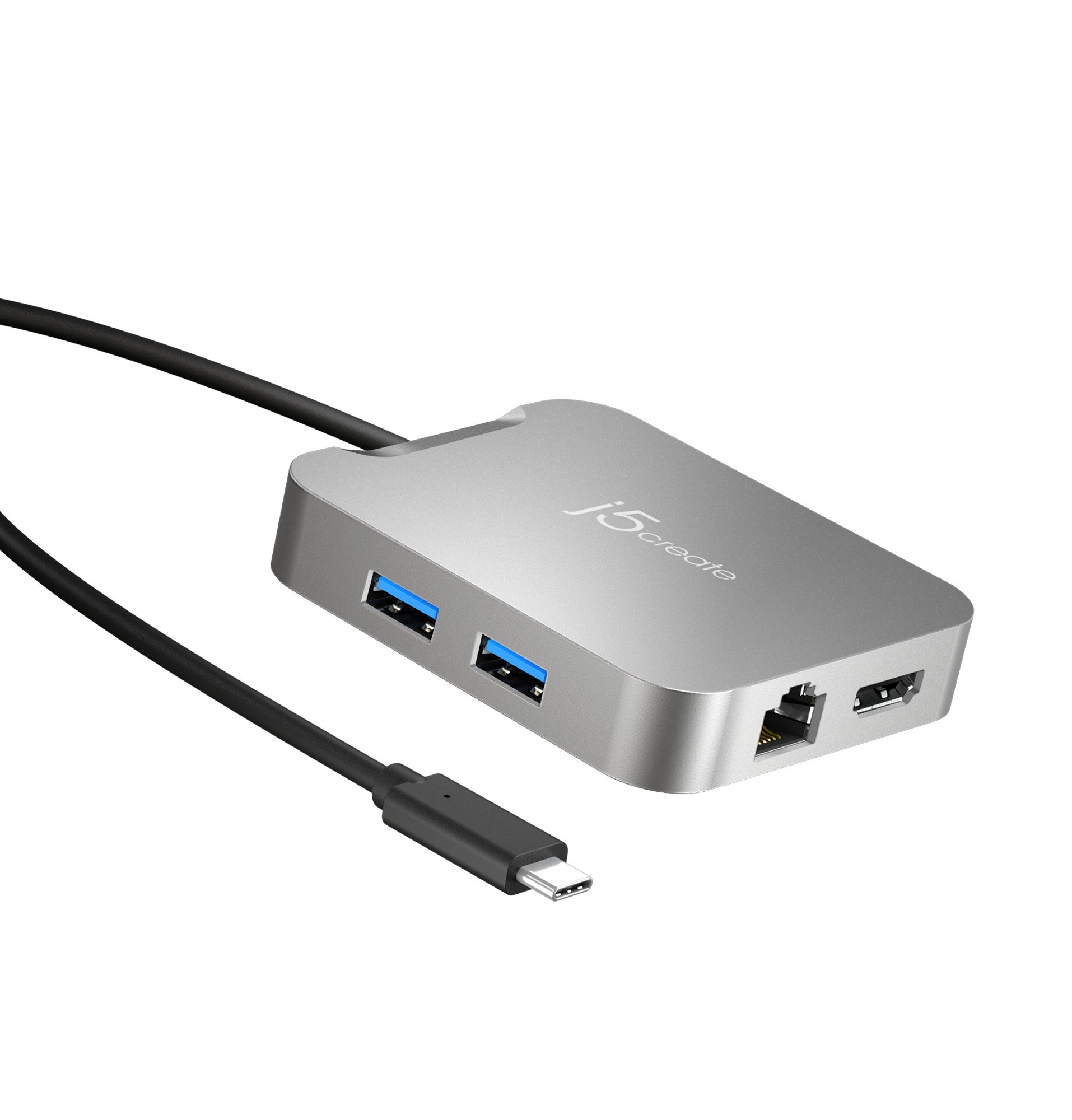

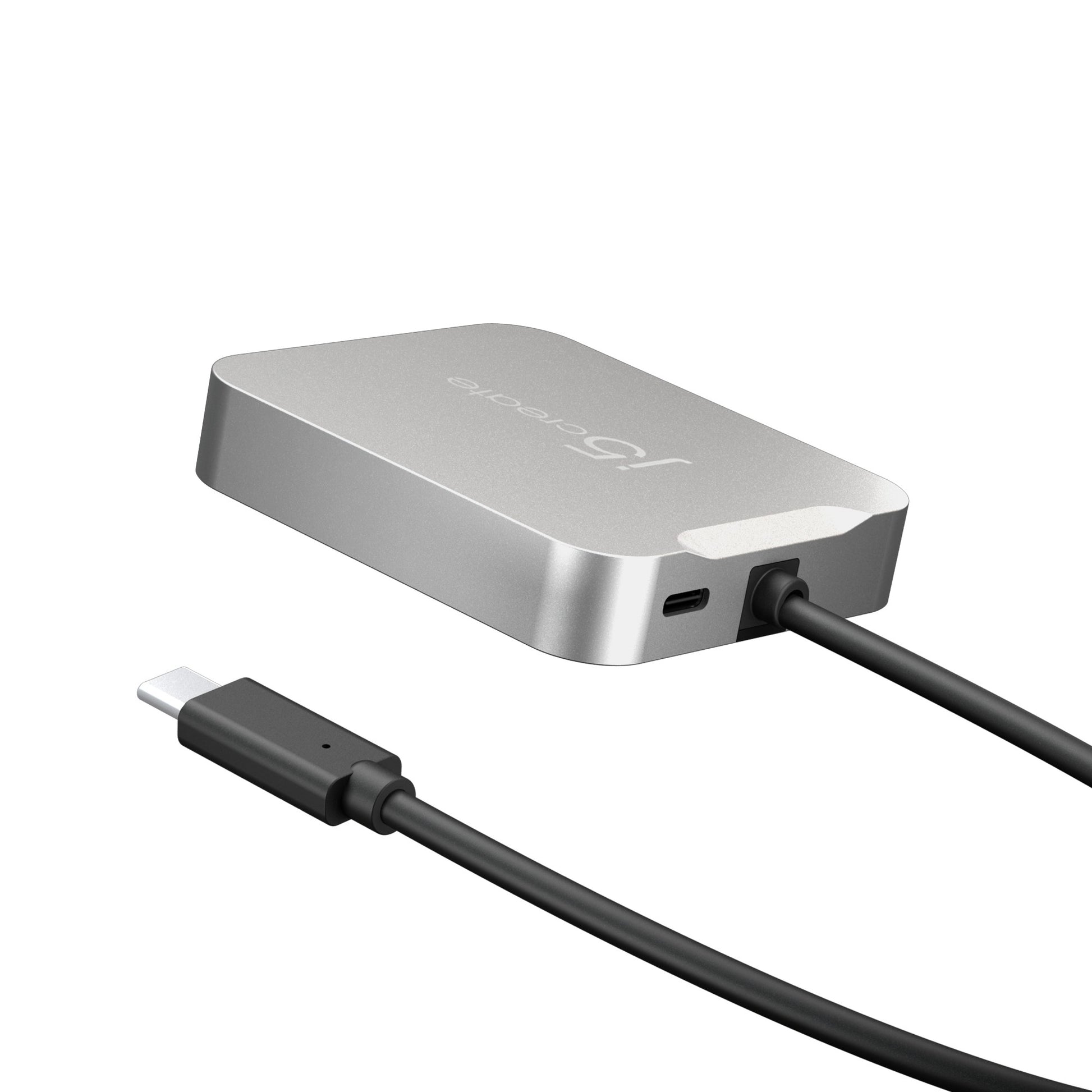

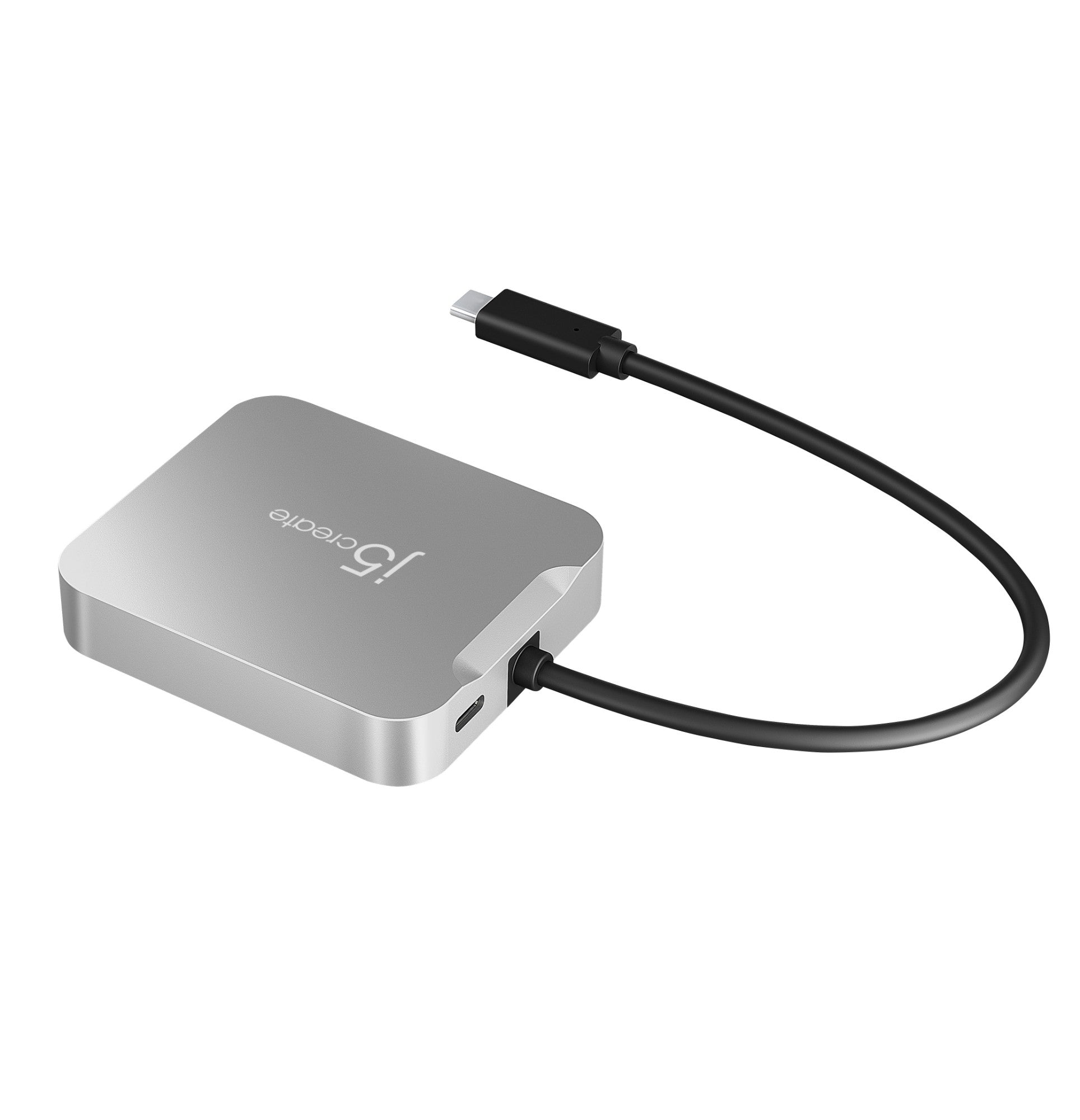

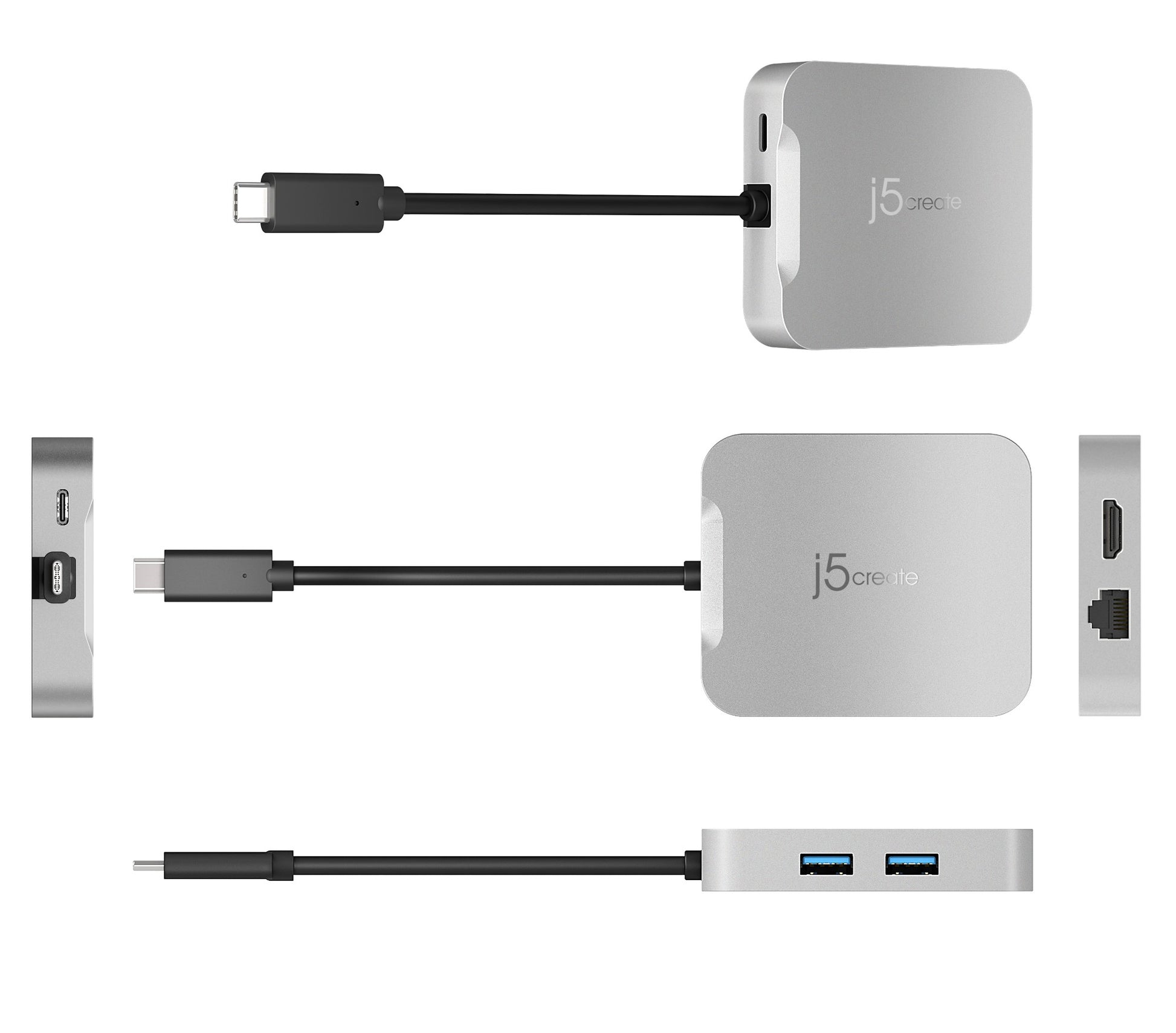

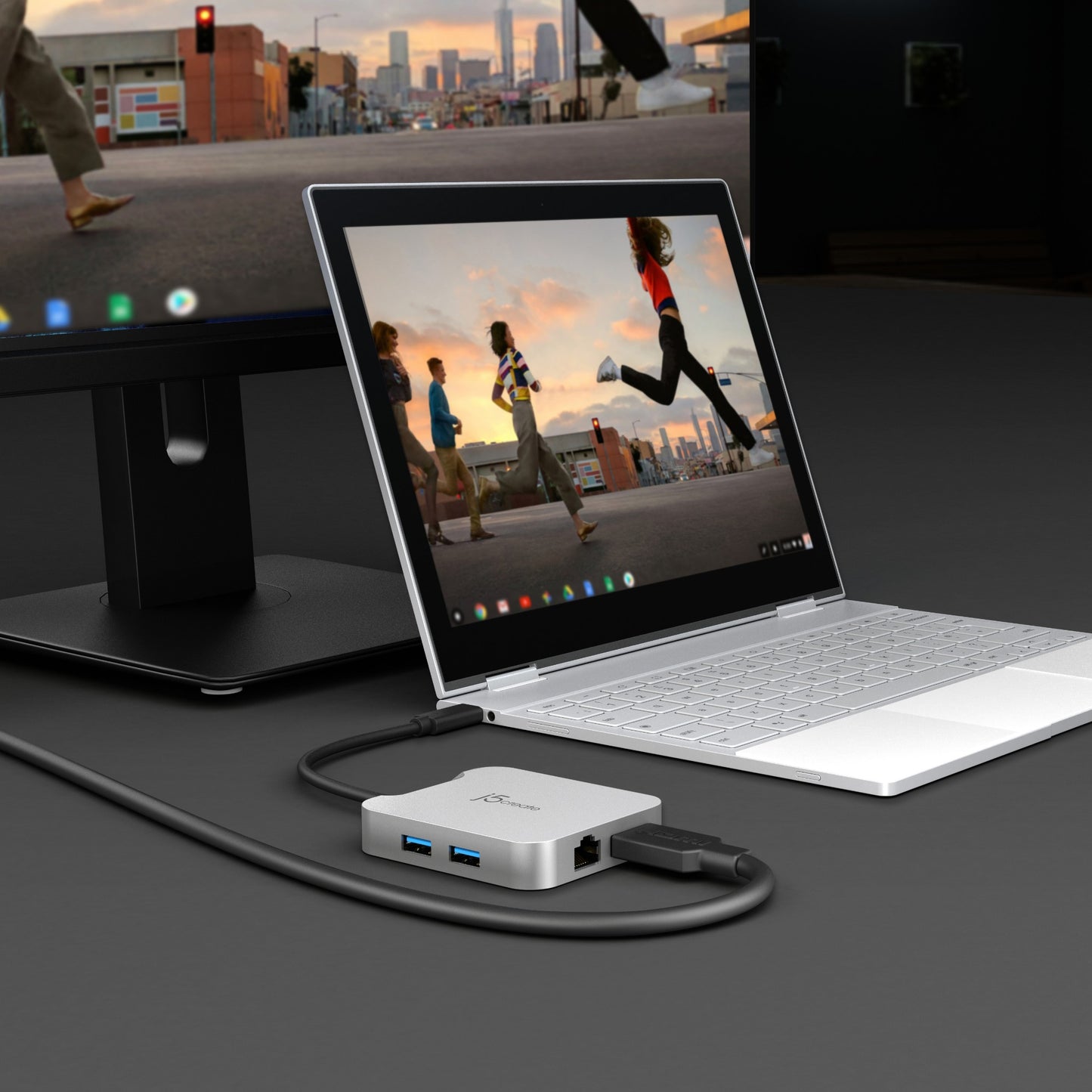

j5create JCD391 4K60 Elite USB-C Docking Station
j5create JCD391 4K60 Elite USB-C Docking Station
Regular price
£63.91 GBP
Regular price
Sale price
£63.91 GBP
Taxes included.
Quantity
Couldn't load pickup availability

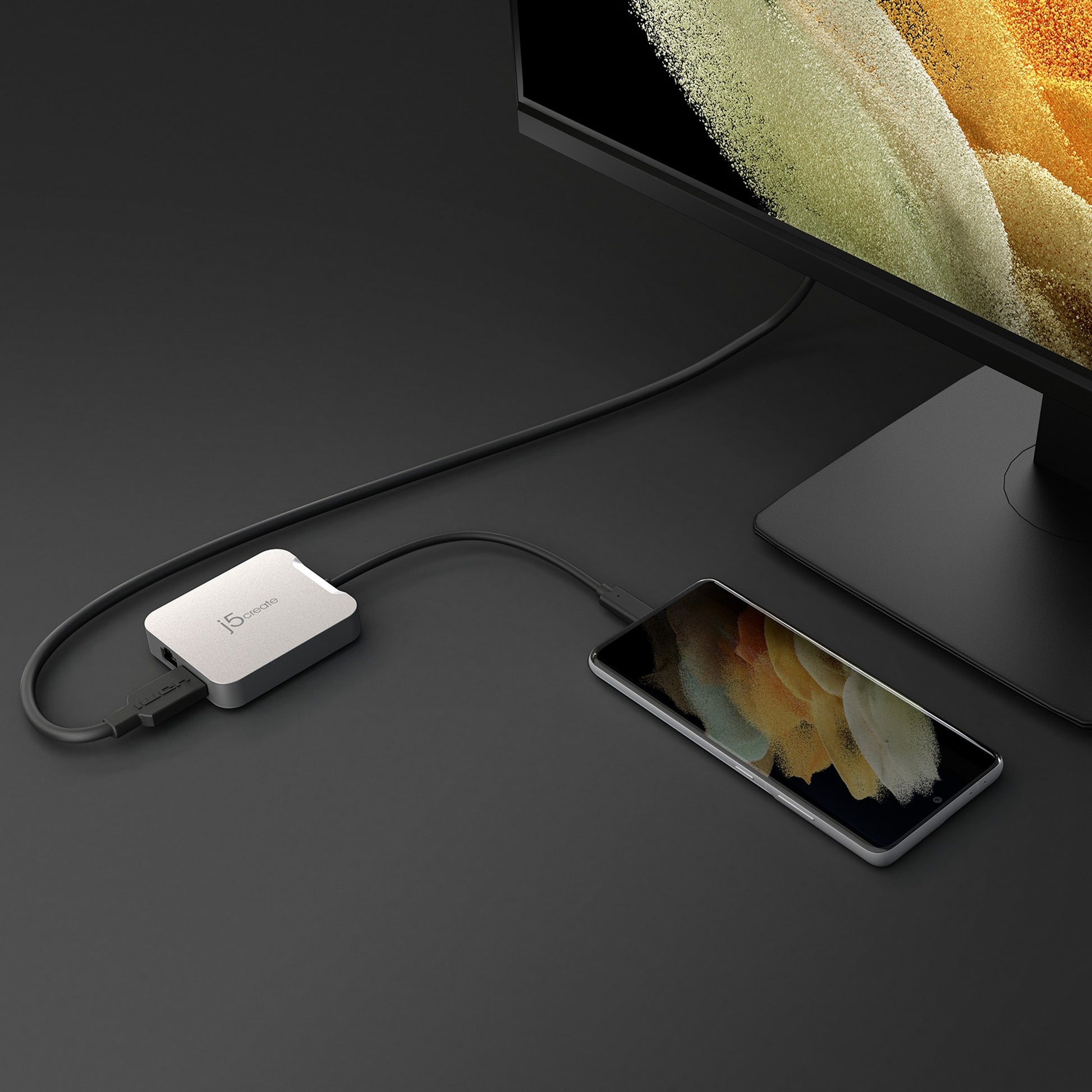

One cable, full desk: the j5create JCD391 4K60 Elite turns your laptop into a workstation with all your peripherals connected over a single USB-C connection.

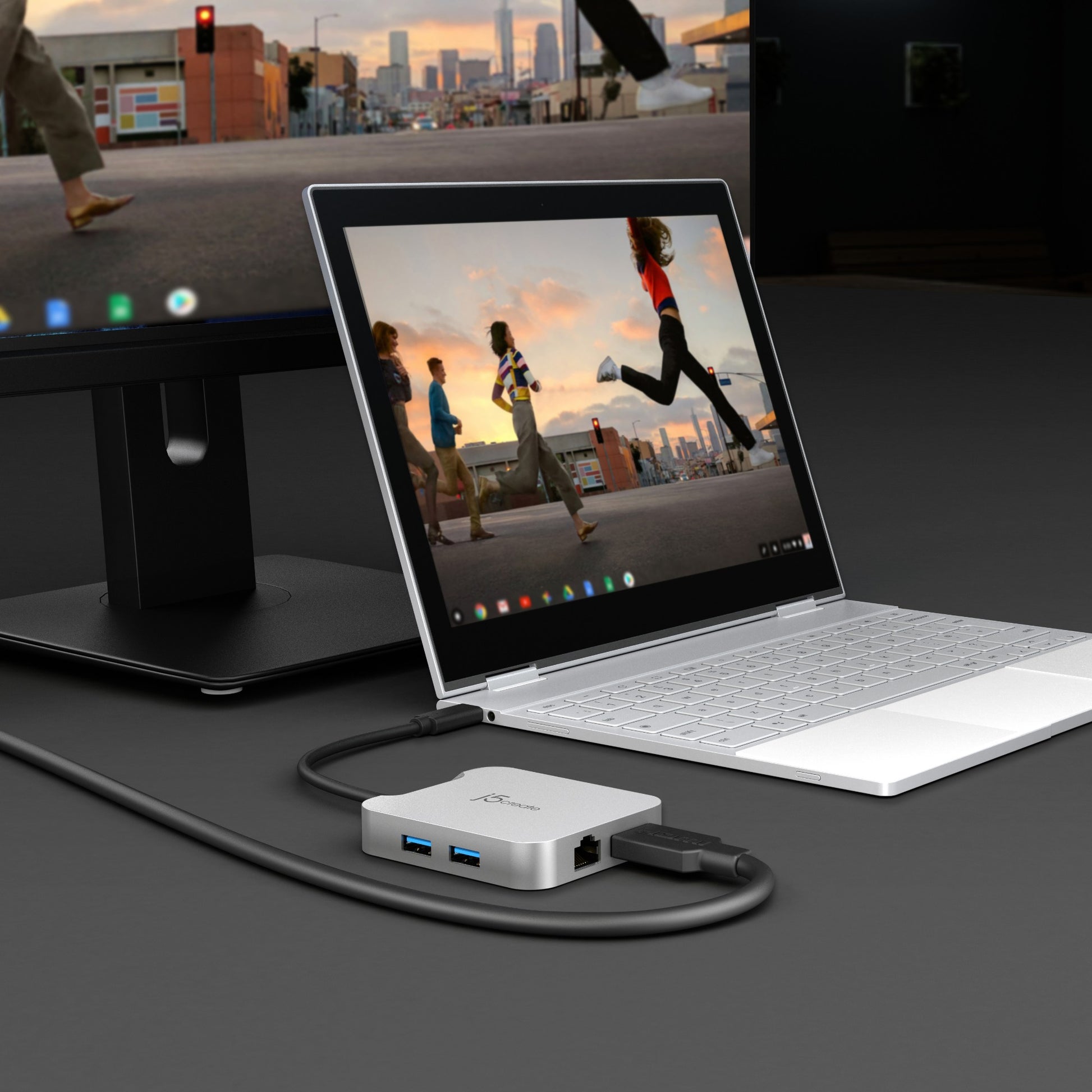

This compact multi-port adapter is ideal for travel, featuring everything from the essential HDMI™ output, USB™ ports to Gigabit Ethernet and 86W Power Delivery passthrough. It gives you the ability to connect your Chromebook™, MacBook®, or other USB-C® compatible laptops to a 4K monitor or TV with 60 Hz refresh rate and audio. With USB™ Power Delivery 3.0, you can charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. In addition, you can connect or charge your USB™ devices via the SuperSpeed USB™ 5Gbps ports and access a wired network through the Gigabit Ethernet port.Through a single USB-C® (Thunderbolt™ 3 compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 85 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Number of displays supported | 1 |
| Country of origin | Taiwan |
| Product colour | Silver |
| Card reader integrated | No |
| Compatibility | Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0. |
| Plug and Play | Yes |
| Data transfer rate | 5 Gbit/s |
| Certification | Works with Chromebook |
| Housing material | Aluminium |
| Display modes | Extended, Mirror, Primary display |
| Maximum refresh rate | 60 Hz |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 24712795086373 |
| Special features | Chromebook™ Certified, 5-in-1 Functions, 86W of Pass-Through Charging |
| Products per master (outer) case | 24 pc(s) |
| Master (outer) case width | 230 mm |
| Master (outer) case gross weight | 3.88 kg |
| Master (outer) case length | 435 mm |
| Master (outer) case height | 190 mm |
| Products per shipping (inner) case | 6 pc(s) |
| Power | |
| Power consumption (typical) | 2 W |
| Output voltage | 20 V |
| Output current | 0.4 A |
| USB cable length | 0.2 m |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Weight | 74.8 g |
| Width | 66.5 mm |
| Depth | 14.7 mm |
| Height | 77.6 mm |
| Package weight | 129 g |
| Package width | 155 mm |
| Package depth | 95 mm |
| Package height | 30.8 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | USB Type-C |
| Logistics data | |
| Shipping (inner) case width | 10.3 cm |
| Shipping (inner) case length | 21.8 cm |
| Shipping (inner) case height | 16.5 cm |
| Shipping (inner) case net weight | 870 g |
| Export Control Classification Number (ECCN) | EAR99 |
