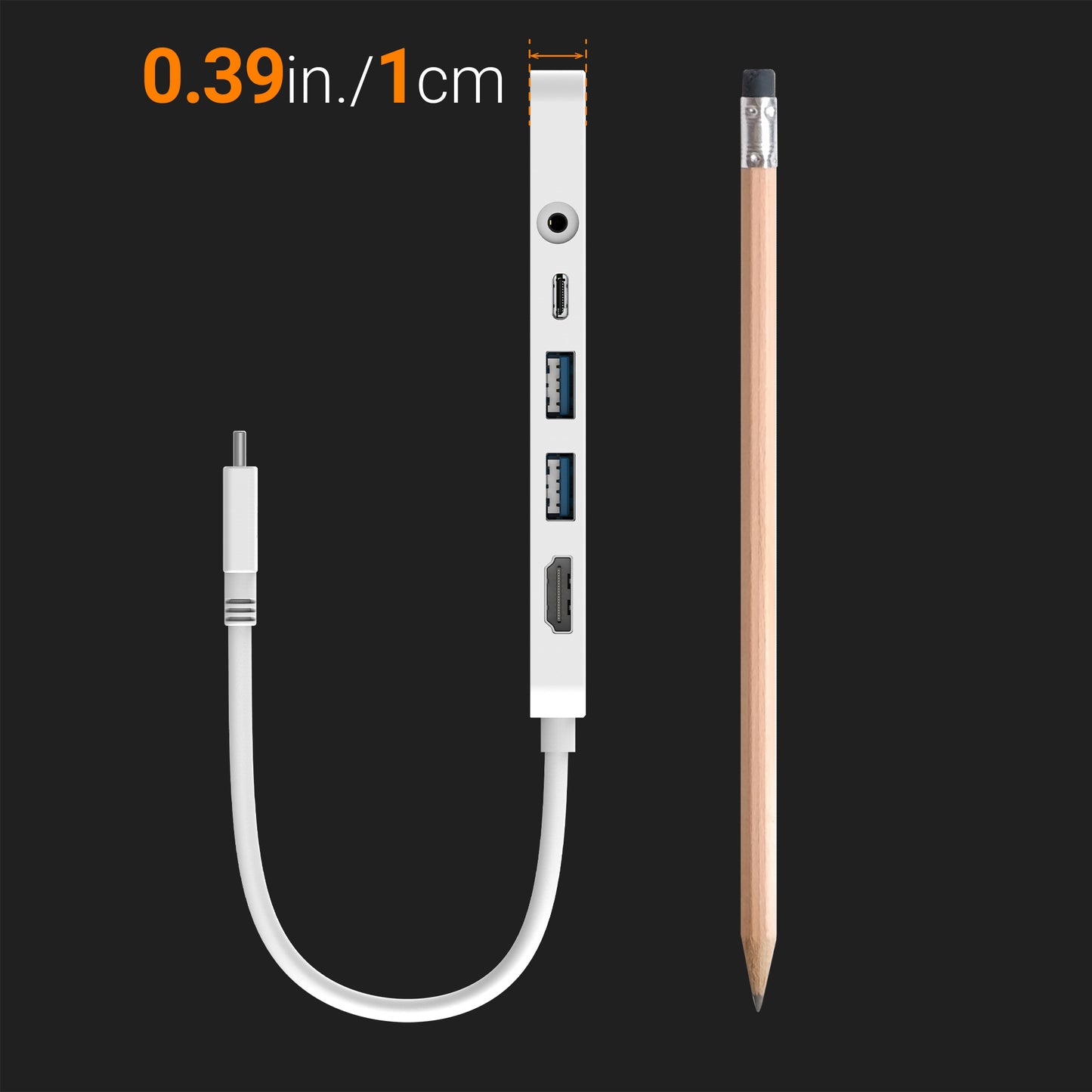

j5create JCD373-N USB-C® Lightweight Docking Station
j5create JCD373-N USB-C® Lightweight Docking Station
Regular price
£38.36 GBP
Regular price
Sale price
£38.36 GBP
Taxes included.
Quantity
Couldn't load pickup availability

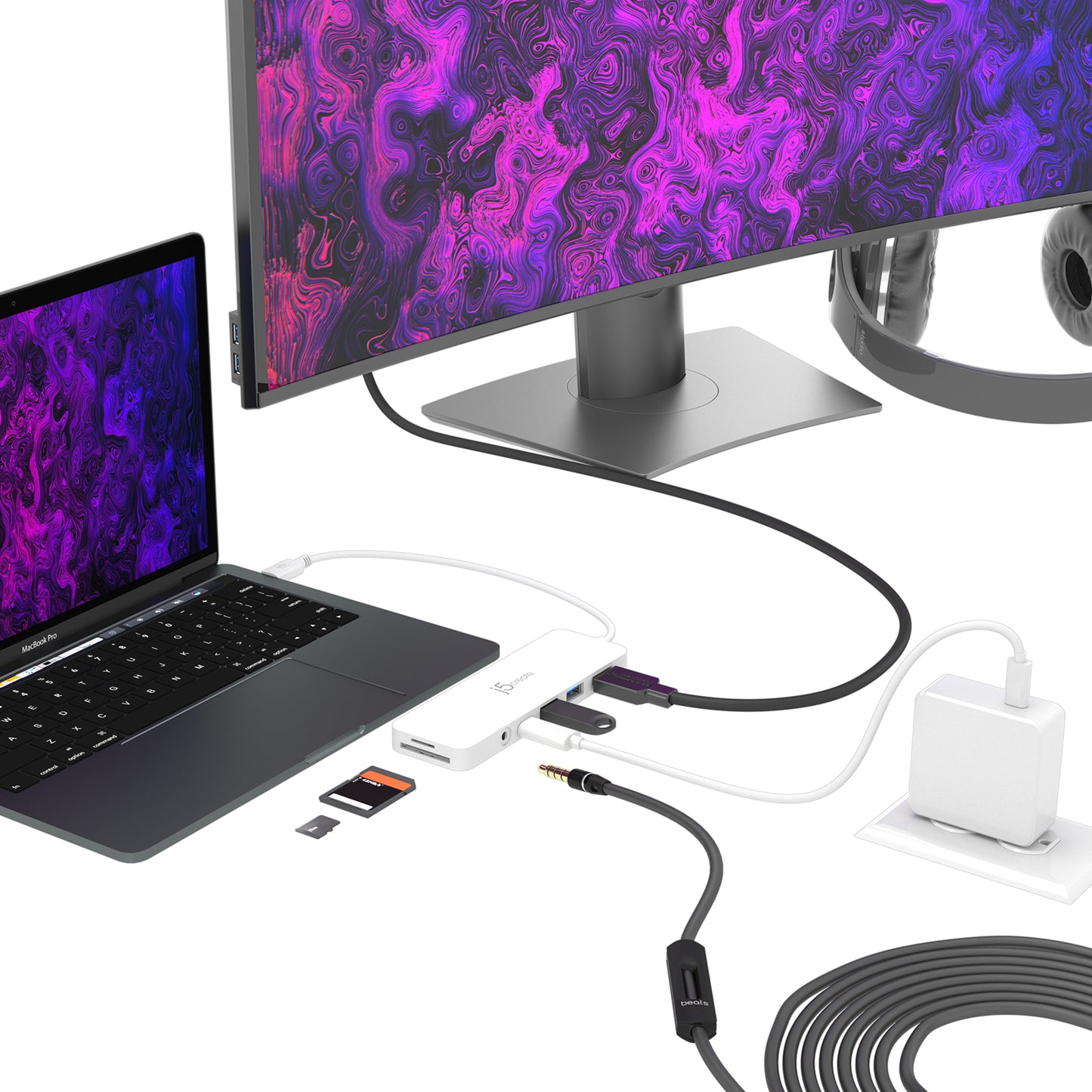

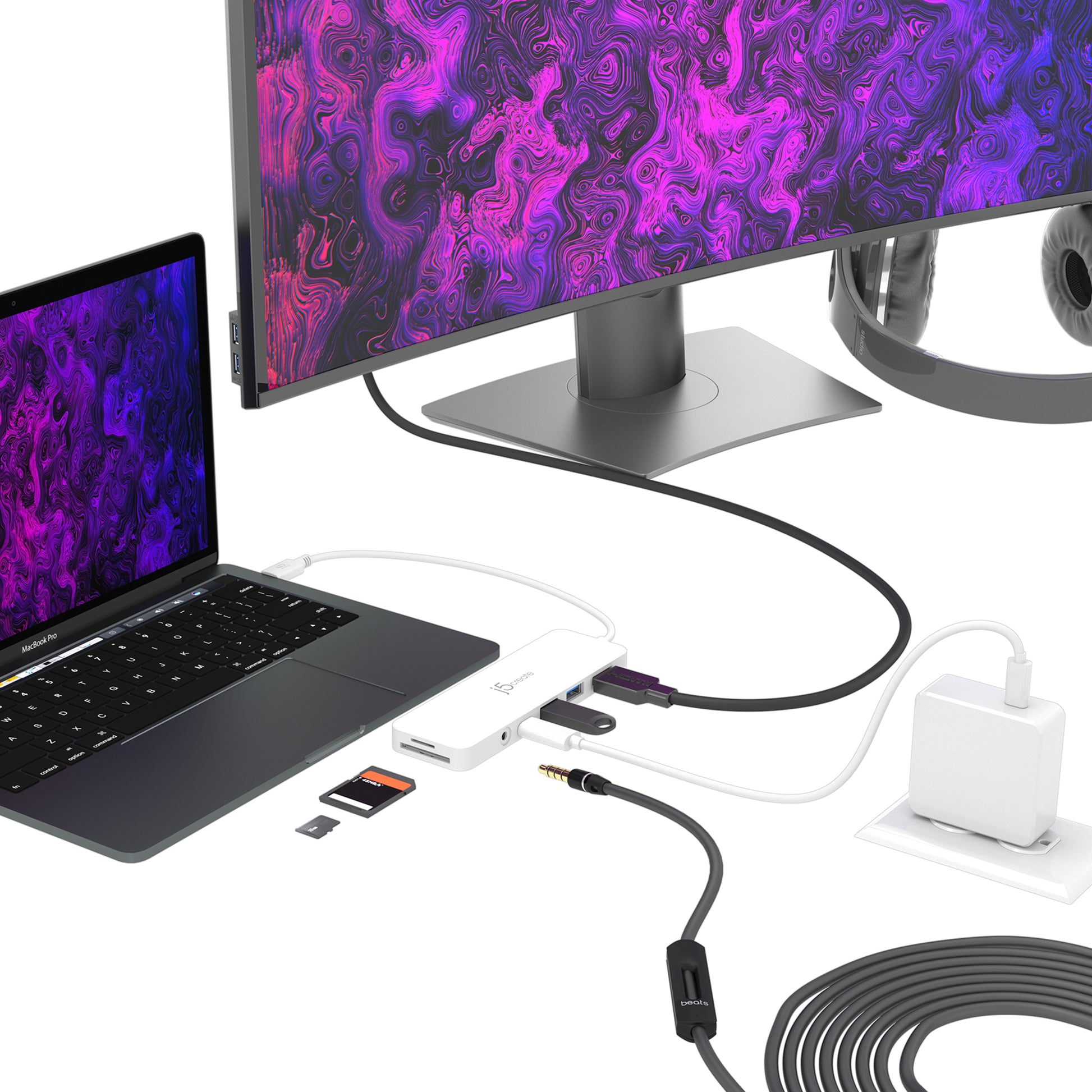

One cable, full desk: the j5create JCD373-N USB-C® Lightweight turns your laptop into a workstation with all your peripherals connected over a single USB-C connection.

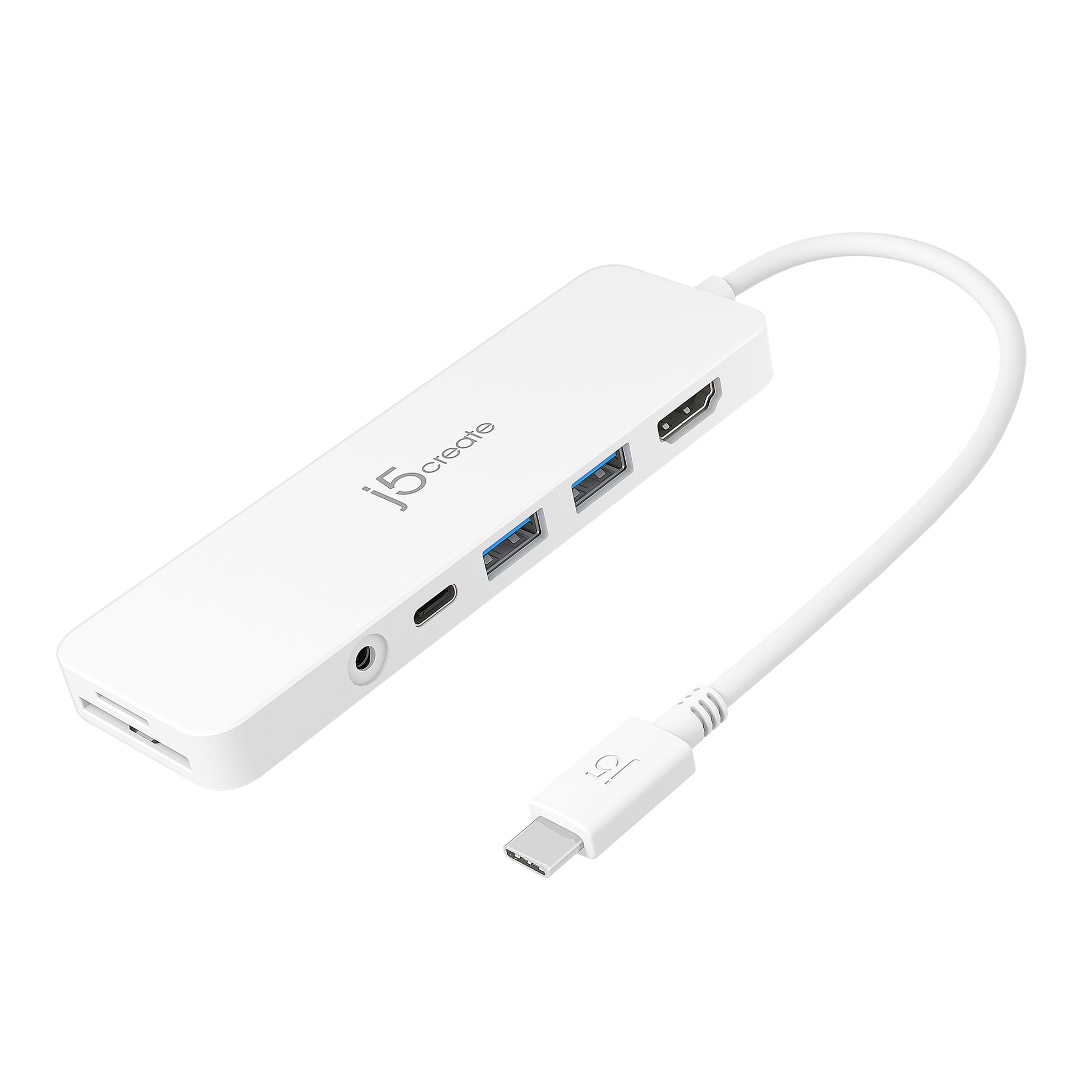

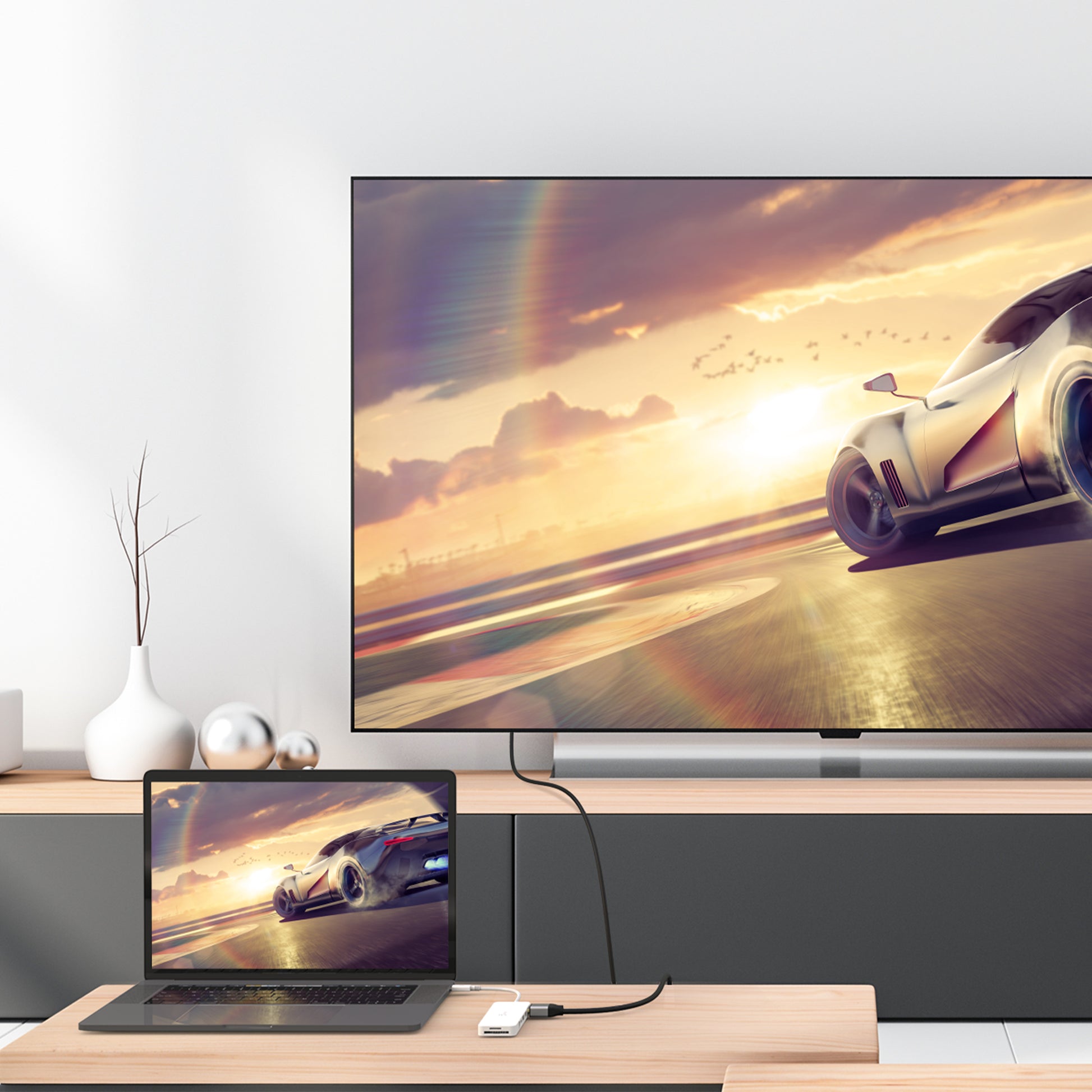

Our USB-C® Multi-Port Hub with Power Delivery provides extra connectivity for your computer. This pocket-sized multi-adapter with 2 USB™ 3.1 Type-A ports allows you to connect an external keyboard, mouse, or USB™ flash drive. With high-speed transmission up to 5 Gbps, data transfer is quick and easy. The HDMI™ port allows you to mirror or extend your screen and directly output 4K UHD @ 30 Hz or Full HD 1080p video to an HDTV, monitor, or projector.Equipped with a USB-C® Power Delivery 3.0 charging port. It offers charging up to 60W when connected to a USB-C® power adapter. The hub also provides direct access to your SD™ & microSD™ memory cards. The audio/mic combo jack allows you to connect your headphone set or speakers.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| HDMI ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 60 W |
| Performance | |
| Country of origin | Taiwan |
| Product colour | White |
| Card reader integrated | Yes |
| Plug and Play | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| HD type | 4K Ultra HD |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Maximum refresh rate | 30 Hz |

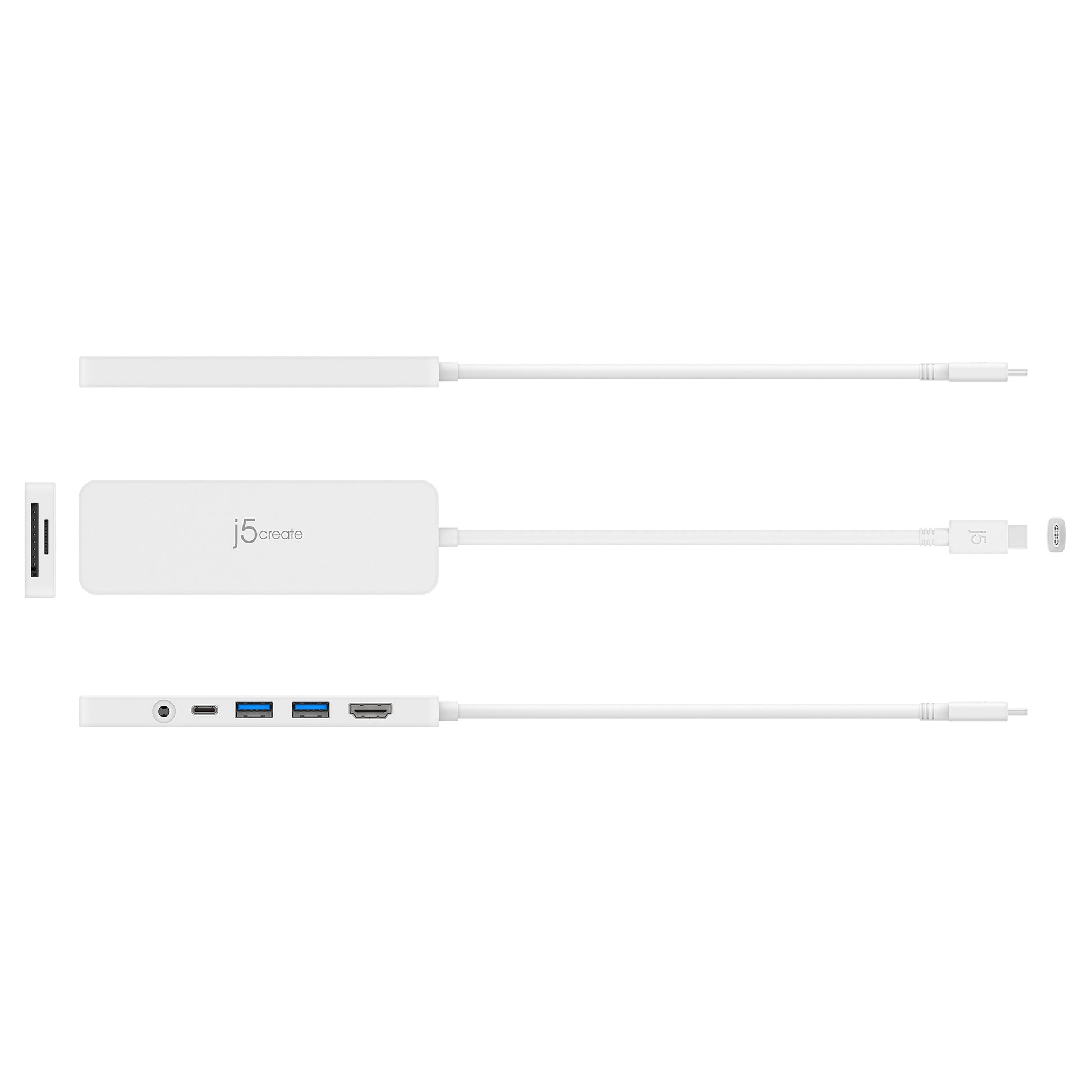

| Hub interfaces | 3.5mm, HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Technical details | |
| Maximum operating temperature | 40 °C |
| Cable length | 0.15 m |
| Power | |
| Input current | 3 A |
| Power supply type | USB |
| Power consumption (typical) | 1.96 W |
| Output voltage | 5 V |
| Output current | 0.38 A |
| Software | |
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Yes |
| Linux operating systems supported | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Weight | 51.5 g |
| Width | 39 mm |

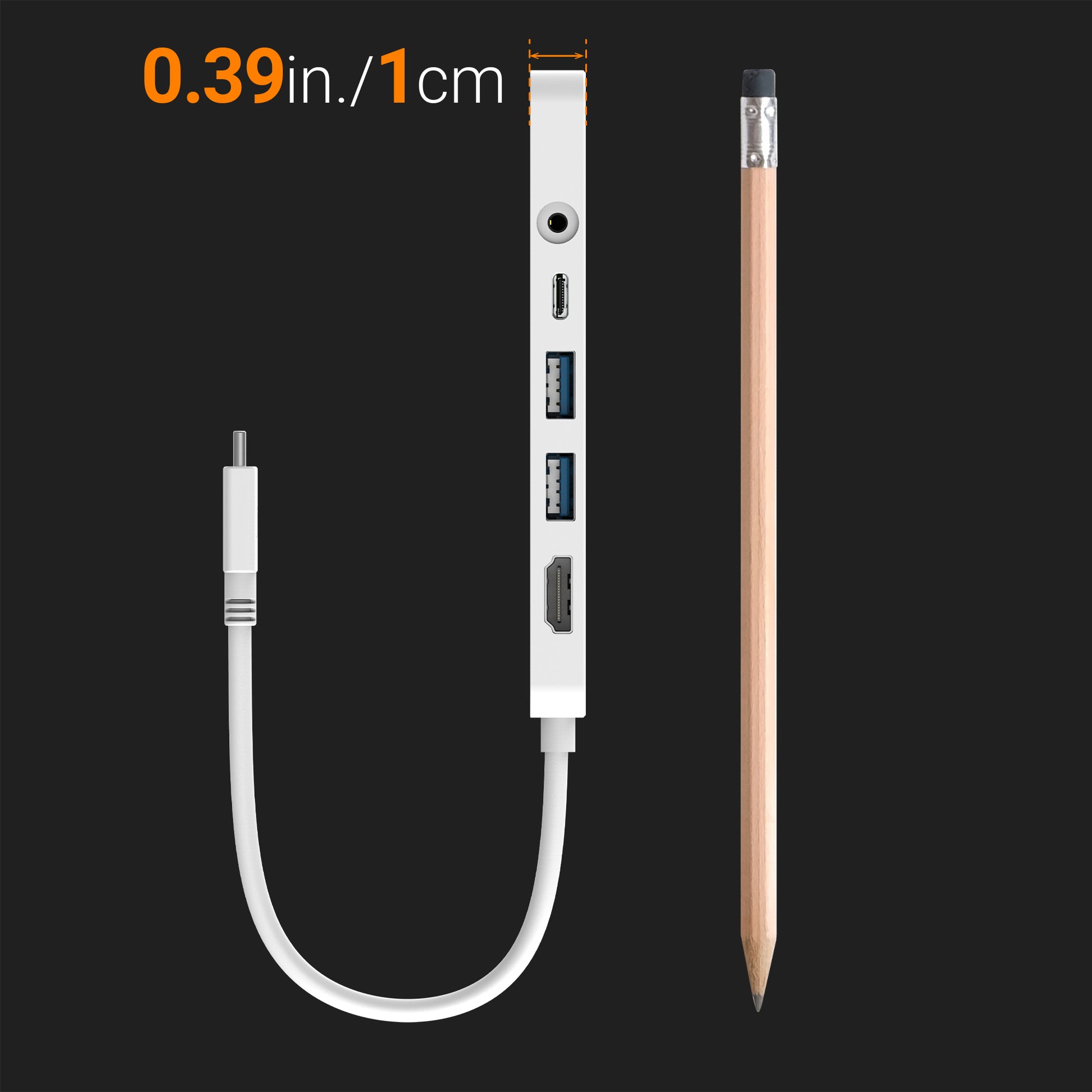

| Depth | 11 mm |
| Height | 122 mm |
| Package weight | 100 g |
| Package width | 193 mm |
| Package depth | 125 mm |
| Package height | 25 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quick start guide | Yes |
| Packaging content | 1 x JCD373 USBxC® MultixPort Hub with Power Delivery, 1 x Quick Installation Guide |
| Cables included | USB Type-C |
