j5create JCD3199P USB-C® HDMI™ Docking Station 140W

One cable, full desk: the j5create JCD3199P USB-C® HDMI™ turns your laptop into a workstation with external displays, 140W charging over a single USB-C connection.

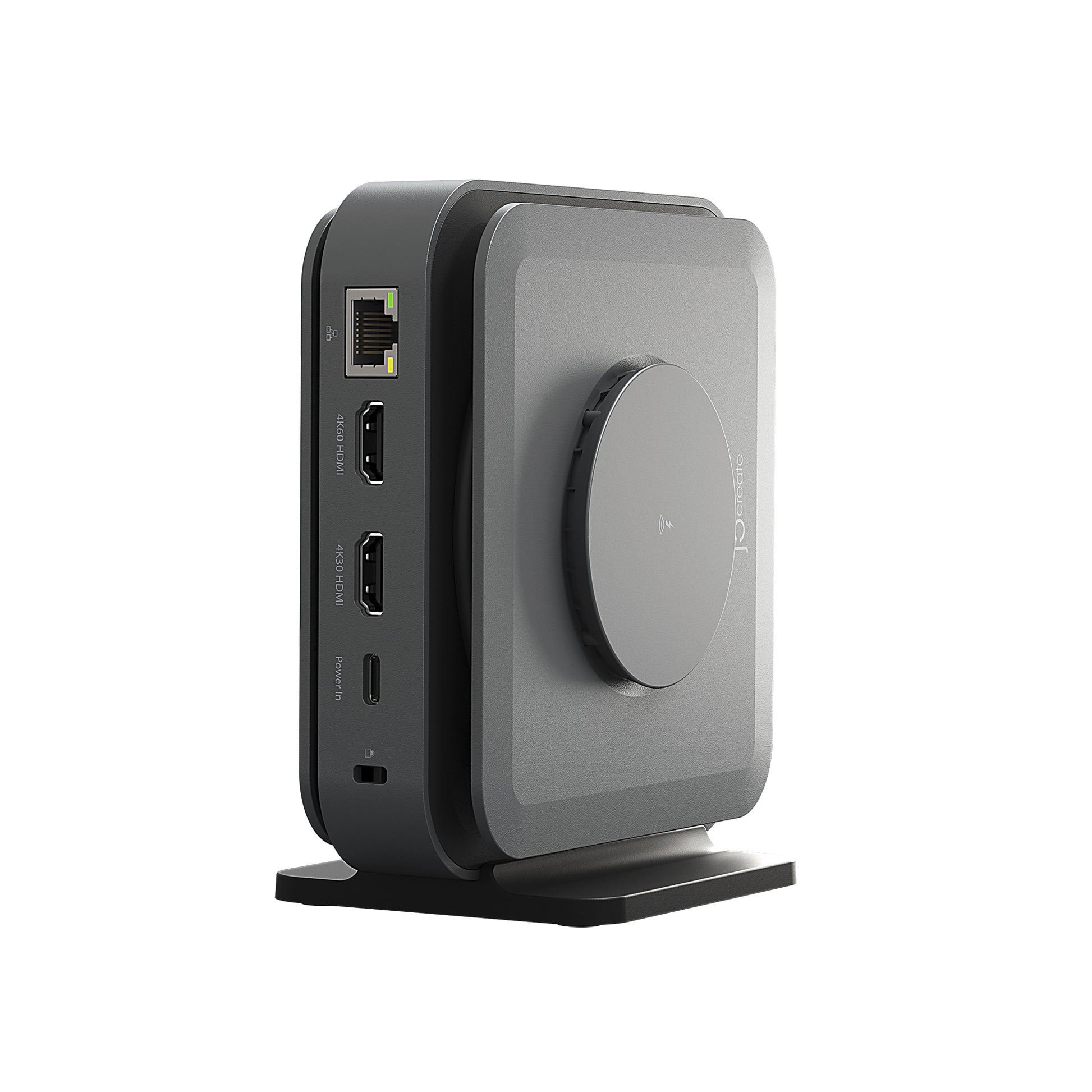

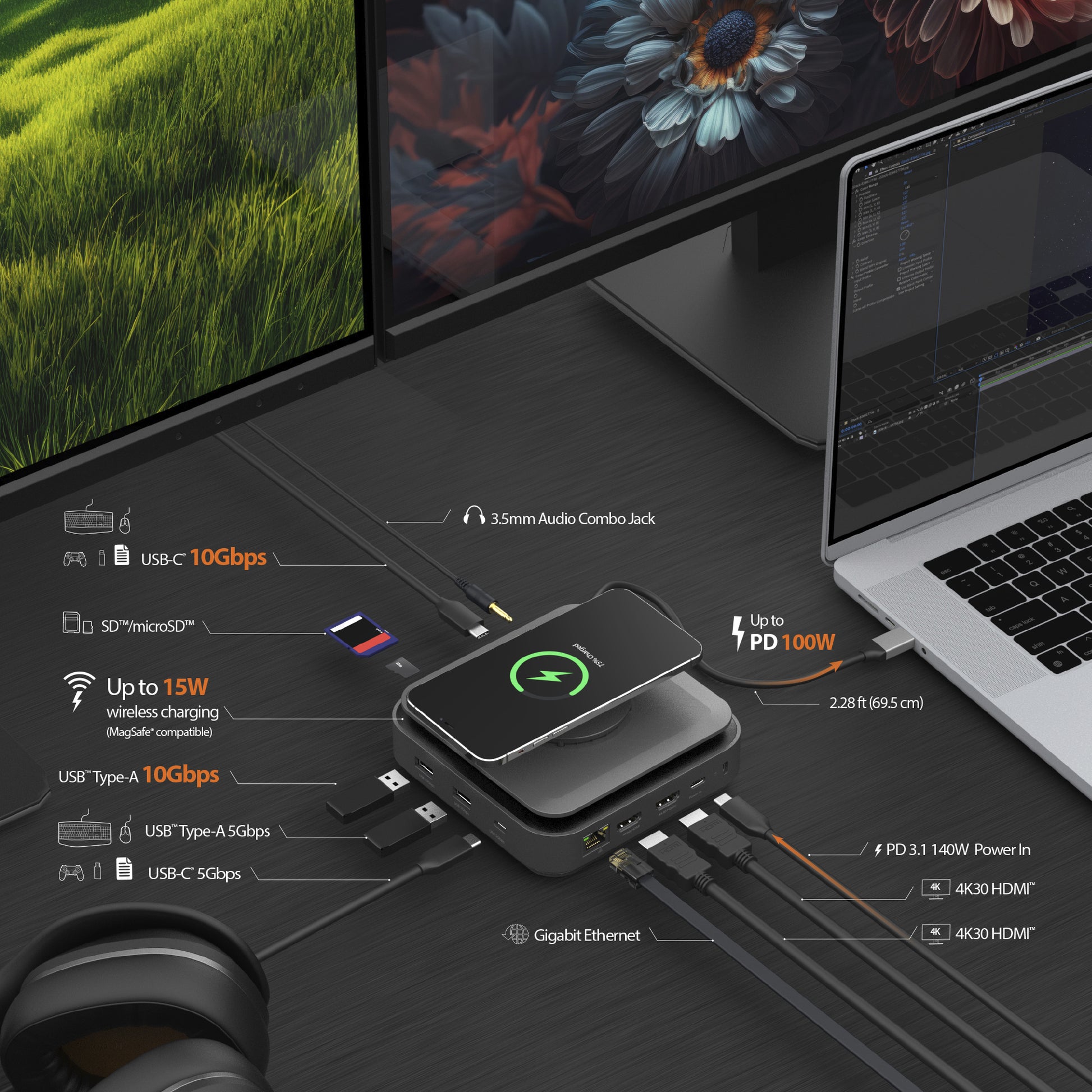

This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI™ outputs, USB™ ports, Gigabit Ethernet, SD™/microSD™ card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook® or other USB-C® compatible laptops to a 4K monitor or TV. With USB™ Power Delivery 3.1 it’ll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. The top of the dock functions as a wireless charging pad that supports up to 15W fast charging and is also compatible with MagSafe®. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment ensures an easy connection regardless of your USB-C® port’s location. Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
HDMI version	2.1
Microphone in	Yes
Headphone outputs	1
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.1
USB Power Delivery up to	140 W
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	2
Country of origin	Taiwan
Product colour	Grey
Card reader integrated	Yes
Cable lock slot	Yes
Data transfer rate	10 Gbit/s
Compatible memory cards	MicroSD (TransFlash), SD
HD type	4K Ultra HD
Housing material	Aluminium, Plastic
Display modes	Extended, Mirror
Colour name	Space Grey
Maximum refresh rate	60 Hz
Technical details
Cable length	0.695 m
Sustainability compliance	Yes
Master (outer) case GTIN (EAN/UPC)	24712795088544
Compliance certificates	CE, REACH, RoHS
Products per master (outer) case	2 pc(s)
Master (outer) case width	186 mm
Master (outer) case length	249 mm
Master (outer) case height	174 mm
Power
Power source type	USB
Input current	5 A
Compatible power plug types	EU
Output voltage	20 V
Output current	5 A
Power connector	USB Type-C
Wireless charging power	15 W
Wireless charging	Yes
Software
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Operational conditions
Operating temperature (T-T)	-1 - 41 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%
Weight & dimensions
Weight	877 g
Depth	180 mm
Package weight	1.01 kg
Package width	154 mm
Package depth	175 mm
Package height	103 mm
Packaging data
Quantity per pack	1 pc(s)
Packaging content

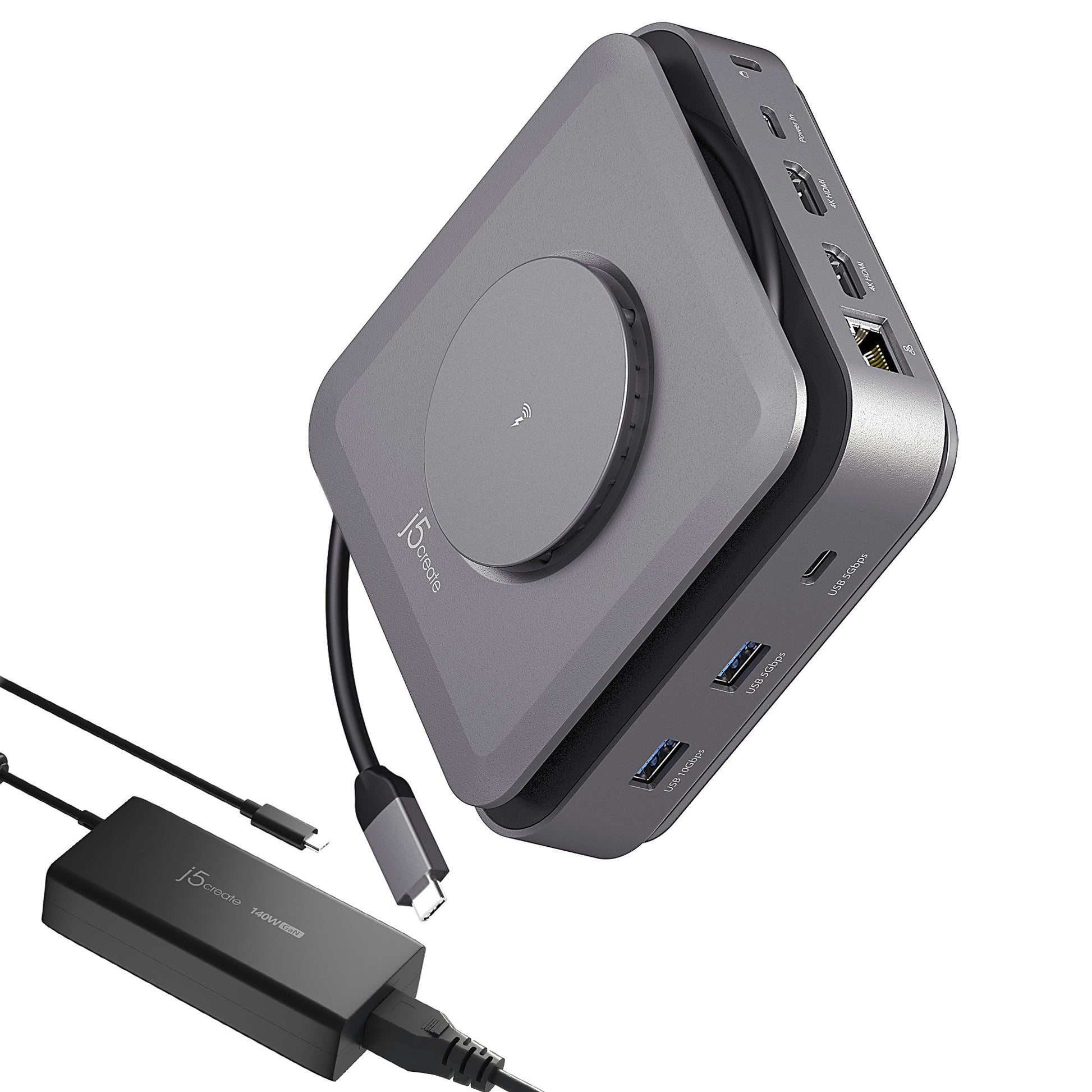

Packaging content	1 - JCD3199P USB-C® Dock Dual 4K HDMI™ with 140W GaN PD3.1 Power Adapter 1 -140W GaN PD3.1 USB-C® 1-Port Charger Detachable 3 Pin Power Cord (*Depends on selling area) • 47.24 in /120 cm for US • 39.37in / 100cm for AU/EU/UK 1 - Quick Installation Guide (QIG)
Cables included	AC
AC adapter included	Yes
Logistics data
Export Control Classification Number (ECCN)	EAR99
Master (outer) case net weight	2.3 kg
