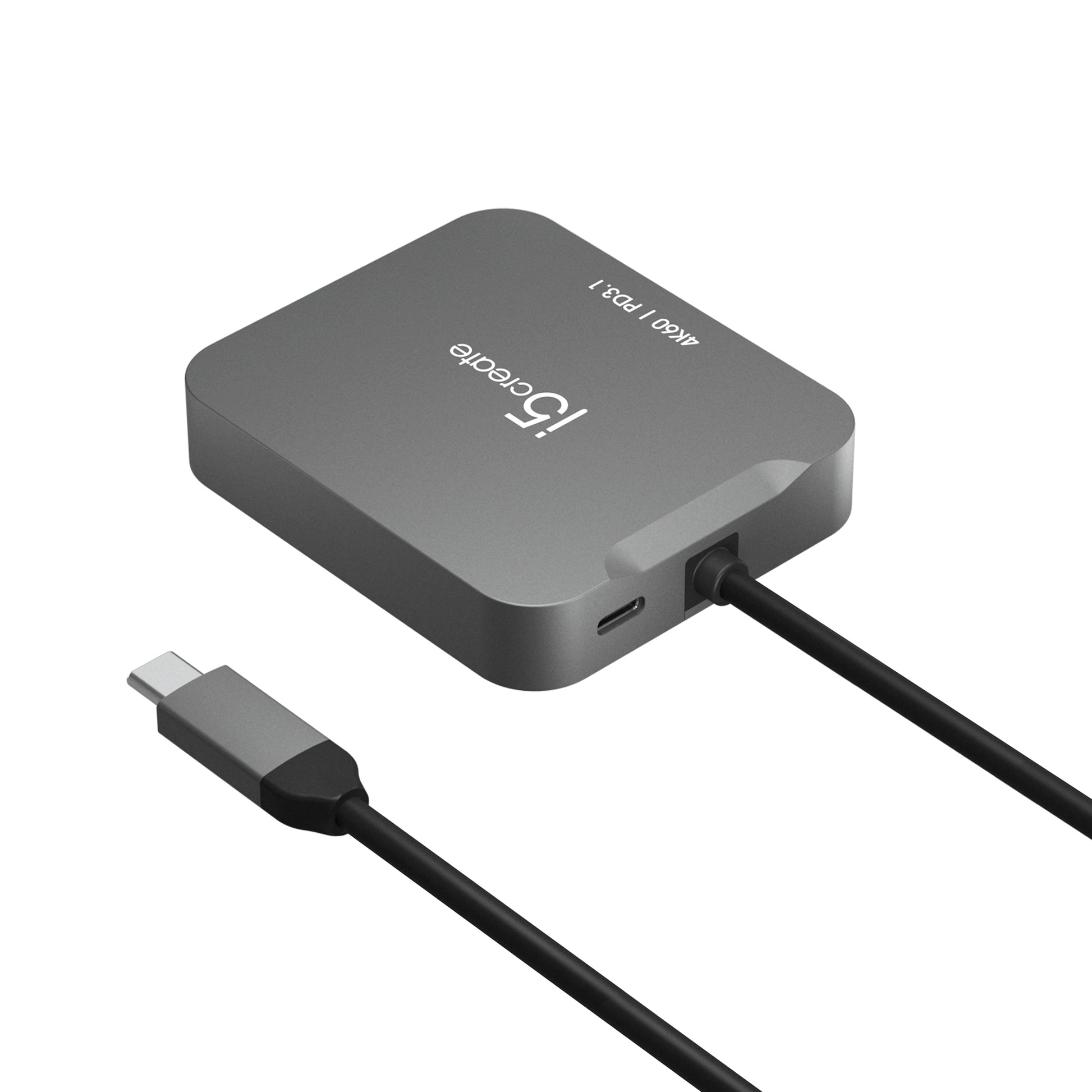

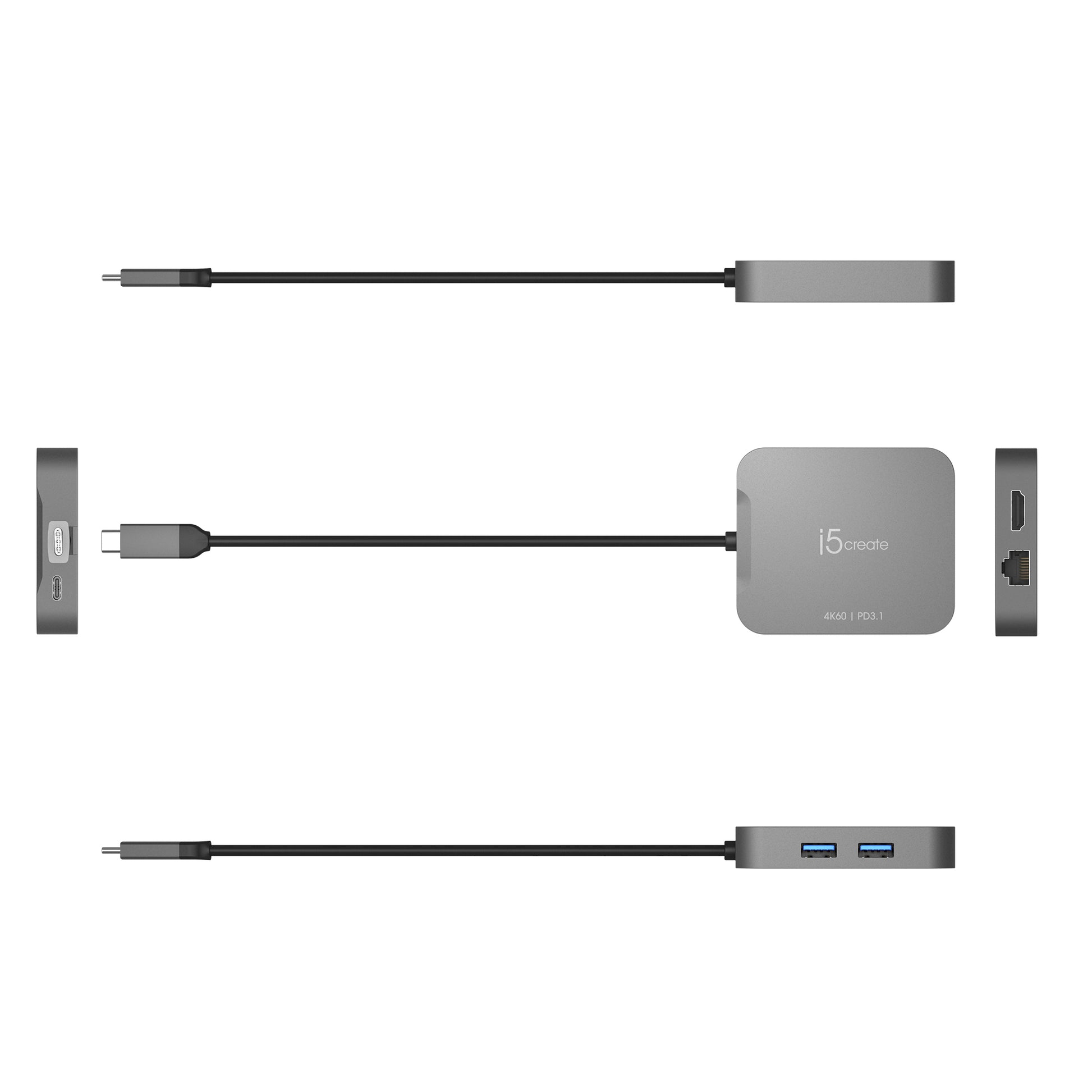

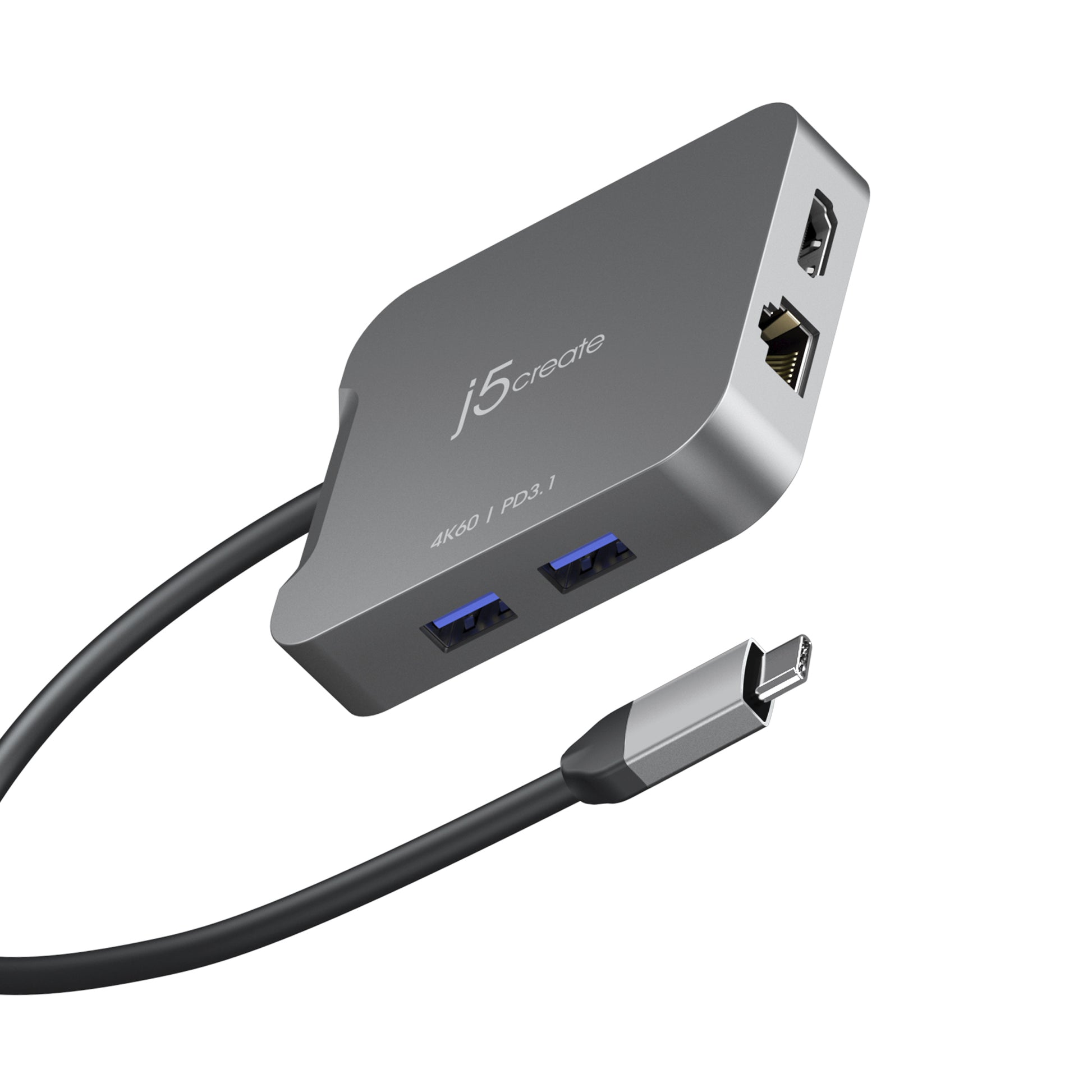

j5create JCD3191 4K60 Elite USB-C Docking Station
j5create JCD3191 4K60 Elite USB-C Docking Station
Regular price
£72.44 GBP
Regular price
Sale price
£72.44 GBP
Taxes included.
Quantity
Couldn't load pickup availability
One cable, full desk: the j5create JCD3191 4K60 Elite turns your laptop into a workstation with all your peripherals connected over a single USB-C connection.

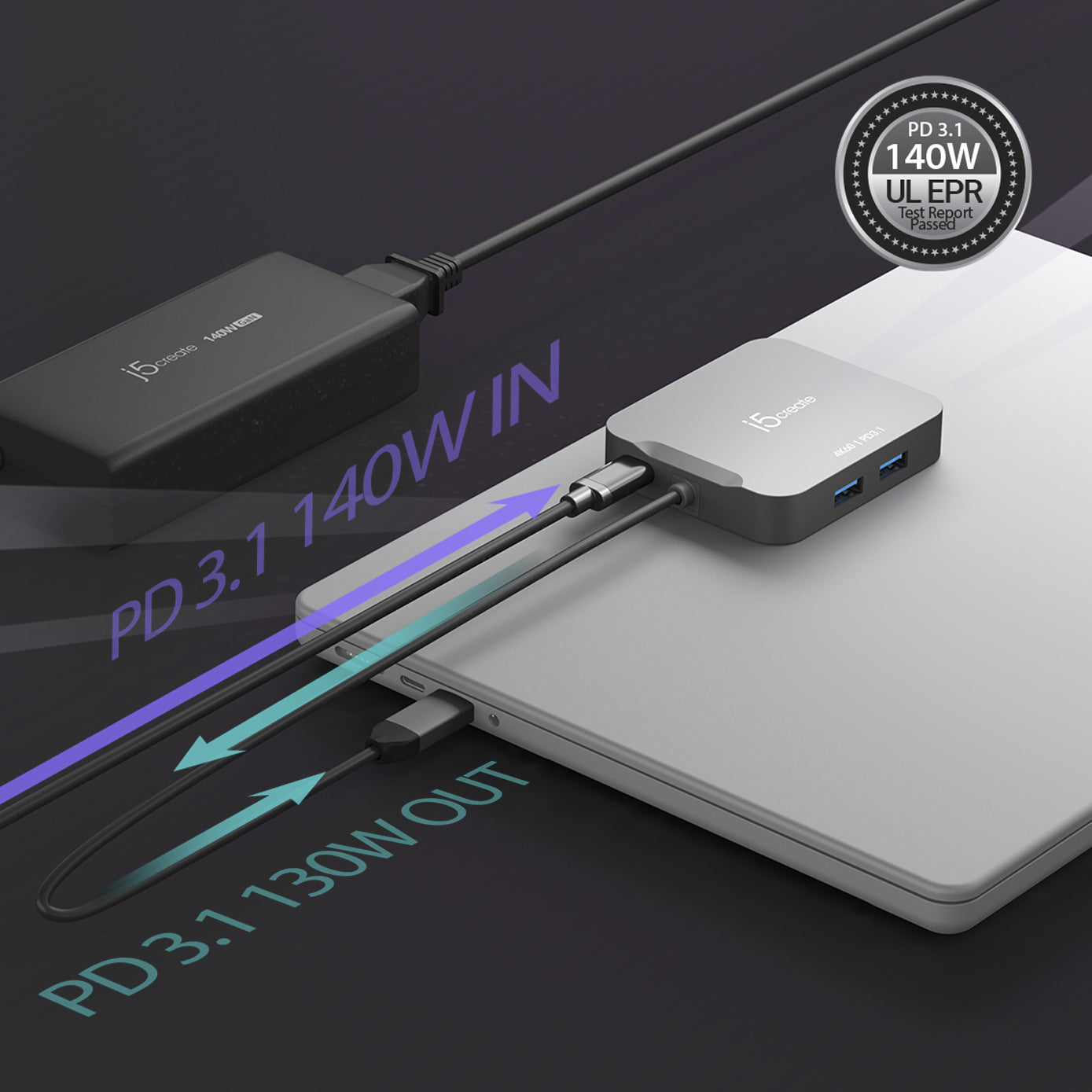

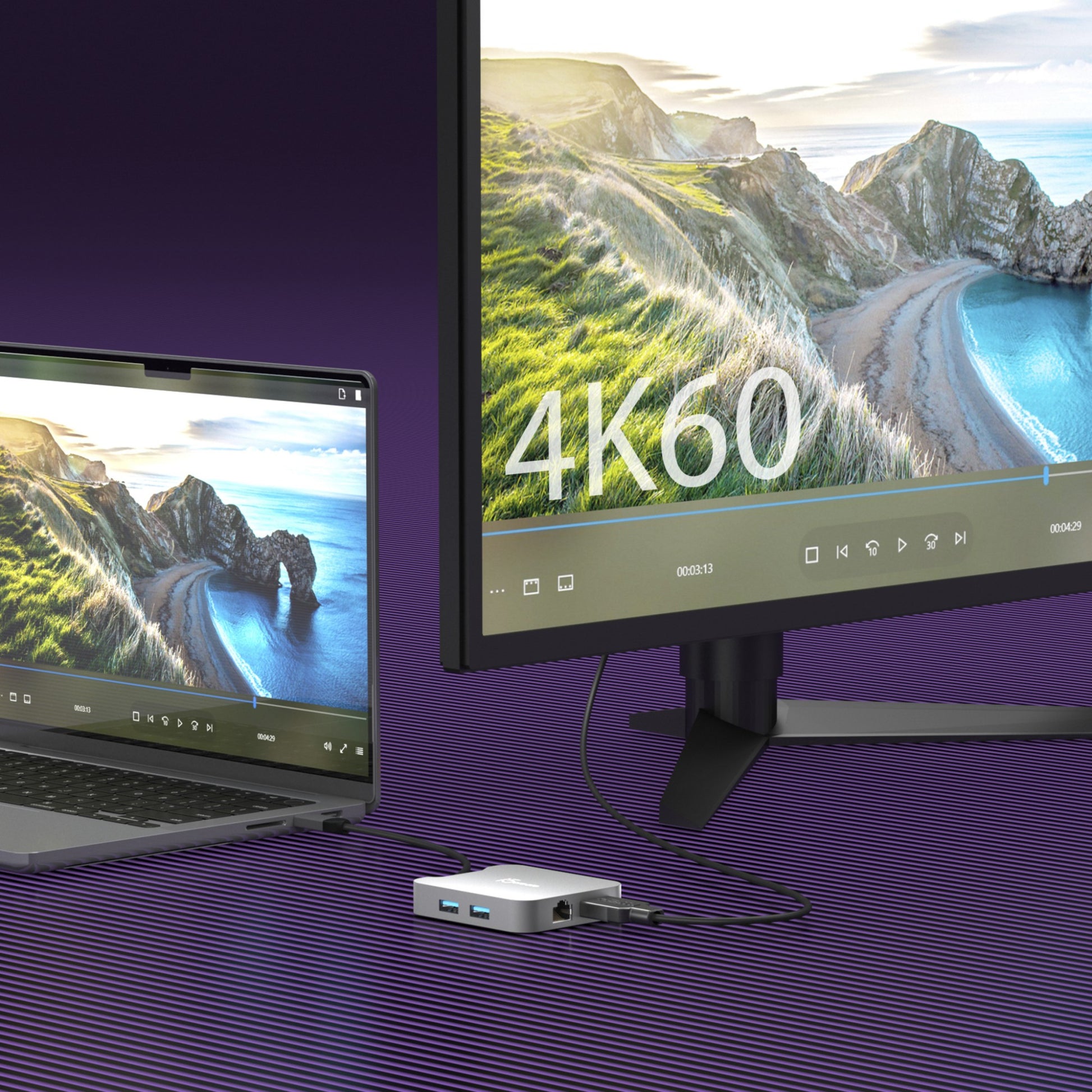

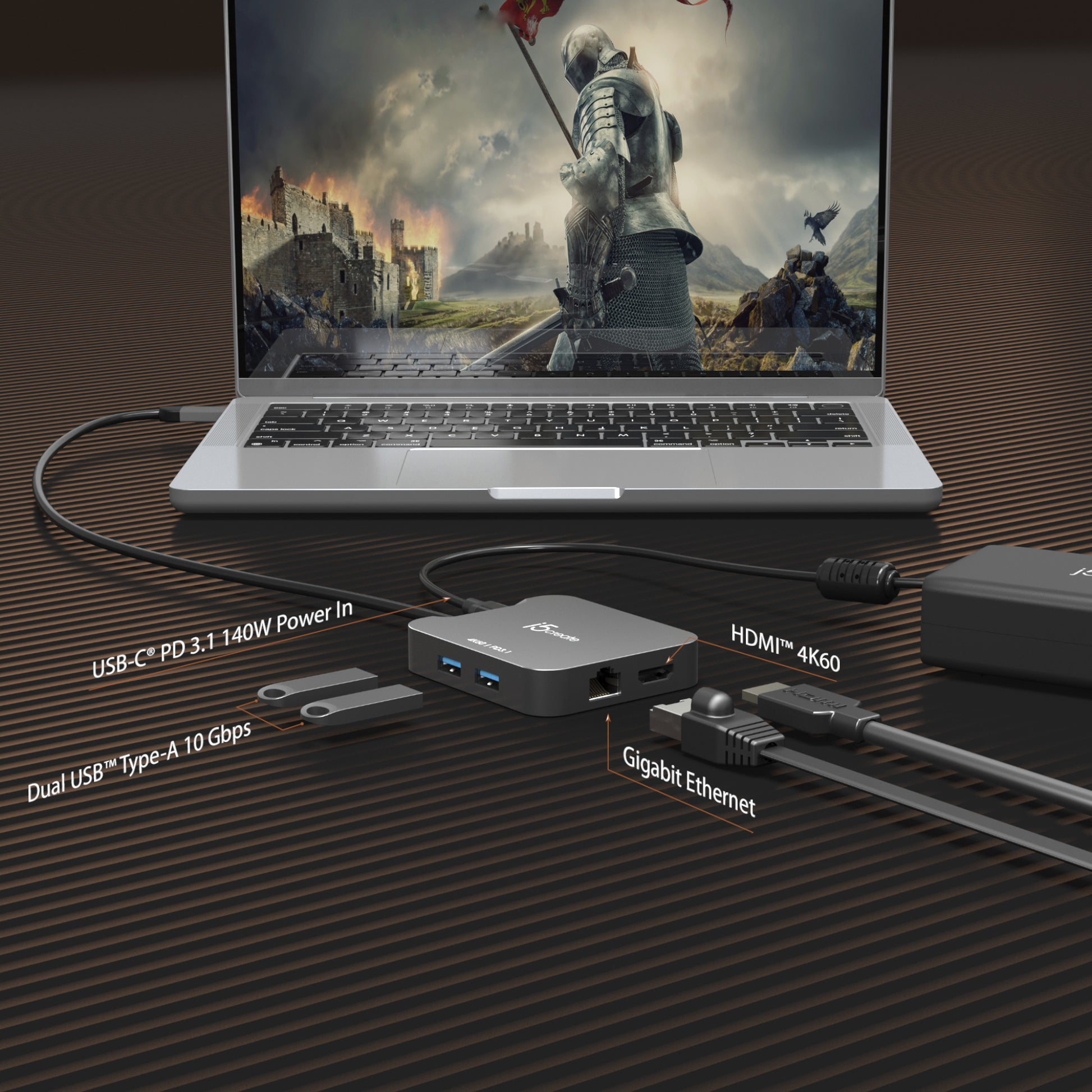

This compact multi-port adapter is ideal for travel, featuring everything from the essential HDMI™ output, USB™ ports to Gigabit Ethernet and 140W Power Delivery passthrough. It gives you the ability to connect your Chromebook™, MacBook®, or other USB-C® compatible laptops to a 4K monitor or TV with 60 Hz refresh rate and audio. With USB™ Power Delivery 3.1, you can charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. In addition, you can connect or charge your USB™ devices via the SuperSpeed USB™ 10Gbps ports and access a wired network through the Gigabit Ethernet port. Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 140 W |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 1 |
| Country of origin | Taiwan |
| Product colour | Grey |
| Card reader integrated | No |
| Plug and Play | Yes |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Housing material | Aluminium |
| Colour name | Space Grey |
| Maximum refresh rate | 240 Hz |
| Technical details | |
| Cable length | 0.2 m |
| Sustainability compliance | Yes |
| Master (outer) case GTIN (EAN/UPC) | 24712795087653 |
| Compliance certificates | CE, REACH, RoHS |
| Products per master (outer) case | 12 pc(s) |
| Master (outer) case width | 225 mm |
| Master (outer) case length | 256 mm |
| Master (outer) case height | 115 mm |
| Products per shipping (inner) case | 6 pc(s) |
| Power | |
| Input current | 5 A |
| Output voltage | 28 V |
| Output current | 4.64 A |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -1 - 41 °C |
| Weight & dimensions | |
| Weight | 71.5 g |

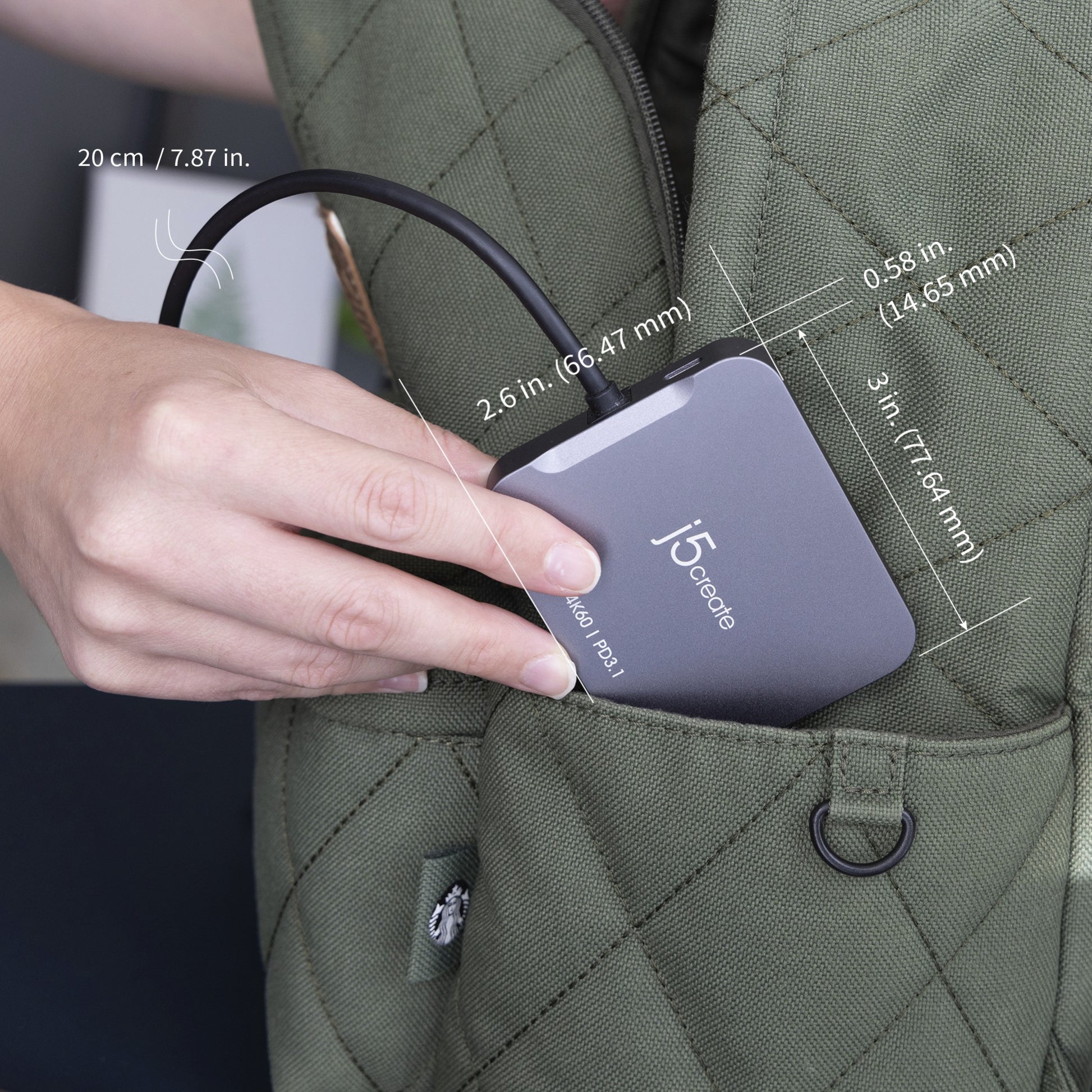

| Width | 66.5 mm |
| Depth | 77.5 mm |
| Height | 14.7 mm |
| Package weight | 130 g |
| Package width | 190 mm |
| Package depth | 85 mm |
| Package height | 17.5 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Packaging content | 1 - JCD3191 4K60 Elite USB-C® Travel Adapter 1 - Quick Installation Guide (QIG) |
| Logistics data | |
| Shipping (inner) case width | 12.5 cm |
| Shipping (inner) case length | 21.5 cm |
| Shipping (inner) case height | 9.2 cm |
| Shipping (inner) case net weight | 900 g |
| Export Control Classification Number (ECCN) | EAR99 |
| Master (outer) case net weight | 2 kg |
