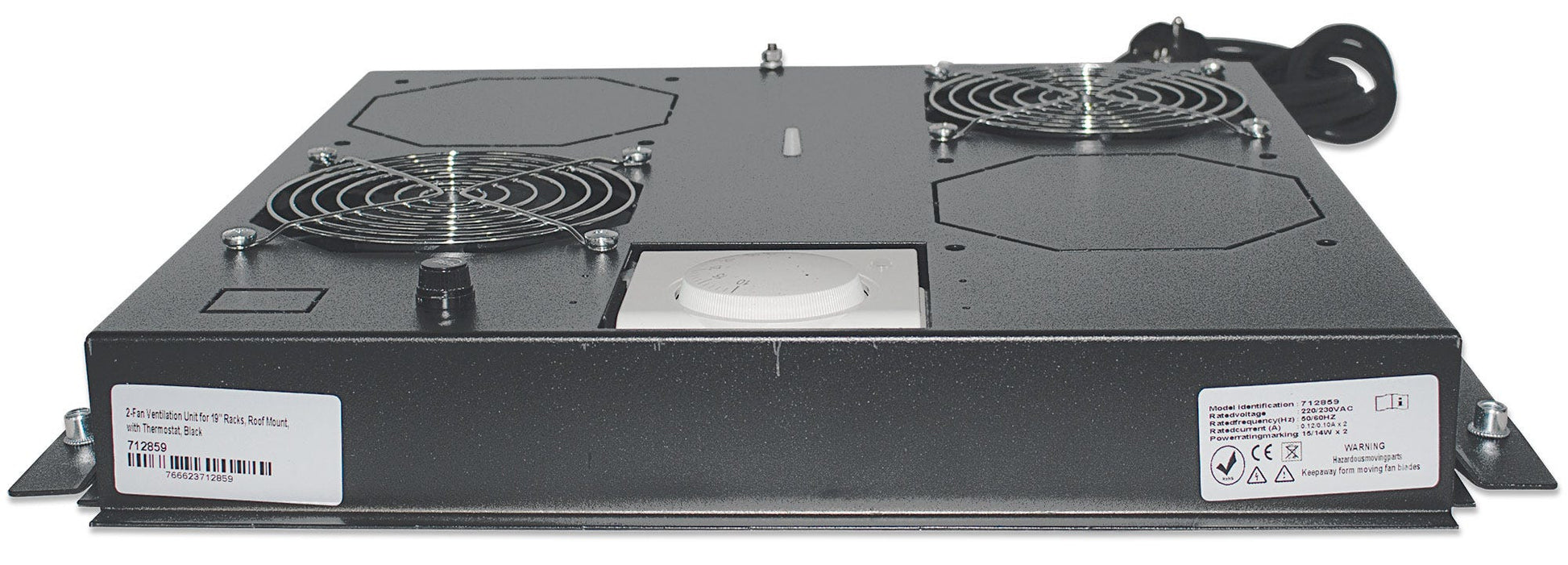

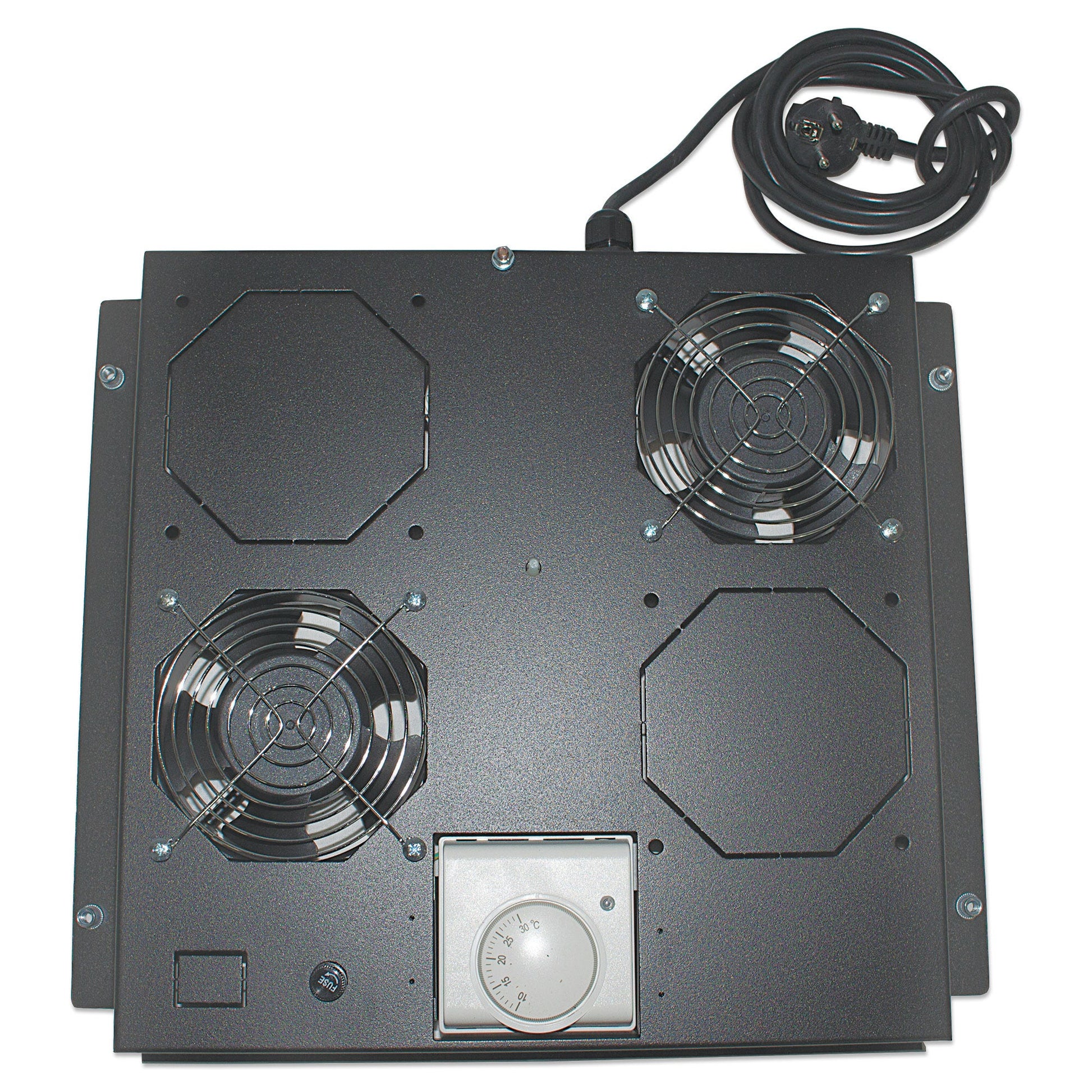

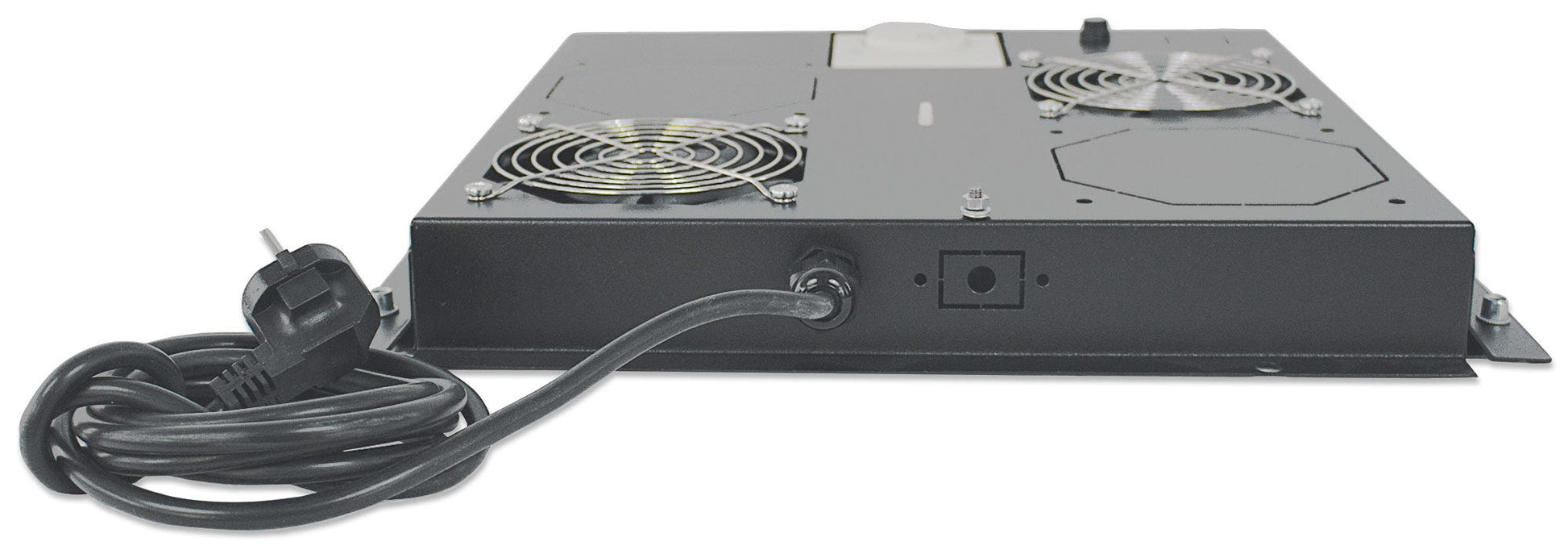

Intellinet 2-Fan Ventilation Unit for 19" Racks, Roof Mount, with Thermostat, Black

Build a tidy install with the Intellinet 2-Fan Ventilation Unit — dimensions and mounting details are in the spec table.

The Intellinet Network Solutions ventilation units provide reliable cooling and ideal air circulation in 19″ cabinets for improved performance and longer life of your networking components.
High-quality workmanship that includes antistatic powder coating as well as silent fans completes this cooling system. For server and network cabinets, choose the roof-mount ventilation units. If you require cooling for components in wallmount cabinets, use the rail-mount versions.

Specifications

Features
Number of fans	2 fan(s)
Airflow	195.4 m³/h
Type	Fan tray
Product colour	Black
Built-in fan	Yes
Harmonized System (HS) code	85389099
Housing material	Steel
Power
AC input frequency	50 - 60 Hz
Power source	AC
Input voltage	220 - 240 V
Weight & dimensions
Material thickness	1.5 mm
Width	363 mm
Weight	2.9 kg
Height	47 mm
Depth	375 mm
Packaging data
Quantity per pack	1 pc(s)

Downloads

• Datasheet (PDF)
