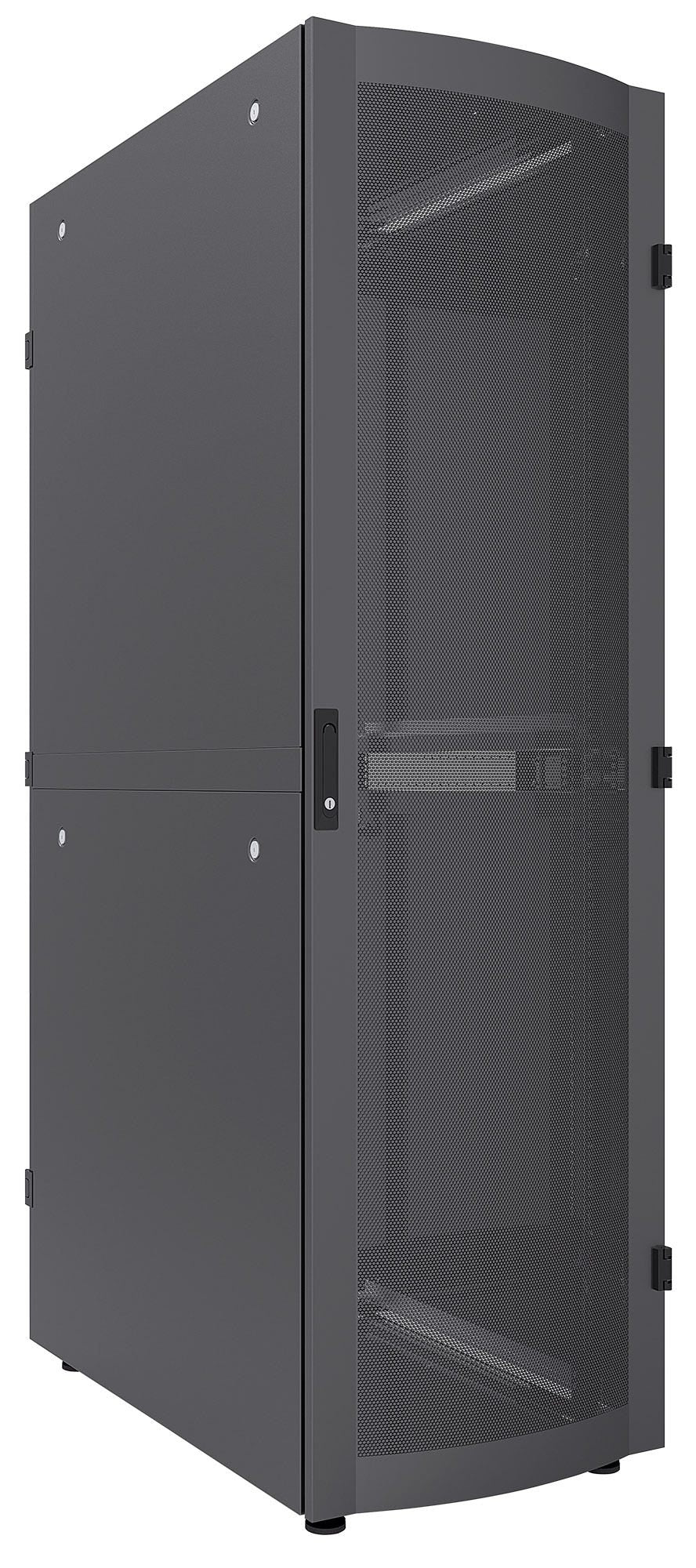

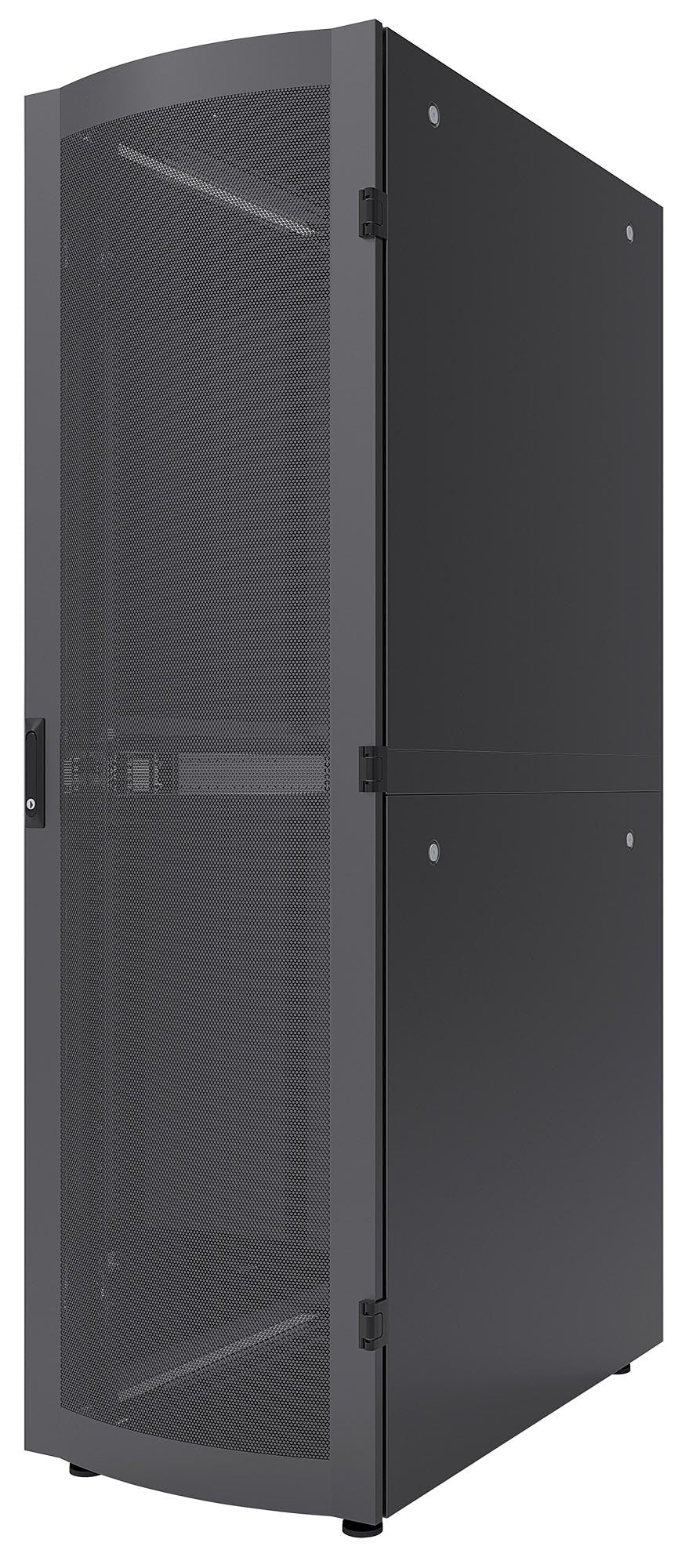

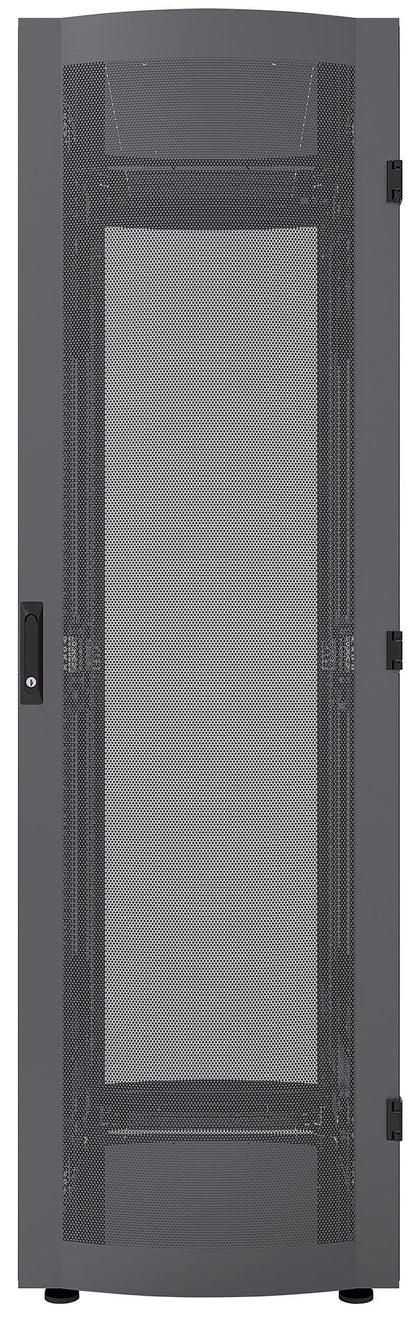

Intellinet 19" Server Cabinet - Free Standing, 42U, 600x1200mm (width x depth) Rack

Build a tidy install with the Intellinet 19" Server Cabinet — dimensions and mounting details are in the spec table.

Intellinet Network Solutions Server Cabinets offer flexible and comprehensive solutions for your server installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flatpack version.

Numerous 19″ options are available for housing, all with an installation depth of 1000 mm & 1200 mm. Cabinet heights range from 26 to 47 units in either black (RAL9005) or grey (RAL7035) colour, so there's a solution for every need. The removable side panels and the lockable doors make cabling and component exchange particularly easy. Perforations on front and back provide excellent airflow.

We provide top quality in materials and workmanship, including a cold-rolled steel frame, zinc-plated 19″ mounting rails and antistatic powder coating on all panels.

Specifications

Features
Size (imperial)	48.3 cm (19")
Key lock	Yes
Frame type	Closed
Rack capacity	42U
International Protection (IP) code	IP20
Adjustable mounting rails	Yes
Removable side panels	Yes
Adjustable feet	Yes
Front door key lock	Yes
Type	Freestanding rack
Side panels included	Yes
Maximum weight capacity	1500 kg
Material	Steel
Product colour	Black
Certification	UL, Gost-R
Adjustable depth	Yes
Weight & dimensions
Width	600 mm
Depth	1200 mm
Height	2057 mm
Weight	121 kg
Technical details
Compliance certificates	CE, RoHS, UL
