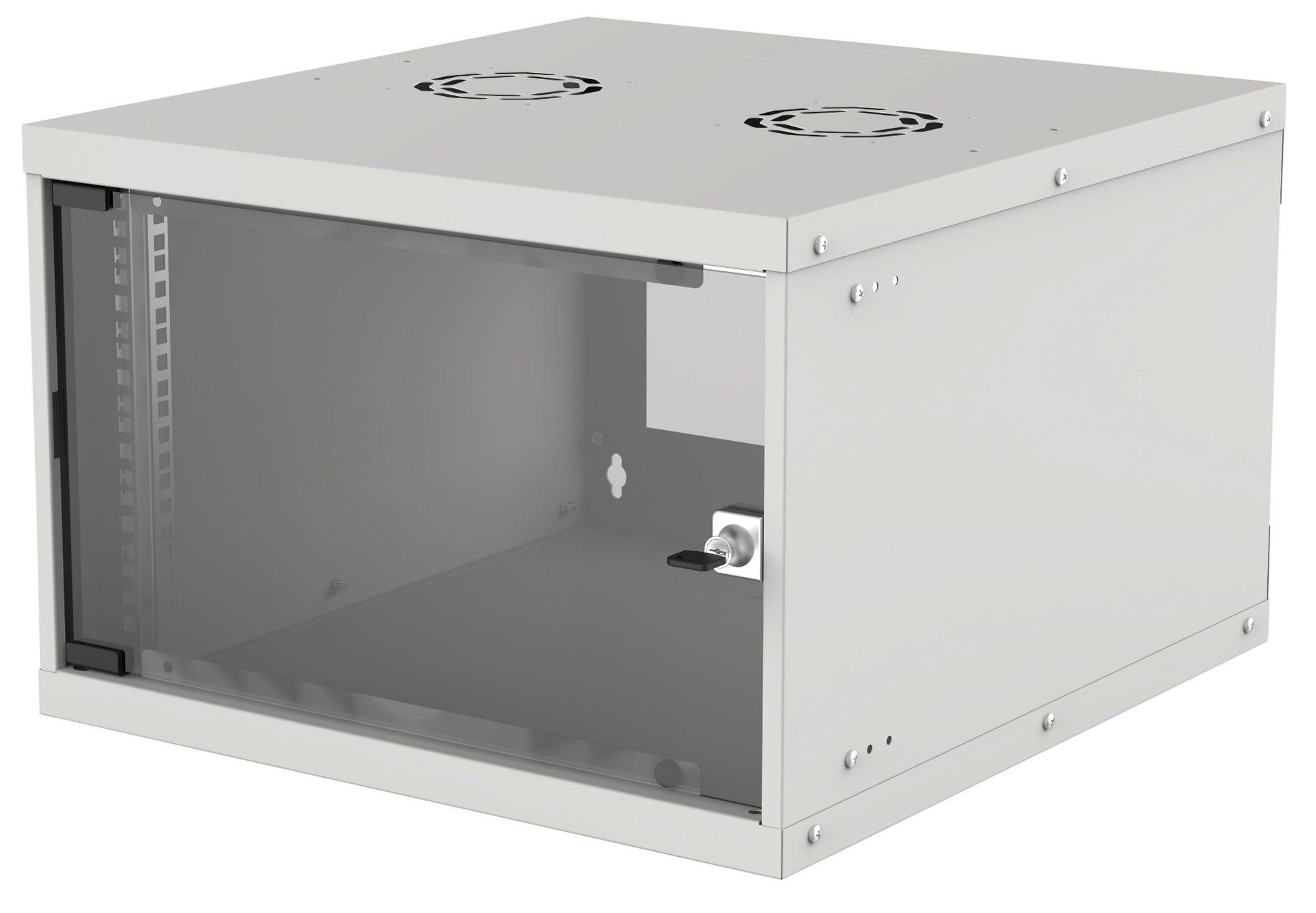

Intellinet 19" Network Cabinet - Wall Mount (Basic), 6U, 400mm Deep, Grey, Flatpack Rack

Build a tidy install with the Intellinet 19" Network Cabinet — dimensions and mounting details are in the spec table.

The Intellinet Network Solutions Basic Wallmount Cabinet provides a low-cost yet highly effective solution for protecting network equipment and securing its installation. An IP20 rating is achieved with cold-rolled, galvanized steel and a reversible, tempered-glass door that allows for easy access in limited-space environments.

Available in black or grey at 6U or 9U heights and common, device-friendly depths, the Intellinet Network Solutions Basic Wallmount Cabinet is sure to accommodate and protect network equipment while complementing the network space and its surrounding environment.

Specifications

Features
Size (imperial)	48.3 cm (19")
Frame type	Closed
Rack capacity	6U
International Protection (IP) code	IP20
Front door construction	Glass
Type	Wall mounted rack
Maximum weight capacity	50 kg
Material	Galvanized steel
Product colour	Grey
Certification	ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Packaging content
Manual	Yes
Weight & dimensions
Width	540 mm
Depth	400 mm
Height	353 mm
Weight	8.91 kg

Downloads

• Datasheet (PDF)
