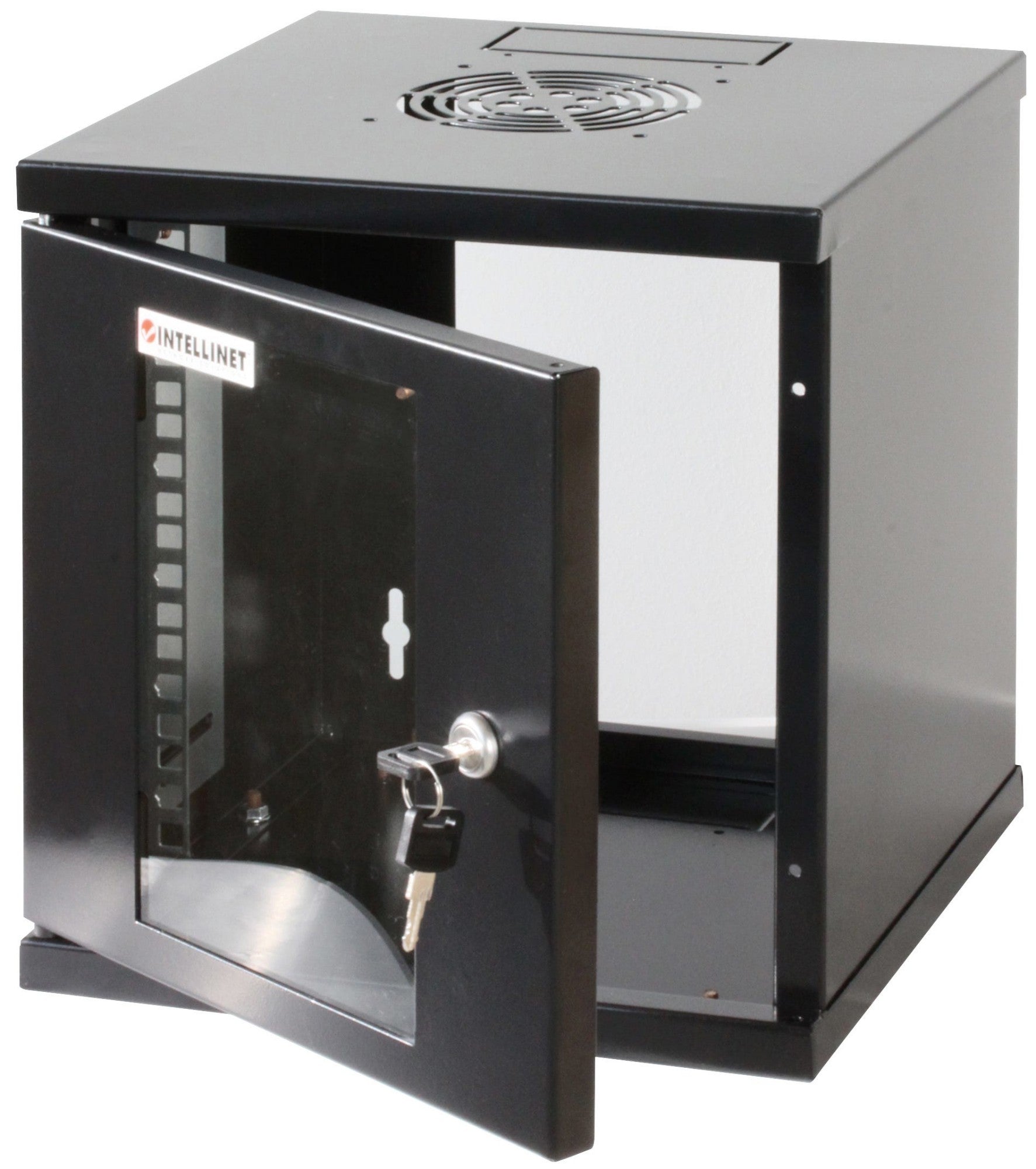

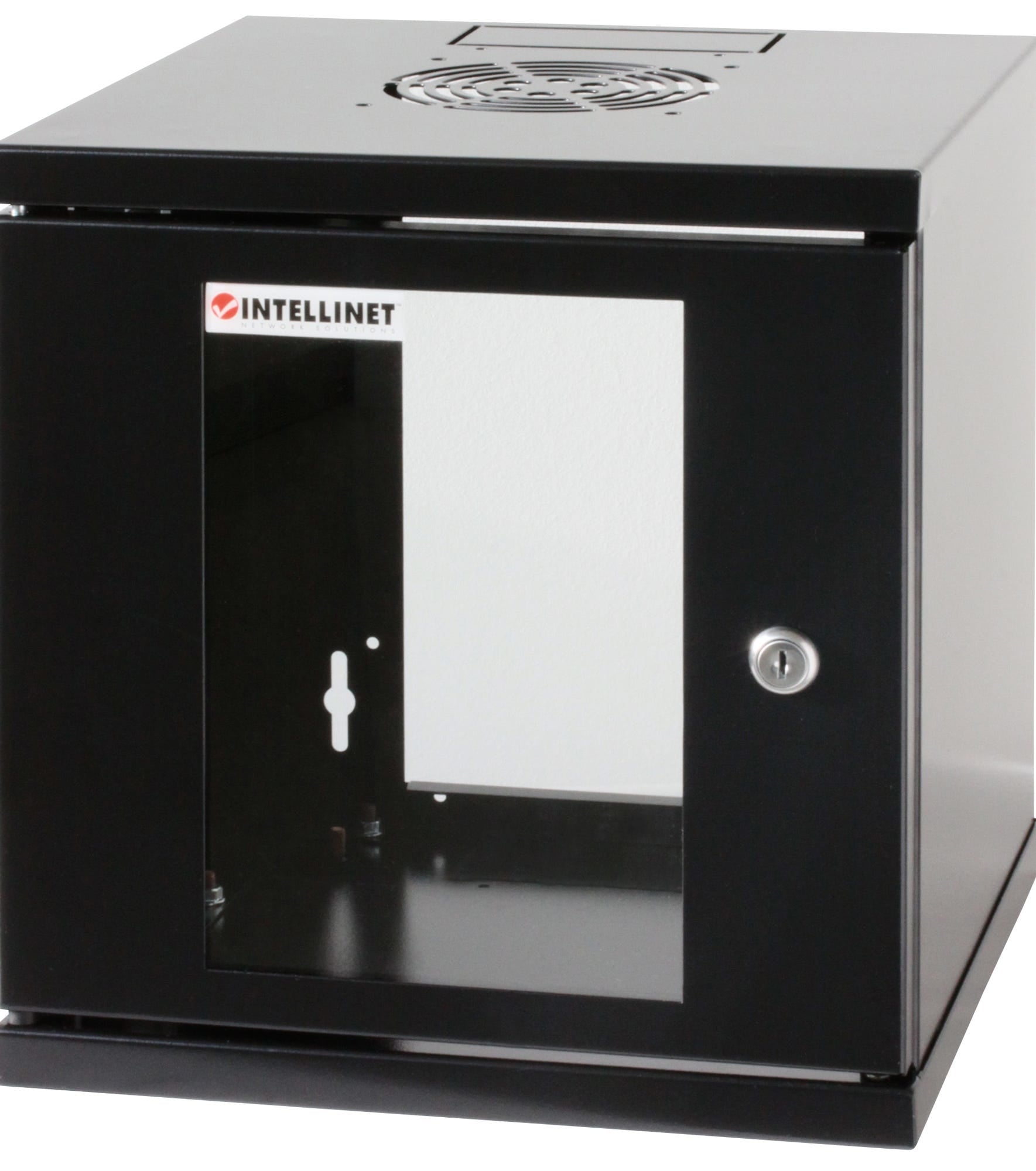

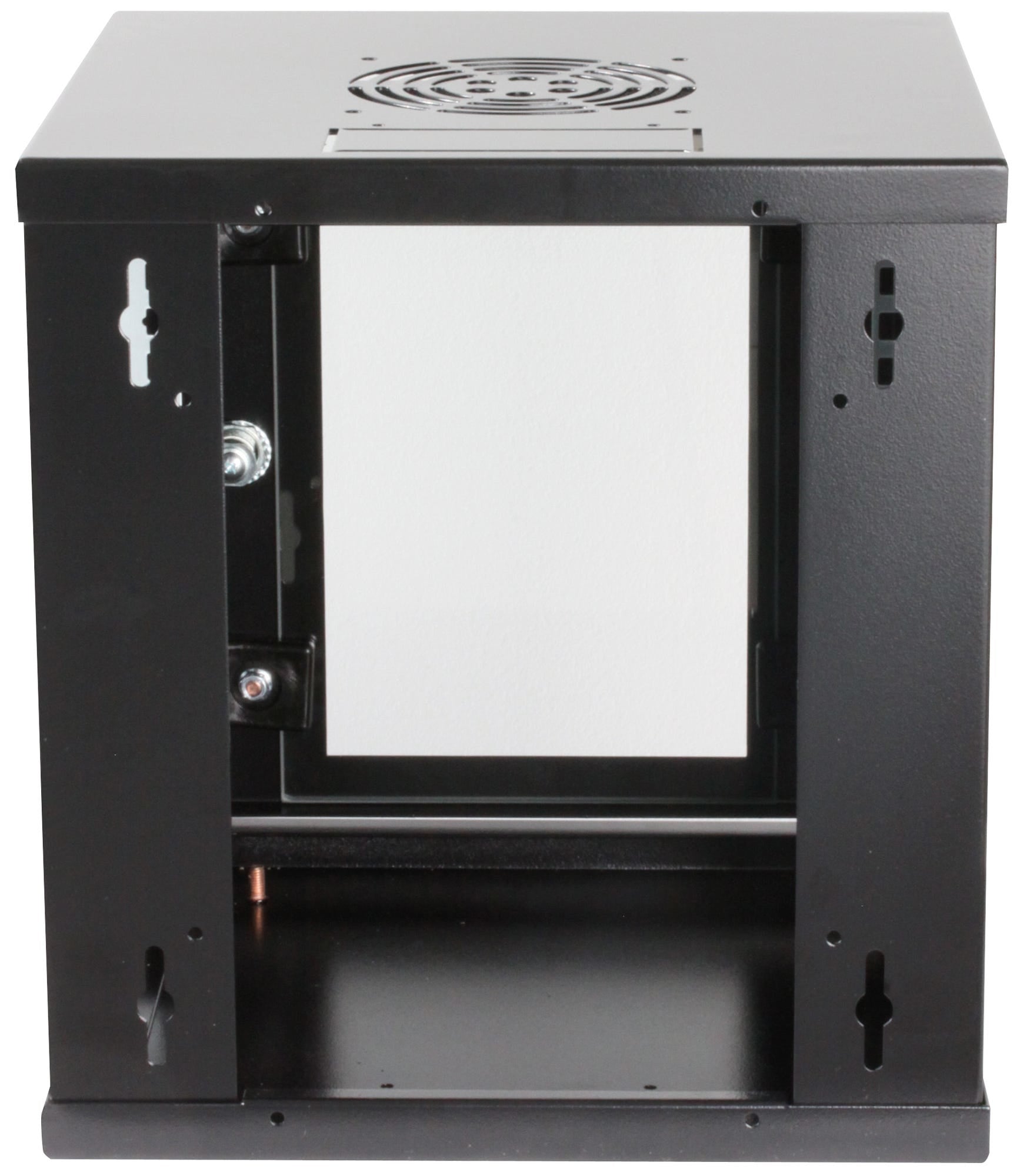

Intellinet 10" Network Cabinet - Wall Mount (Standard), 6U, 300mm Deep, Black Rack

Build a tidy install with the Intellinet 10" Network Cabinet — dimensions and mounting details are in the spec table.

The Intellinet Network Solutions wall mount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flat-pack version. In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. Heights from 6 to 20 units in black (RAL9005) or (RAL7021) & grey (RAL7035).
We offer you a solution for every need.

Various options include:
Removable side panels (some lockable).
Tempered/Toughened glass doors.
Double Section, making cabling and component exchange simple.

Specifications

Features
Size (imperial)	25.4 cm (10")
Frame type	Closed
Rack capacity	6U

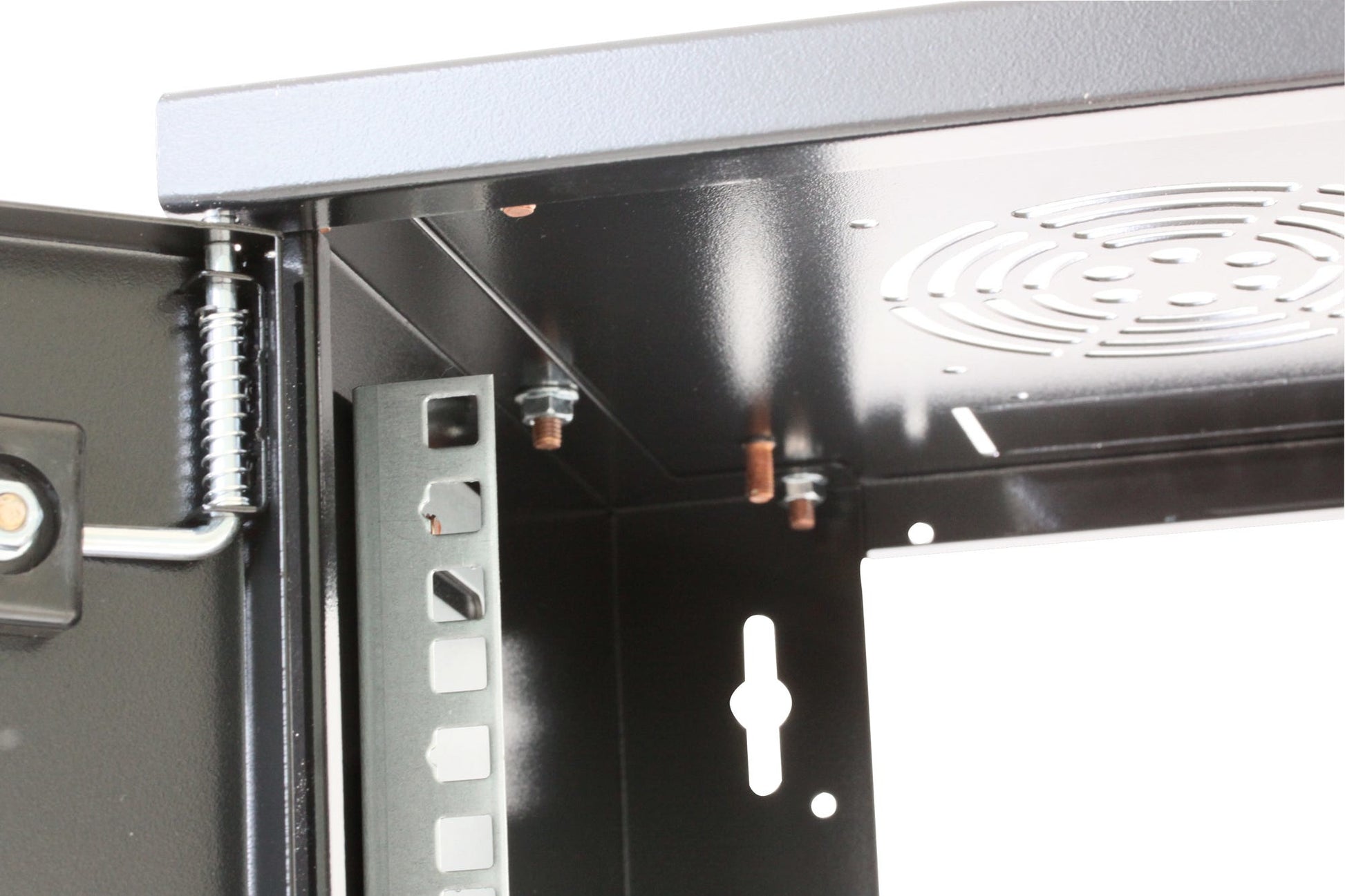

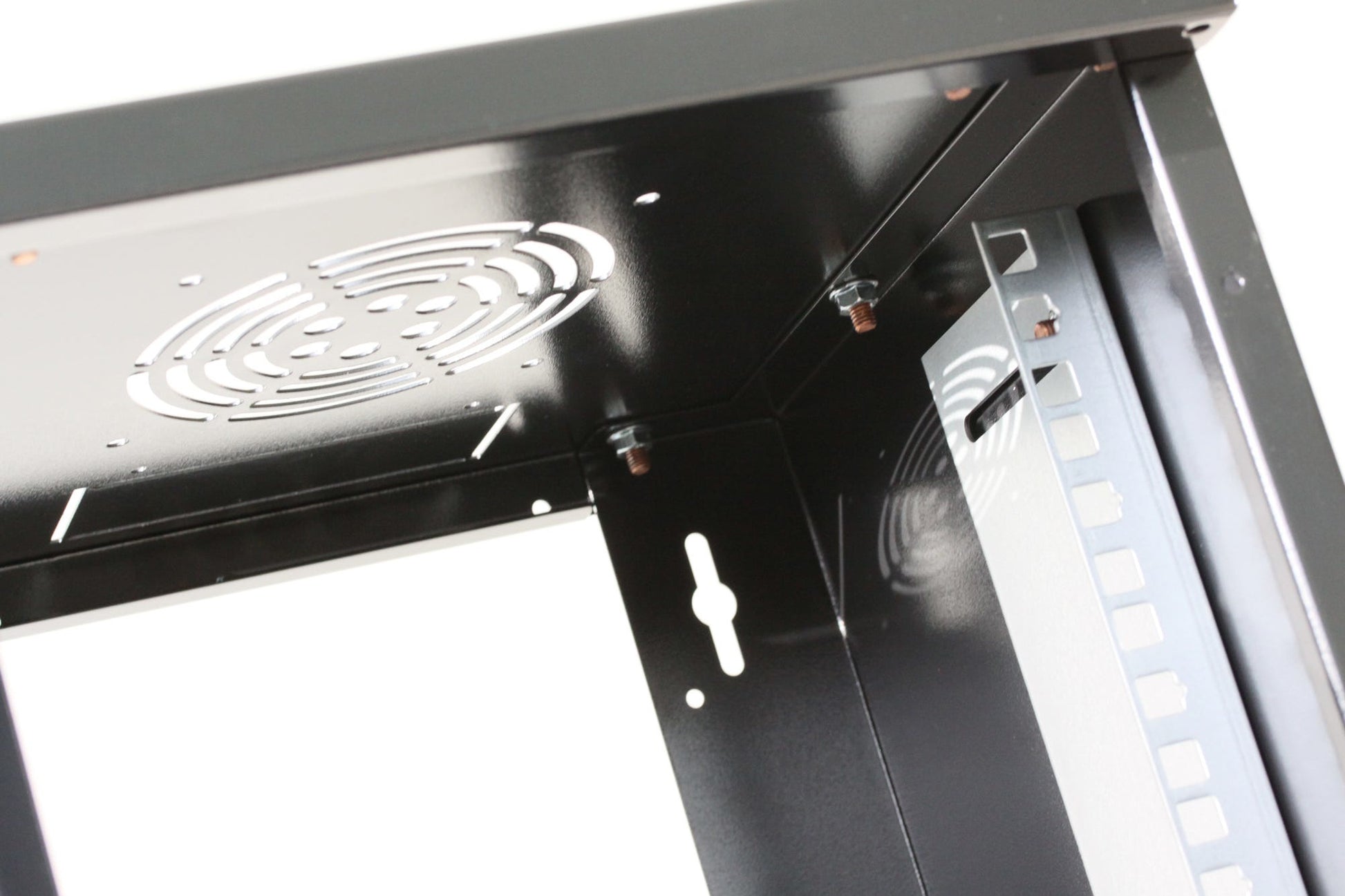

Adjustable mounting rails	Yes
Removable side panels	Yes
Front door construction	Glass
Type	Wall mounted rack
Side panels included	Yes
Maximum weight capacity	60 kg
Material	SPCC
Product colour	Black
Certification	ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Adjustable depth	Yes
Weight & dimensions
Width	300 mm
Depth	300 mm
Height	320 mm
Weight	6.7 kg
Technical details
Harmonized System (HS) code	85381000

Downloads

• Datasheet (PDF)
