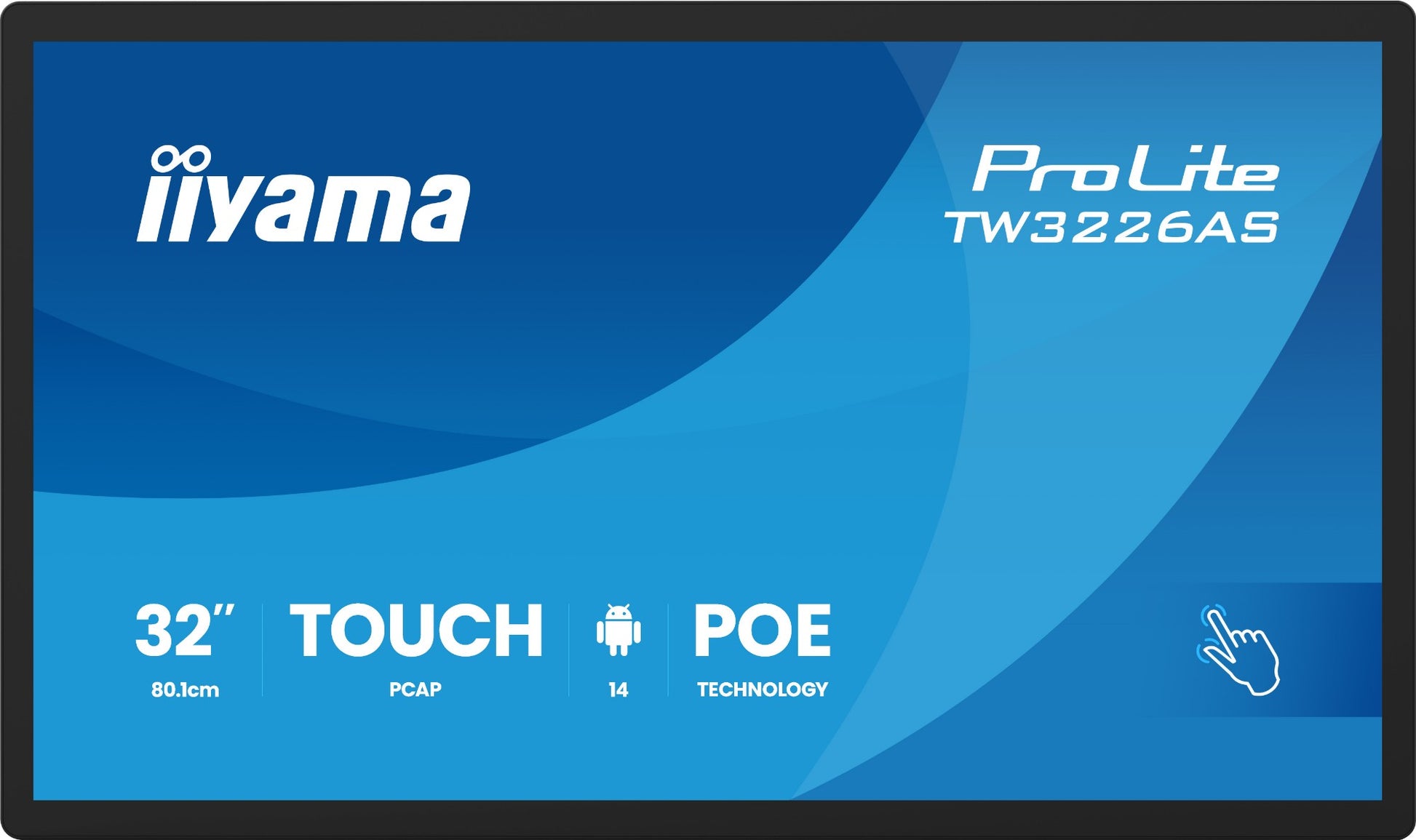

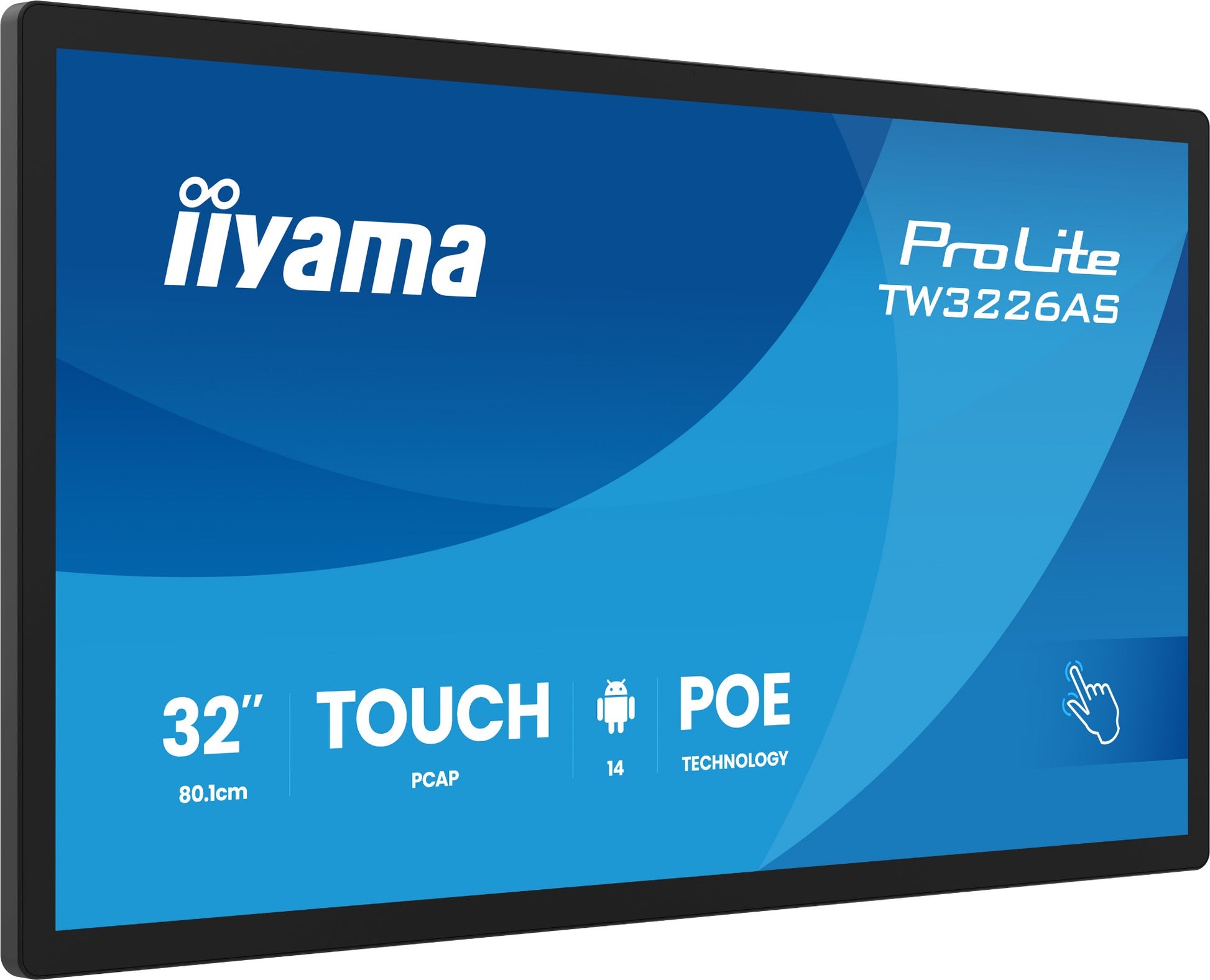

iiyama TW3226AS-B3P Signage Display Kiosk design 31.5" Full HD VA Touch Monitor
iiyama TW3226AS-B3P Signage Display Kiosk design 31.5" Full HD VA Touch Monitor
Couldn't load pickup availability
The iiyama TW3226AS-B3P Signage Display Kiosk design brings touch control to a 31.5" Full HD 1920x1080 VA monitor — ideal for POS, kiosks and interactive work.
The ProLite TW3226AS-B3P is a smart and intuitive 31.5" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in quad microphone and 5W speakers, the TW3226AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.
Specifications
| Display | |
|---|---|
| Panel type | VA |
| Display number of colours | 16.7 million colours |
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Active display area (W x H) | 698.4 x 392.8 mm |
| Display technology | LED |
| Display diagonal | 80 cm (31.5") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 430 cd/m² |
| HD type | Full HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 4000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.3637 x 0.3637 mm |
| Display diagonal (metric) | 80.1 cm |
| Native aspect ratio | 16:9 |
| Colour depth | 8 bit |
| Touchscreen technology | Projected capacitive system |
| Surface hardness | 3H |
| Multi-touch | Yes |
| Ports & interfaces | |
| USB connector type | USB Type-A, USB Type-C |
| USB port | Yes |
| HDMI version | 1.4 |
| Wi-Fi standards | Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Wi-Fi | Yes |
| Microphone in | Yes |
| DisplayPorts quantity | 0 |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 3 |
| HDMI input ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Kiosk design |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |

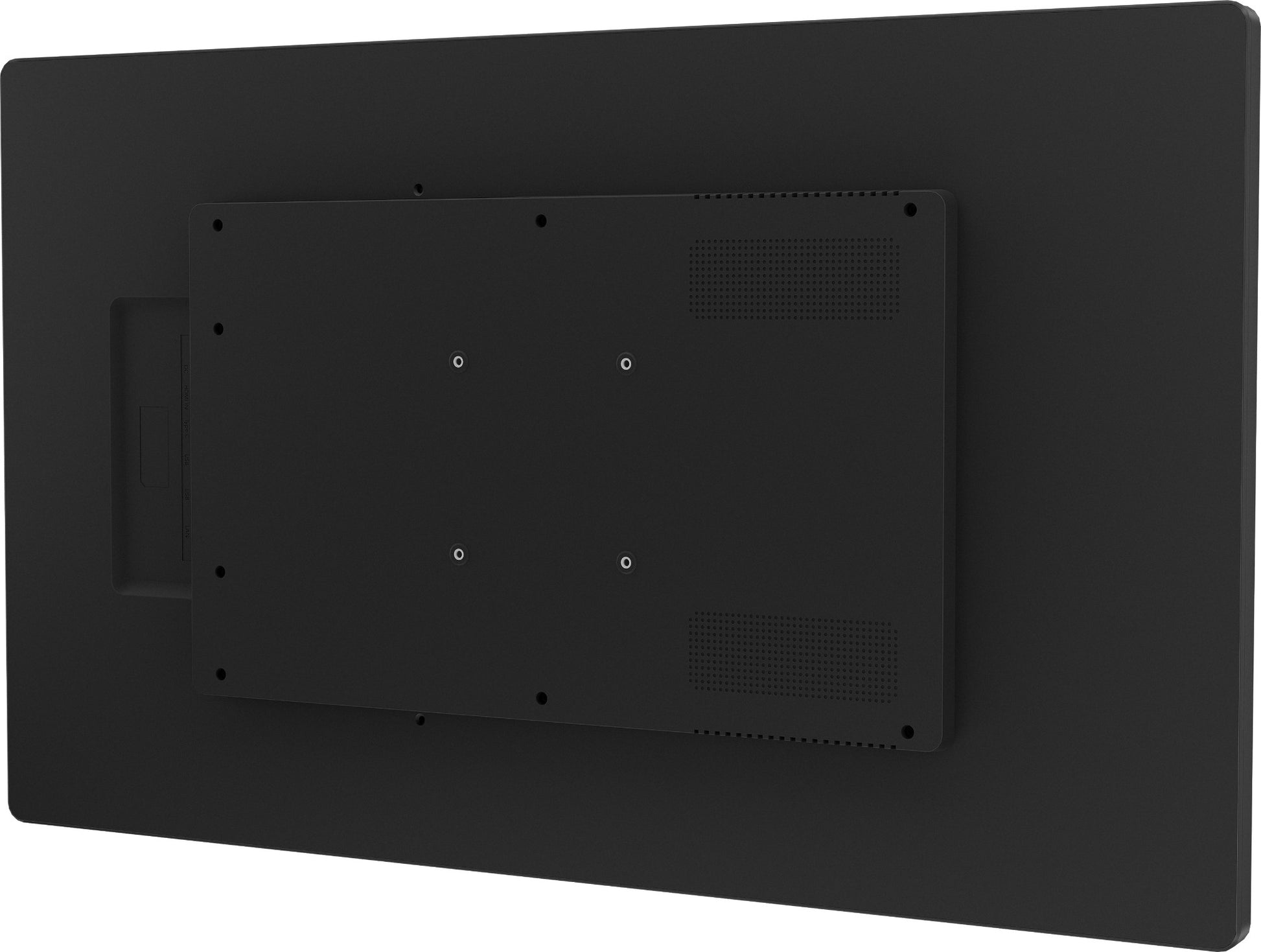

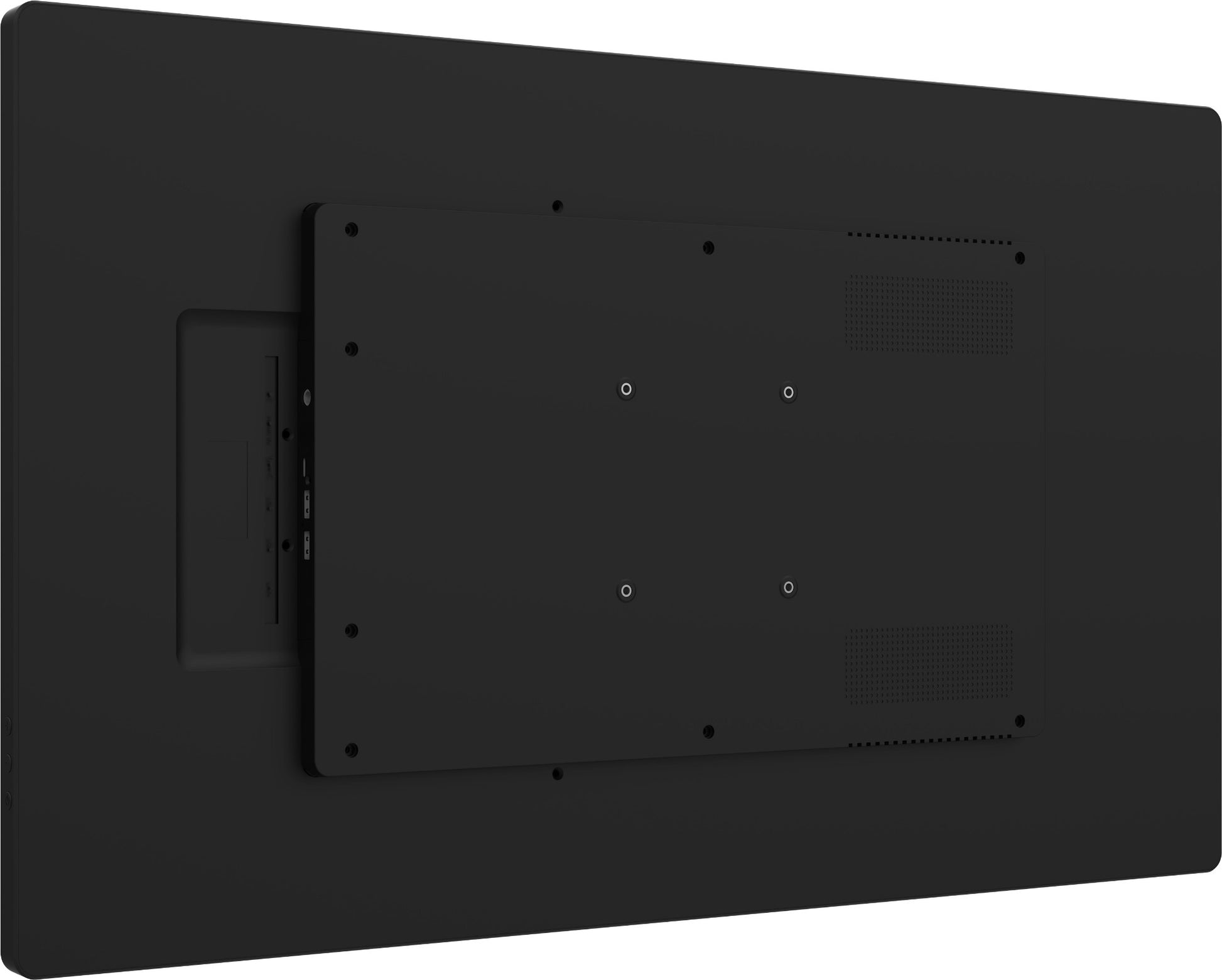

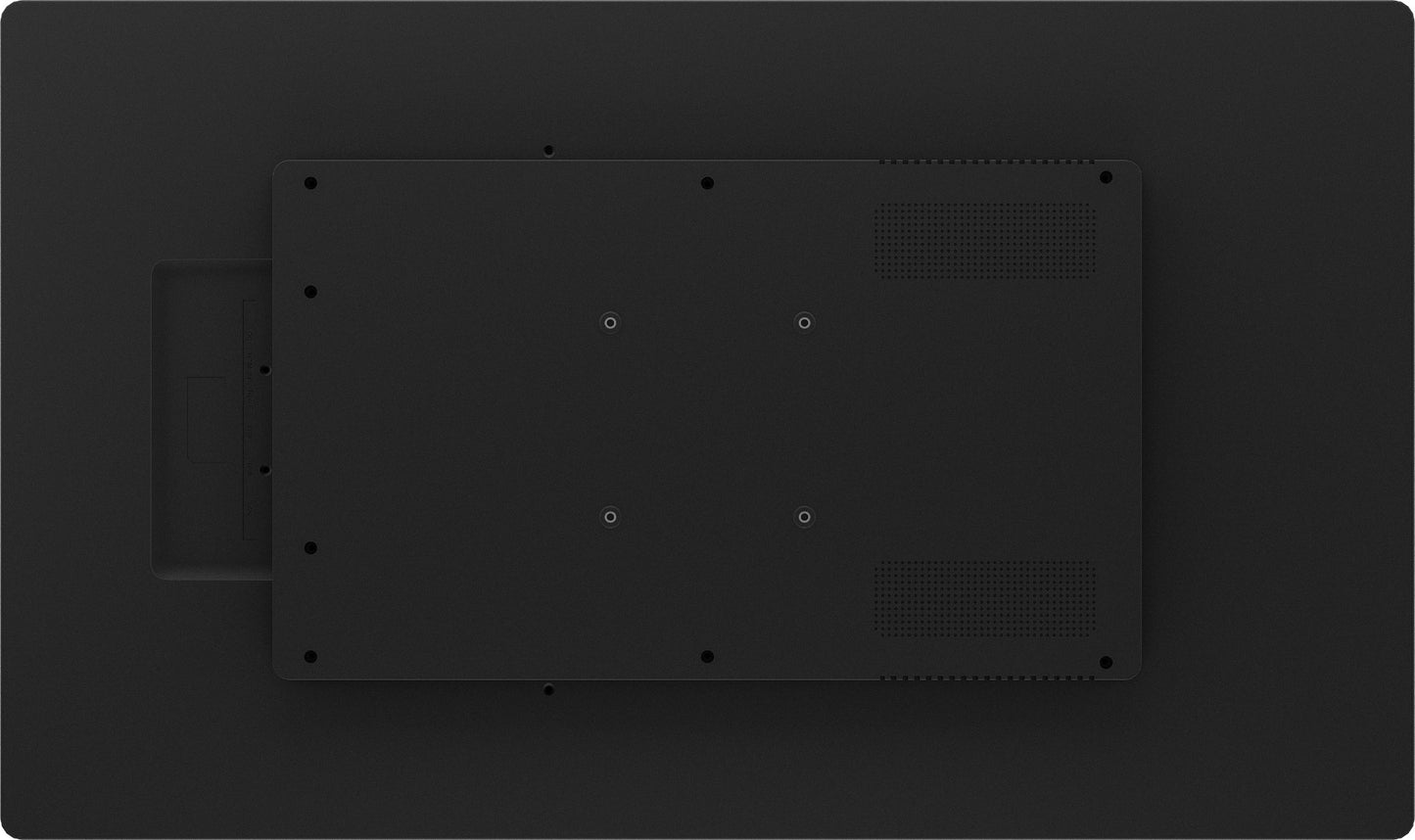

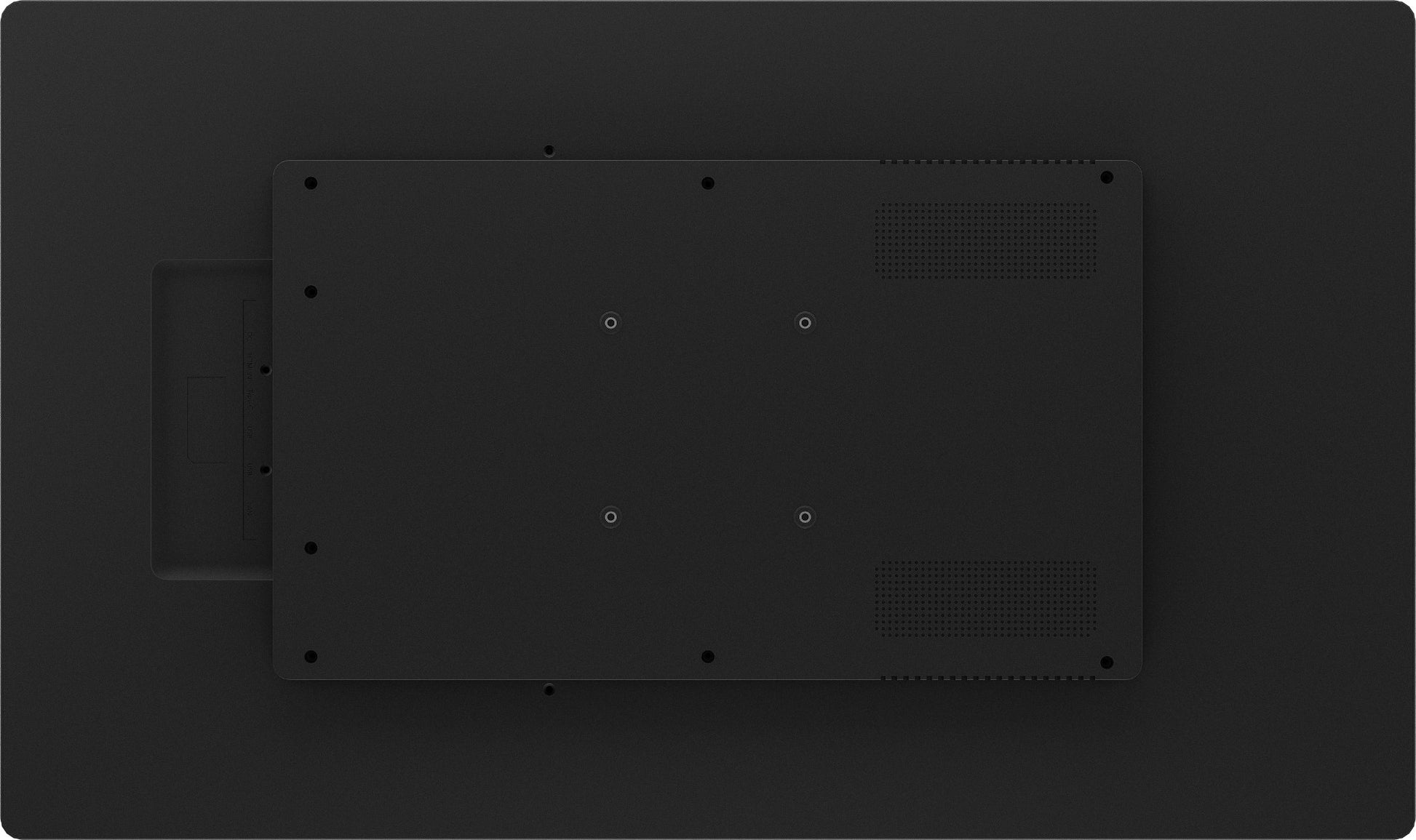

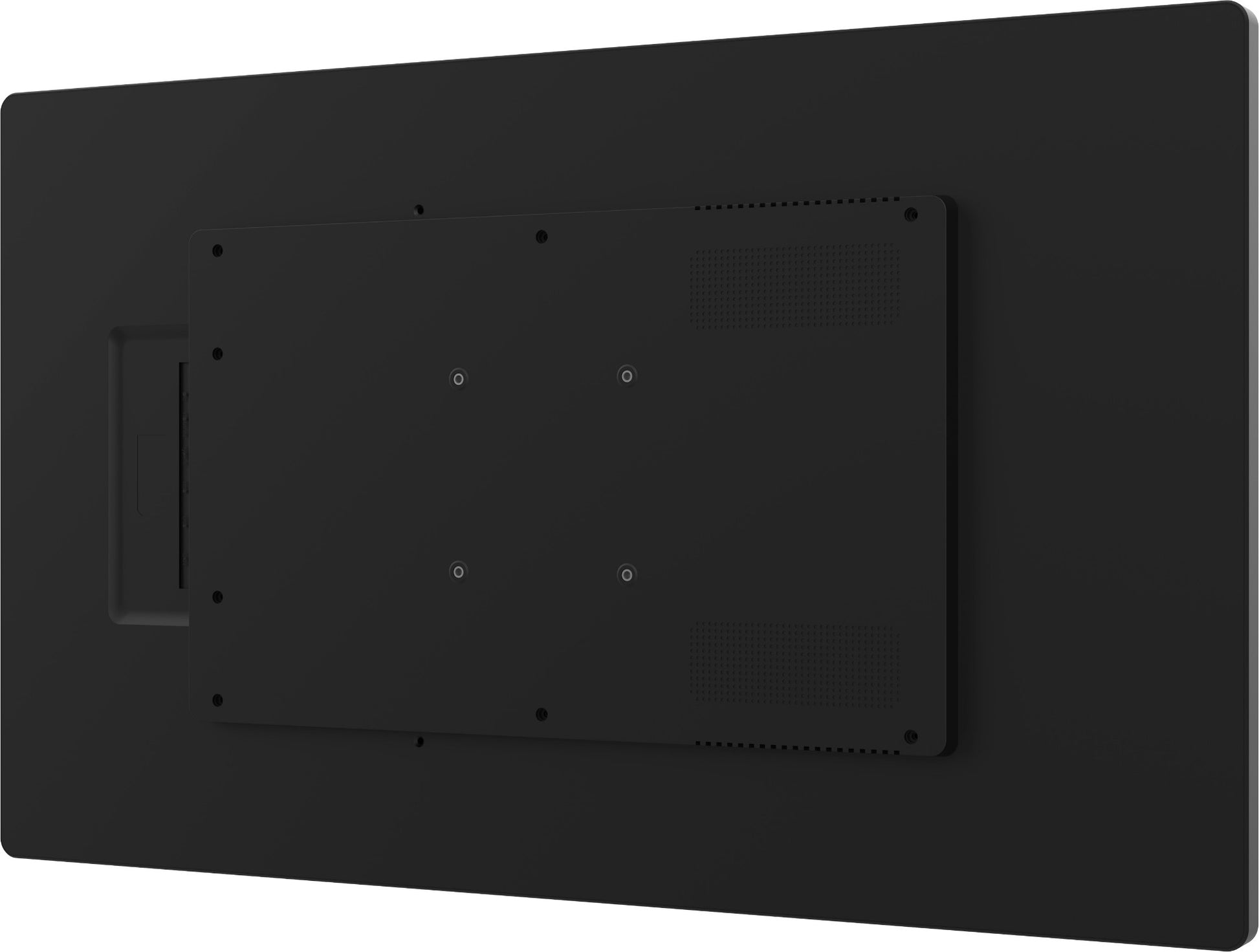

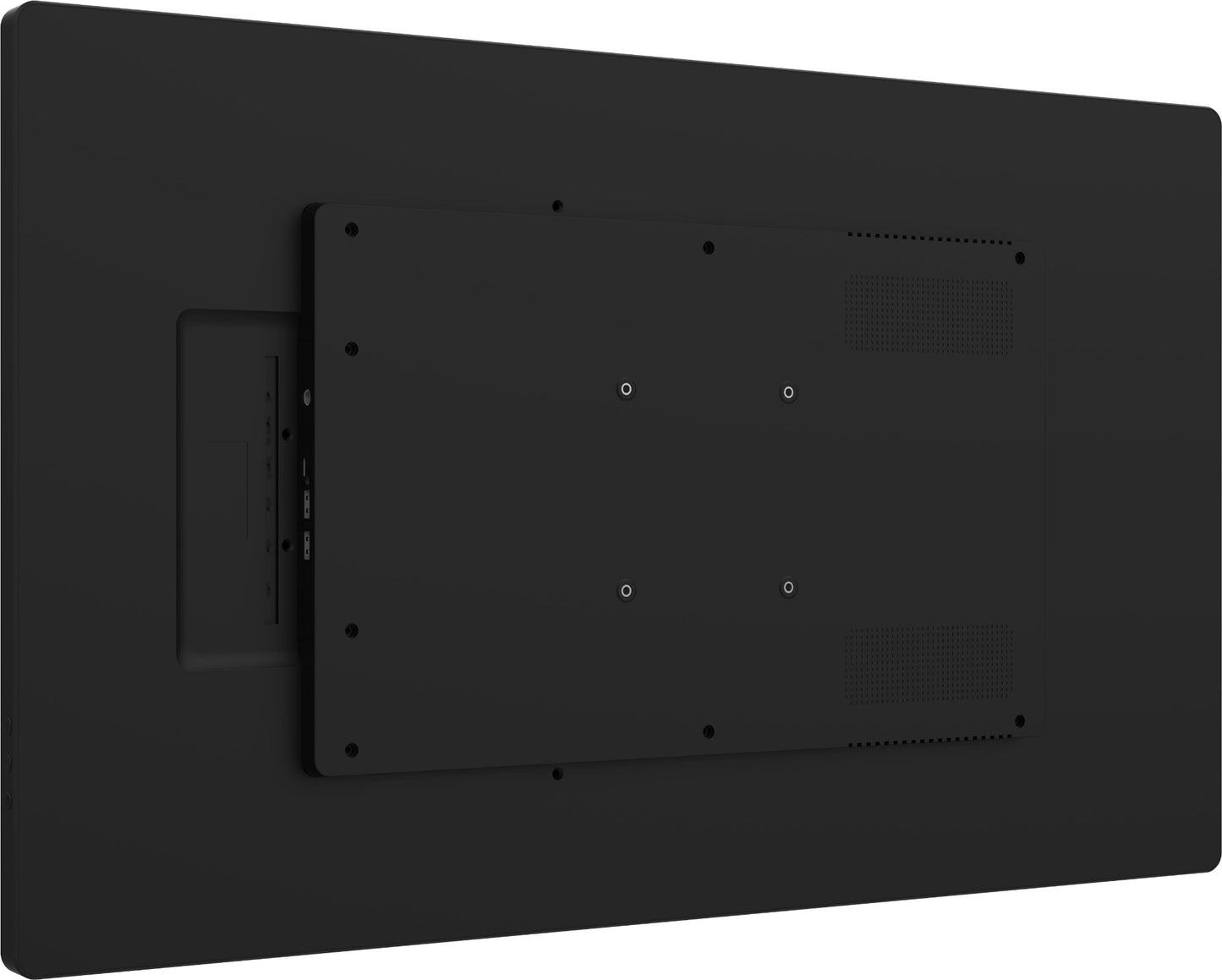

| Panel mounting interface | 100 x 100 mm |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| VESA mounting | Yes |
| Bezel colour | Black |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| HDCP | Yes |
| Power | |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 36.34 W |
| Power consumption (standby) | 0.5 W |
| Computer system | |
| Processor cores | 8 |
| Processor family | ARM Rockchip |
| Processor model | Rockchip RK3576 |
| Operating system installed | Android |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Processor manufacturer | ARM |
| Built-in processor | Yes |
| Google applications | Google Chrome, Gmail, Google Calendar |
| On-board graphics card model | Mali-G52 MC3 |
| Processor architecture | ARM Cortex-A53+Cortex-A72 |
| Operating system version | 14 |
| Weight & dimensions | |
| Width (with stand) | 735 mm |
| Height (with stand) | 436 mm |
| Depth (with stand) | 35 mm |
| Width | 735 mm |
| Depth | 35 mm |
| Height | 436 mm |
| Weight | 7.7 kg |
| Weight (with stand) | 7.7 kg |
| Display width | 735 mm |
| Display depth | 35 mm |
| Display height | 436 mm |
| Display weight | 7.7 kg |
| Packaging data | |
| Package width | 833 mm |
| Package depth | 126 mm |
| Package height | 508 mm |
| Package weight | 12.4 kg |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Cables included | AC |
| Packaging content | |
| Power adapter included | Yes |
| Technical details | |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | External |
| Cable management | Yes |
| Brightness | 430 cd/m² |
| User controls | Power switch, volume/ button +, volume/ button - |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Other features | |
| Viewable size, vertical | 39.3 cm |
| Viewable size, horizontal | 69.8 cm |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Audio output | Mini jack |
| AC adapter included | Yes |
