iiyama TW2424AS-B3P Signage Display Interactive flat panel 23.8" Full HD IPS Touch Monitor
iiyama TW2424AS-B3P Signage Display Interactive flat panel 23.8" Full HD IPS Touch Monitor
Couldn't load pickup availability
The iiyama TW2424AS-B3P Signage Display Interactive flat panel brings touch control to a 23.8" Full HD 1920x1080 IPS monitor — ideal for POS, kiosks and interactive work.
The ProLite TW2424AS-B3P interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 14 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising.
Specifications
| Display | |
|---|---|
| Panel type | IPS |
| Display number of colours | 16.7 million colours |
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Active display area (W x H) | 527 x 296.5 mm |
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 450 cd/m² |
| HD type | Full HD |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.275 x 0.275 mm |
| Display diagonal (metric) | 60.5 cm |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Colour depth | 8 bit |
| Touchscreen technology | Projected capacitive system |
| Surface hardness | 6H |

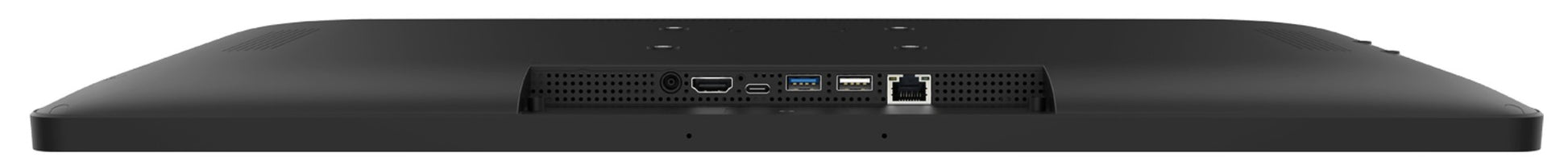

| Ports & interfaces | |
| USB port | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Screen shape | Flat |
| Bezel colour | Black |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | Yes |
| HDCP | Yes |
| Power | |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 17.5 W |
| Power consumption (standby) | 0.5 W |
| Computer system | |
| Computer system | Yes |
| Processor family | ARM Rockchip |
| Processor model | Rockchip RK3576 |
| Processor frequency | 1.8 GHz |
| Operating system installed | Android |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Processor manufacturer | Rockchip |
| Built-in processor | Yes |
| Google applications | Google Chrome, Gmail, Google Calendar |
| Operating system version | 14 |
| Weight & dimensions | |
| Width (with stand) | 550 mm |
| Height (with stand) | 336 mm |
| Depth (with stand) | 28 mm |
| Width | 550 mm |
| Depth | 28 mm |
| Height | 336 mm |
| Weight | 4.24 kg |
| Weight (with stand) | 4.24 kg |
| Display width | 550 mm |
| Display depth | 28 mm |
| Display height | 336 mm |
| Display weight | 4.24 kg |
| Packaging data | |
| Package width | 640 mm |
| Package depth | 121 mm |
| Package height | 410 mm |
| Package weight | 6.2 kg |
| Quick start guide | Yes |
| Cables included | AC |
| Technical details | |
| Power supply type | External |
| Cable management | Yes |
| Brightness | 450 cd/m² |
| Audio in (mini jack) | Yes |
| User controls | Power switch, volume/ button +, volume/ button - |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Other features | |
| Viewable size, vertical | 29.6 cm |
| Viewable size, horizontal | 52.7 cm |
| Built-in microphone | Yes |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Audio input | Yes |
| AC adapter included | Yes |
