iiyama

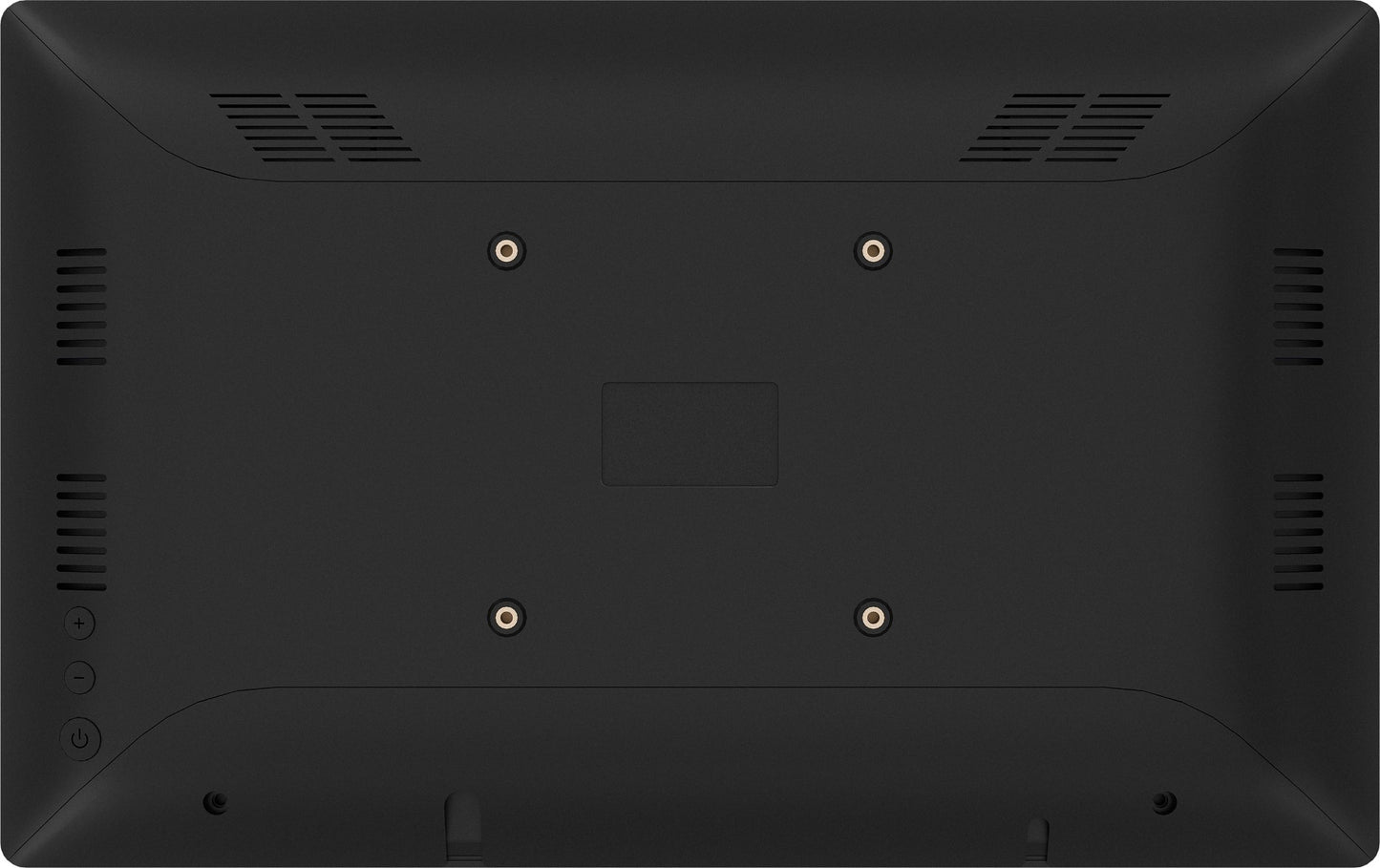

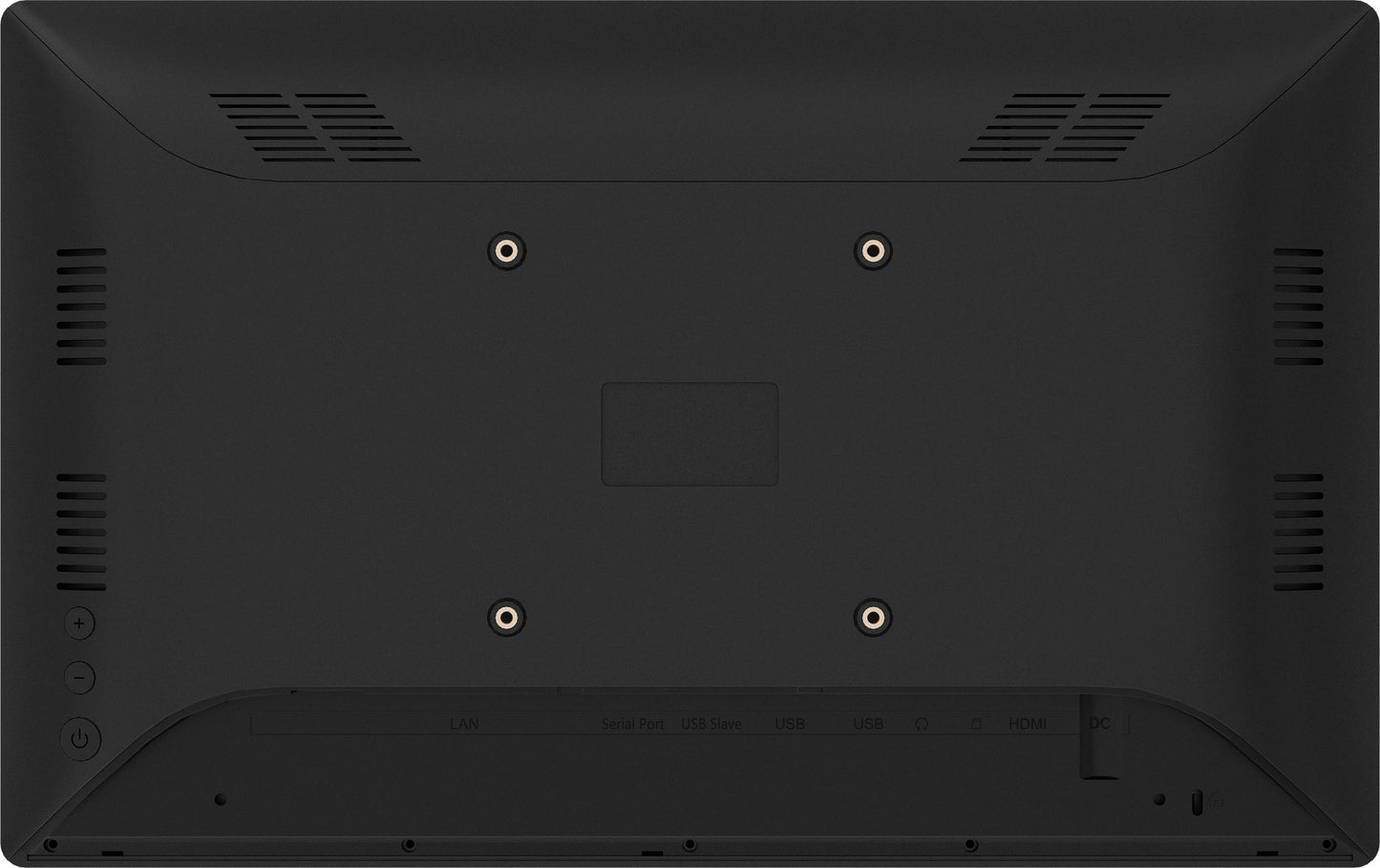

iiyama TW1623AS-B3P 15.6" Full HD IPS Touch Monitor

£300.12 GBP

Sale Sold out

Taxes included.

Condition New

The iiyama TW1623AS-B3P brings touch control to a 15.6" Full HD 1920x1080 IPS monitor — ideal for POS, kiosks and interactive work.

The ProLite TW1623AS-B3P is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 16, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in microphone and speakers, the TW1623AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.

Specifications

Display
HDCP	Yes
Display brightness (typical)	450 cd/m²
Display number of colours	16.7 million colours
Native aspect ratio	16:9
HD type	Full HD
Display technology	LED
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Pixel pitch	0.1792 x 0.1792 mm
Viewable size, horizontal	34.4 cm
Viewable size, vertical	19.4 cm
Display resolution	1920 x 1080 pixels
Response time	30 ms
Display diagonal	39.6 cm (15.6")
Contrast ratio (typical)	1000:1
Surface hardness	6H
Touchscreen	Yes
Number of simultaneous touchpoints	10
Panel type	IPS
Colour depth	8 bit
Display diagonal (metric)	39.5 cm
Touch technology	Multi-touch
Touchscreen technology	Projected capacitive system
Display brightness	385 cd/m²
Response time measurement type	GTG (Gray to Gray)
Audio
Built-in speaker(s)	Yes
RMS rated power	4 W
Performance
Compatible memory cards	SD
Card reader integrated	Yes
Operating system installed	Android
Operating system version	13
Operating hours (hours/days)	24/7
Management features
On Screen Display (OSD)	Yes
Network
Ethernet LAN (RJ-45) ports	1
Bluetooth	Yes
Bluetooth version	5.2
Wi-Fi standards	Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Wi-Fi	Yes
Ethernet LAN	Yes
Multimedia
Number of speakers	2
Design
Certification	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Product colour	Black
Front bezel colour	Black
Glass thickness	1.8 mm

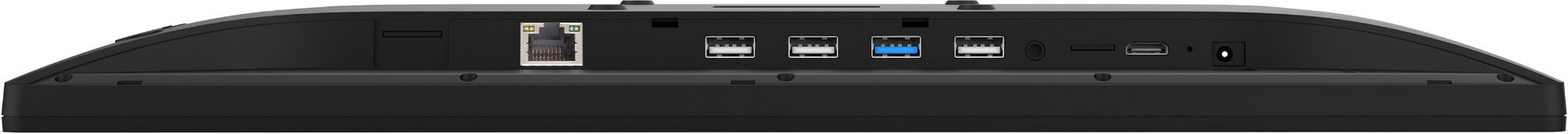

Ports & interfaces
USB version	2.0
HDMI ports quantity	1
Audio input	Mini Jack
Microphone in	Yes
Mini HDMI ports quantity	1
USB Touch port	Yes
Technical details
Placement supported	Indoor
User controls	Power switch, volume/ button +, volume/ button -
Sustainability certificates	ErP
Compliance certificates	CE, EAC, REACH, RoHS, UKCA, WEEE
Packaging content	AC adapter, interchangeable plugs (EU/UK)
Brightness	385 cd/m²
Built-in processor	Yes
Google applications	Google Chrome, Gmail, Google Calendar
Power supply type	External
Active display area (W x H)	344.2 x 193.6 mm
Weight (with stand)	1.5 kg
Touch method	finger, glove (latex), capacitive stylus
Ergonomics

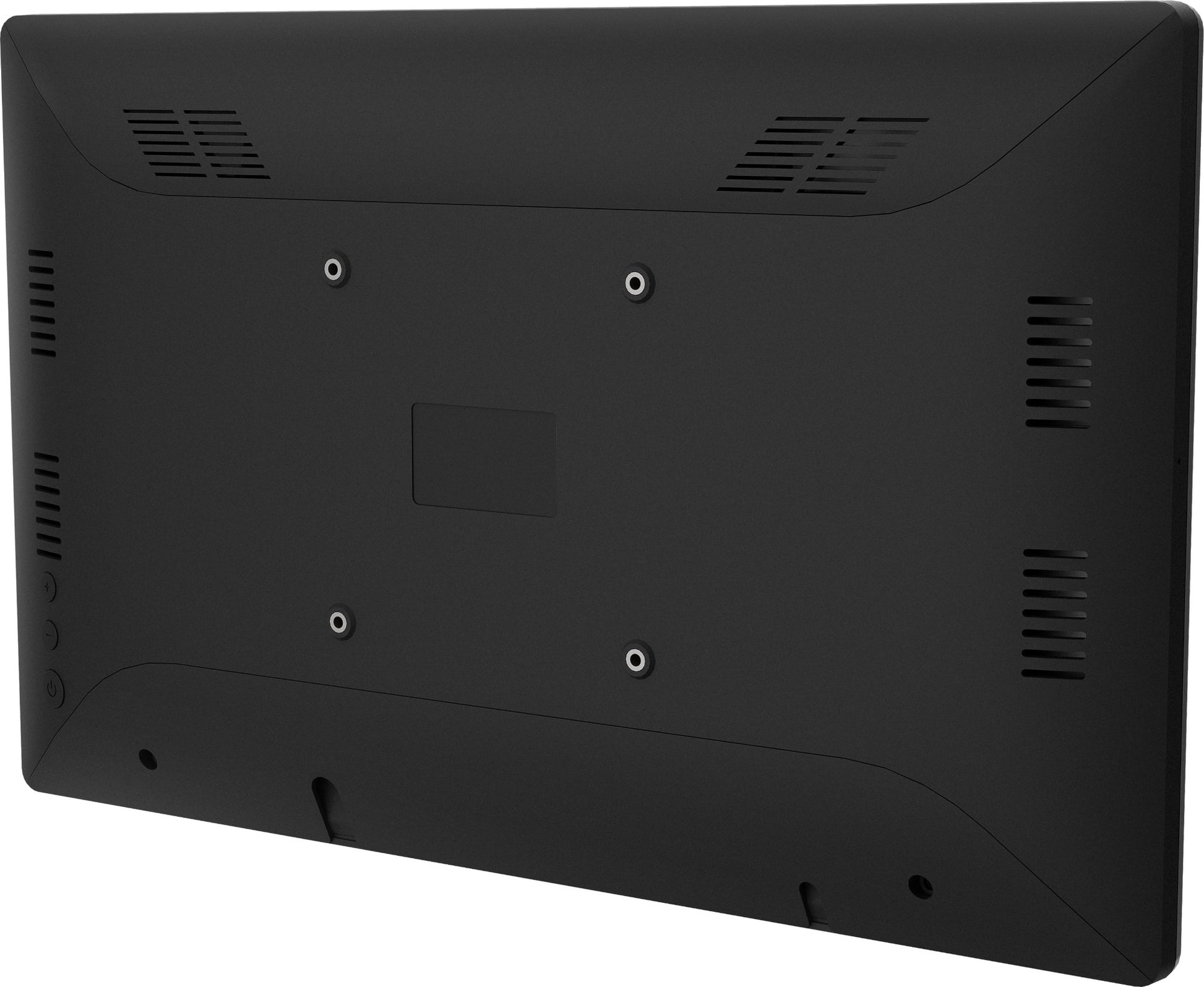

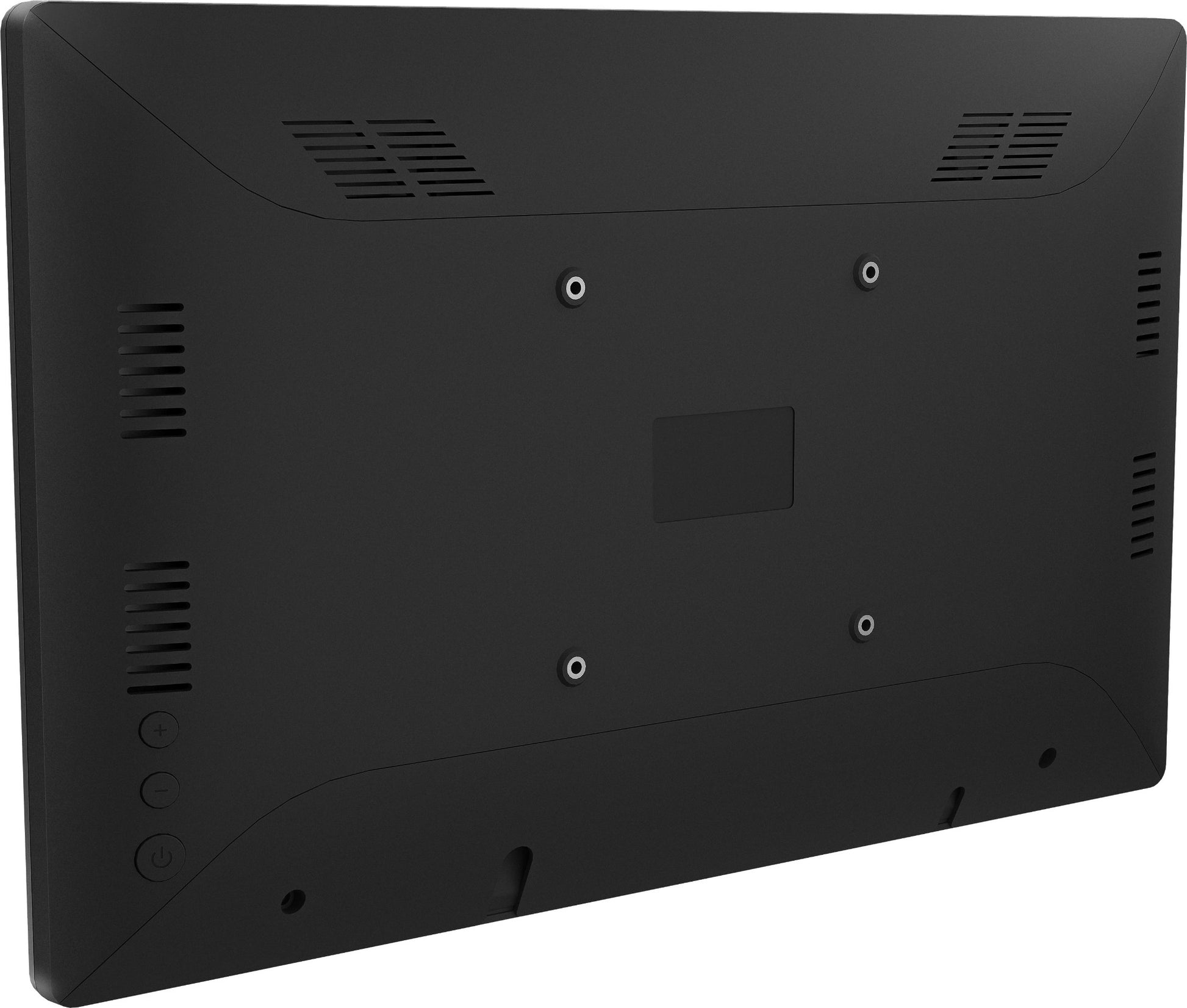

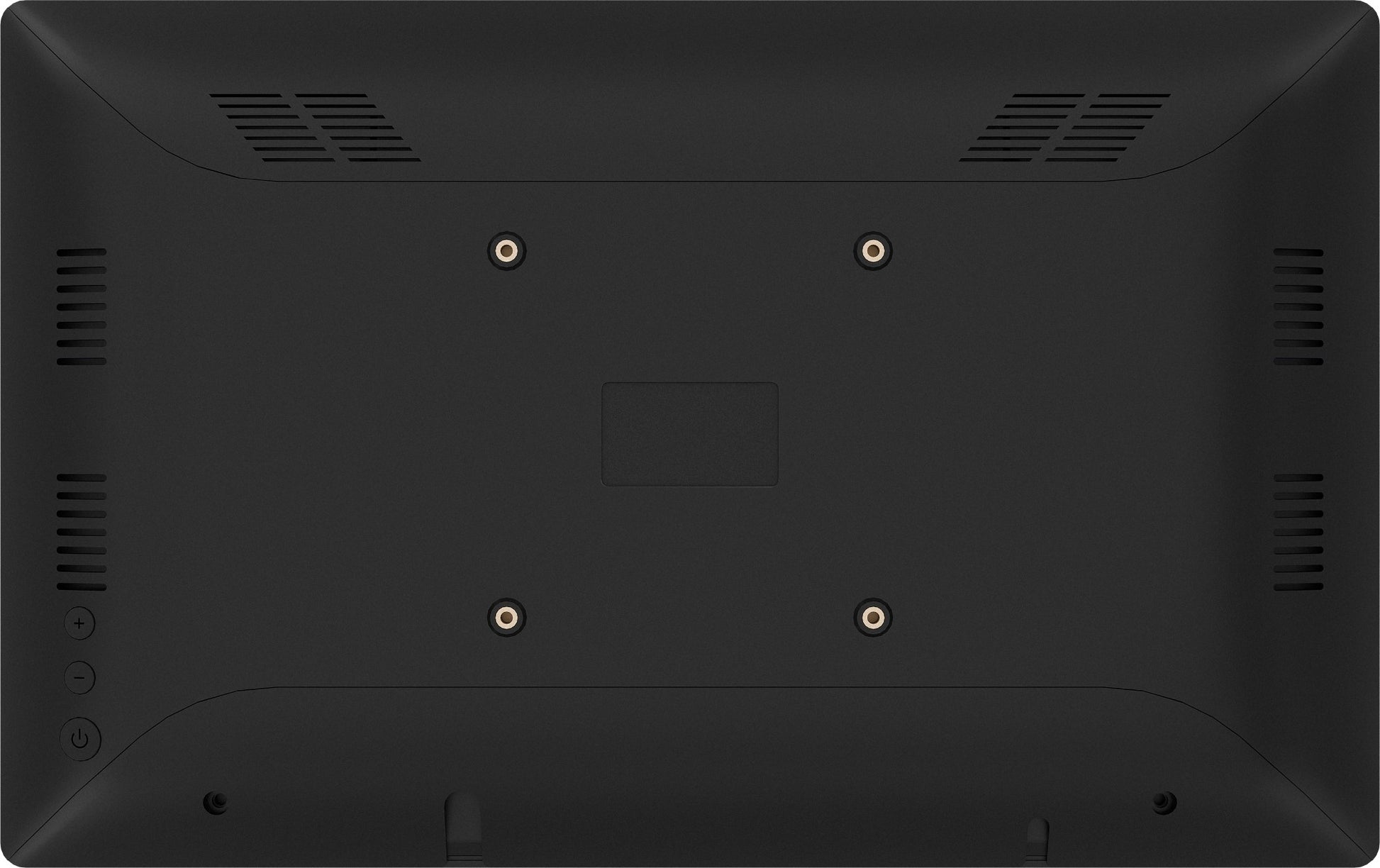

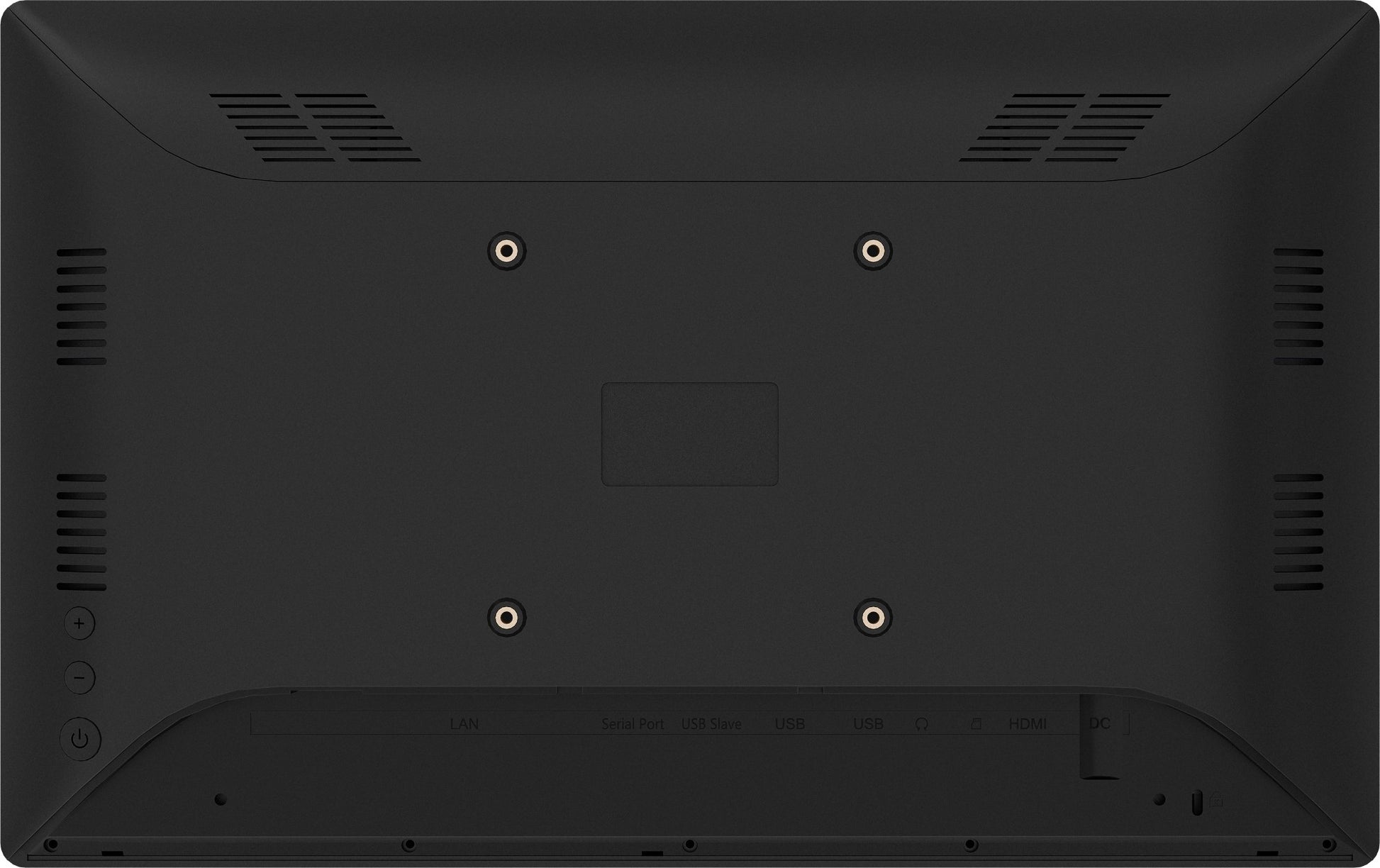

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable management	Yes
Power
Power consumption (standby)	0.5 W
Power consumption (typical)	9 W
Power consumption (off)	0.3 W
AC adapter output voltage	12 V
Weight & dimensions
Width (with stand)	387 mm
Depth (with stand)	30.5 mm
Height (with stand)	244 mm
Package width	477 mm
Package depth	75 mm
Package height	298 mm
Package weight	2.45 kg
Width	387 mm
Weight	1.5 kg
Height	244 mm
Packaging data
AC adapter included	Yes
Quick start guide	Yes
Power adapter included	Yes
Thin Client
Processor cores	4
Processor frequency	2 GHz
Processor family	ARM Rockchip
Processor model	RK3568
Processor architecture	ARM Cortex-A55
Other features
USB ports quantity	3
Control panel	Power switch, volume/ button +, volume/ button -
