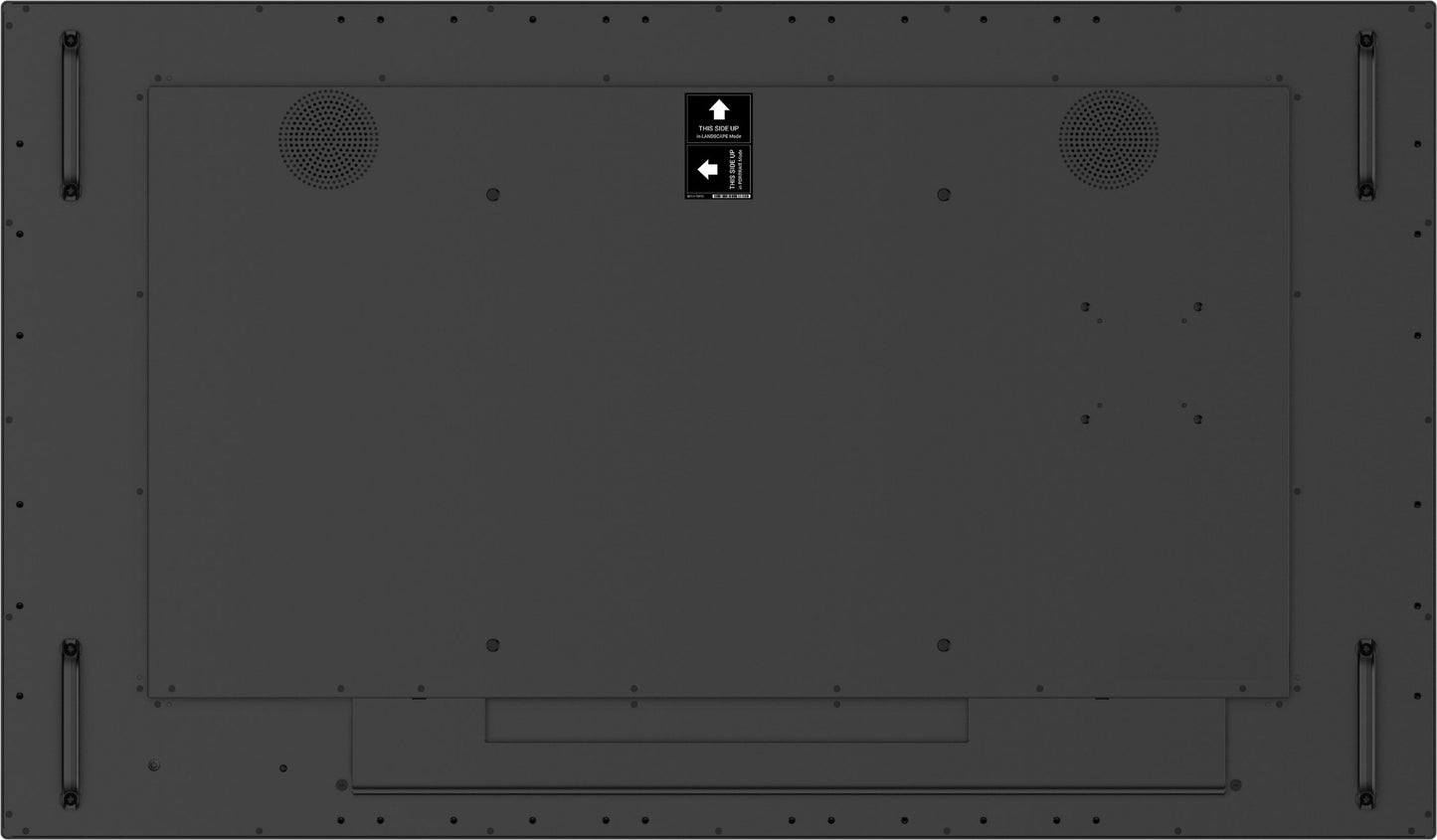

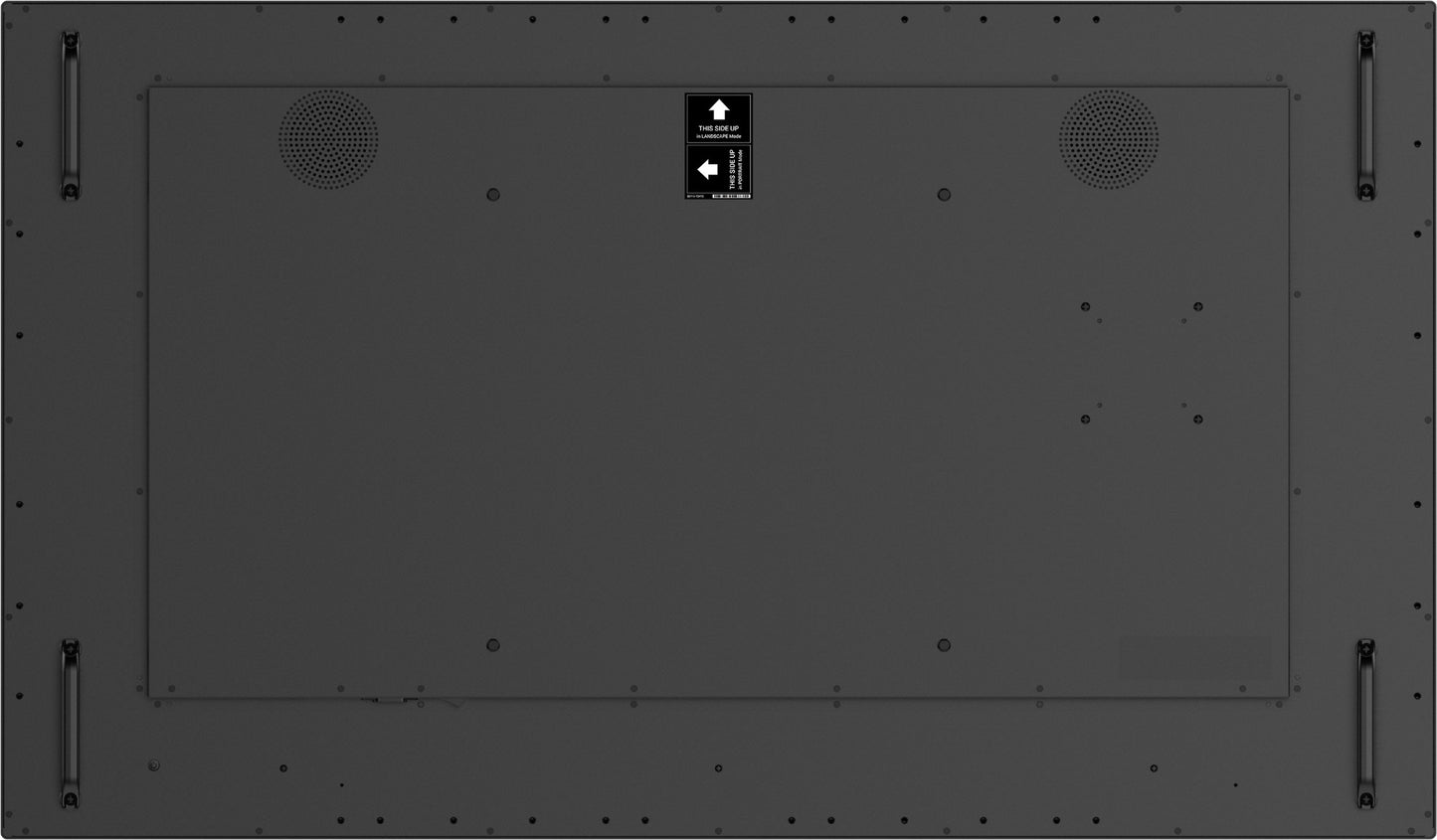

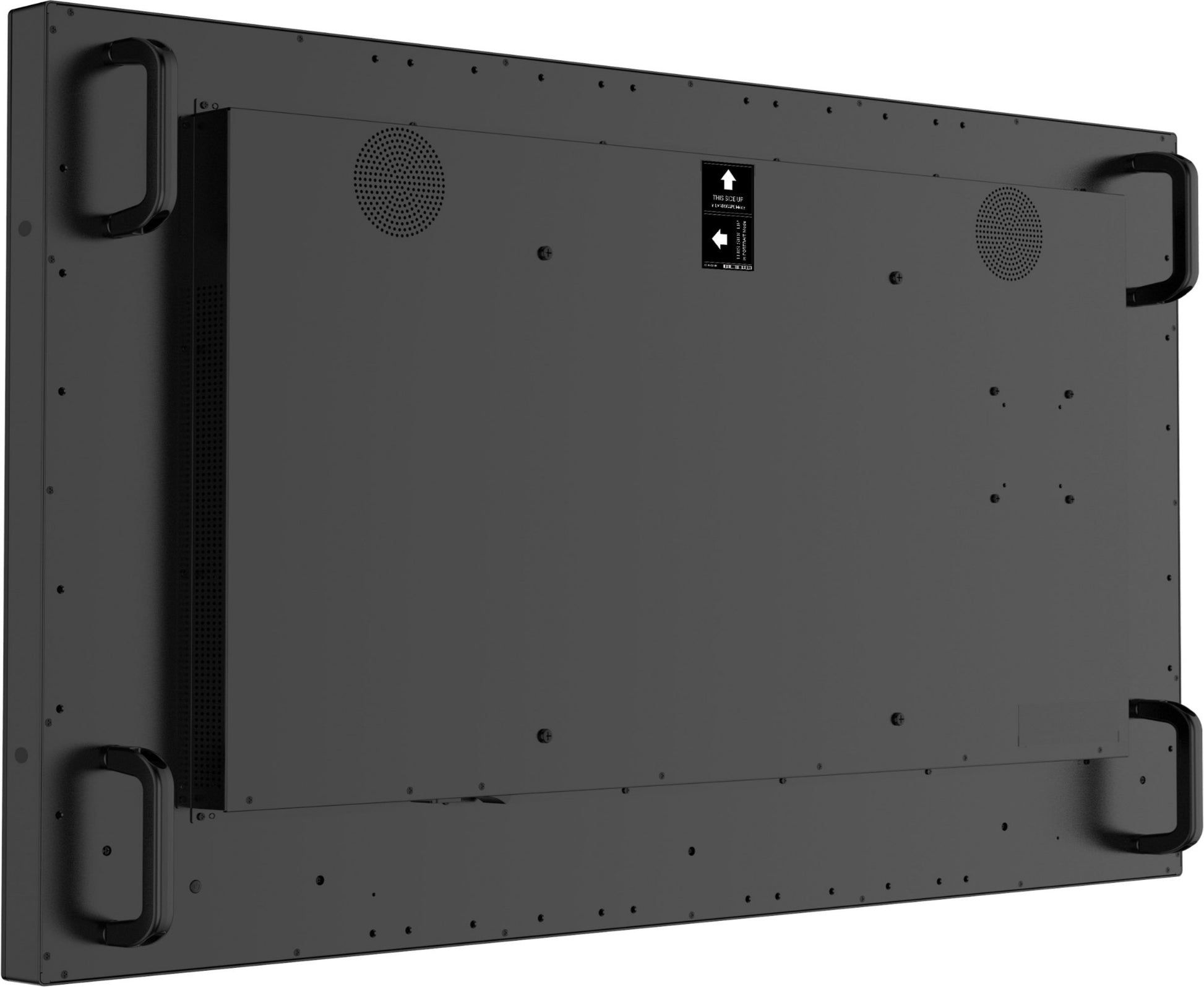

iiyama TF5539AS-B1AG Signage Display Kiosk design 54.6" 4K UHD IPS Touch Monitor

iiyama TF5539AS-B1AG Signage Display Kiosk design 54.6" 4K UHD IPS Touch Monitor

£2,332.00 GBP
£2,332.00 GBP
Sale Sold out
Taxes included.
Condition

The iiyama TF5539AS-B1AG Signage Display Kiosk design brings touch control to a 54.6" 4K UHD 3840x2160 IPS monitor — ideal for POS, kiosks and interactive work.

Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined edge-to-edge glass design of the TF5539AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks. The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before. For ease of integration, the TF5539AS-B1AG can be equipped with optional external mounting brackets ( OMK4-2 ).

Specifications

Display
LED backlight Yes
Panel type IPS
Display number of colours 1.07 billion colours
Number of simultaneous touchpoints 40
Touchscreen Yes
Active display area (W x H) 1209.6 x 680.4 mm
Display technology LED
Display diagonal 138.7 cm (54.6")
Display resolution 3840 x 2160 pixels
Display brightness 435 cd/m²
HD type 4K Ultra HD
Response time 8 ms
Contrast ratio (typical) 1200:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Pixel pitch 0.315 x 0.315 mm
Display diagonal (metric) 139 cm
Native aspect ratio 16:9
Horizontal scan range 28 - 160 kHz
Anti-glare screen Yes
Maximum refresh rate 60 Hz
Touchscreen technology Projected capacitive system
Surface hardness 7H
Native refresh rate 60 Hz
Haze rate 25%
Multi-touch Yes
Glass thickness 4 mm
Ports & interfaces
USB connector type USB Type-A, USB Type-B
DisplayPort version 1.2
USB port Yes
HDMI version 2.0
RS-232C Yes
DisplayPorts quantity 1
Ethernet LAN Yes
HDMI ports quantity 2
DVI port No
Ethernet LAN (RJ-45) ports 1
USB ports quantity 2
USB 2.0 Type-B ports quantity 1
Audio
Number of built-in speakers 2
RMS rated power 20 W
Built-in speaker(s) Yes
Design
Product design Kiosk design
Placement supported Indoor

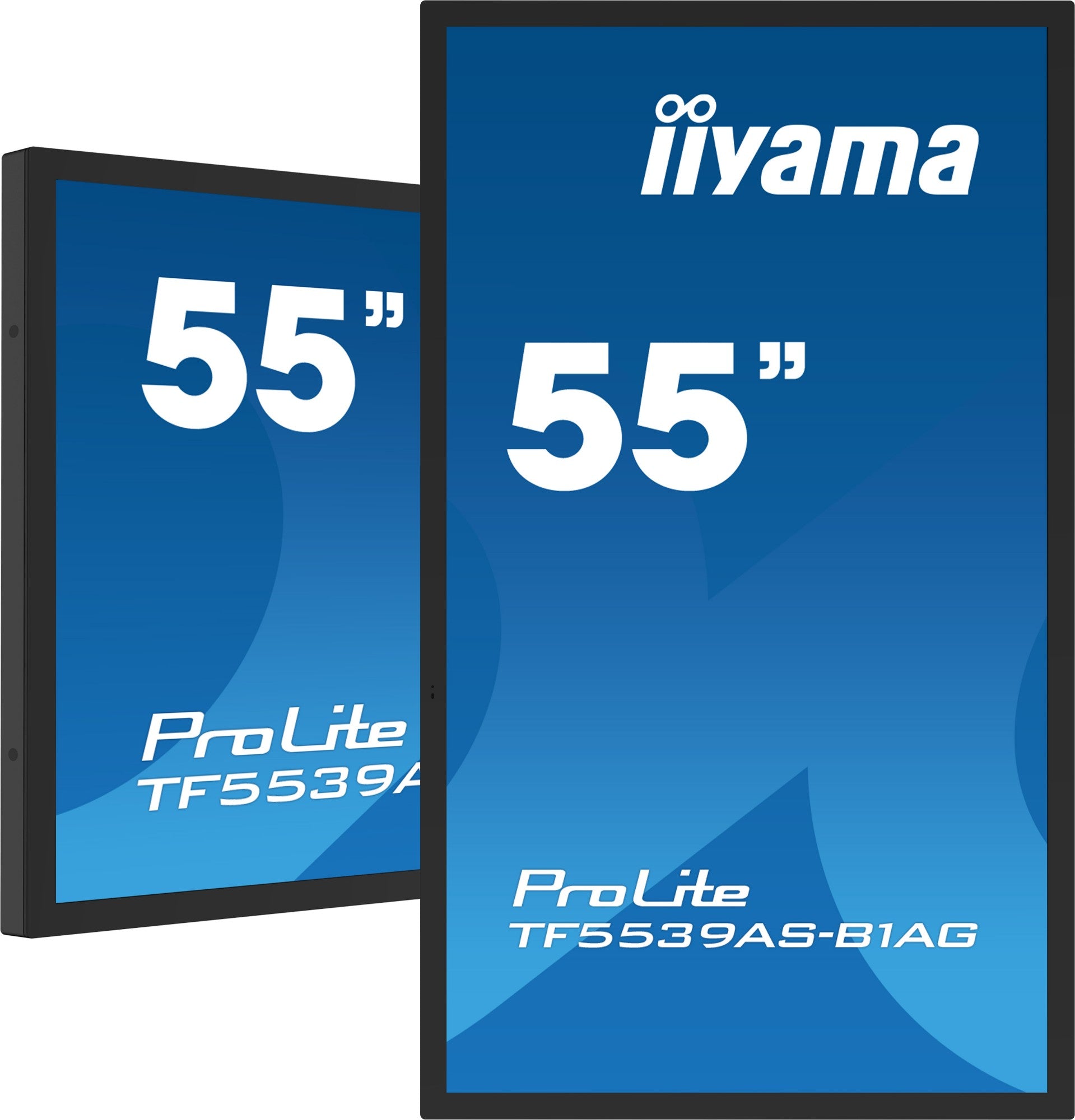

Orientation Horizontal/Vertical
Bezel width (top) 3 cm
Bezel width (side) 3 cm
Bezel width (bottom) 3 cm
Product colour Black
Panel mounting interface 400 x 400 mm
Certification TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
VESA mounting Yes
Screen shape Flat
Bezel colour Black
Performance
Purpose Universal
Operating hours (hours/days) 24/7
International Protection (IP) code IP65
Mean time between failures (MTBF) 50000 h
On Screen Display (OSD) languages Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
On Screen Display (OSD) Yes
Number of OSD languages 13
HDCP Yes
HDCP version 2.2
Power
Power consumption (off) 0.3 W
Power consumption (typical) 139 W
Power consumption (standby) 0.5 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Energy efficiency scale A to G
Energy efficiency class (SDR) F
Energy efficiency class (HDR) Not available
Energy consumption (SDR) per 1000 hours 78 kWh
Computer system
Computer system Yes
Operating system installed Android 11
Internal memory 4 GB
Internal storage capacity 32 GB
Processor manufacturer ARM
Built-in processor Yes
On-board graphics card model ARM Mali-G52
Processor architecture ARM Cortex-A73
Operating system version 11
Weight & dimensions
Width (with stand) 1274 mm
Height (with stand) 744.8 mm
Depth (with stand) 65.2 mm
Width 1274 mm
Depth 65.2 mm
Height 744.8 mm
Weight 39.6 kg
Weight (with stand) 39.6 kg
Display width 1274 mm
Display depth 65.2 mm
Display height 744.8 mm
Display weight 39.6 kg
Packaging data
Package width 1428 mm
Package depth 185 mm
Package height 894 mm
Package weight 47.2 kg
Package volume 47200 cm³
Quick start guide Yes
Batteries included Yes
Remote control included Yes
Cables included AC, USB, HDMI
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Technical details
Compatible operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Power supply type Internal
Display surface Matt
Brightness 435 cd/m²
User controls picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, colour temp., colour control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock, Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, conf.1 reset, factory reset), configuration 2 (OSD timeout, OSD H position, OSD V position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, monitor info, HDMI version, conf. 2 reset), advanced options (kiosk mode, side bar, no signal image, motorized stand, IR control, power LED light, fan, off timer, schedule, HDMI with one wire, HDMI with one wire off, failover, language, OSD transparency, power saving, advanced options reset)
Sustainability certificates ErP
Compliance certificates CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Viewable size, vertical 68 cm
Viewable size, horizontal 121 cm
