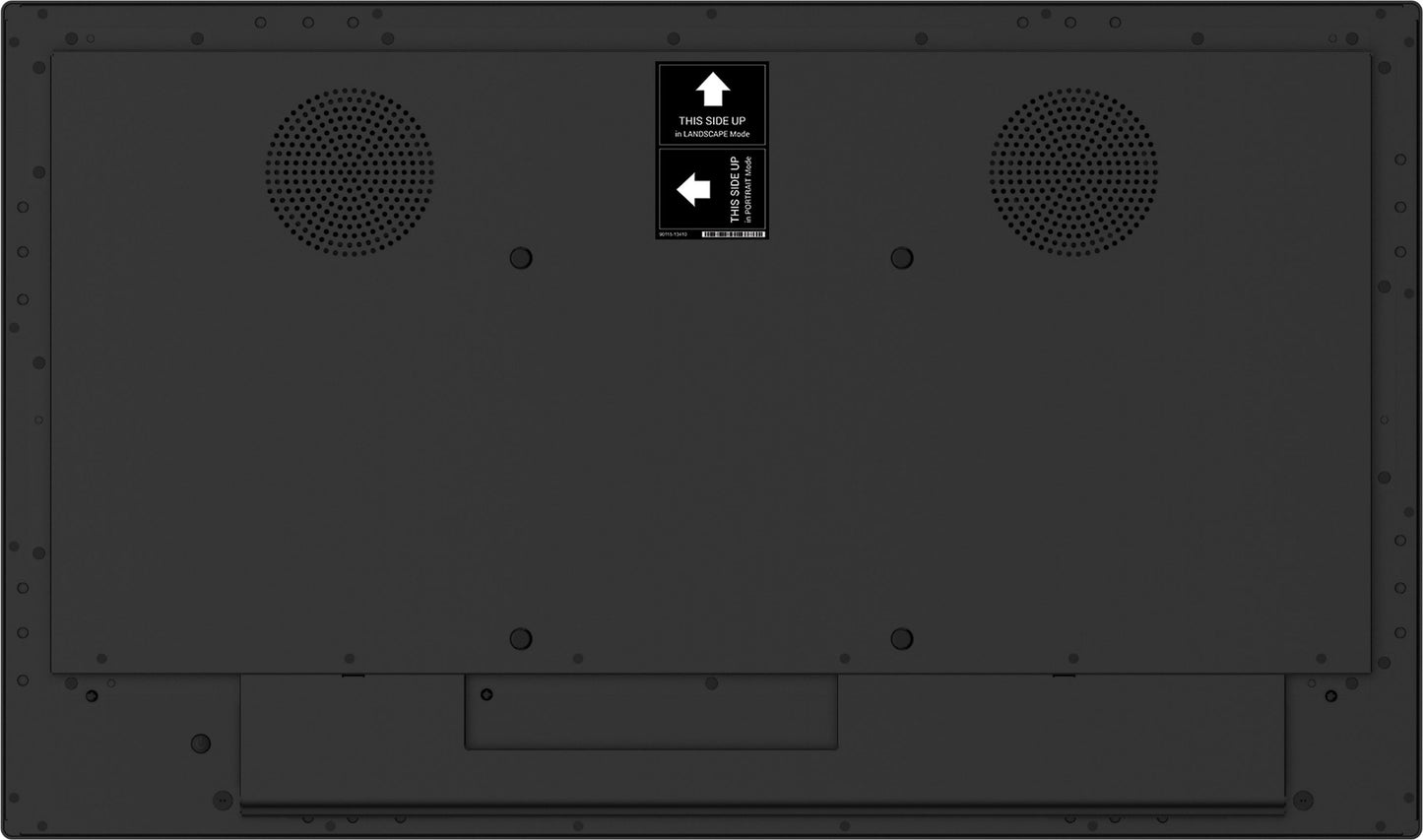

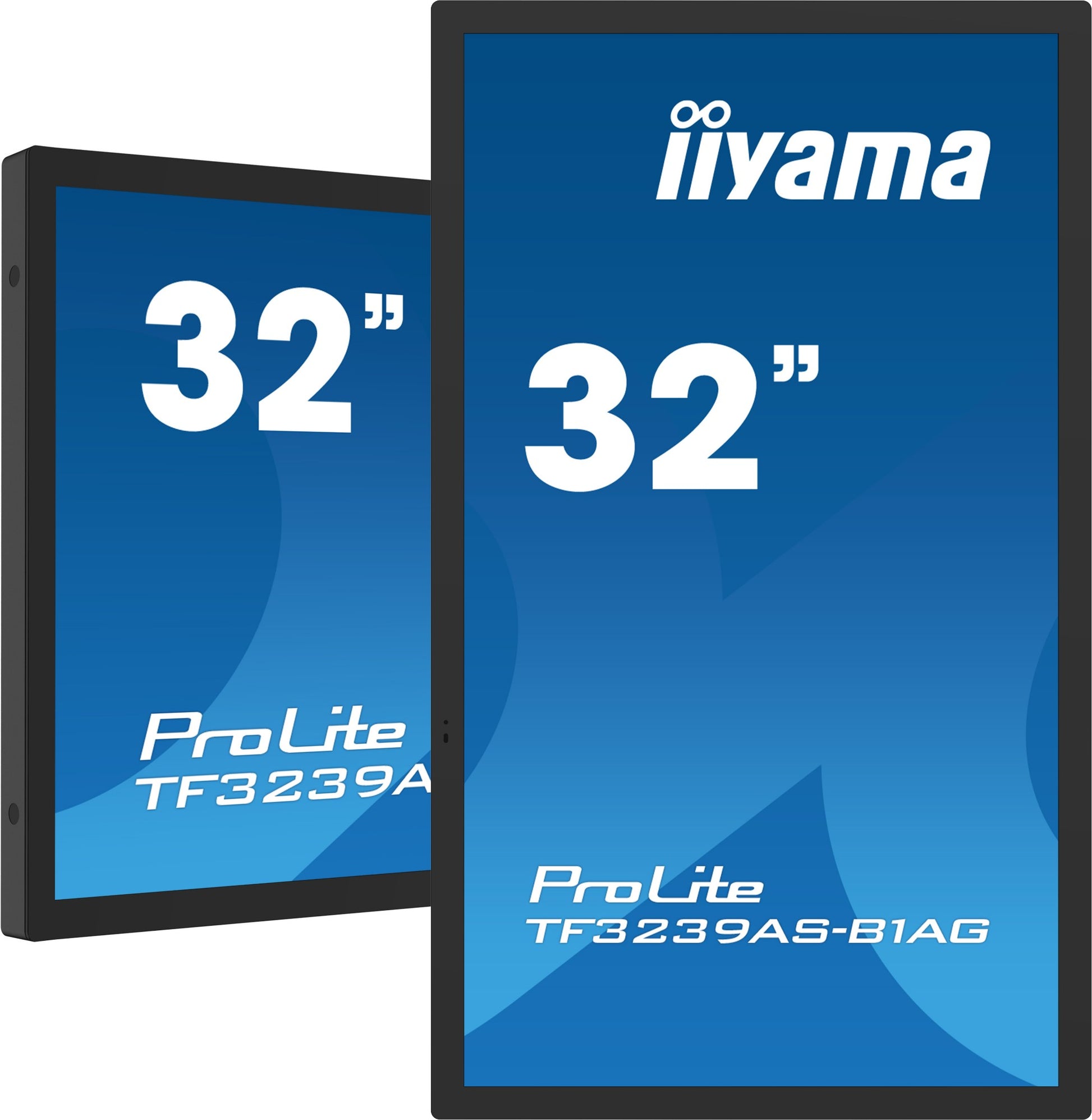

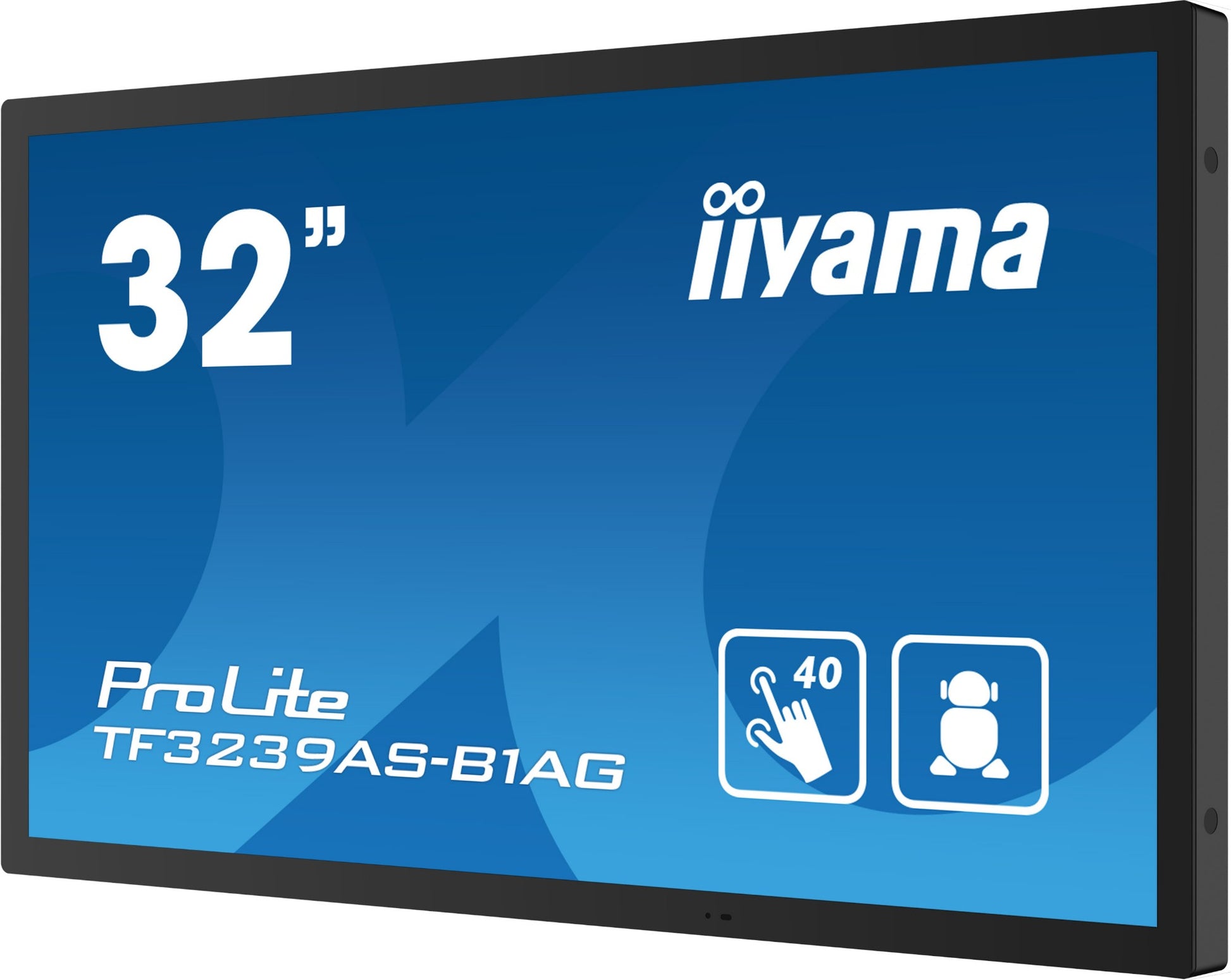

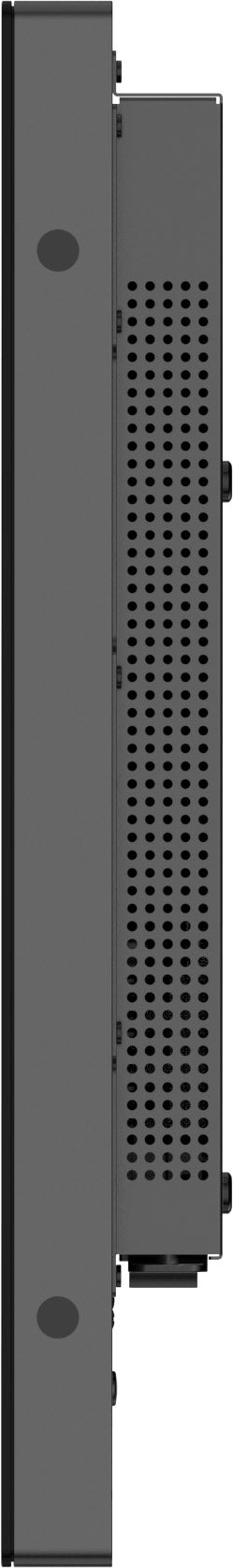

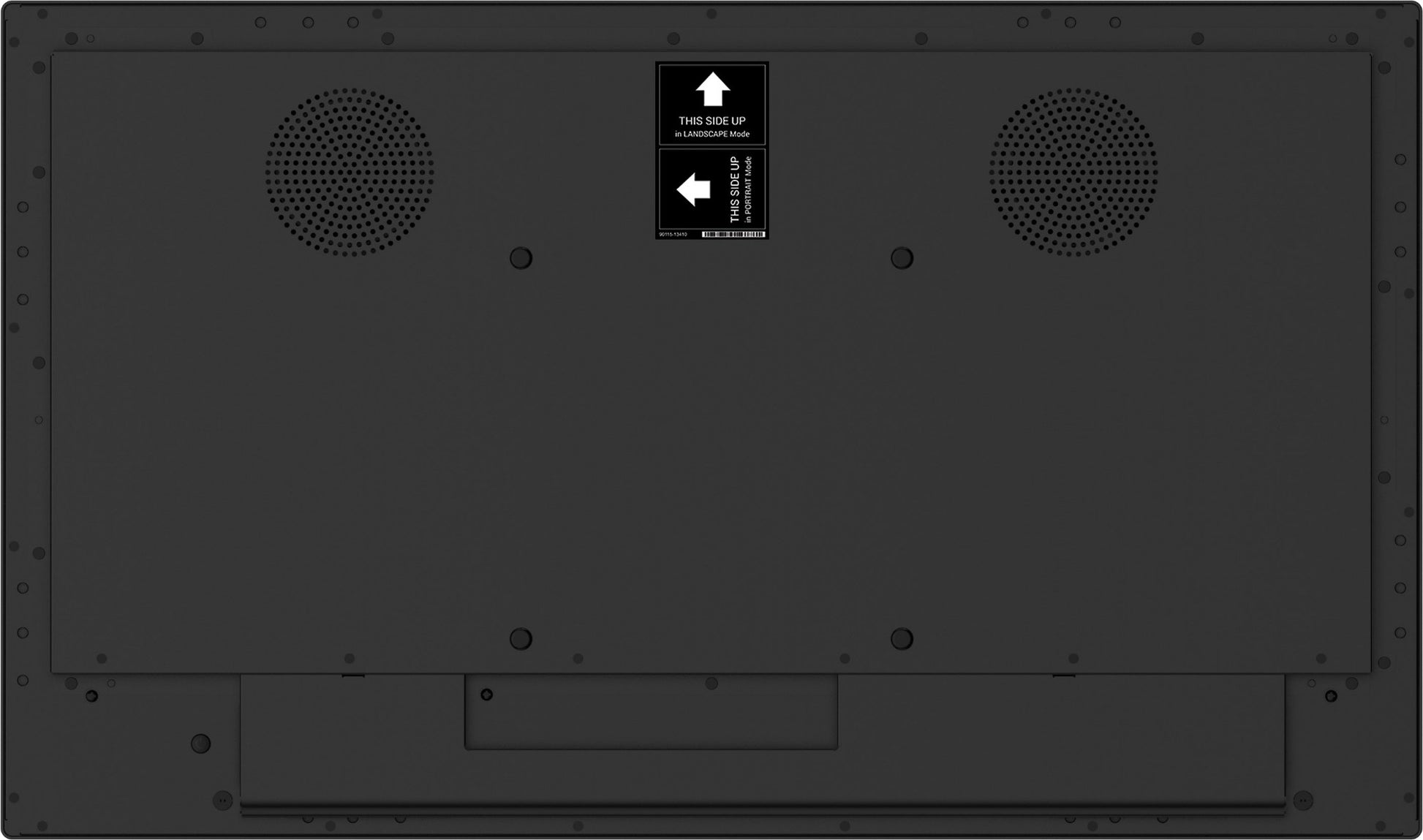

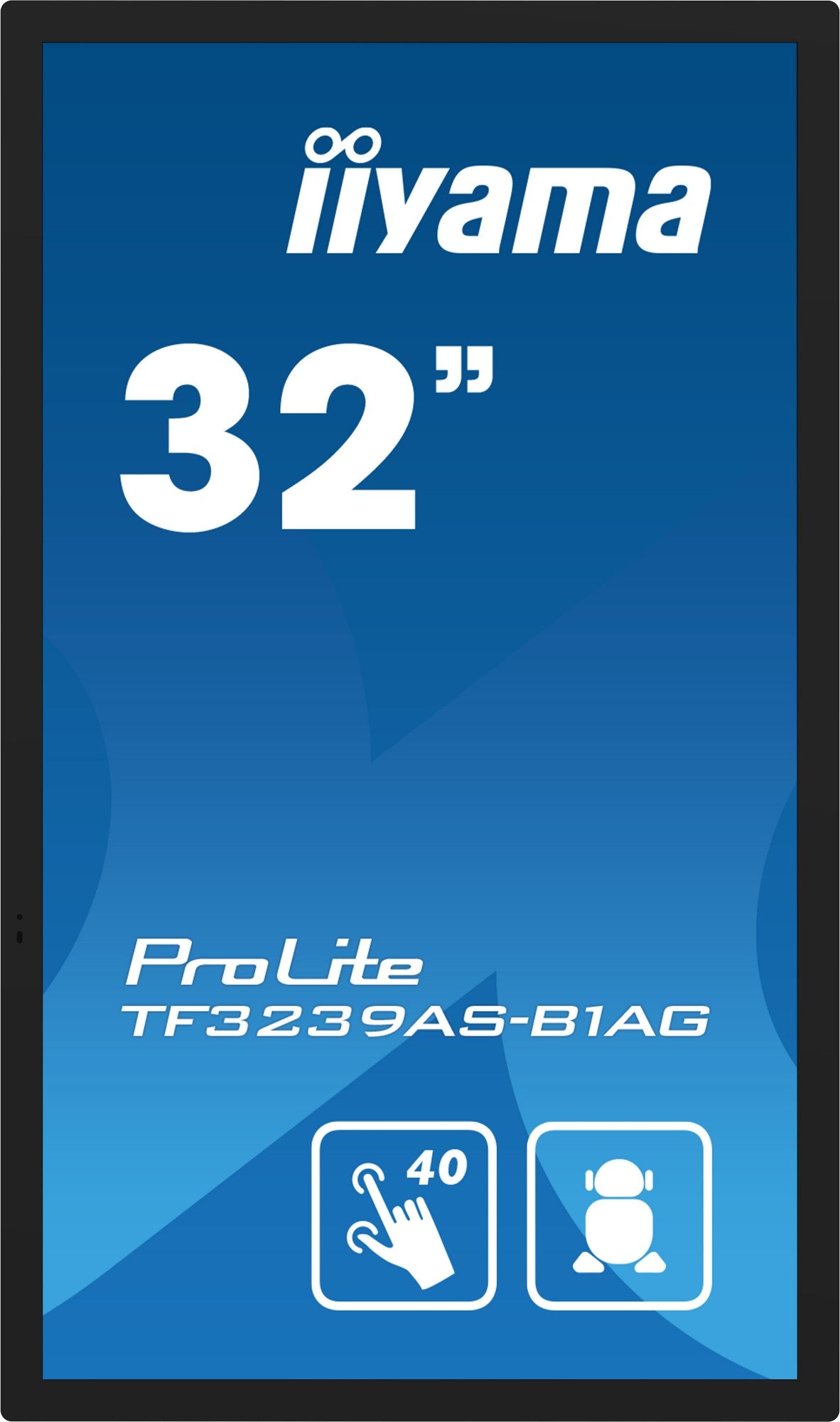

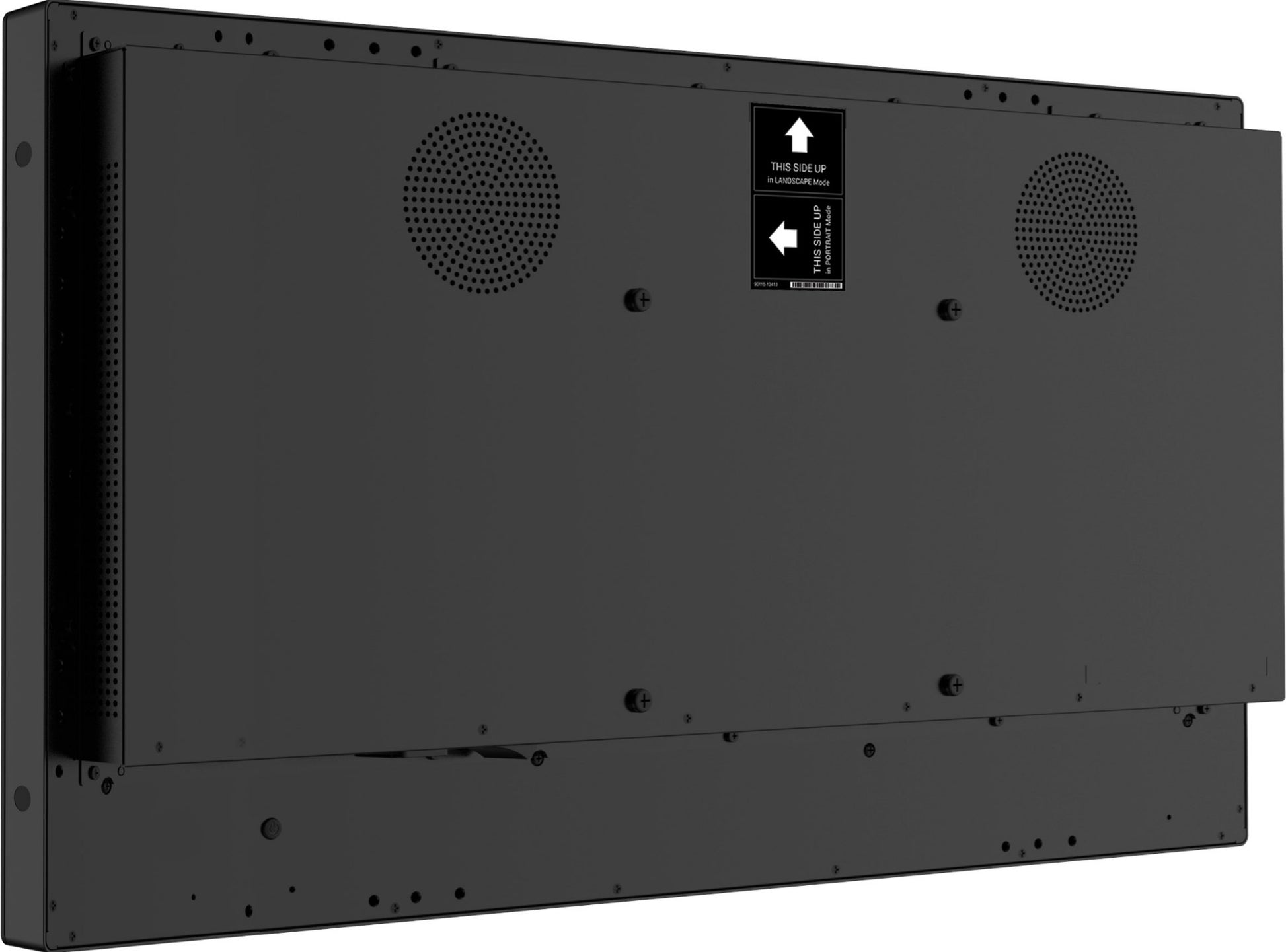

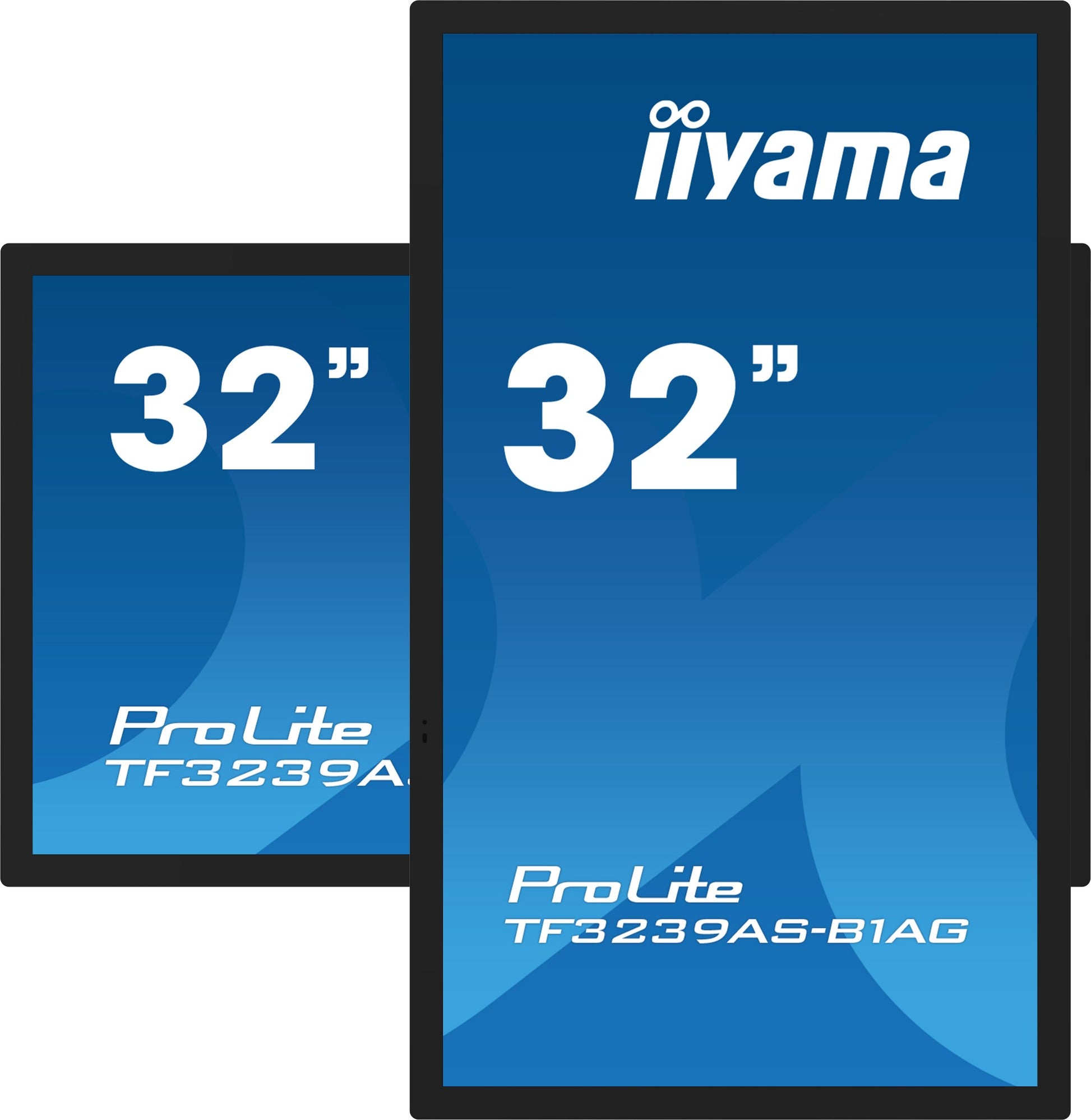

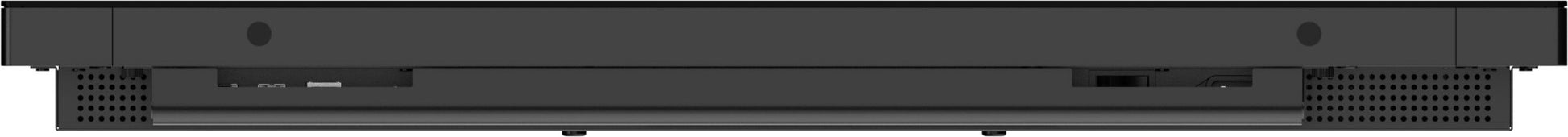

iiyama TF3239AS-B1AG 31.5" Full HD IPS Touch Monitor

£1,177.73 GBP

Sale Sold out

Taxes included.

Condition New

The iiyama TF3239AS-B1AG brings touch control to a 31.5" Full HD 1920x1080 IPS monitor — ideal for POS, kiosks and interactive work.

Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined edge-to-edge glass design of the TF3239AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks. The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before; while the FailOver feature ensures your content is always actively displayed through your choice of inputs For ease of integration, the TF3239AS-B1AG can be equipped with optional external mounting brackets ( OMK4-4 ).

Specifications

Display
HDCP	Yes
Display brightness (typical)	500 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
Display surface	Matt
HD type	Full HD
Display technology	LED
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.363 x 0.363 mm
Horizontal scan range	28 - 160 kHz
Viewable size, horizontal	69.8 cm
Viewable size, vertical	39.3 cm
Display resolution	1920 x 1080 pixels
Response time	8 ms
Display diagonal	80 cm (31.5")
Contrast ratio (typical)	1200:1
Surface hardness	7H
Touchscreen	Yes
Number of simultaneous touchpoints	40
Panel type	IPS
Colour depth	8 bit
Display diagonal (metric)	80 cm
Touch technology	Multi-touch
Touchscreen technology	Projected capacitive system
Haze rate	25%
LED backlight	Yes
Display brightness	435 cd/m²
Positional accuracy	2.5 mm
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Audio
Built-in speaker(s)	Yes
RMS rated power	20 W
Performance
Mean time between failures (MTBF)	50000 h
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Operating system installed	Android 11
Operating system version	11
Palm rejection	Yes
Operating hours (hours/days)	24/7
Management features
On Screen Display (OSD)	Yes
Number of OSD languages	13
On Screen Display (OSD) languages	Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Network
Ethernet LAN (RJ-45) ports	1
Ethernet LAN	Yes
Multimedia
Number of speakers	2
Power
Power cable length	1.8 m
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	50 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	31.3 kWh
Design
Certification	TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Product colour	Black
Front bezel colour	Black
International Protection (IP) code	IP65
Glass thickness	3 mm
Ports & interfaces
DVI port	No
HDMI ports quantity	2
DisplayPorts quantity	1
HDMI version	2.0
DisplayPort version	1.2
HDCP version	2.2
USB 2.0 Type-A ports quantity	2
USB Touch port	Yes
RS-232C	Yes
Technical details
Placement supported	Indoor
User controls	picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, colour temp., colour control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock, Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, conf.1 reset, factory reset), configuration 2 (OSD timeout, OSD H position, OSD V position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, monitor info, HDMI version, conf. 2 reset), advanced options (kiosk mode, side bar, no signal image, motorized stand, IR control, power LED light, fan, off timer, schedule, HDMI with one wire, HDMI with one wire off, failover, language, OSD transparency, power saving, advanced options reset)
Sustainability certificates	ErP
Compliance certificates	CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Brightness	435 cd/m²
Built-in processor	Yes
Active display area (W x H)	698.4 x 392.8 mm
Weight (with stand)	13.2 kg
Touch method	stylus, finger, glove (latex)
Ergonomics
VESA mounting	Yes
Panel mounting interface	200 x 200 mm
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Width (with stand)	746.2 mm
Depth (with stand)	62.4 mm
Height (with stand)	440.7 mm
Bezel width (side)	2.2 cm
Bezel width (top)	2.2 cm
Bezel width (bottom)	2.2 cm
Package width	840 mm
Package depth	149 mm
Package height	560 mm
Package weight	16.6 kg
Width	746.2 mm
Weight	13.2 kg
Height	440.7 mm
Depth	62.4 mm
Packaging data
USB cable length	1.8 m
Remote control included	Yes
Quick start guide	Yes
Cables included	AC, USB, HDMI
HDMI cable length	1.8 m
Remote control batteries included	Yes
Package volume	16600 cm³
Packaging content
Batteries included	Yes
Thin Client
Processor architecture	ARM Cortex-A73
Other features
USB ports quantity	2
Control panel	Power
