iiyama

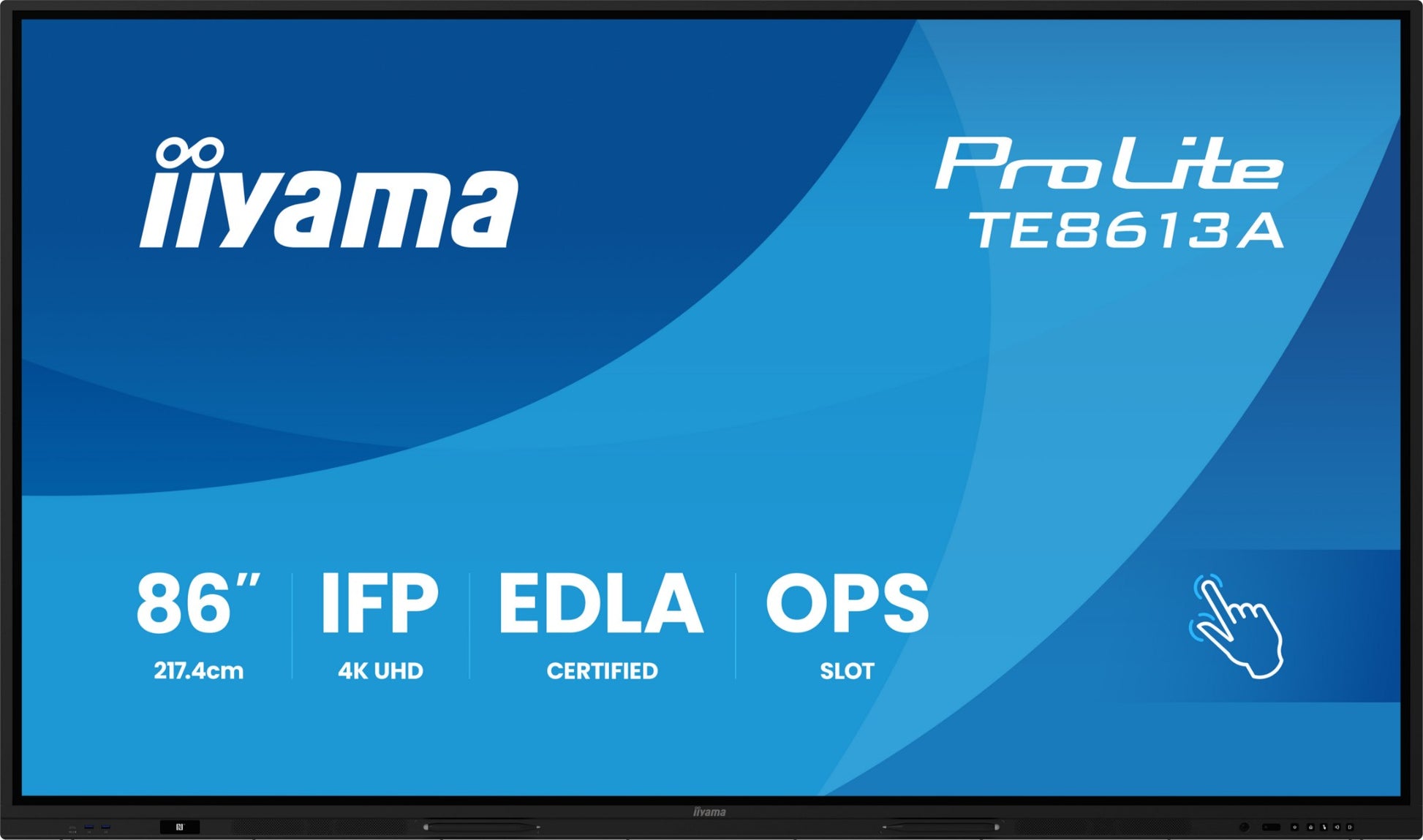

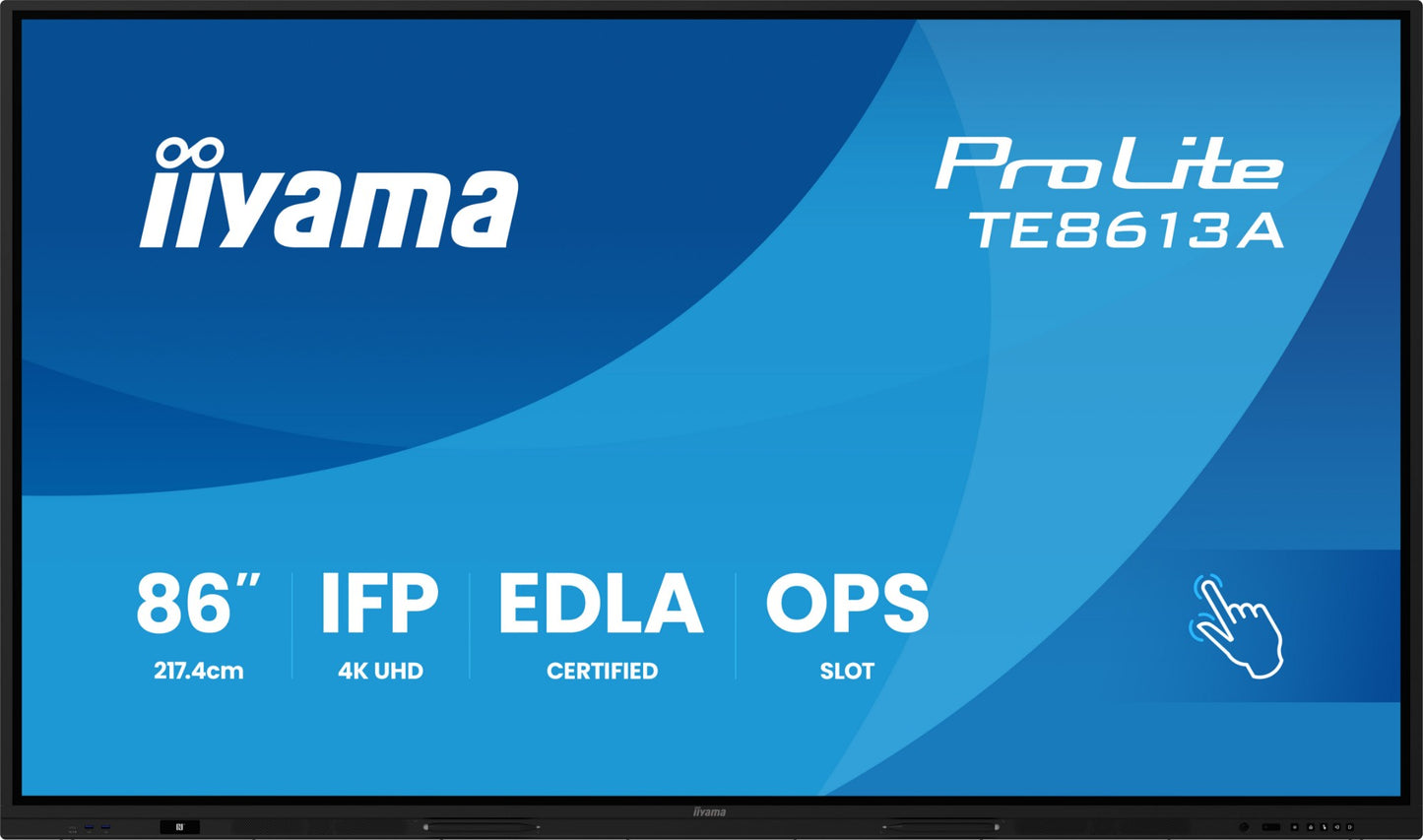

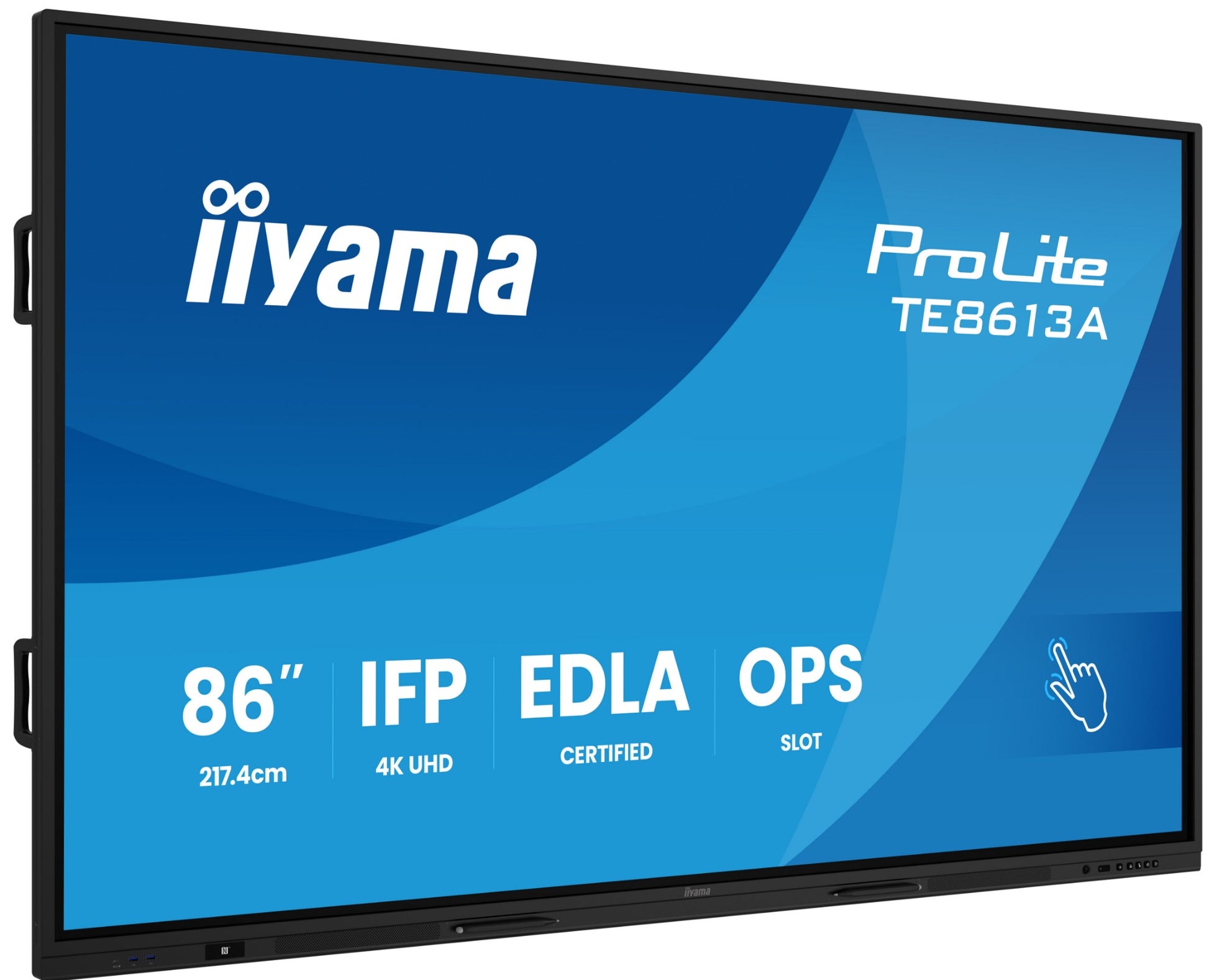

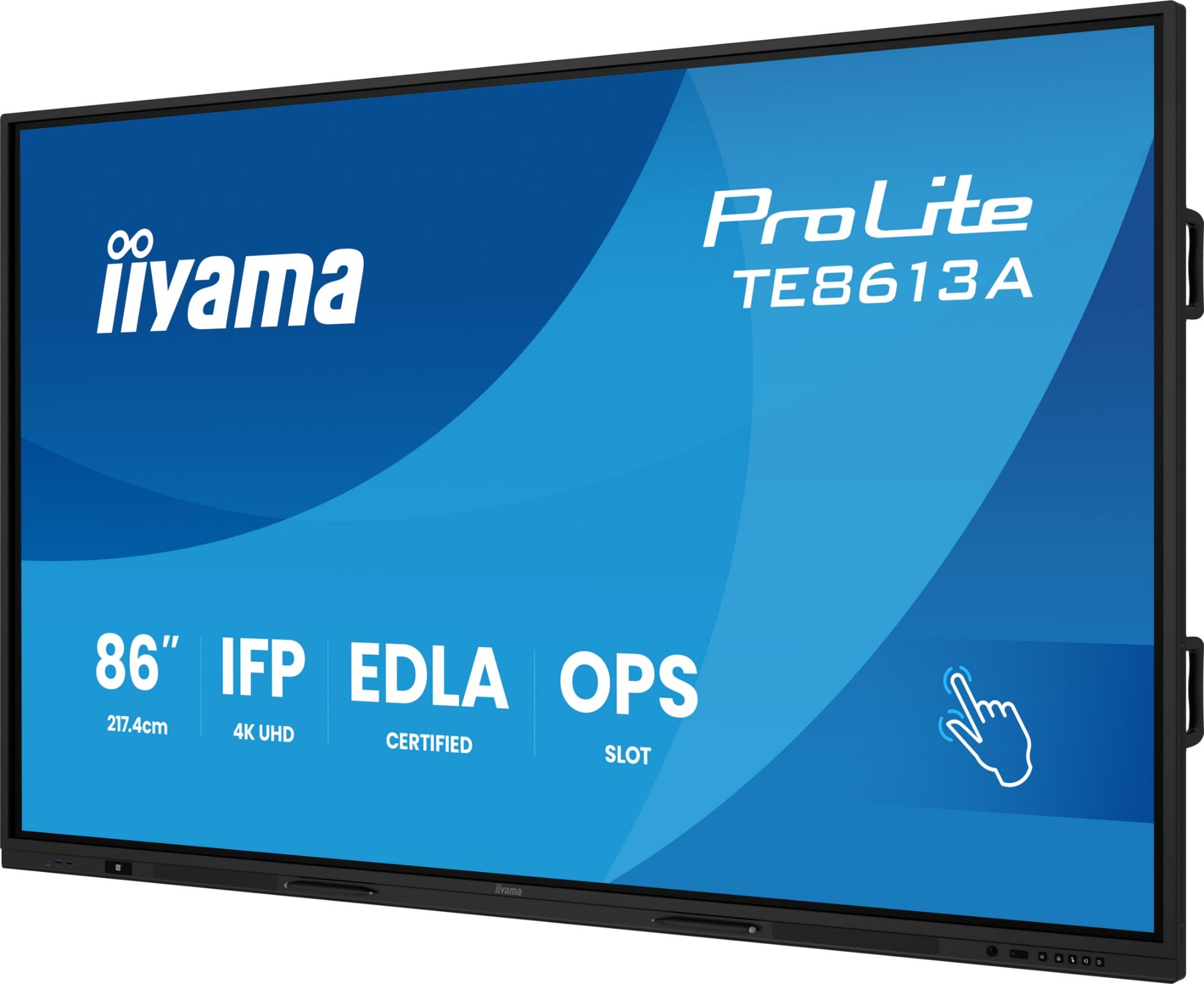

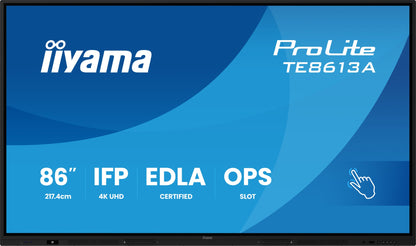

iiyama TE8613A-B2AG Signage Display Kiosk design 2.17 m 4K UHD IPS Touch Monitor
iiyama TE8613A-B2AG Signage Display Kiosk design 2.17 m 4K UHD IPS Touch Monitor
Regular price
£2,273.33 GBP
Regular price
Sale price
£2,273.33 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The iiyama TE8613A-B2AG Signage Display Kiosk design 2.17 m brings touch control to a 4K UHD 3840x2160 IPS monitor — ideal for POS, kiosks and interactive work.
The TE8613A-B2AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6 with Bluetooth 5.0 connectivity, iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.
Specifications
| Display | |
|---|---|
| Panel type | IPS |
| Display number of colours | 1.07 billion colours |
| Number of simultaneous touchpoints | 40 |
| Touchscreen | Yes |
| Active display area (W x H) | 1895 x 1066 mm |
| Display diagonal | 2.17 m (85.6") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.493 x 0.493 mm |
| Display diagonal (metric) | 217.4 cm |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 30 - 135 kHz |
| Anti-glare screen | Yes |
| Touchscreen technology | PureTouch-IR |
| Touch response time | 5 ms |
| Surface hardness | 7H |
| Glass thickness | 3.2 mm |
| Ports & interfaces | |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| DisplayPort version | 1.2 |
| USB port | Yes |
| HDMI version | 2.0 |
| RS-232C | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| DisplayPorts quantity | 1 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 6 |
| OPS module slot | Yes |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Audio Return Channel (ARC) | Yes |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 60 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Kiosk design |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Bezel width (top) | 1.65 cm |
| Bezel width (side) | 1.65 cm |
| Bezel width (bottom) | 4.1 cm |
| Product colour | Black |
| Panel mounting interface | 800 x 600 mm |
| VESA mounting | Yes |
| Positioning accuracy | 1 mm |
| Bezel colour | Black |
| Performance | |
| Purpose | Education |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 13 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power | |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 282 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 260 kWh |
| Computer system | |
| Computer system | Yes |
| Processor cores | 4 |
| Processor frequency | 1.4 GHz |
| Operating system installed | Android |
| Internal memory | 8 GB |
| Internal storage capacity | 128 GB |
| Built-in processor | Yes |
| On-board graphics card model | ARM Mali-G52 |
| Processor architecture | ARM Cortex-A73 |
| Operating system version | 14 |
| Weight & dimensions | |
| Width | 1955.6 mm |
| Depth | 87.1 mm |
| Height | 1154 mm |
| Weight | 63.8 kg |
| Display width | 1955.6 mm |
| Display depth | 87.1 mm |
| Display height | 1154 mm |
| Display weight | 63.8 kg |
| Packaging data | |
| Package width | 2095 mm |
| Package depth | 185 mm |
| Package height | 1265 mm |
| Package weight | 76.5 kg |
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | AC, USB, HDMI |
| Stylus pen | Yes |
| Number of stylus pens | 4 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Brightness | 500 cd/m² |
| Audio in (mini jack) | Yes |
| OPS slot | 1 |
| Playback media | Yes |
| User controls | general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system) |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Logistics data | |
| Products per pallet | 4 pc(s) |
| Other features | |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
