iiyama TE7515A-B2AG Signage Display Kiosk design 4K UHD VA Touch Monitor
iiyama TE7515A-B2AG Signage Display Kiosk design 4K UHD VA Touch Monitor
Couldn't load pickup availability
The iiyama TE7515A-B2AG Signage Display Kiosk design brings touch control to a 4K UHD 3840x2160 VA monitor — ideal for POS, kiosks and interactive work.
Elegance and functionality come together in the ProLite TE7515A-B2AG. This 75” 4K UHD panel not only delivers precision and performance, but also brings a premium look to modern classrooms and collaborative business environments. With its button-free front panel (only a discreet power button), integrated pen holders, and a stylish fabric-covered bottom bezel that subtly houses high-quality front-facing speakers, the TE7515A elevates the visual experience of any room. It’s more than a tool—it’s part of your space. Coupled with DeepContrast-IR++ technology and Palm Rejection, it offers fluid and natural writing on the Optical Bonding LCD, eliminating parallax for an intuitive feel. Powered by iiWare 21E with Android 14 (EDLA Certified), the display integrates effortlessly into Google environments. Features like WiFi 6E, BT 5.0 and PIR motion sensor add a layer of connectivity, energy efficiency, and access control. With iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), the TE7515A promotes seamless teamwork—whether you're presenting, teaching, or brainstorming. The TE7515A-B2AG isn’t just an interactive display—it’s a centerpiece for connection, creativity, and collaboration, all wrapped in a refined, modern design.
Specifications
| Display | |
|---|---|
| Panel type | VA |
| Display number of colours | 1.07 billion colours |
| Number of simultaneous touchpoints | 40 |
| Touchscreen | Yes |
| Active display area (W x H) | 1650 x 928 mm |
| Display diagonal | 190.5 cm (75") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 550 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.43 x 0.43 mm |
| Display diagonal (metric) | 189.3 cm |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 30 - 135 kHz |
| Anti-glare screen | Yes |
| Touchscreen technology | Infrared |
| Touch response time | 5 ms |
| Surface hardness | 7H |
| Glass thickness | 3.2 mm |

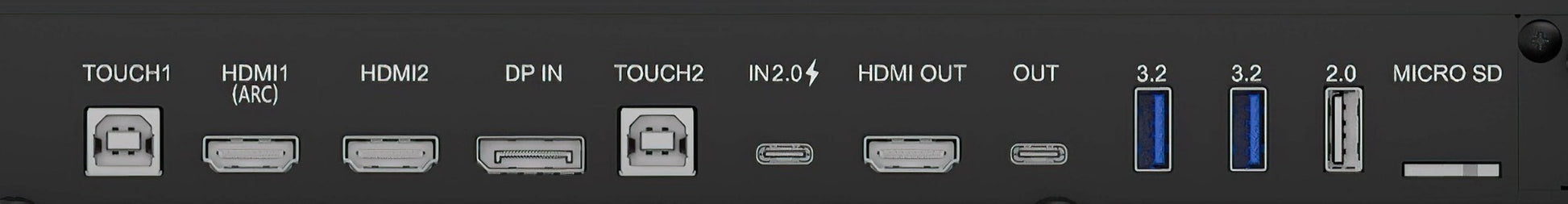

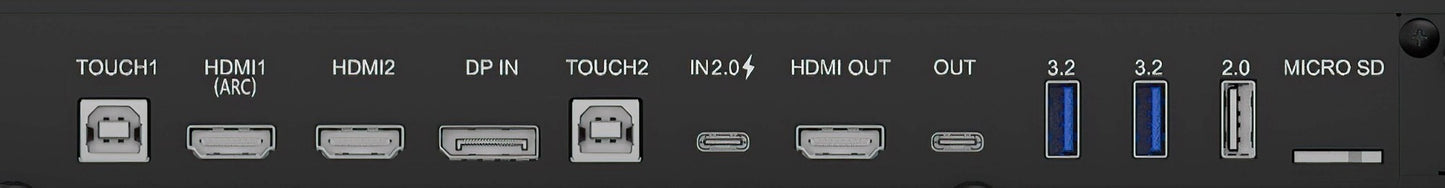

| Ports & interfaces | |
| USB connector type | USB Type-A, USB Type-C, USB Type-B |
| DisplayPort version | 1.2 |
| USB port | Yes |
| HDMI version | 2.0 |
| RS-232C | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| DisplayPorts quantity | 1 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 4 |
| OPS module slot | Yes |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Audio Return Channel (ARC) | Yes |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 60 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Kiosk design |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Bezel width (top) | 3.43 cm |
| Bezel width (side) | 1.67 cm |
| Bezel width (bottom) | 4.67 cm |
| Product colour | Black |

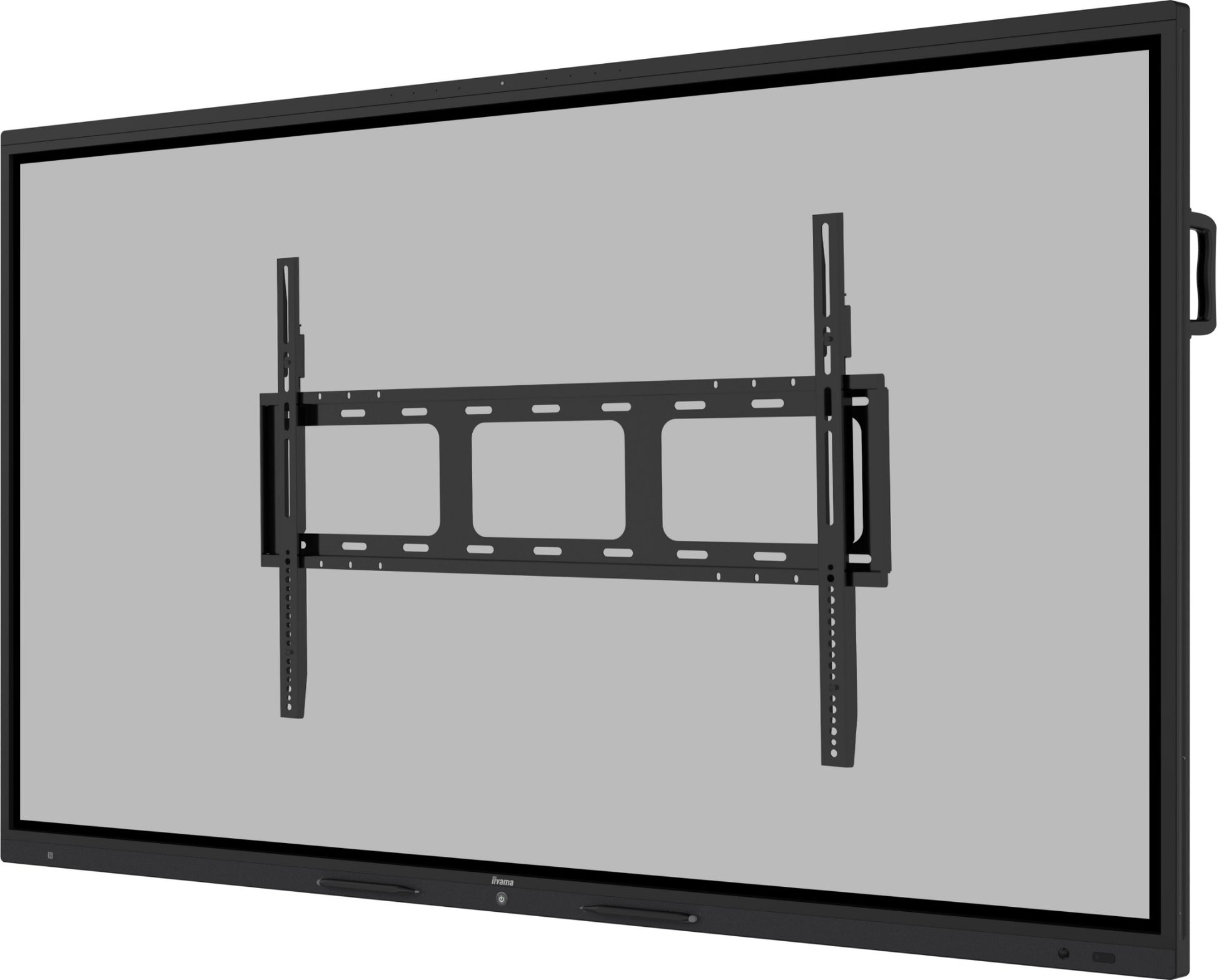

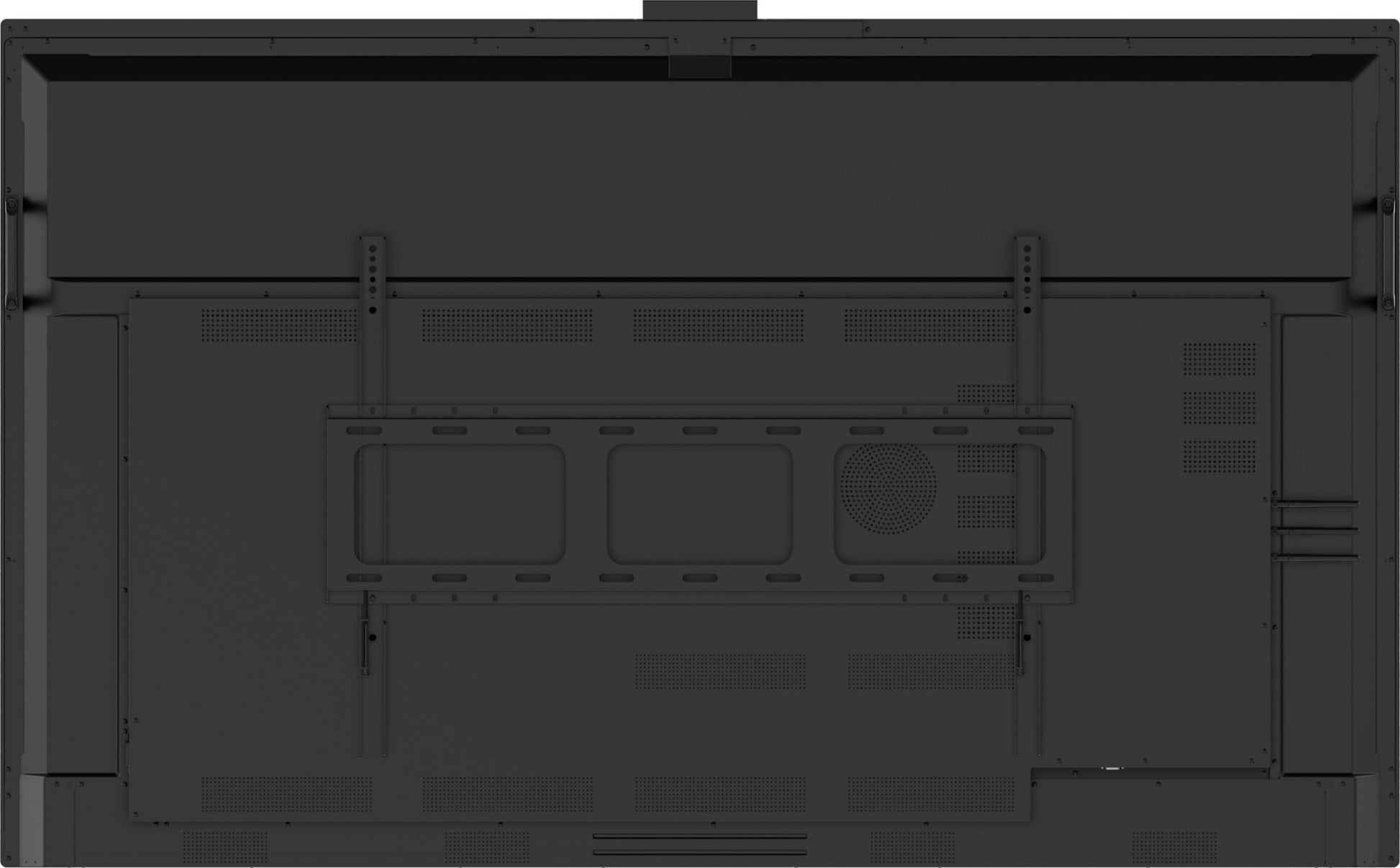

| Panel mounting interface | 800 x 400 mm |
| VESA mounting | Yes |
| Bezel colour | Black |
| Performance | |
| Purpose | Education |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| Picture-in-Picture | Yes |
| On Screen Display (OSD) languages | CAT, Czech, Danish, German, English, Spanish, Finnish, French, Hungarian, Italian, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 13 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power | |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 191 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 191 kWh |
| Computer system | |
| Computer system | Yes |
| Operating system installed | Android |
| Internal memory | 8 GB |
| Internal storage capacity | 128 GB |
| Built-in processor | Yes |
| On-board graphics card model | ARM Mali-G52 |
| Processor architecture | ARM Cortex-A53+Cortex-A72 |
| Operating system version | 14 |
| Weight & dimensions | |
| Width | 1710.2 mm |
| Depth | 87.1 mm |
| Height | 1036.3 mm |
| Weight | 54.6 kg |
| Display width | 1710.2 mm |
| Display depth | 87.1 mm |
| Display height | 1036.3 mm |
| Display weight | 54.6 kg |
| Packaging data | |
| Package width | 1860 mm |
| Package depth | 185 mm |
| Package height | 1125 mm |
| Package weight | 67.6 kg |
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | AC, USB, HDMI |
| Stylus pen | Yes |
| Number of stylus pens | 4 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Audio in (mini jack) | Yes |
| OPS slot | 1 |
| Playback media | Yes |
| User controls | personalization (theme, wallpaper, auto loop, screensaver), display (backlight, image mode, brightness, contrast, saturation, Hue, colour temp., eye protection mode, energy saving, HDMI range), sound (volume direct, max volume, equalizer, balance, sound mode, bass, treble), general (radial menu, side menu bar, gesture interaction, screen recorder, free annotation), device (microphone, camera (external), speaker, NFC, CEC, ambient light sensor, stylus pen pickup sensor, PIR motion sensor), input settings (source lost detection, auto source switch, auto wakeup, OPS boot with system, power on source, rename input setting), system (power status, build version), admin (menu lock, system security, meeting mode, screen share, HDMI Mode, wake On Lan), applications (network & internet, connected devices, apps, notifications, storage, sound & vibration, display, wallpaper, accessibility, security & privacy, location, safety & emergency, passwords & accounts, digital wellbeing & parental controls, Google, system, about device) |
| Sustainability certificates | EPEAT, ErP, EPEAT Bronze |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Other features | |
| Built-in microphone | Yes |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
