iiyama T5529AS-B1AG Signage Display Kiosk design 54.6" 4K UHD VA Touch Monitor

£1,650.00 GBP

Sale Sold out

Taxes included.

Condition New

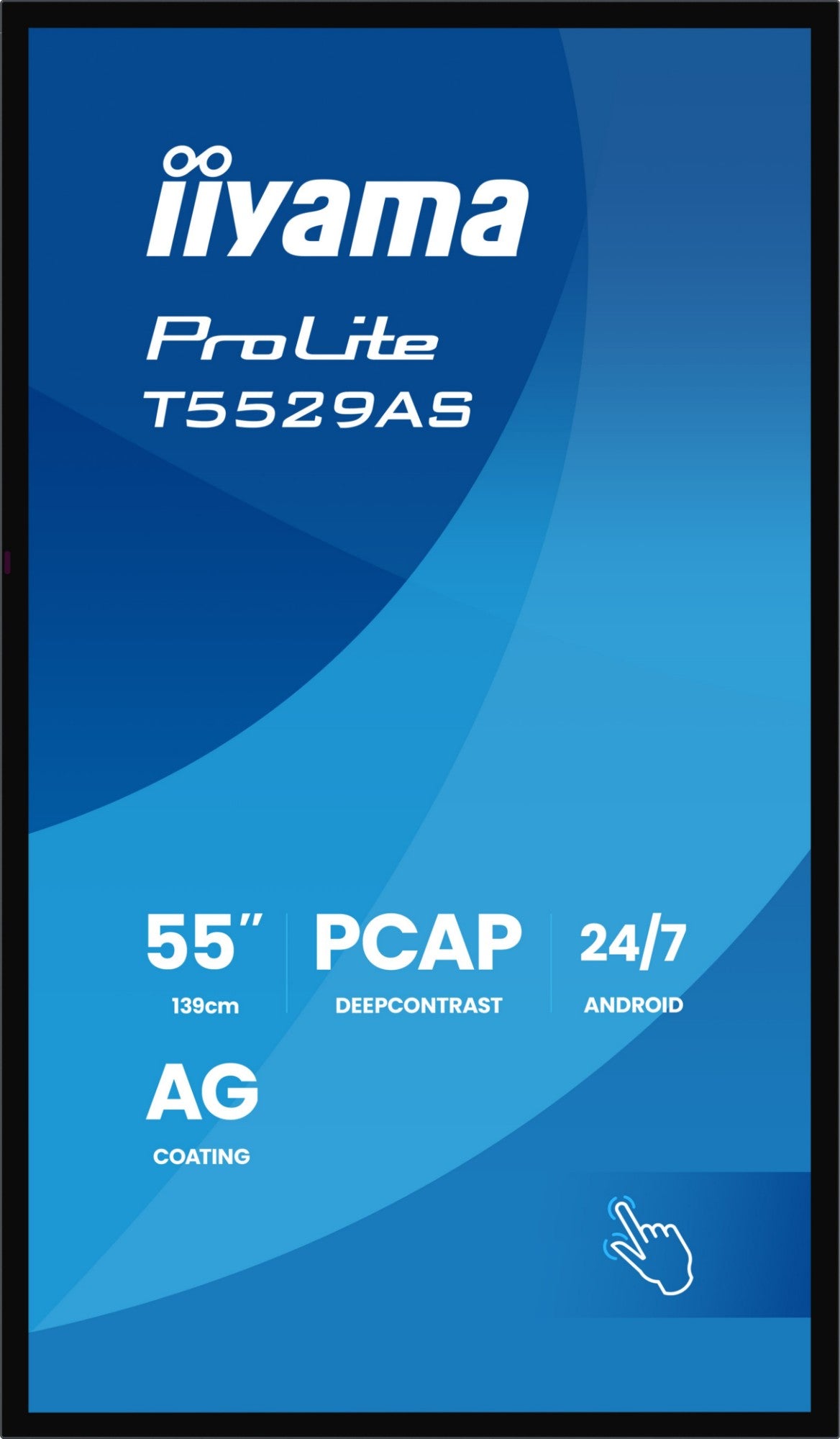

The iiyama T5529AS-B1AG Signage Display Kiosk design brings touch control to a 54.6" 4K UHD 3840x2160 VA monitor — ideal for POS, kiosks and interactive work.

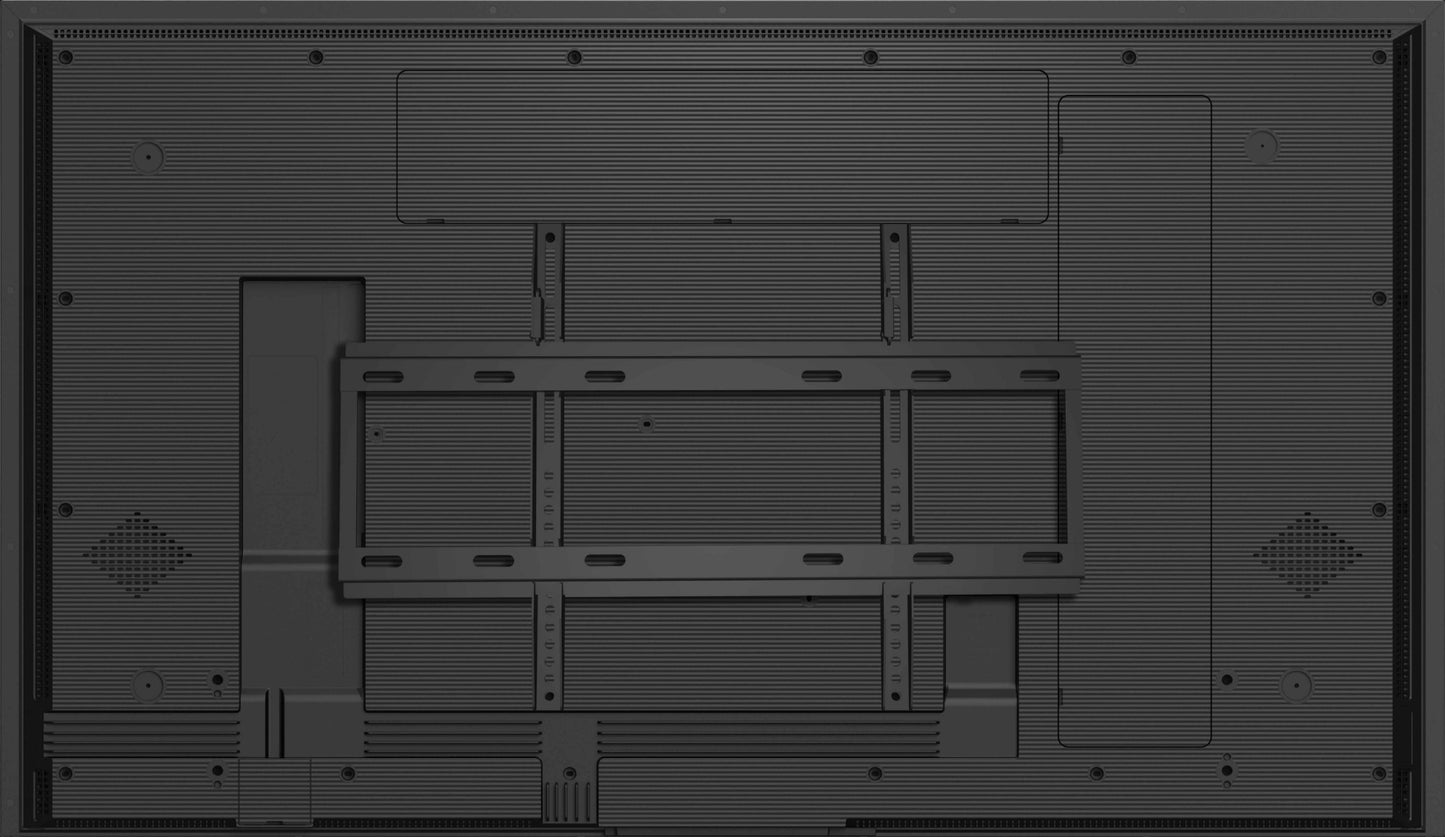

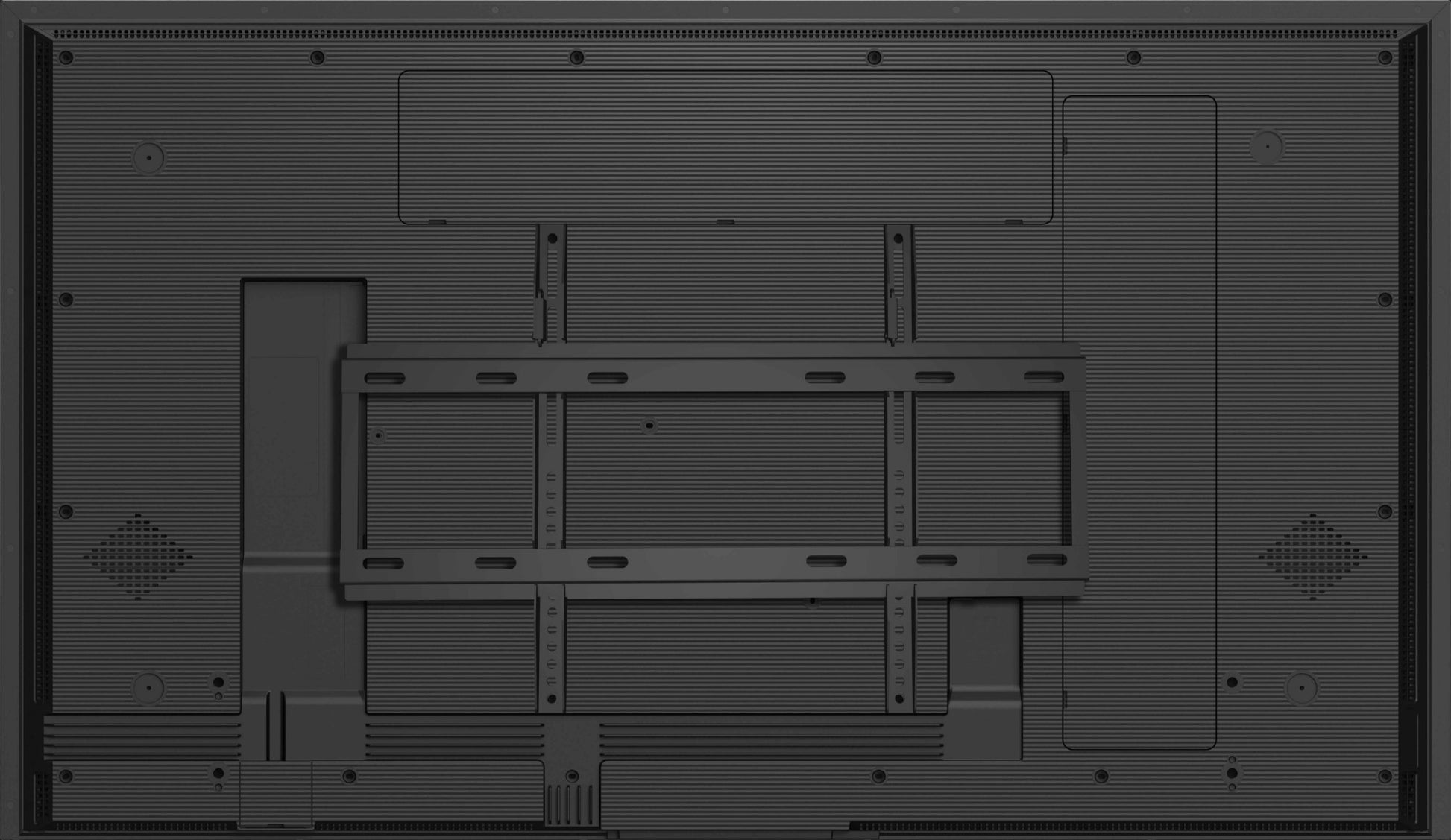

The ProLite T5529AS-B1AG is a 55" all-in-one PCAP touchscreen display built for the evolving needs of modern workspaces, especially huddle spaces where creativity, flexibility, and seamless sharing take center stage. Powered by Android OS, this interactive display delivers a user-friendly and highly adaptable experience. You can install your preferred apps directly on the device, enabling customized workflows tailored to your environment — whether in a collaborative meeting area, an enterprise innovation hub, or an educational breakout room. The USB-C loop-through feature simplifies connectivity by allowing multiple displays to be easily daisy-chained while transmitting power, data, and video — all through a single cable. This reduces cable clutter and setup time, making it ideal for dynamic workspaces. The included wall mounting bracket makes installation straightforward and secure. With iiSignage² (CMS), iiControl (DMS), and iiShare (Wireless Presentation) you gain full control over content and messaging, even remotely — perfect for updating shared information or branded visuals on the fly. The integrated EShare app brings wireless screen sharing and collaboration to life, supporting multi-user interaction and real-time ideation. The T5529AS-B1AG isn’t just a display — it’s a collaboration tool designed to empower teams, streamline communication, and make every meeting count.

Specifications

Display
LED backlight	Yes
Panel type	VA
Display number of colours	1.07 billion colours
Number of simultaneous touchpoints	20
LED backlighting type	Direct-LED
Touchscreen	Yes
Active display area (W x H)	1209.6 x 680.4 mm
Display technology	LED
Display diagonal	138.7 cm (54.6")
Display resolution	3840 x 2160 pixels
Display brightness	450 cd/m²
HD type	4K Ultra HD
Response time	6.5 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.315 x 0.315 mm
Display diagonal (metric)	139 cm
Native aspect ratio	16:9
Horizontal scan range	28 - 160 kHz
Anti-glare screen	Yes
Touchscreen technology	Projected capacitive system
Surface hardness	8
Multi-touch	Yes
Glass thickness	3.7 mm

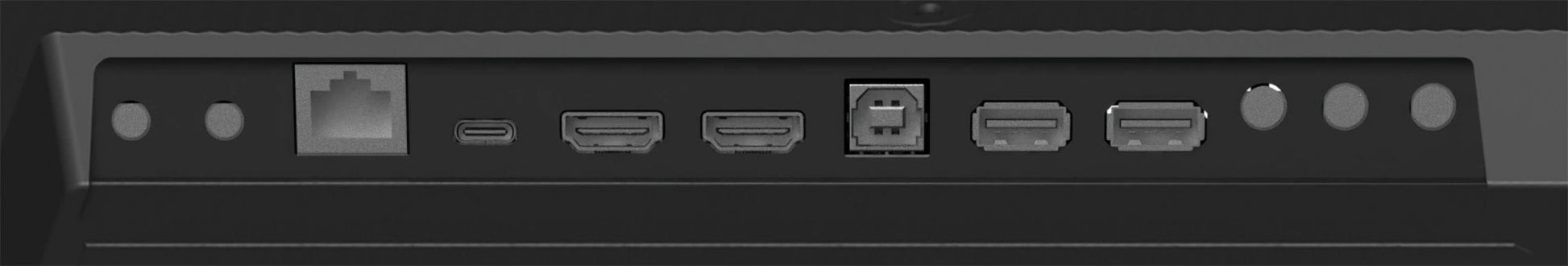

Ports & interfaces
Remote (IR) output	1
Remote (IR) input	1
USB port	Yes
HDMI version	1.4/2.0
RS-232C	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Ethernet LAN	Yes
HDMI ports quantity	2
DVI port	No
Ethernet LAN (RJ-45) ports	1
USB version	2.0
USB ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	15 W
USB Type-C DisplayPort Alternate Mode	Yes
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Kiosk design
Placement supported	Indoor

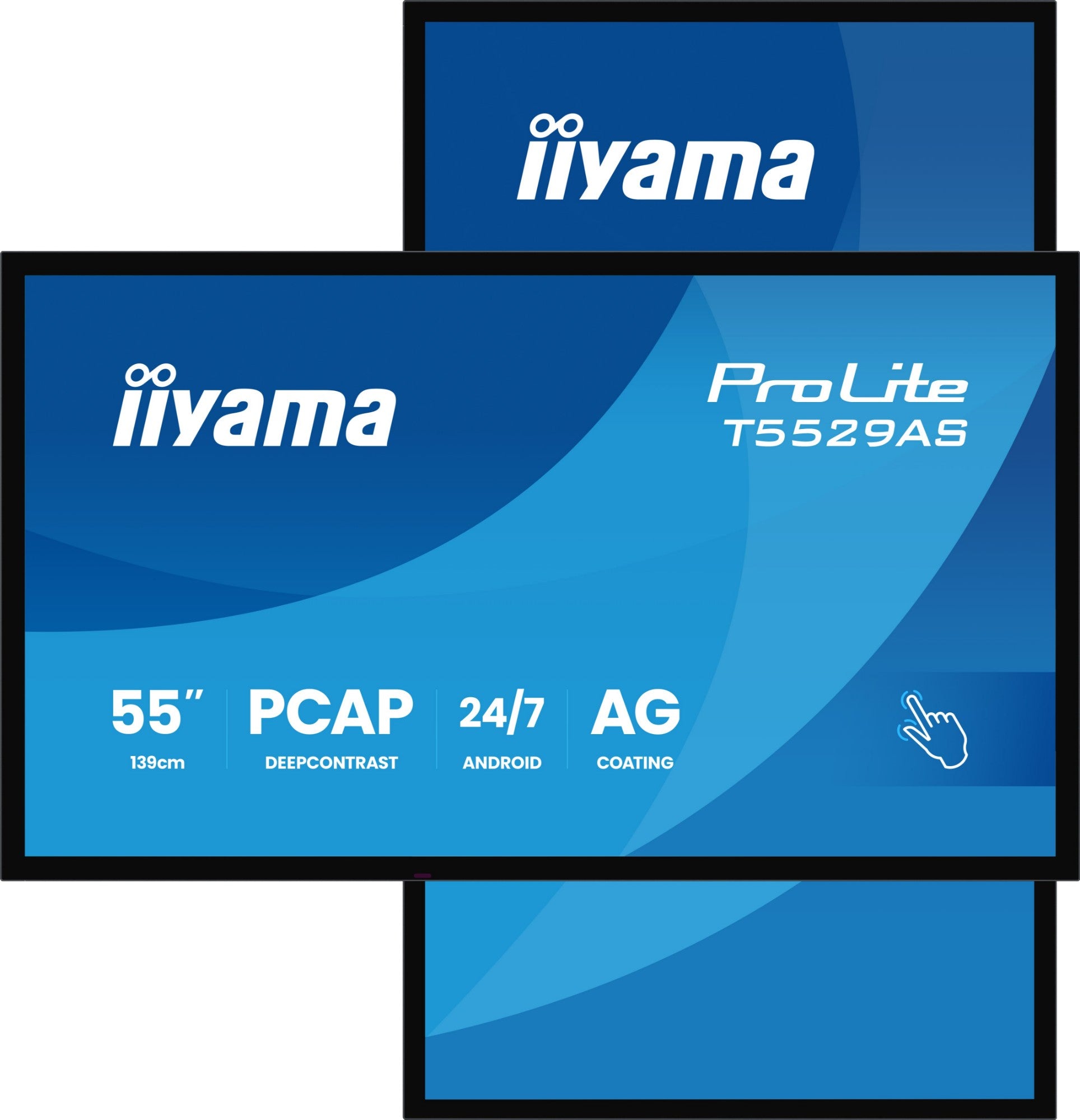

Orientation	Horizontal/Vertical
Product colour	Black
Panel mounting interface	300 x 400 mm
Certification	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
VESA mounting	Yes
Screen shape	Flat
Bezel colour	Black
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
Mean time between failures (MTBF)	50000 h
On Screen Display (OSD) languages	Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
On Screen Display (OSD)	Yes
Number of OSD languages	8
HDCP	Yes
HDCP version	1.4/2.2
Power
Power consumption (off)	0.3 W
Power consumption (typical)	104 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	104 kWh
Computer system
Processor cores	4
Operating system installed	Android
Internal memory	4 GB
Internal storage capacity	32 GB
Processor manufacturer	ARM
Built-in processor	Yes
On-board graphics card model	ARM Mali-G51
Processor architecture	ARM Cortex-A73
Operating system version	14
Weight & dimensions
Width (with stand)	1258.2 mm
Height (with stand)	728.8 mm
Depth (with stand)	42.3 mm
Width	1258.2 mm
Depth	42.3 mm
Height	728.8 mm
Weight	26.8 kg
Weight (with stand)	26.8 kg
Display width	1258.2 mm
Display depth	42.3 mm
Display height	728.8 mm
Display weight	26.8 kg
Packaging data
Package width	1400 mm
Package depth	164 mm
Package height	850 mm
Package weight	32.7 kg
Quick start guide	Yes
Batteries included	Yes
Remote control included	Yes

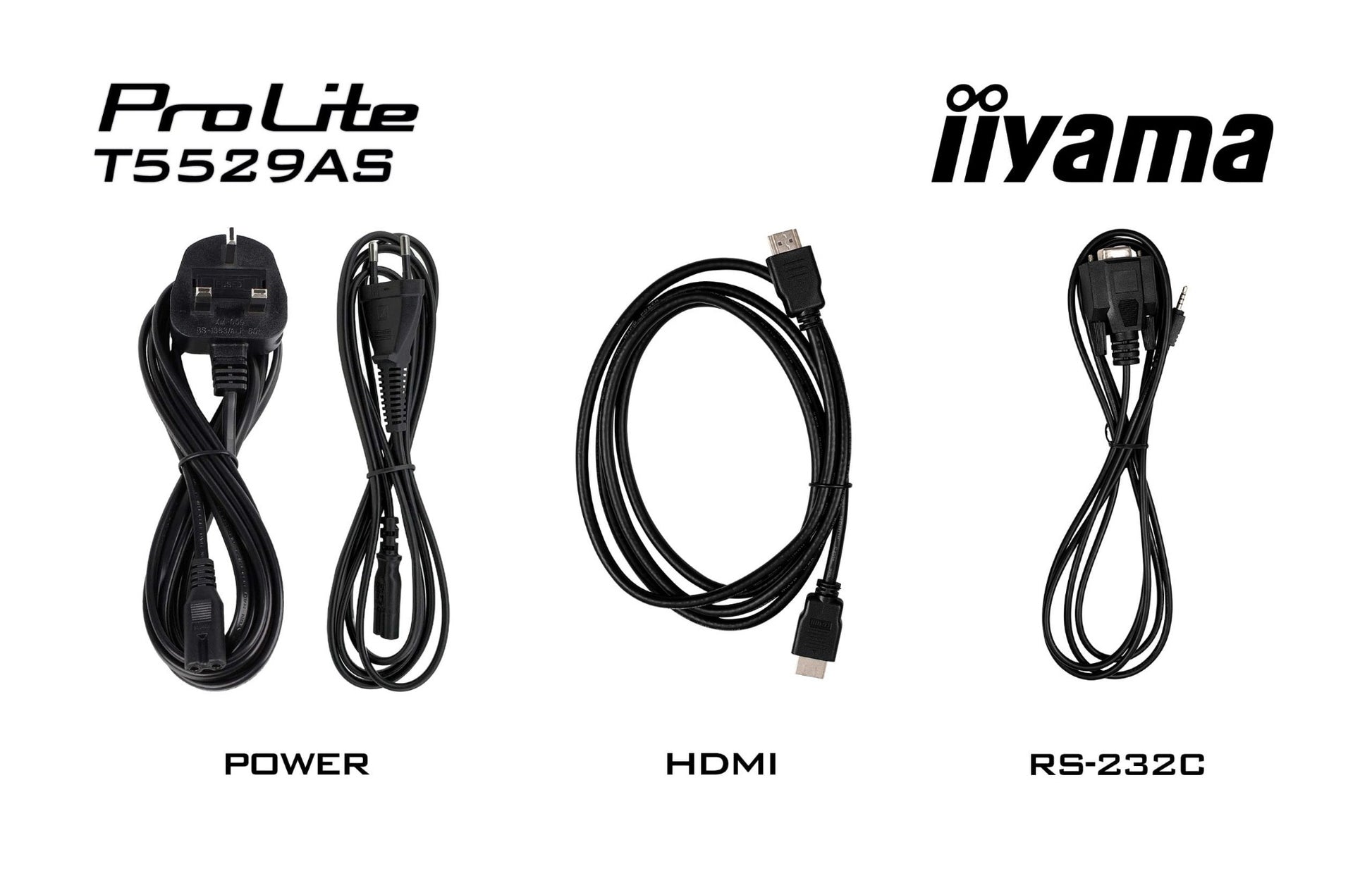

Cables included	AC, HDMI, RS-232
Stylus pen	Yes
Number of stylus pens	2
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	-20 - 60%
Technical details
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Power supply type	Internal
Brightness	450 cd/m²
User controls	picture (brightness, contrast, sharpness, black level, tint, colour, noice reduction, gamma selection, low blue light, color temp., color control, picture reset), audio (balance, treble, bass,volume, audio out, max. volume, min. volume, mute, speakers setting audio reset), OSD setting (OSD timeout, OSD H position, OSD V position, OSD transparency, information OSD, side bar), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, scree reset), device (power on status, RS232 routing, IR control, Physical button, motorized stand, power saving, panel saving, monitor info, Touch lock, other), system (language, system update, settng reset, factory reset, Android setting), admin (menu lock, meeting lock, HDMI CEC, kiosk mode, screen share, Miracast standby, log export)
Sustainability certificates	ErP
Compliance certificates	CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Viewable size, vertical	68 cm
Viewable size, horizontal	121 cm
Backlight type	Direct LED
