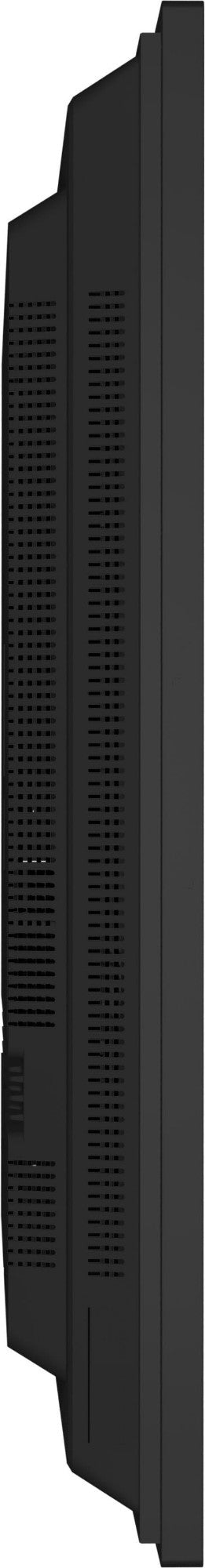

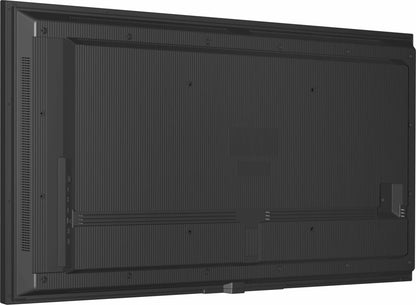

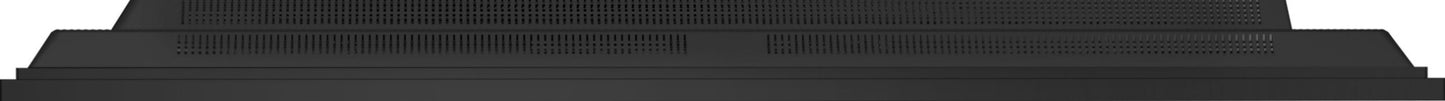

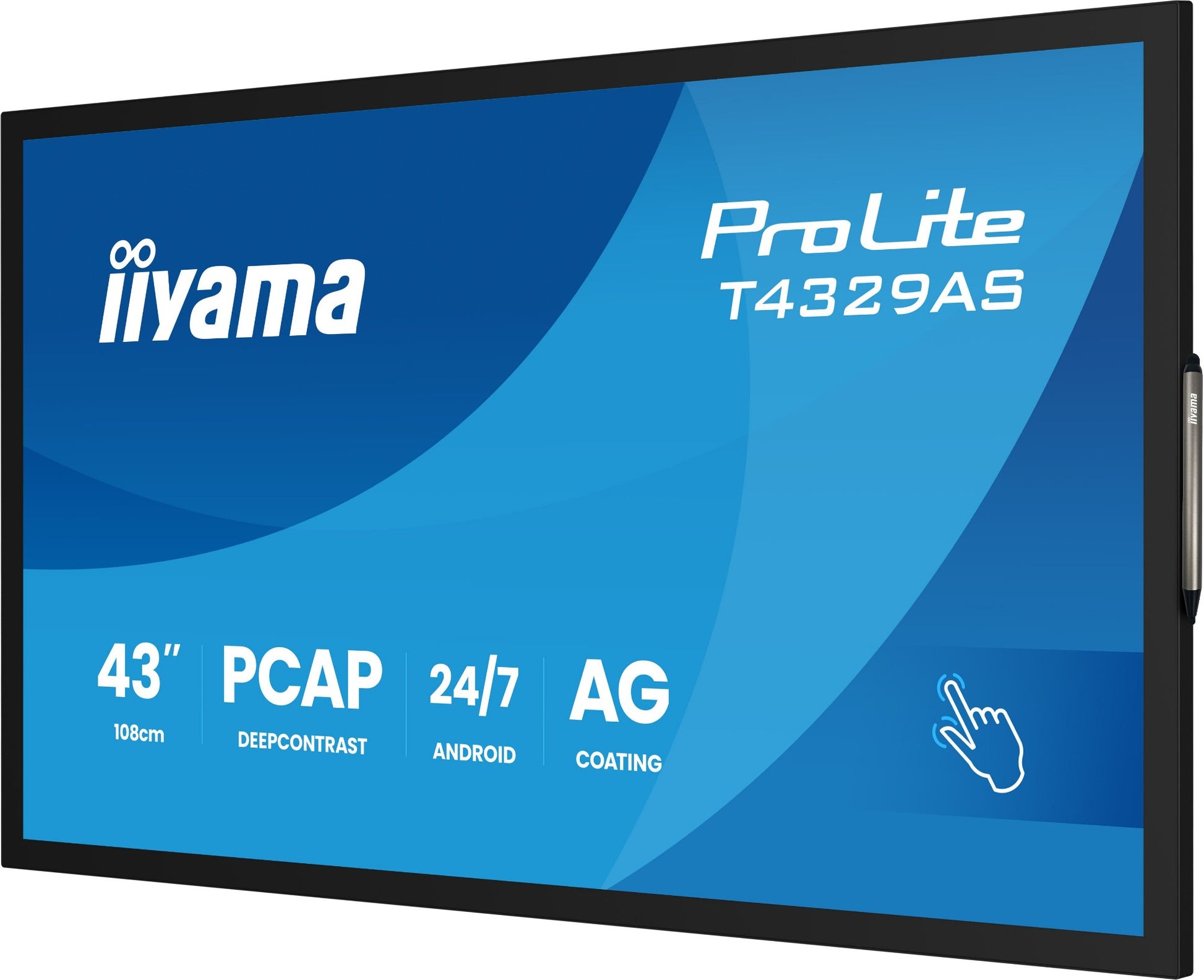

iiyama T4329AS-B1AG 42.5" 4K UHD VA Touch Monitor
iiyama T4329AS-B1AG 42.5" 4K UHD VA Touch Monitor
Couldn't load pickup availability
The iiyama T4329AS-B1AG brings touch control to a 42.5" 4K UHD 3840x2160 VA monitor — ideal for POS, kiosks and interactive work.

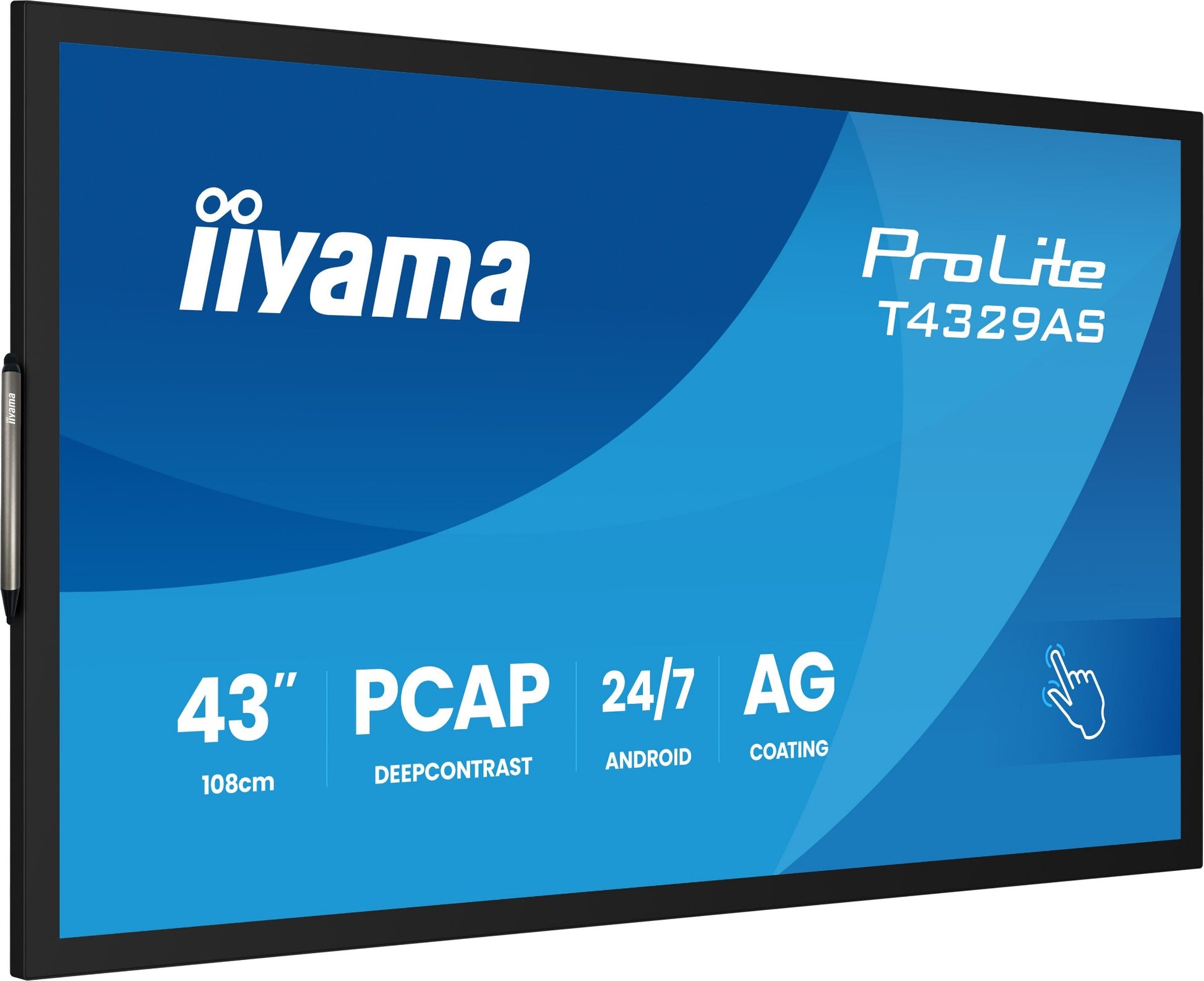

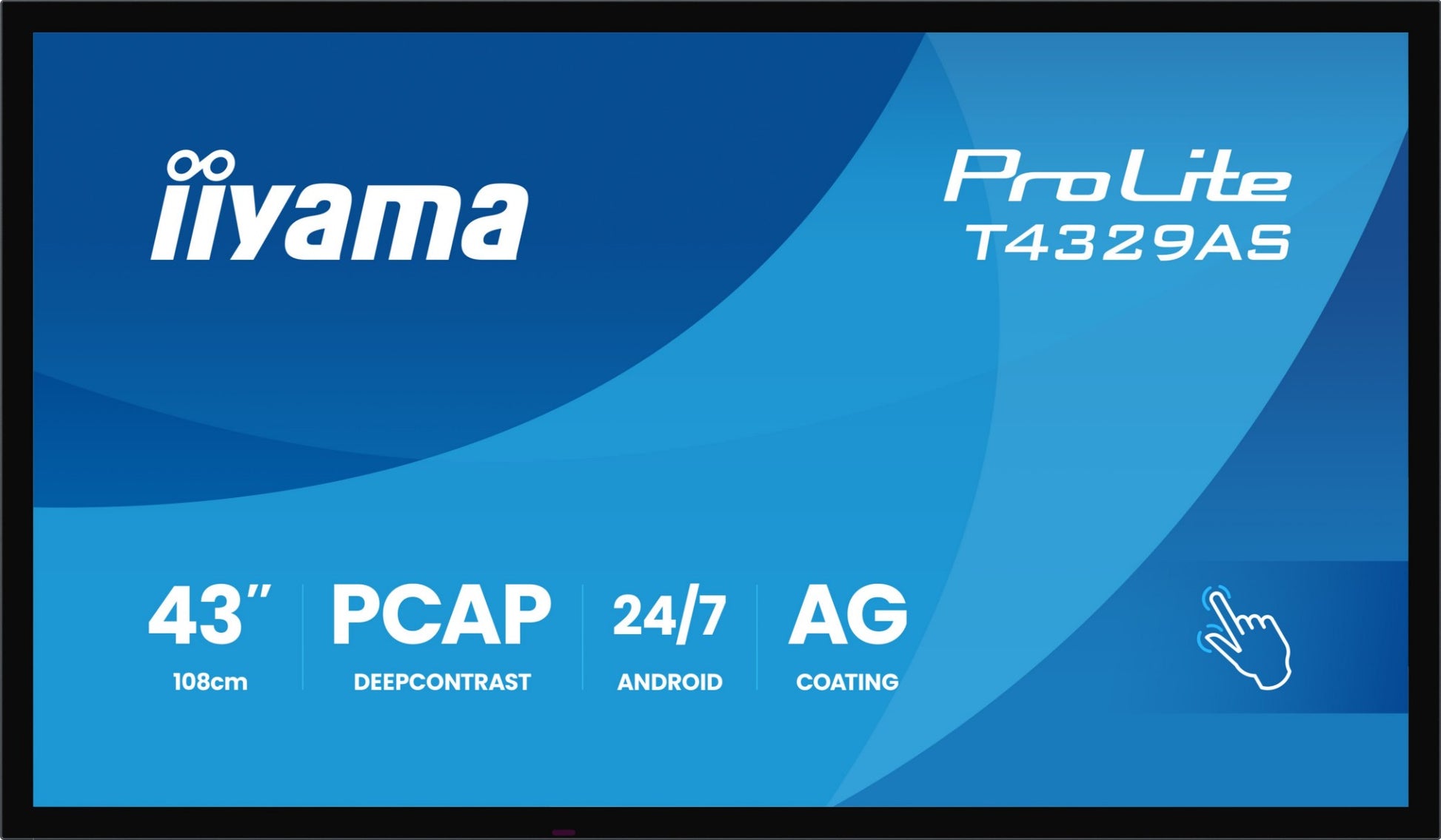

The ProLite T4329AS-B1AG is a 43" all-in-one PCAP touchscreen display built for the evolving needs of modern workspaces, especially huddle spaces where creativity, flexibility, and seamless sharing take center stage. Powered by Android OS, this interactive display delivers a user-friendly and highly adaptable experience. You can install your preferred apps directly on the device, enabling customized workflows tailored to your environment — whether in a collaborative meeting area, an enterprise innovation hub, or an educational breakout room. The USB-C loop-through feature simplifies connectivity by allowing multiple displays to be easily daisy-chained while transmitting power, data, and video — all through a single cable. This reduces cable clutter and setup time, making it ideal for dynamic workspaces. The included wall mounting bracket makes installation straightforward and secure. With iiSignage² (CMS), iiControl (DMS), and iiShare (Wireless Presentation) you gain full control over content and messaging, even remotely — perfect for updating shared information or branded visuals on the fly. The integrated EShare app brings wireless screen sharing and collaboration to life, supporting multi-user interaction and real-time ideation. The T4329AS-B1AG isn’t just a display — it’s a collaboration tool designed to empower teams, streamline communication, and make every meeting count.
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 500 cd/m² |
| Screen shape | Flat |
| Display number of colours | 1.07 billion colours |
| Native aspect ratio | 16:9 |
| HD type | 4K Ultra HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.245 x 0.245 mm |
| Horizontal scan range | 28 - 160 kHz |
| Viewable size, horizontal | 94.1 cm |
| Viewable size, vertical | 52.9 cm |
| Backlight type | Direct LED |
| Display resolution | 3840 x 2160 pixels |
| Response time | 6.5 ms |
| Display diagonal | 108 cm (42.5") |
| Contrast ratio (typical) | 4000:1 |
| Surface hardness | 8 |
| NTSC coverage (typical) | 72% |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 20 |
| Panel type | VA |
| Display diagonal (metric) | 108 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| LED backlight | Yes |
| Display brightness | 420 cd/m² |
| Positional accuracy | 2.5 mm |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 20 W |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Operating system installed | Android |
| Operating system version | 14 |
| Palm rejection | Yes |
| Operating hours (hours/days) | 24/7 |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Japanese, Dutch, Polish, Russian |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Power | |
| Power cable length | 1.8 m |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 98 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 98 kWh |
| Design | |
| Certification | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 3.7 mm |
| Ports & interfaces | |
| USB version | 2.0 |
| DVI port | No |
| HDMI ports quantity | 2 |
| HDMI version | 1.4/2.0 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 15 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| HDCP version | 1.4/2.2 |
| USB Touch port | Yes |
| RS-232C | Yes |
| Technical details | |
| Placement supported | Indoor |
| User controls | picture (brightness, contrast, sharpness, black level, tint, colour, noice reduction, gamma selection, low blue light, color temp., color control, picture reset), audio (balance, treble, bass,volume, audio out, max. volume, min. volume, mute, speakers setting audio reset), OSD setting (OSD timeout, OSD H position, OSD V position, OSD transparency, information OSD, side bar), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, scree reset), device (power on status, RS232 routing, IR control, Physical button, motorized stand, power saving, panel saving, monitor info, Touch lock, other), system (language, system update, settng reset, factory reset, Android setting), admin (menu lock, meeting lock, HDMI CEC, kiosk mode, screen share, Miracast standby, log export) |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Packaging content | Wall Mounting Bracket (VESA 300x300), Magnetic holding places for Touch pens (on sides in landscape) |
| Brightness | 420 cd/m² |
| Built-in processor | Yes |
| Active display area (W x H) | 941.2 x 529.4 mm |
| Weight (with stand) | 13.7 kg |
| Touch method | stylus, finger |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 300 x 300 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | -20 - 60% |
| Weight & dimensions | |
| Width (with stand) | 989.6 mm |
| Depth (with stand) | 72.8 mm |
| Height (with stand) | 577.8 mm |
| Package width | 1115 mm |
| Package depth | 144 mm |
| Package height | 730 mm |
| Package weight | 17.6 kg |
| Width | 989.6 mm |
| Weight | 13.7 kg |
| Height | 577.8 mm |
| Depth | 72.8 mm |
| Packaging data | |
| Remote control included | Yes |
| Quick start guide | Yes |
| Cables included | AC, HDMI, RS-232 |
| HDMI cable length | 1.8 m |
| Remote control batteries included | Yes |
| Packaging content | |
| Batteries included | Yes |
| Thin Client | |
| Processor cores | 4 |
| Processor architecture | ARM Cortex-A73 |
| Other features | |
| USB ports quantity | 2 |
| Control panel | Power (long press for Quick Menu (source, volume +, volume -, brightness +, brightness -, Touch unlock) |
