iiyama T2254MSC-B2AG 21.5" Full HD IPS 100Hz Touch Monitor
iiyama T2254MSC-B2AG 21.5" Full HD IPS 100Hz Touch Monitor
Couldn't load pickup availability

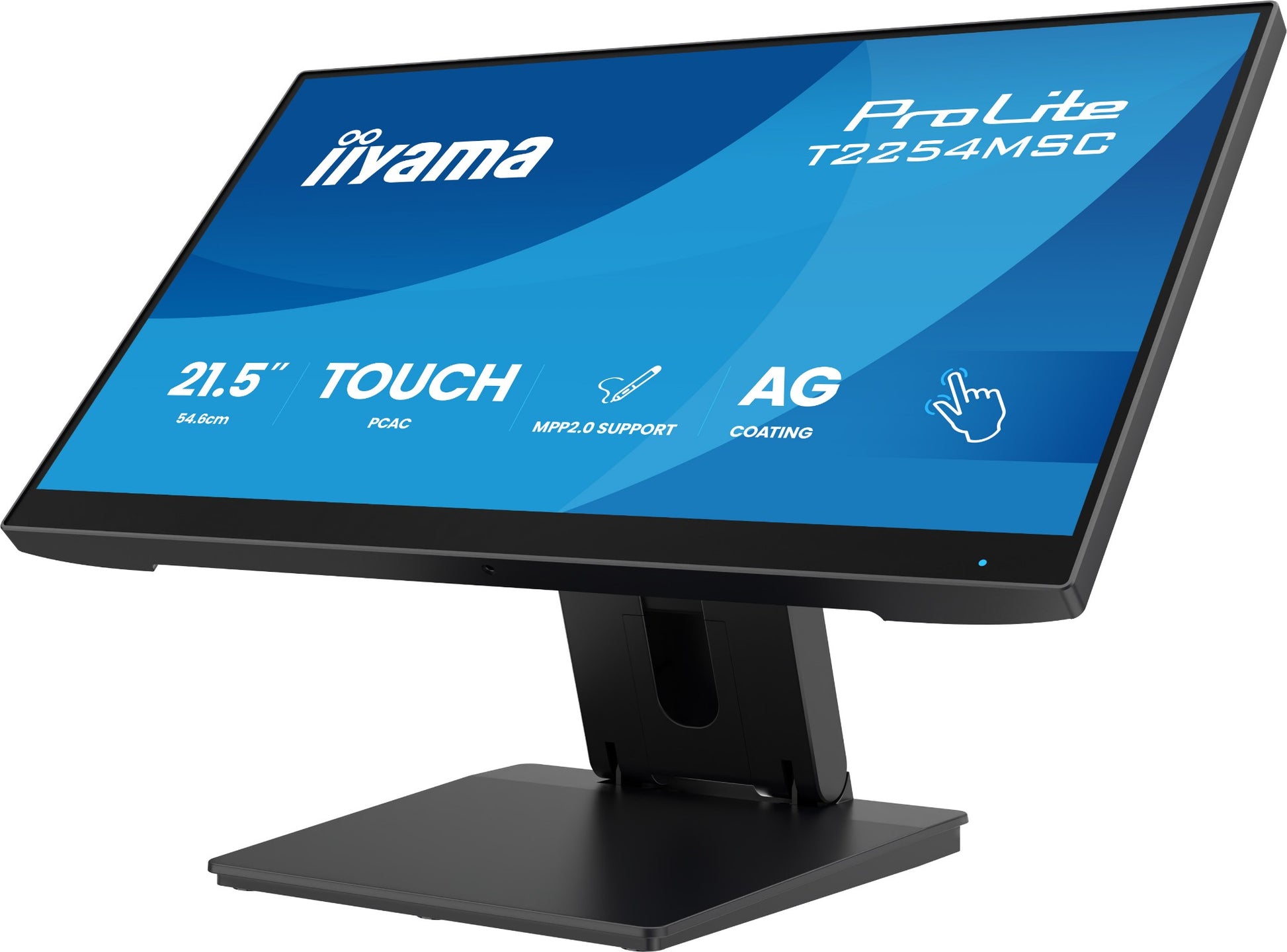

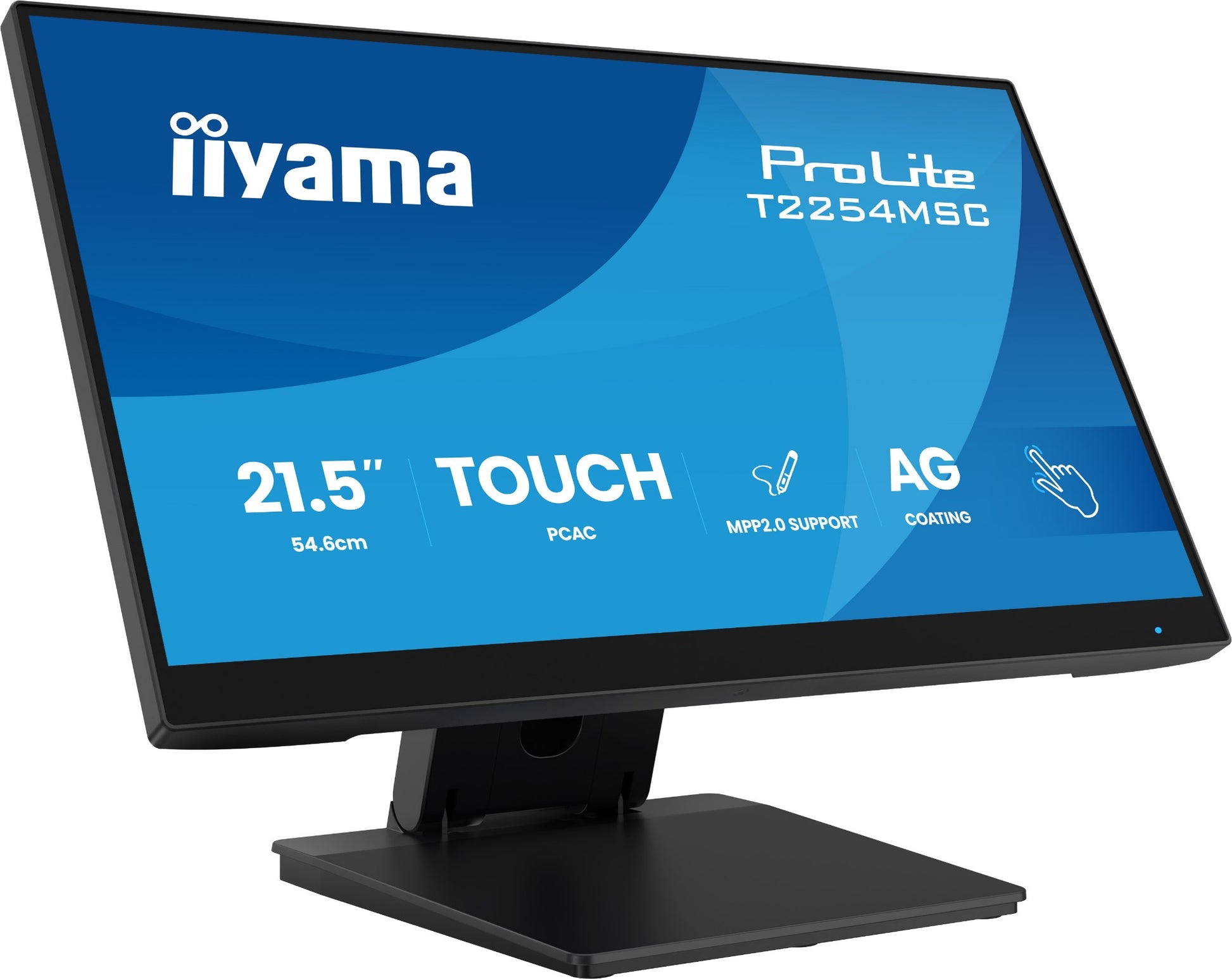

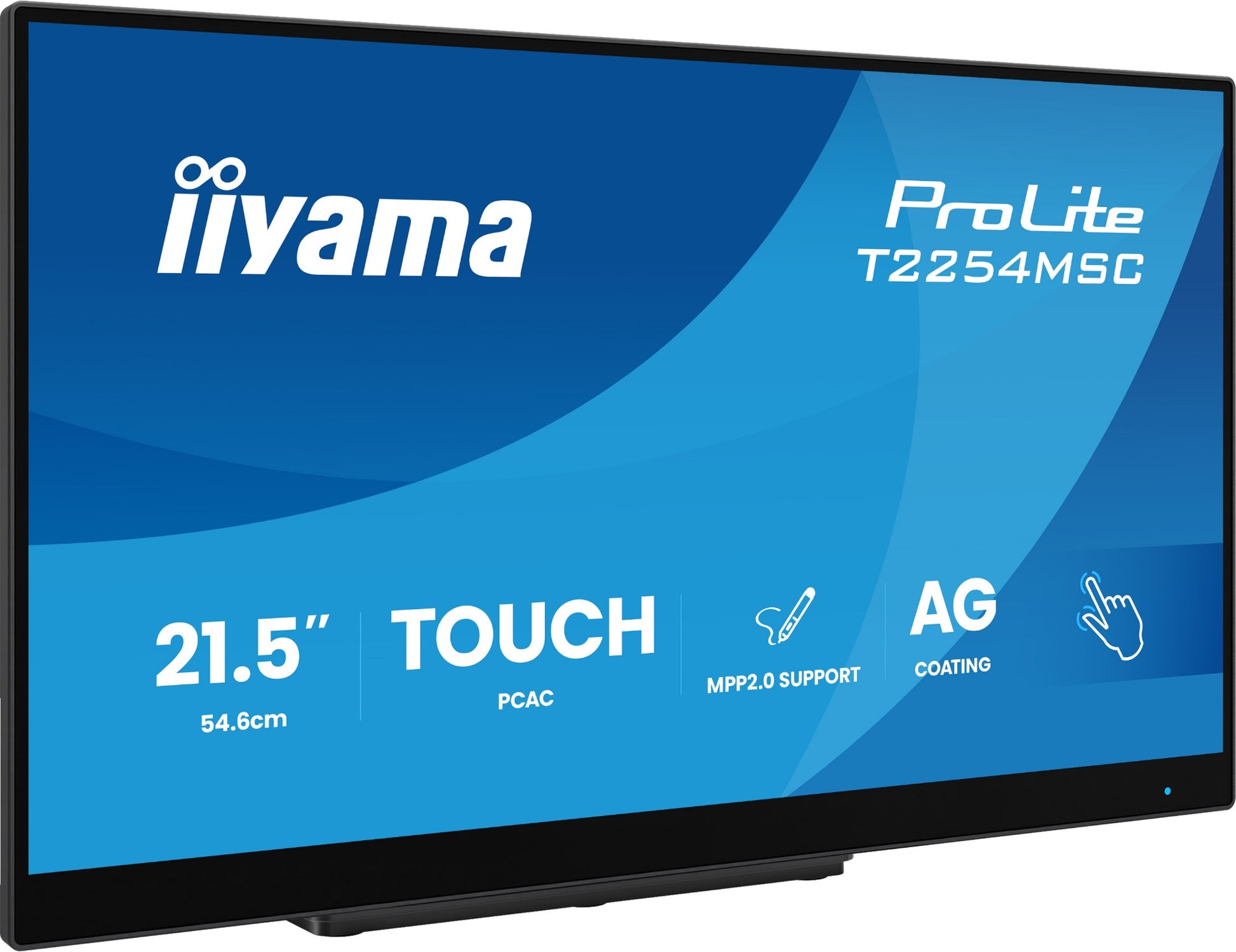

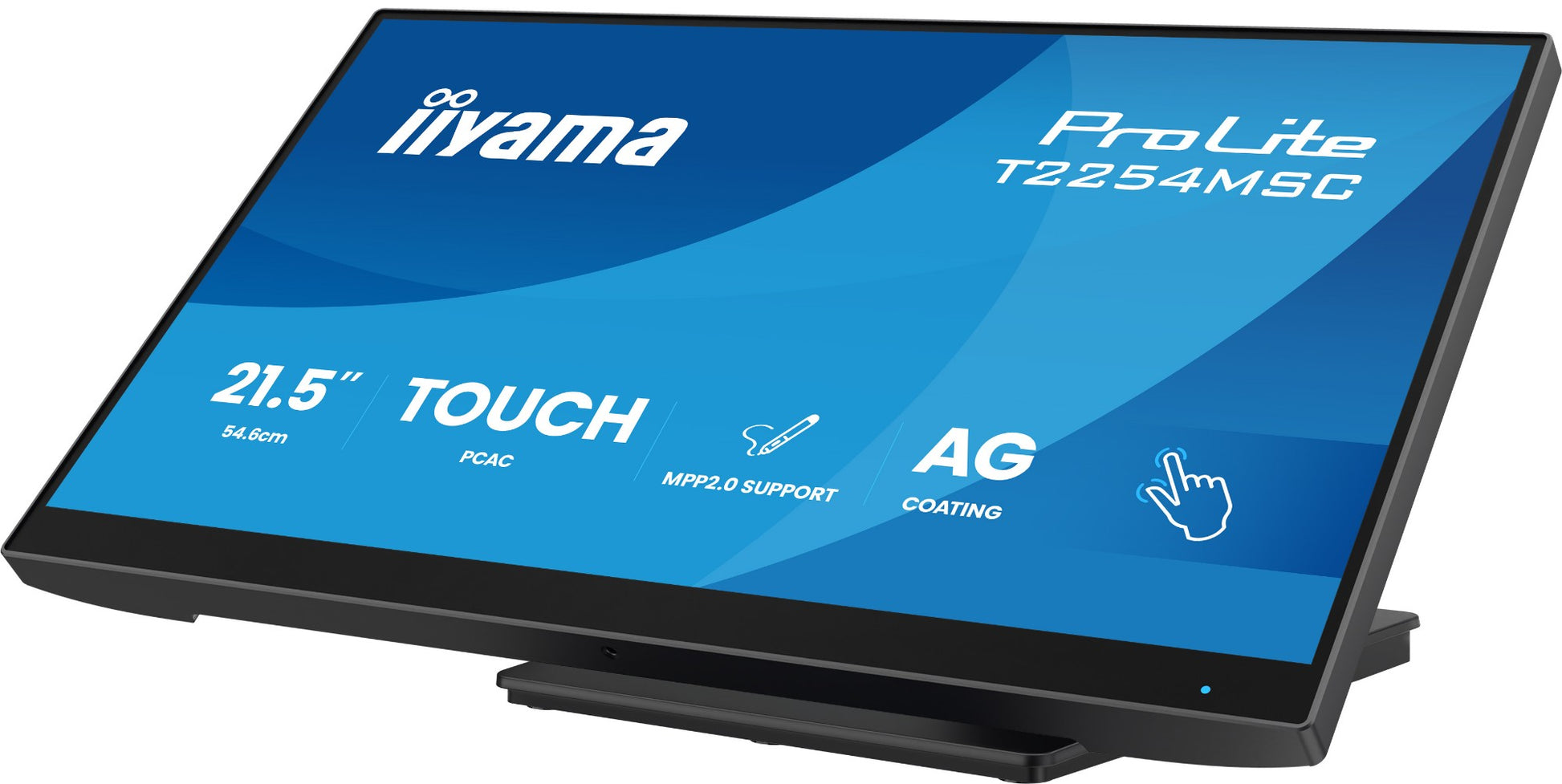

The iiyama T2254MSC-B2AG brings touch control to a 21.5" Full HD 1920x1080 IPS monitor — ideal for POS, kiosks and interactive work.
Immersive interaction and elegant design - Discover the ProLite T2254MSC-B2AG, a vibrant 21.5" Full HD touchscreen monitor designed for exceptional interactive experiences. Featuring intuitive 10-point touch technology (Optical Bonded PCAP), which ensures smooth and precise touch response and low light reflection. In addition, the display is protected from moisture and potential condensation development. With built-in MPP2.0 support (Microsoft Pen Protocol), a stylus with tilt and pressure sensitivity can be used, providing a natural, precise and intuitive writing or drawing experience, just like a pen on paper. The vibrant colors of the IPS panel will captivate users with precise and natural interaction from any angle. Its sleek and stylish design, edge-to-edge glass and anti-glare surface offer durability and ease of cleaning, perfect for busy commercial environments, hospitality spaces, healthcare facilities and public areas. With adjustable ergonomics, neat cable management, built-in audio and seamless connectivity (HDMI, DisplayPort, USB 3.2 hub), it is an ideal choice for POS, self-service solutions and interactive signage.
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 300 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 100 Hz |
| HD type | Full HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.082 x 0.082 mm |
| Horizontal scan range | 30 - 120 kHz |
| Viewable size, horizontal | 47.6 cm |
| Viewable size, vertical | 26.8 cm |
| Display resolution | 1920 x 1080 pixels |
| Response time | 4 ms |
| Display diagonal | 54.6 cm (21.5") |
| Contrast ratio (typical) | 1300:1 |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Colour depth | 8 bit |
| Display diagonal (metric) | 54.6 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 300 cd/m² |
| Positional accuracy | 2 mm |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Palm rejection | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 10 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian |
| Plug and Play | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Design | |
| Market positioning | Business |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, ENERGY STAR®, UKCA |
| Product colour | Black |
| Front bezel colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of upstream ports | 2 |
| Headphone out | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| USB Touch port | Yes |
| Number of downstream ports | 2 |
| Technical details | |
| Cable lock slot | Yes |
| User controls | Picture adjust (brightness, contrast, eco, adv. contrast, Overdrive, X-Res technology,, black tuner), color settings (6-axis, i-Style color, blue light reducer, gamma, RGB range), color temperature), OSD (horizontal position, vertical position, rotate, time, background, DDC/CI control, display information), language, miscellaneous (sharpness. video mode adjust, opening logo, power led, usb charge), input select, audio settings (volume, mute audio), recall |
| Sustainability certificates | EPEAT, ErP, EPEAT Silver |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Packaging content | Screwdriver |
| Power supply type | Internal |
| Active display area (W x H) | 476 x 268 mm |
| Weight (with stand) | 4.9 kg |
| Touch method | finger, glove (latex), capacitive stylus |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | 5 - 90° |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Adjustable height (max) | 11.2 cm |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 15 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 13 kWh |
| Weight & dimensions | |
| Width (with stand) | 489 mm |
| Depth (with stand) | 241 mm |
| Height (with stand) | 355 mm |
| Weight (without stand) | 2.9 kg |
| Package width | 570 mm |
| Package depth | 151 mm |
| Package height | 367 mm |
| Package weight | 7.6 kg |
| Width | 489 mm |
| Weight | 4.9 kg |
| Height | 355 mm |
| Depth | 241 mm |
| Packaging data | |
| Stand included | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI |
| Other features | |
| USB ports quantity | 2 |
| Control panel | Joystick / power button - power/menu, up/input select, down, left/eco/i-Syle color/blue light reducer, right/volume |
