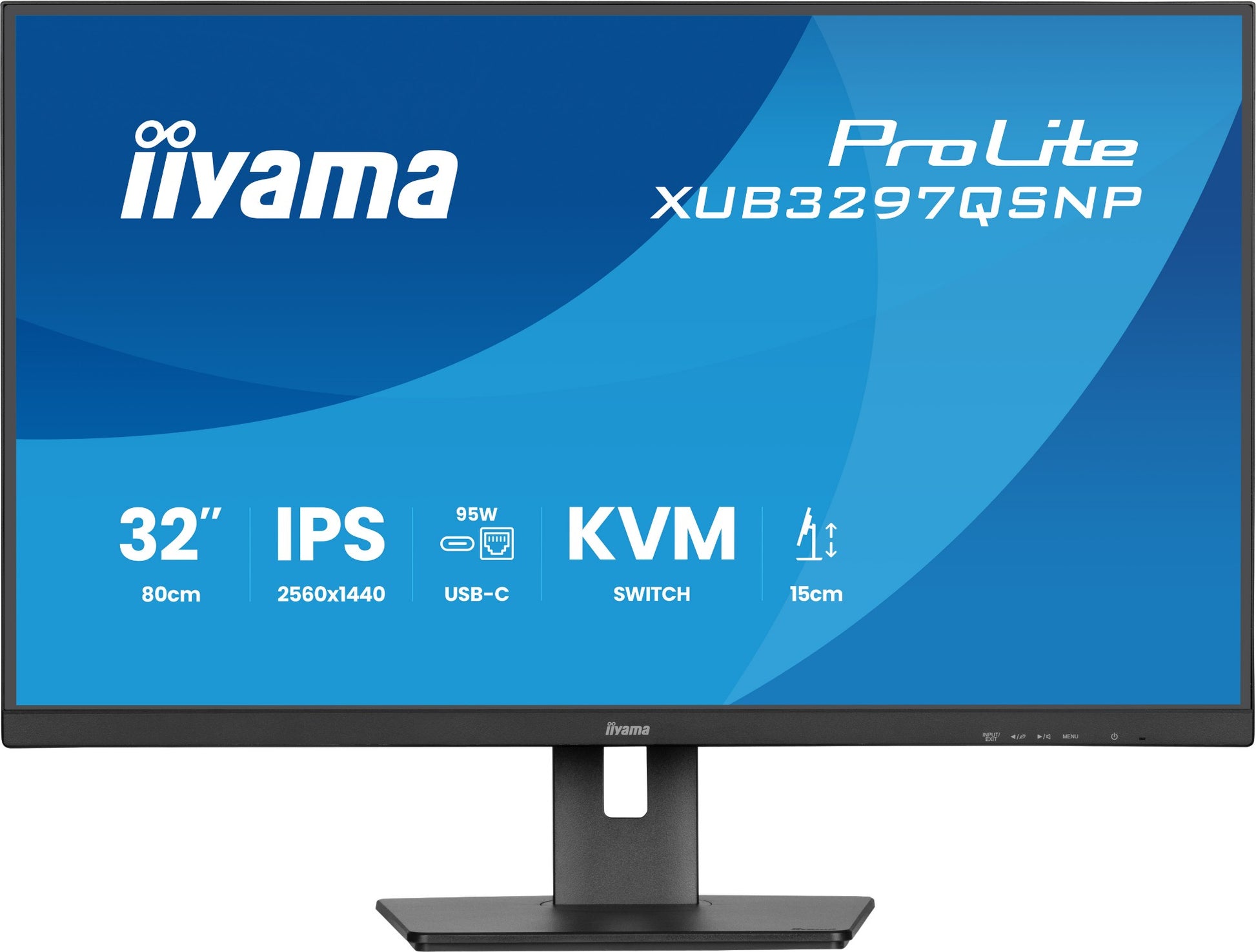

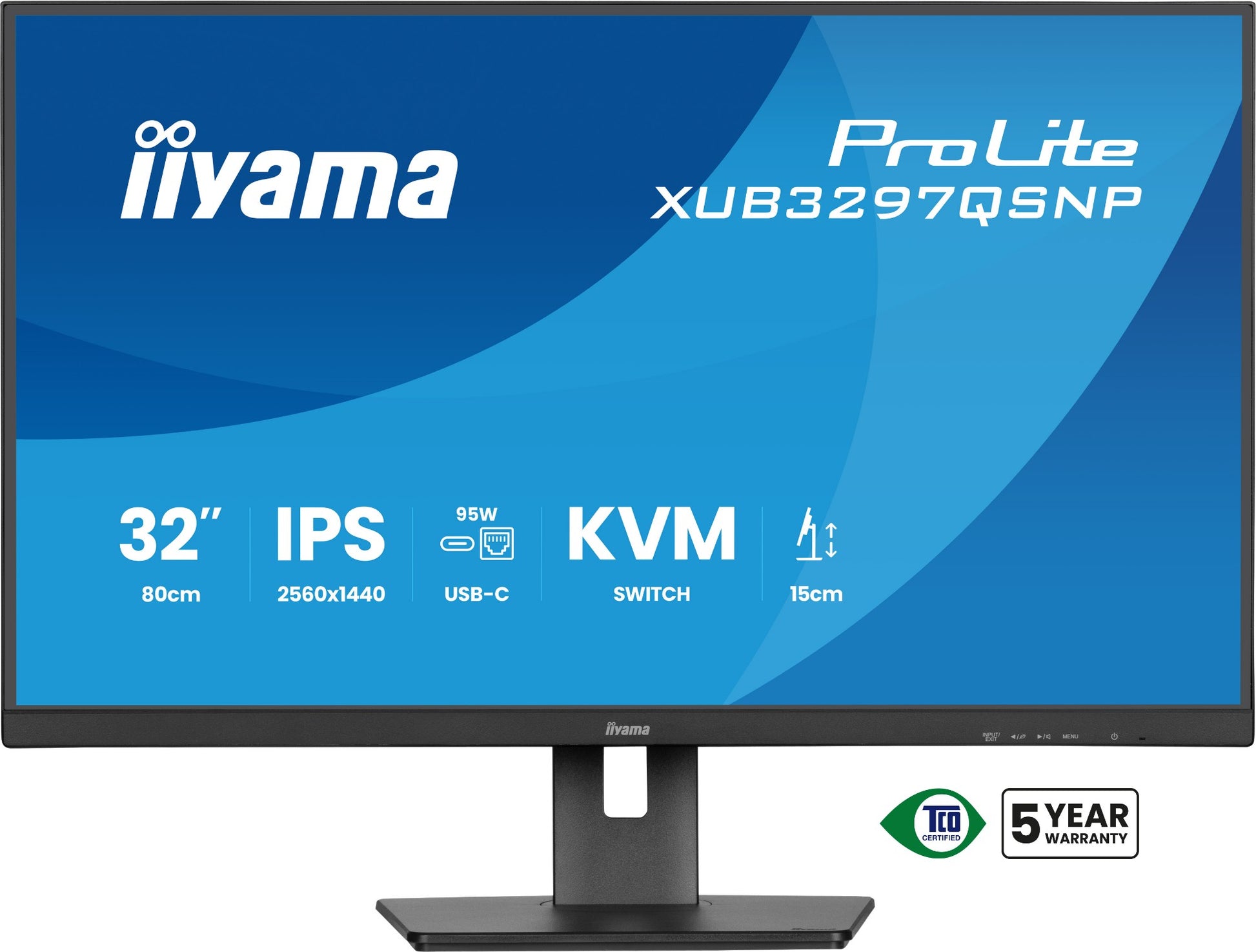

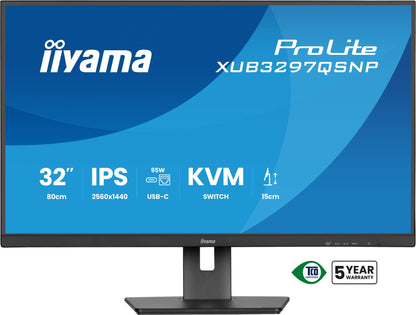

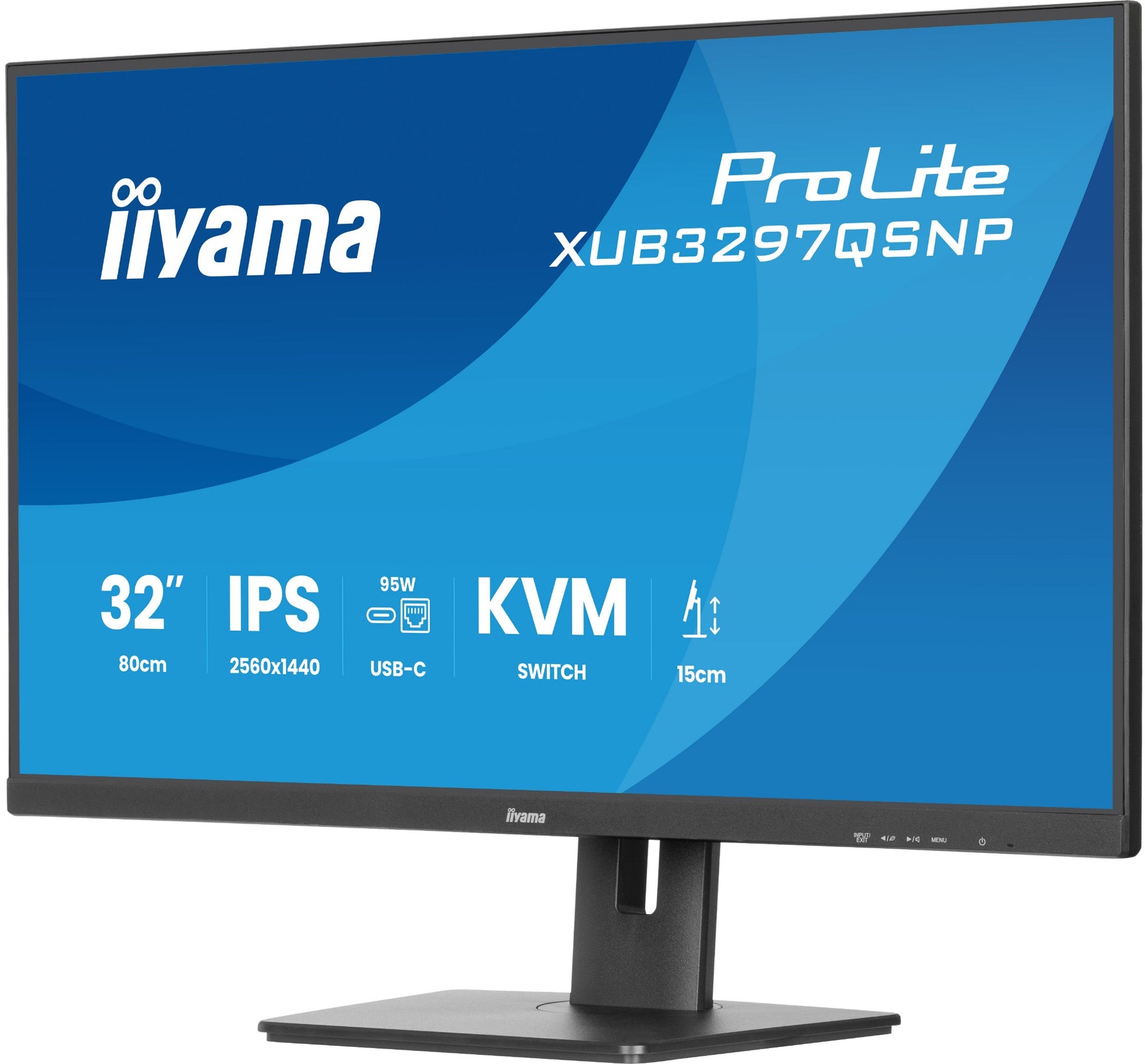

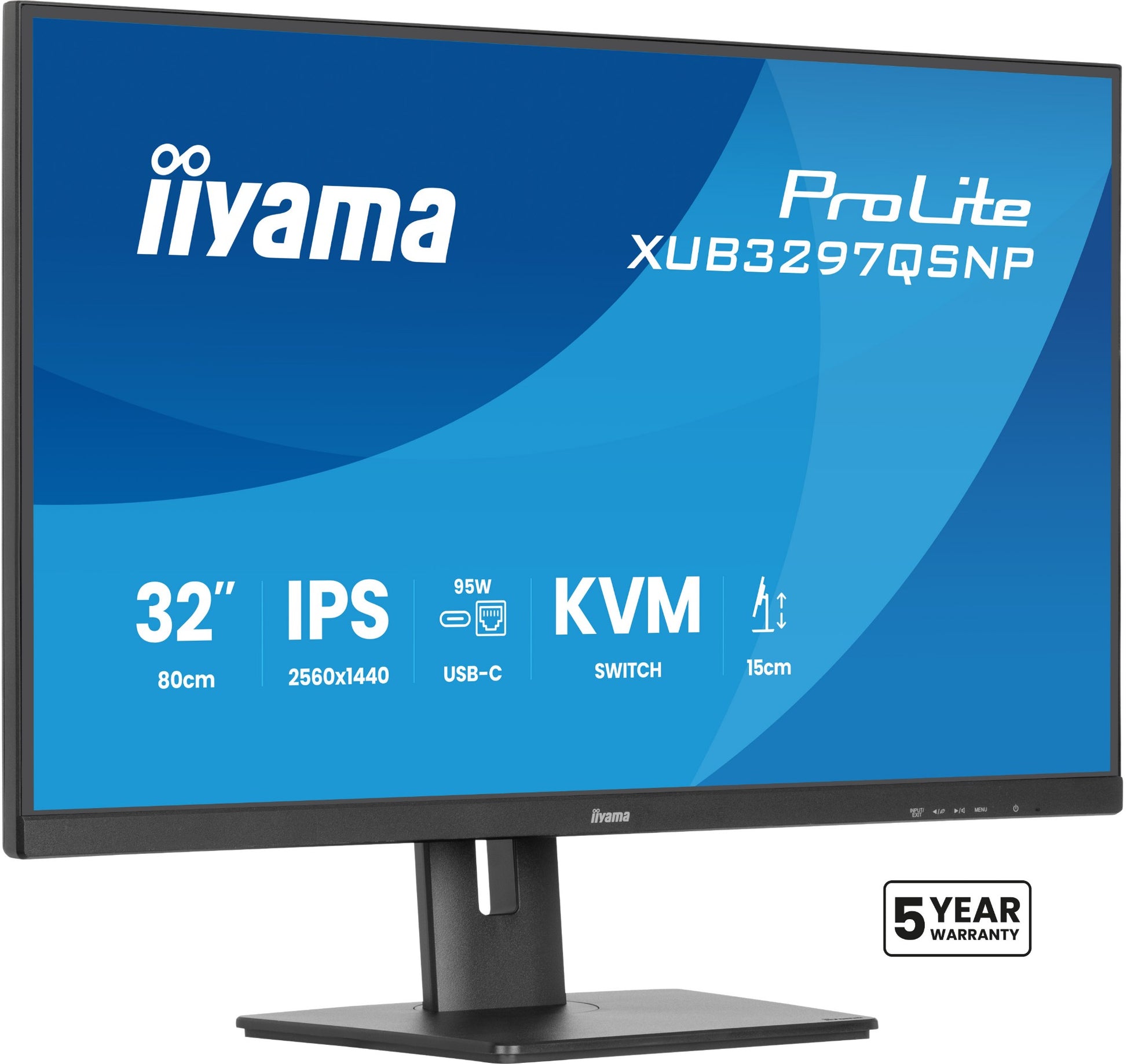

iiyama ProLite XUB3297QSNP-B1 32" QHD IPS 100Hz Monitor
iiyama ProLite XUB3297QSNP-B1 32" QHD IPS 100Hz Monitor
Couldn't load pickup availability
The iiyama ProLite XUB3297QSNP-B1 tidies your workspace: one USB-C cable drives this 32" QHD 2560x1440 IPS monitor while charging your laptop.
The XUB3297QSNP is a 32-inch QHD monitor designed to boost your productivity and streamline your workspace. With an integrated USB-C dock, you can connect your laptop using a single cable, transmitting video, data, and up to 95W of power delivery, while keeping your desk clean and clutter-free. The built-in KVM switch lets you control two PCs with one keyboard and mouse, making multitasking easy. When connected via USB-C, your laptop also gets instant access to the LAN network. Plus, the DisplayPort-out supports daisy chaining for seamless multi-monitor setups. Featuring an IPS panel for vivid colors and wide viewing angles, it’s perfect for work, content creation, or entertainment. For all-day comfort, it includes a 15cm height-adjustable stand, Flicker-Free technology, and a Blue Light Reducer to help minimize eye strain.
Specifications
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 5 W |
| Performance | |
| AMD FreeSync | Yes |
| VESA Adaptive Sync support | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Display | |
| Display brightness (typical) | 350 cd/m² |
| Screen shape | Flat |
| Display number of colours | 1.07 billion colours |
| Native aspect ratio | 16:9 |
| DDC/CI | Yes |
| Maximum refresh rate | 100 Hz |
| sRGB coverage (typical) | 99% |
| Display surface | Matt |
| HD type | Quad HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 80000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.273 x 0.273 mm |
| Horizontal scan range | 30 - 150 kHz |
| Viewable size, horizontal | 69.8 cm |
| Viewable size, vertical | 39.3 cm |
| Display resolution | 2560 x 1440 pixels |
| Response time | 1 ms |
| Display diagonal | 81.3 cm (32") |
| Contrast ratio (typical) | 1000:1 |
| NTSC coverage (typical) | 72% |
| Touchscreen | No |
| Panel type | IPS |
| Colour depth | 8 bit |
| Display diagonal (metric) | 80 cm |
| Colour gamut standard | NTSC, sRGB |
| Response time (MPRT) | 1 ms |
| Management features | |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Czech, German, English, French, Italian, Japanese, Dutch, Polish, Russian |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Design | |
| Market positioning | Business |
| Product colour | Black |

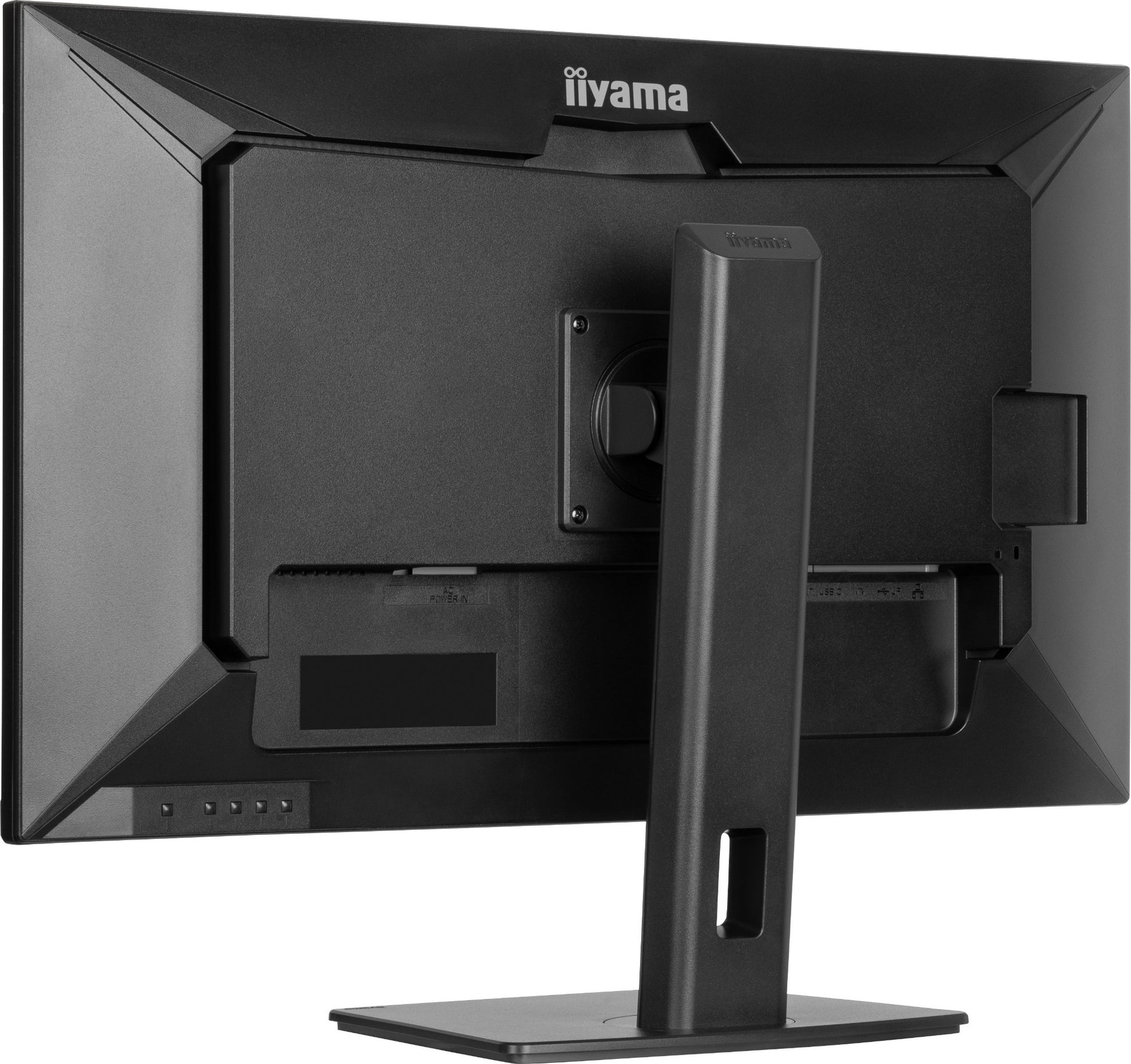

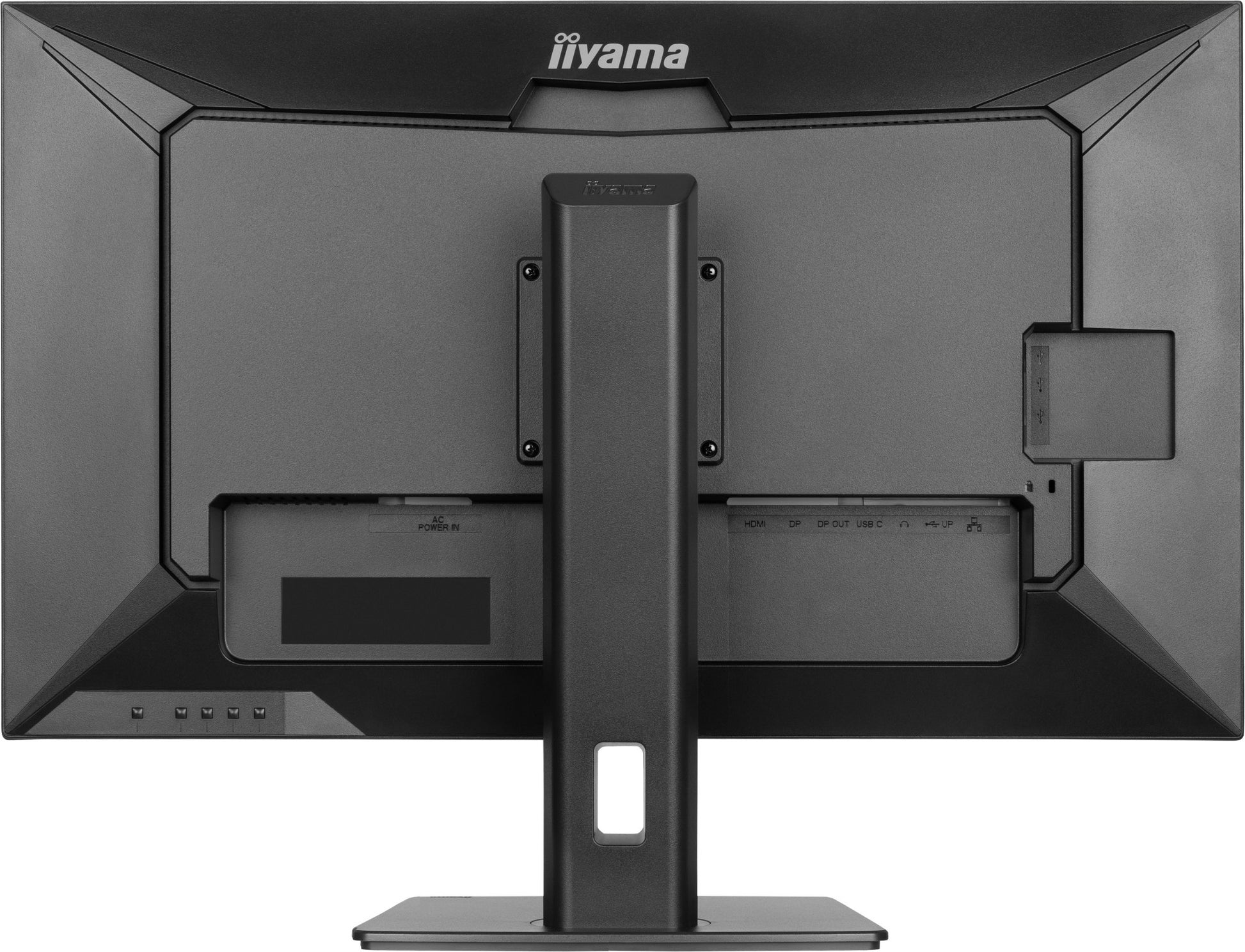

| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| USB Type-A downstream ports quantity | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| HDMI version | 2.0 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 95 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Number of USB Type-C upstream ports quantity | 1 |
| Built-in KVM switch | Yes |
| DisplayPort out quantity | 1 |
| DisplayPort out version | 1.4 |
| Number of downstream ports | 4 |
| Technical details | |
| Height (without stand) | 452 mm |
| Depth (without stand) | 245.5 mm |
| Width (without stand) | 714 mm |
| Cable lock slot | Yes |
| User controls | picture adjust (brightness, contrast, black tuner, sharpness, OD, ACR, Eco, X-Res technology), colour settings (warm, normal, cool, user colour, i-Style colour, blue light reducer), input select (HDMI, DP, USB-C, Auto), audio (volume, mute), language, OSD (OSD H. position, OSD V. position, OSD background, OSD time out, information), setup menu 1 (KVM, USB-C, USB Charge, MST DP-out), setup menu 2 (video mode adjust, HDMI RGB range, direct drive, adaptive sync, Motion blur reducer, HDR, opening logo, power LED, memory recall) |
| Sustainability certificates | ErP, TCO |
| Compliance certificates | CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Packaging content | quick start guide, safety guide |
| Power supply type | Internal |
| Weight (with stand) | 9.5 kg |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |

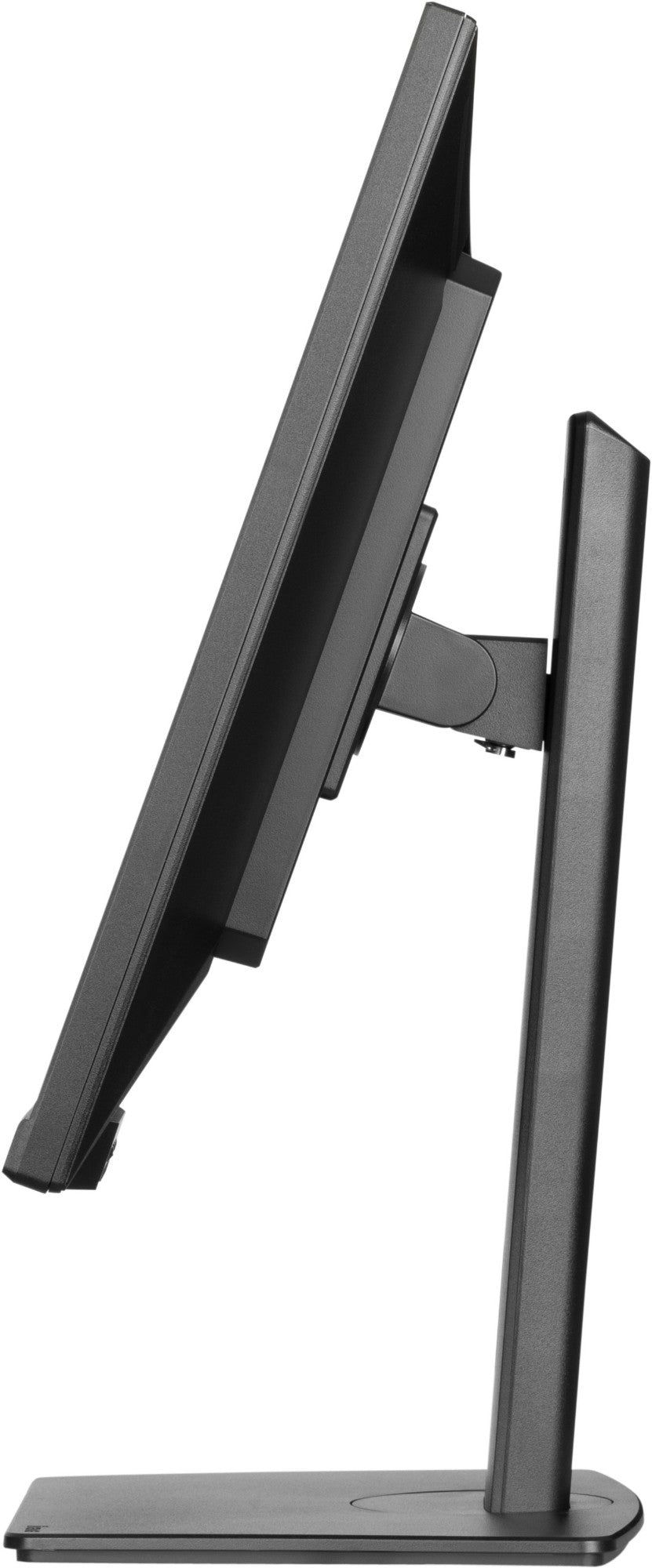

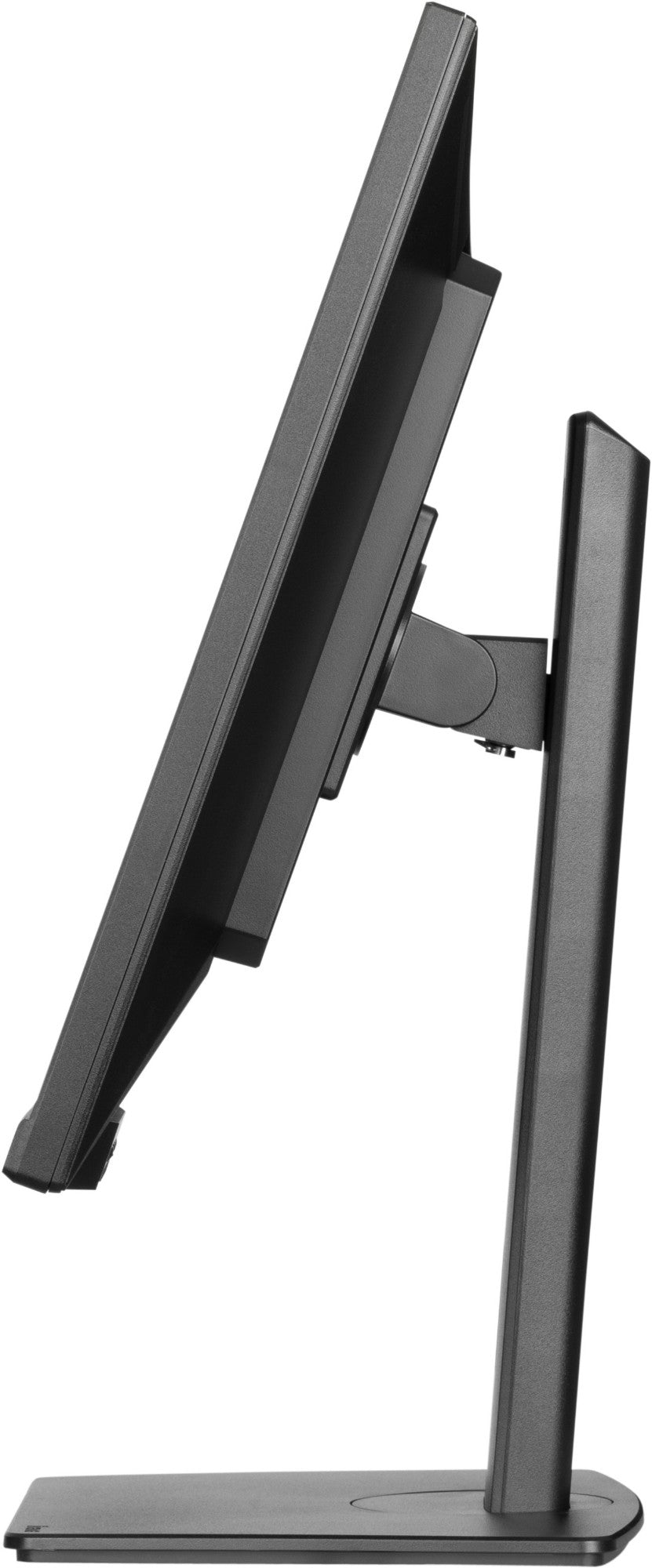

| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt angle range | 23 - 5° |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 40 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 31.7 kWh |
| Energy consumption (HDR) per 1000 hours | 47.5 kWh |
| Weight & dimensions | |
| Width (with stand) | 714 mm |
| Depth (with stand) | 245.5 mm |
| Height (with stand) | 602 mm |
| Package width | 795 mm |
| Package depth | 185 mm |
| Package height | 506 mm |
| Package weight | 11.6 kg |
| Width | 714 mm |
| Weight | 9.5 kg |
| Depth | 245.5 mm |
| Packaging data | |
| Package type | Box |
| Cables included | AC, HDMI, DisplayPort, USB Type-C |
| Other features | |
| Control panel | Power, Menu, Adjust/Volume/Mute, Adjust/Eco, Input/Exit |
