iiyama ProLite XCB3497WQSNP-B1 34" UWQHD VA 120Hz Curved Monitor
iiyama ProLite XCB3497WQSNP-B1 34" UWQHD VA 120Hz Curved Monitor
Couldn't load pickup availability
The iiyama ProLite XCB3497WQSNP-B1 tidies your workspace: one USB-C cable drives this 34" UWQHD 3440x1440 VA curved monitor while charging your laptop.
The XCB3497WQSNP is a 34-inch curved monitor that incorporates a KVM switch and a USB-C dock to simplify your workspace. The KVM switch enhances multitasking by allowing you to control multiple computers from a single monitor, keyboard, and mouse. The USB-C dock reduces cable clutter and simplifies connectivity even further, allowing a single cable to carry video, data, and power to charge your notebook. Additionally, when the monitor is connected to a LAN network, your notebook automatically gains network access. The VA panel technology delivers high contrast and deep black levels and wide viewing angles for consistent image quality regardless of your position for a richer and more vivid viewing experience. For optimal comfort, the 15cm height-adjustable stand allows you to customize the screen position, while the Flicker-Free panel and Blue Light reduction function help minimize eye strain.
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 350 cd/m² |
| Screen shape | Curved |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 21:9 |
| Maximum refresh rate | 120 Hz |
| sRGB coverage (typical) | 99% |
| Display surface | Matt |
| HD type | UltraWide Quad HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 80000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.232 x 0.232 mm |
| Horizontal scan range | 30 - 180 kHz |
| Viewable size, horizontal | 79.7 cm |
| Viewable size, vertical | 33.4 cm |
| Display resolution | 3440 x 1440 pixels |
| Display diagonal | 86.4 cm (34") |
| Contrast ratio (typical) | 3000:1 |
| NTSC coverage (typical) | 93% |
| Touchscreen | No |
| Panel type | VA |
| Screen curvature rating | 1500R |
| Display diagonal (metric) | 86.7 cm |
| Colour gamut standard | NTSC, sRGB |
| Response time (MPRT) | 0.4 ms |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Performance | |
| AMD FreeSync type | FreeSync Premium |
| AMD FreeSync | Yes |
| VESA Adaptive Sync support | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Design | |
| Product colour | Black |

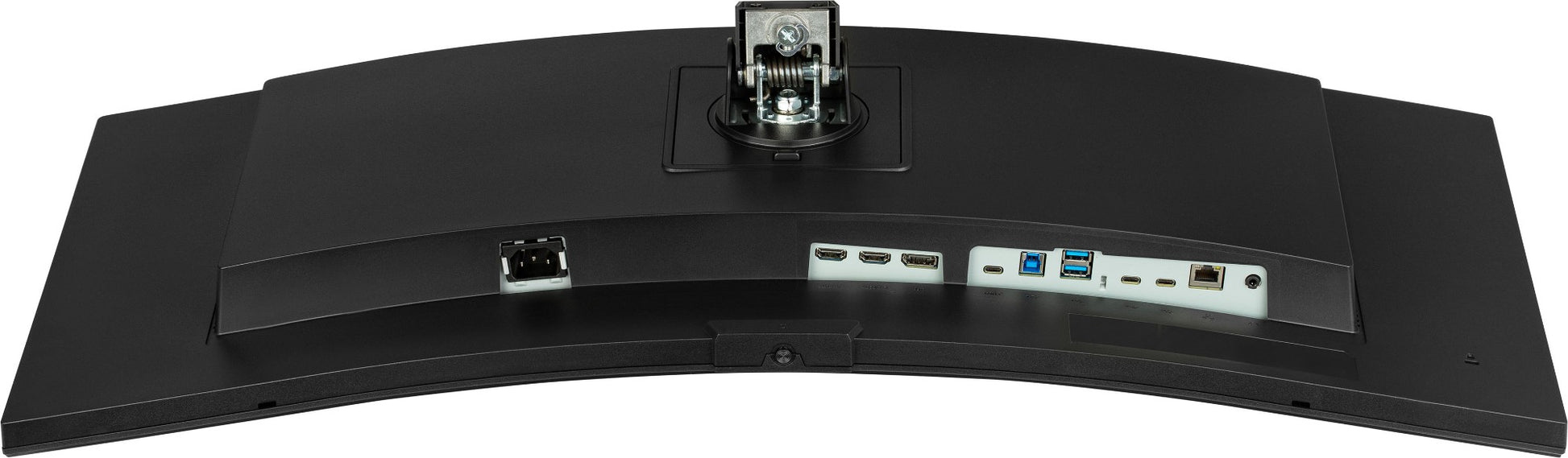

| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| USB Type-A downstream ports quantity | 2 |
| Headphone out | Yes |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| HDMI version | 1.4/2.0 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 95 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Number of USB Type-C upstream ports quantity | 1 |
| Built-in KVM switch | Yes |
| DisplayPort out version | 1.4 |
| Number of downstream ports | 4 |
| Technical details | |
| Height (without stand) | 426 mm |
| Depth (without stand) | 110 mm |
| Width (without stand) | 807 mm |
| Cable lock slot | Yes |
| User controls | picture adjust (brightness, contrast, Eco, ACR, OD, AdaptiveSync, motion blur reduction, X-Res technology, black tuner), colour settings (6-axis, i-Style colour, blue light reducer, gamma, RGB range, colour temp.,), OSD (OSD H. position, OSD V. position, OSD time, OSD background, DDC/CI control, display information), language, miscellaneous (sharpness, video mode adjust, opening logo, power LED, Mac address, USB charge, USB C speed), KVM (HDMI1, HDMI2, DisplayPort, USB C), input select, audio settings (volume, mute audio), recall |
| Sustainability certificates | ErP, TCO |
| Compliance certificates | CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Packaging content | quick start guide, safety guide |
| Power supply type | Internal |
| Weight (with stand) | 9.7 kg |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt angle range | 5 - 23° |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 32 W |
| Power consumption (typical) | 32 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 31.7 kWh |
| Weight & dimensions | |
| Width (with stand) | 807 mm |
| Depth (with stand) | 245.5 mm |
| Height (with stand) | 576 mm |
| Package width | 928 mm |
| Package depth | 186 mm |
| Package height | 480 mm |
| Package weight | 14.1 kg |
| Width | 807 mm |
| Weight | 9.7 kg |
| Depth | 245.5 mm |
| Packaging data | |
| Package type | Box |

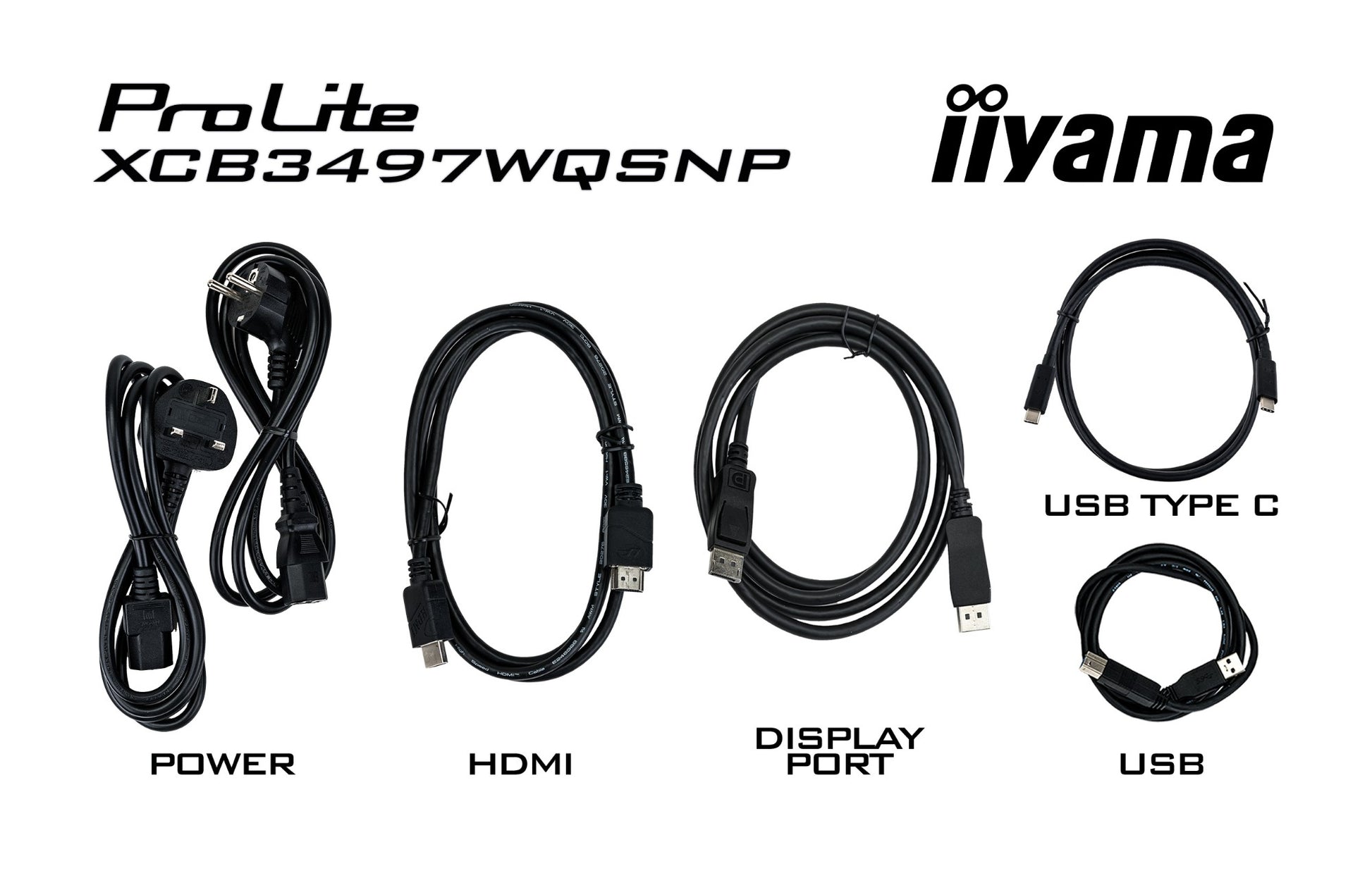

| Cables included | AC, USB, HDMI, DisplayPort, USB Type-C |
| Other features | |
| Control panel | Joystick: Power/Menu (Centre), Forward/Signal Select, Backward, Left/i-Style colour/ECO/BlueLight Reducer, Right/Volume |
