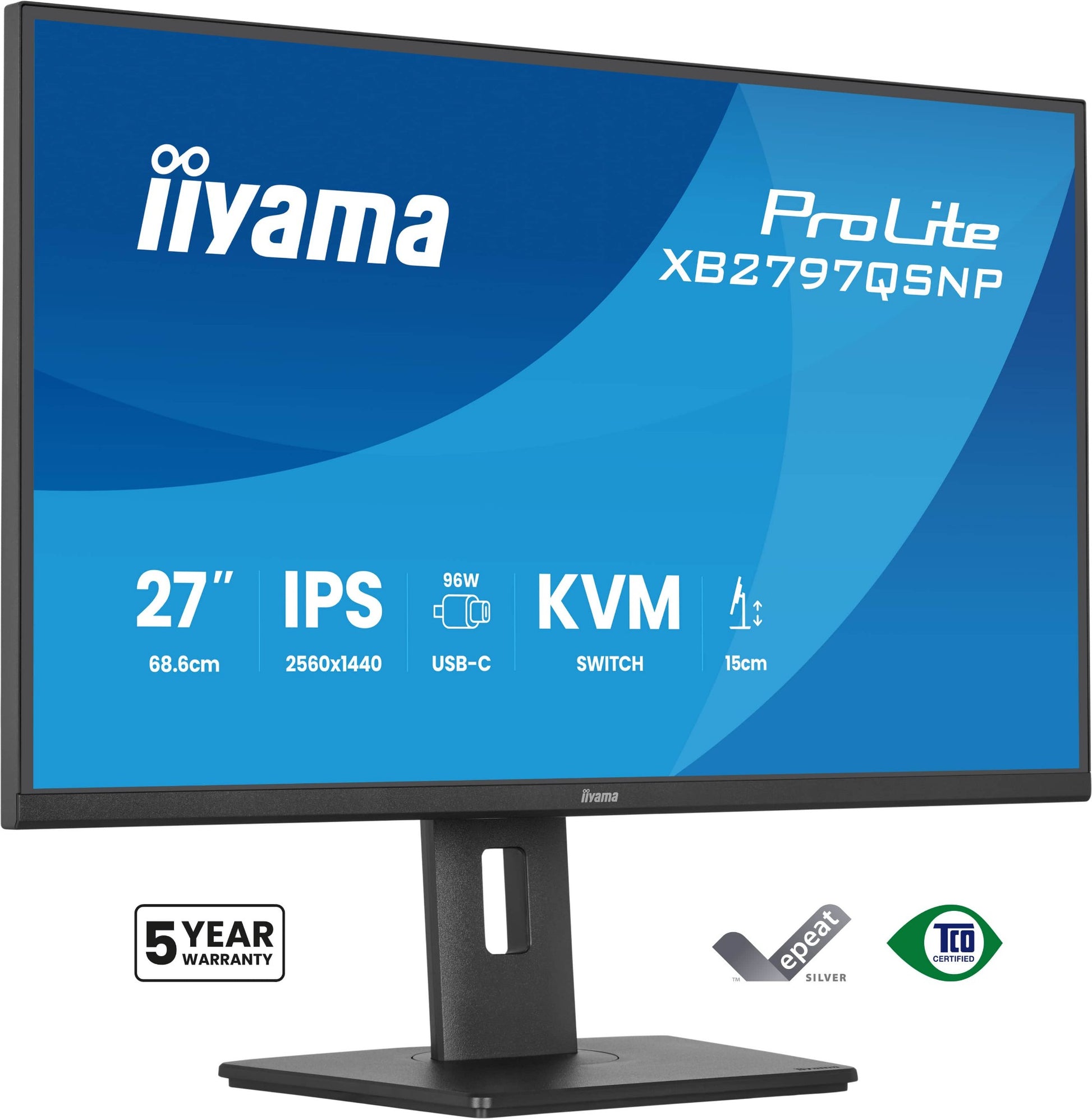

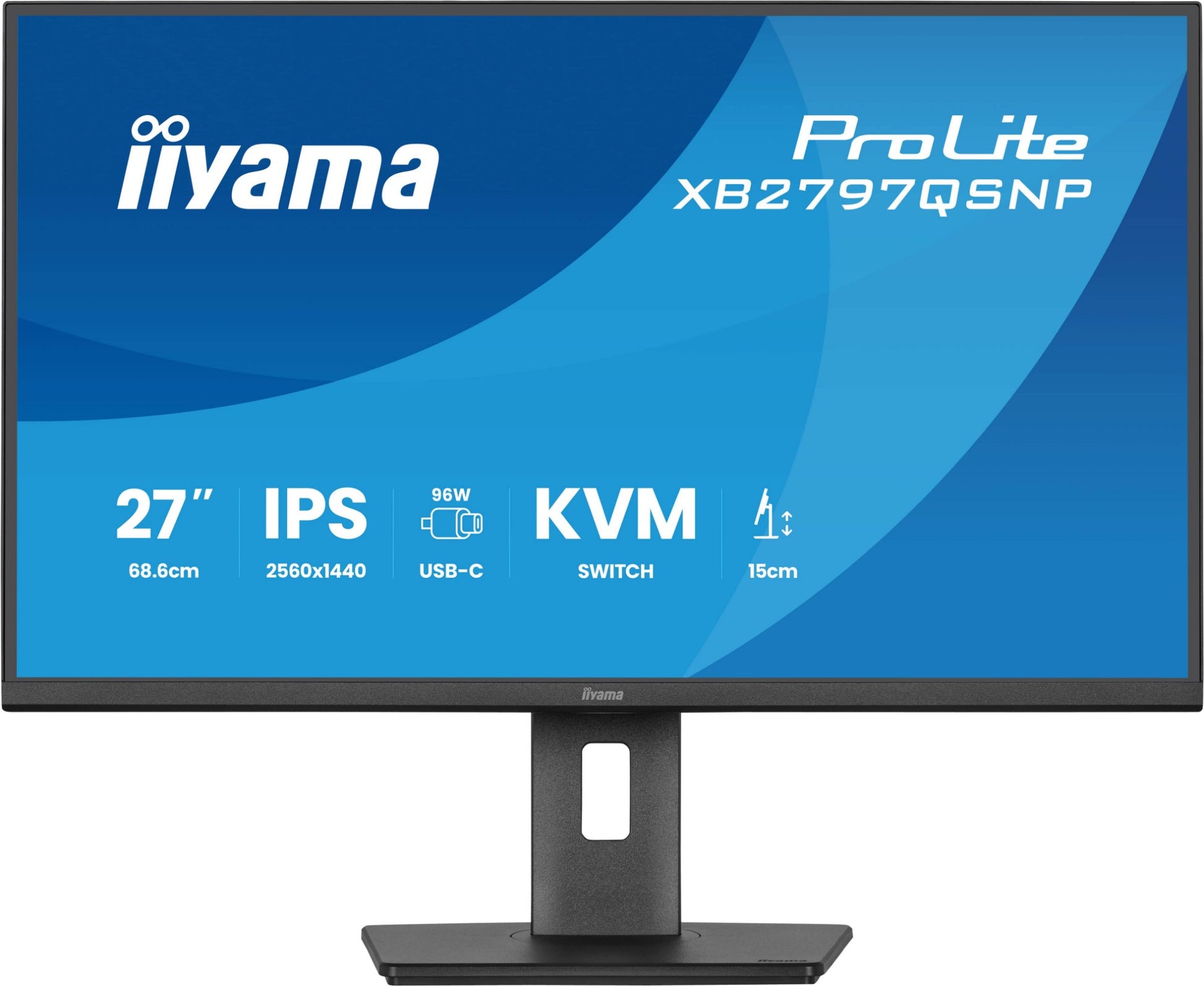

iiyama ProLite XB2797QSNP-B1 27" QHD IPS Monitor
iiyama ProLite XB2797QSNP-B1 27" QHD IPS Monitor
Couldn't load pickup availability
The iiyama ProLite XB2797QSNP-B1 tidies your workspace: one USB-C cable drives this 27" QHD 2560x1440 IPS monitor while charging your laptop.
Stay connected and reduce cable clutter with the ProLite XB2797QSNP. The integrated USB-C dock with 96W power delivery lets you transfer video, audio, data and power through a single cable, keeping your workspace clean and efficient. The RJ45 port ensures a fast, stable wired network connection without additional adapters. With the built-in KVM switch, you can control two computers using a single keyboard and mouse, making it easy to switch between systems and maintain a smooth workflow. The 27” QHD IPS panel delivers high resolution and accurate colour reproduction with wide viewing angles, supporting detailed work such as content creation, spreadsheets or design tasks. The DisplayPort output enables quick setup of a dual-monitor configuration to expand your screen space and boost productivity. The stand offers 15cm height adjustment along with tilt, swivel and pivot functions including portrait mode, so you can work comfortably in your preferred position. Tested and certified by TÜV Rheinland for Eye Comfort, the XB2797QSNP meets strict display standards to help reduce visual fatigue during extended use, supporting long-lasting focus and well-being at work. Available also without USB-C dock: XB2797QSU-B1 .
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 350 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 75 Hz |
| sRGB coverage (typical) | 100% |
| Display surface | Matt |
| HD type | Quad HD |
| Display technology | LCD |
| Contrast ratio (dynamic) | 80000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.233 x 0.233 mm |
| Horizontal scan range | 30 - 112 kHz |
| Viewable size, horizontal | 59.7 cm |
| Viewable size, vertical | 33.6 cm |
| Display resolution | 2560 x 1440 pixels |
| Display diagonal | 68.6 cm (27") |
| Contrast ratio (typical) | 1000:1 |
| NTSC coverage (typical) | 72% |
| Touchscreen | No |
| Panel type | IPS |
| Display diagonal (metric) | 68.5 cm |
| Response time (MPRT) | 1 ms |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| AMD FreeSync | Yes |
| VESA Adaptive Sync support | Yes |
| Flicker-free technology | Yes |
| Management features | |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Power | |
| Power cable length | 1.5 m |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 21 W |
| Power consumption (typical) | 21 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 21 kWh |
| Design | |
| Product colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| Headphone out | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 96 W |
| Number of USB Type-C upstream ports quantity | 1 |
| Built-in KVM switch | Yes |
| DisplayPort out quantity | 1 |
| Number of downstream ports | 4 |
| Technical details | |
| Height (without stand) | 403.5 mm |
| Cable lock slot | Yes |
| User controls | picture adjust (brightness, contrast, ECO, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, RGB range, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time, OSD background, DDC/CI control, display information), language, extra 1 (sharpness, video mode adjust, opening logo, power LED, USB charge, USB-C speed, MST DP-out), Extra 2 (shortcut key, Mac address, FW version), KVM (HDMI, DisplayPort, USB-C), input select, audio settings (volume, mute), reset (reset all?) |
| Sustainability certificates | ErP, TCO |
| Compliance certificates | CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Packaging content | quick start guide, safety guide |
| Weight (with stand) | 5.9 kg |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | -60 - 60° |
| Pivot | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Weight & dimensions | |
| Width (with stand) | 613 mm |
| Depth (with stand) | 209.5 mm |
| Height (with stand) | 547.5 mm |
| Package width | 691 mm |
| Package depth | 142 mm |
| Package height | 447 mm |
| Package weight | 8 kg |
| Width | 613 mm |
| Weight | 5.9 kg |
| Depth | 209.5 mm |
| Packaging data | |
| USB cable length | 1.5 m |
| Cables included | AC, USB, HDMI, USB Type-C |
| HDMI cable length | 1.5 m |
| Other features | |
| Control panel | Joystick: Power/Menu (Centre), Up/Signal Select, Down, Left/Shortcut, Right/Volume |
