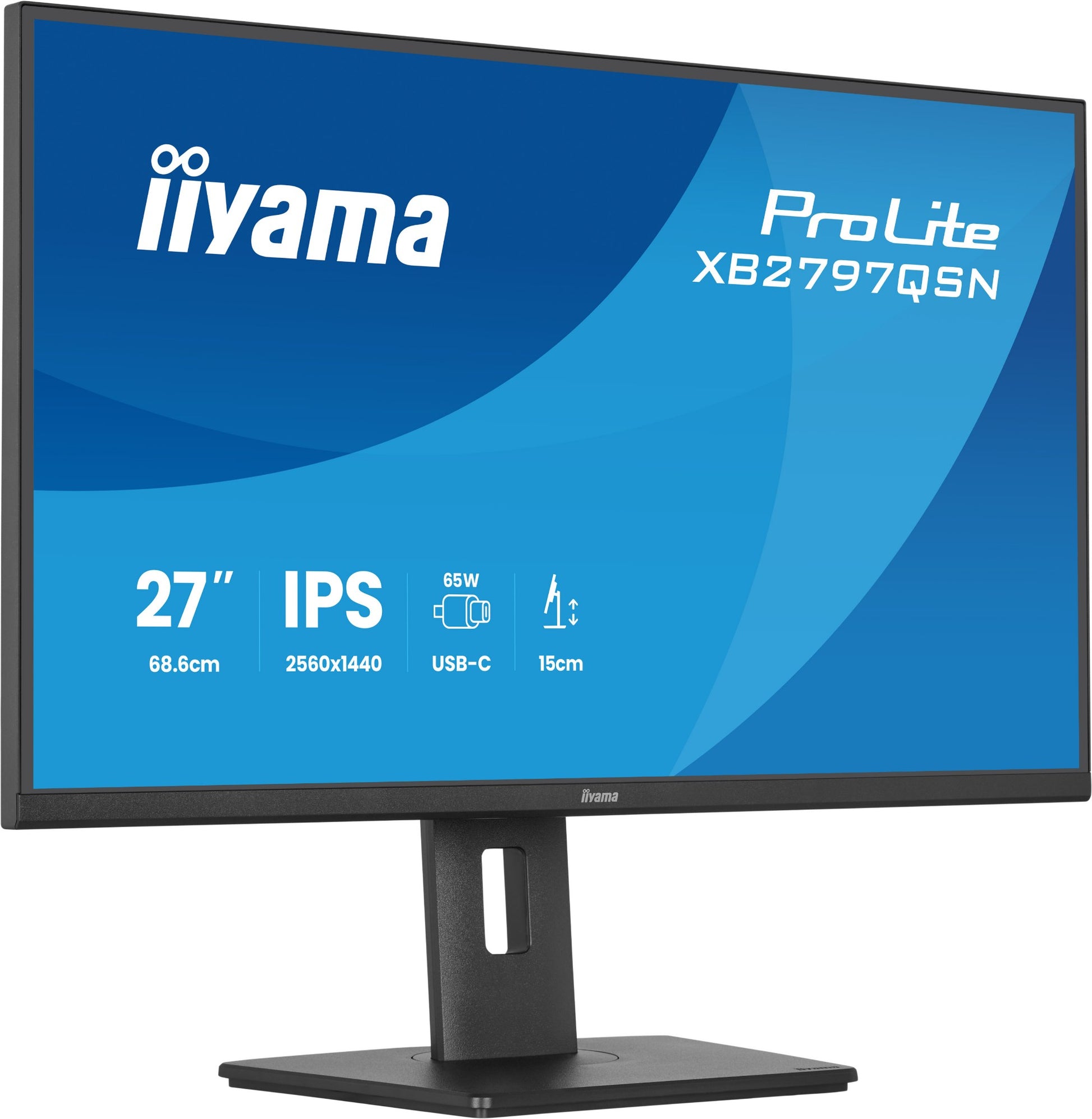

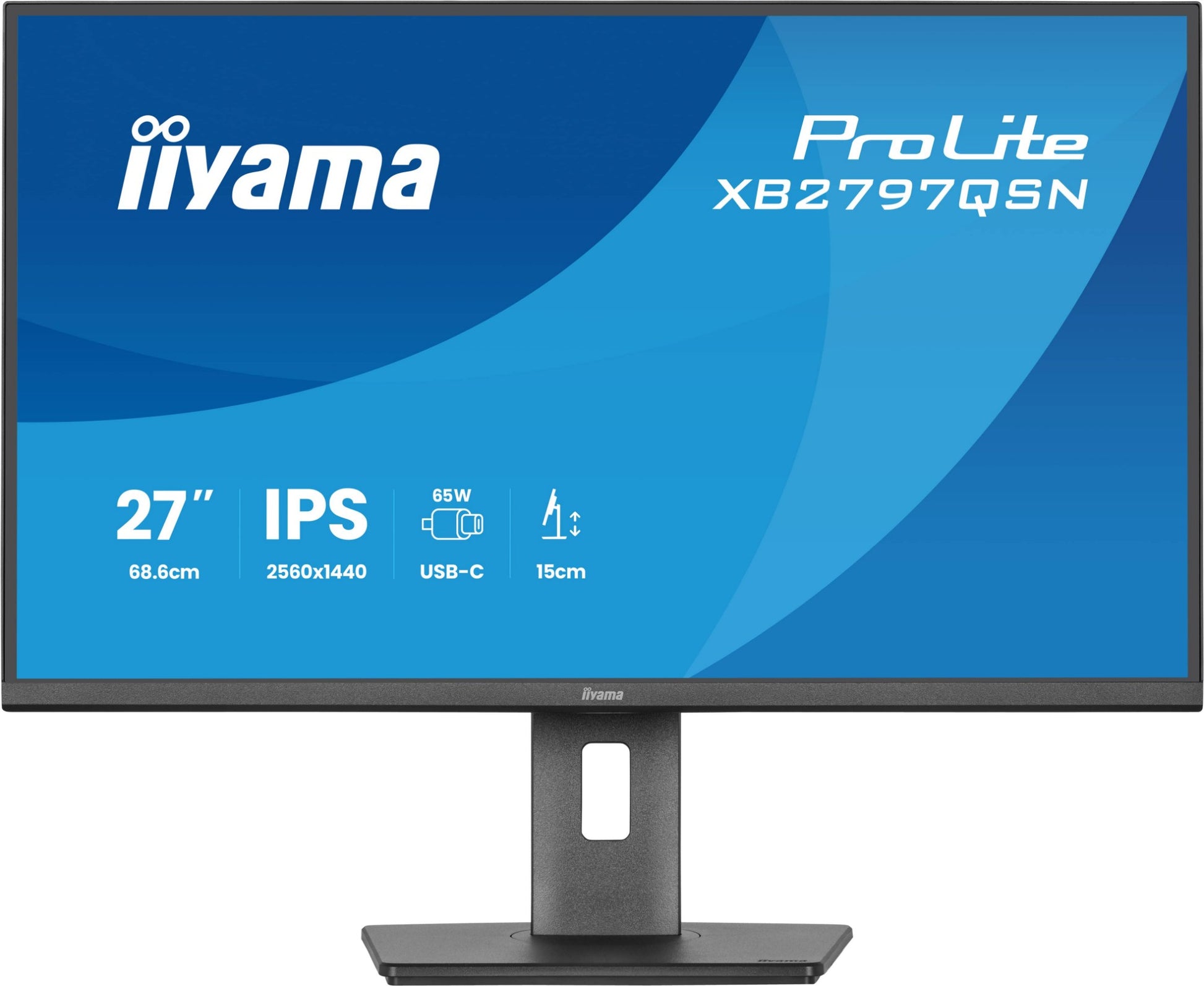

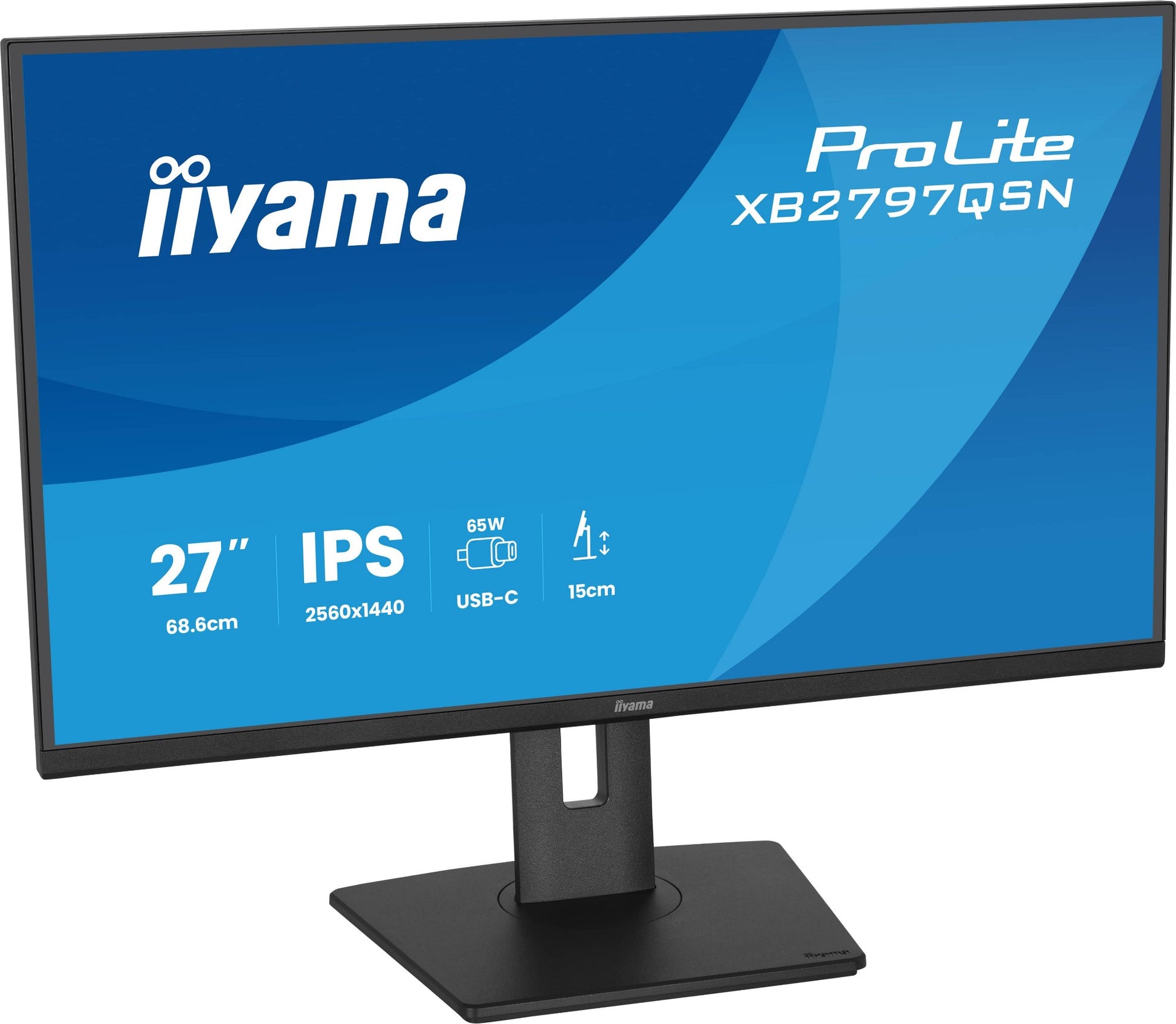

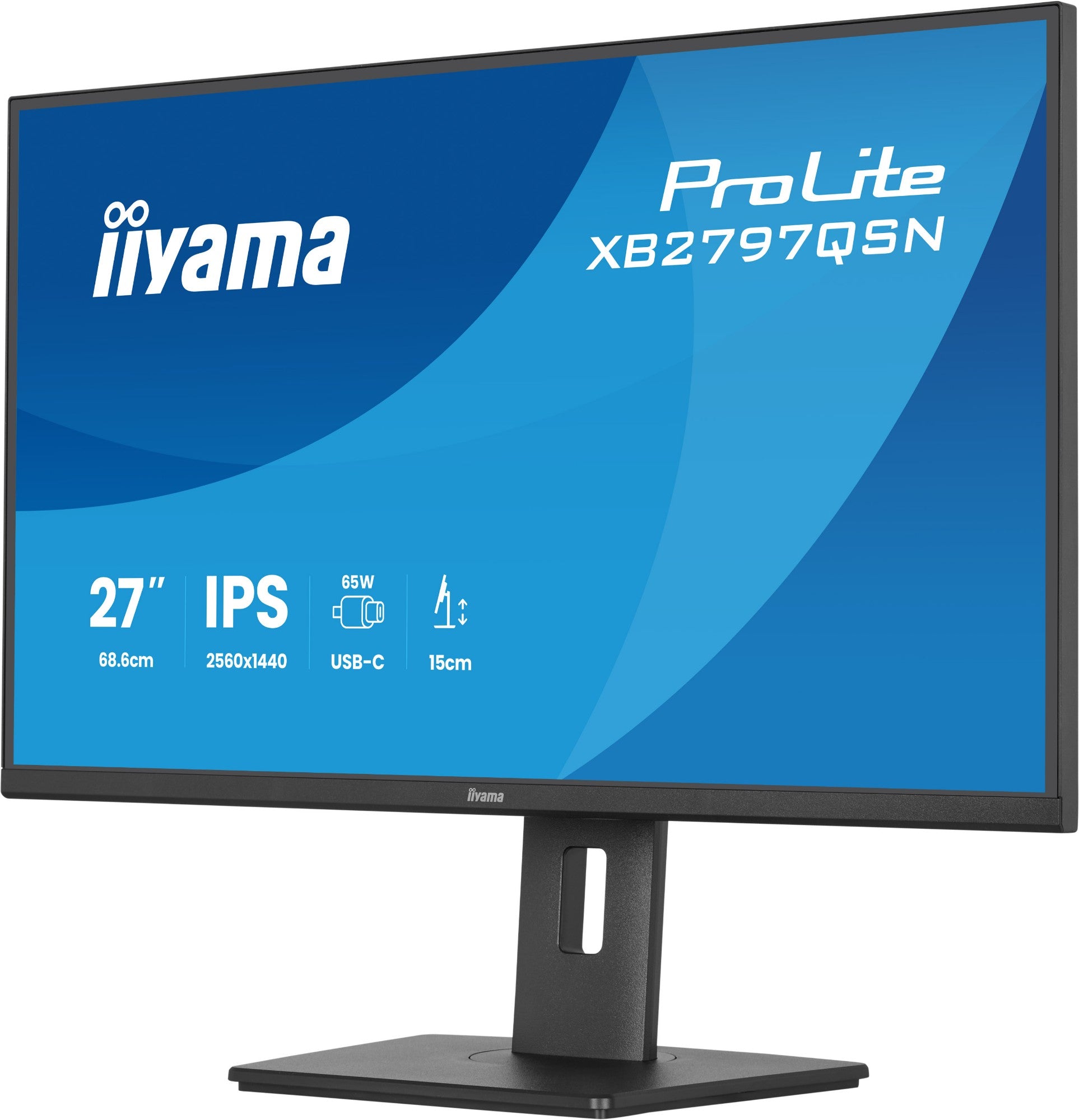

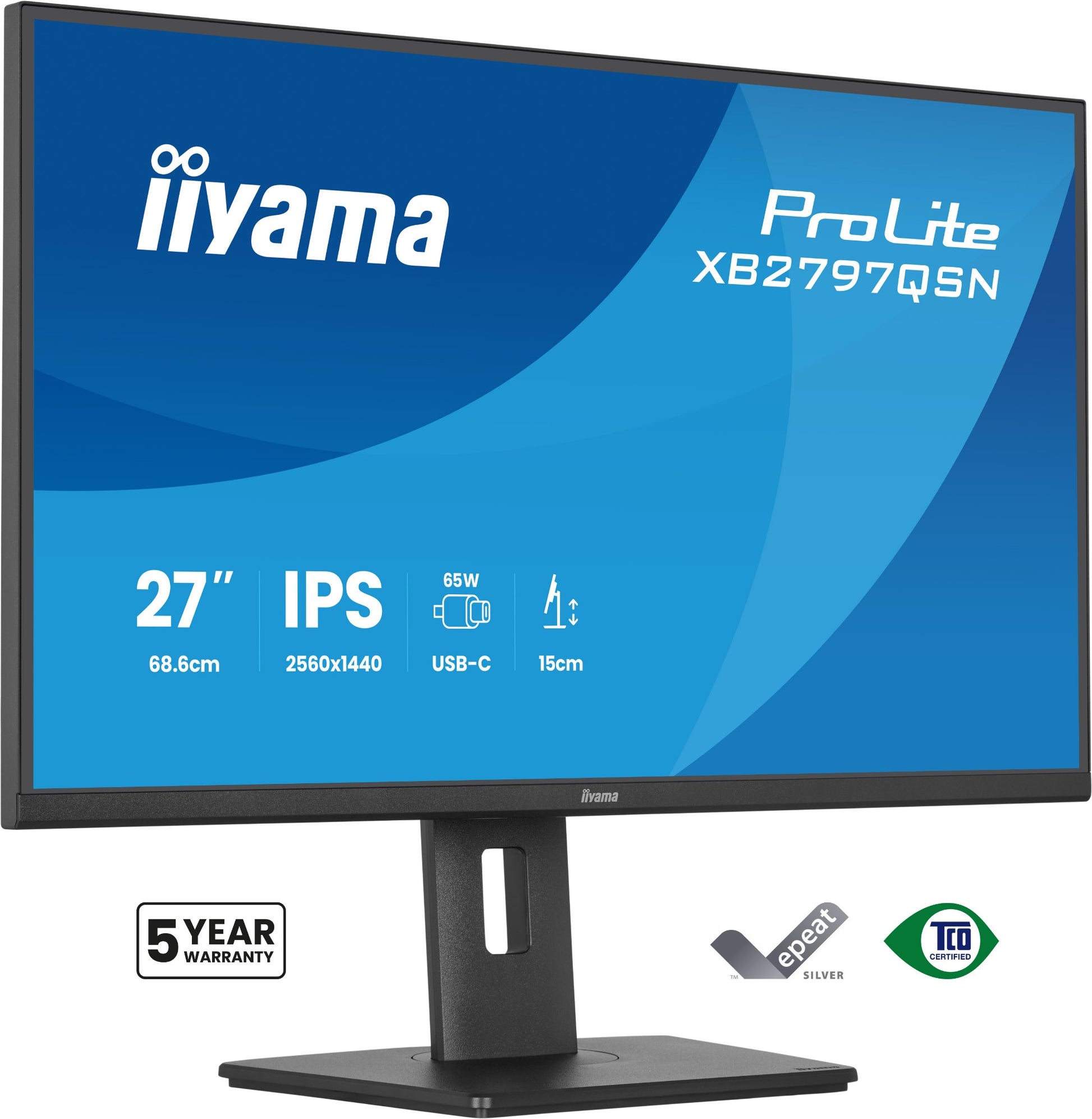

iiyama ProLite XB2797QSN-B1 27" QHD IPS Monitor
iiyama ProLite XB2797QSN-B1 27" QHD IPS Monitor
Couldn't load pickup availability
The iiyama ProLite XB2797QSN-B1 tidies your workspace: one USB-C cable drives this 27" QHD 2560x1440 IPS monitor while charging your laptop.
Designed for modern professionals who value efficiency and a clutter-free workspace, the ProLite XB2797QSN brings advanced connectivity and high-quality visuals together in a single, versatile 27” display. The integrated USB-C dock with 65W Power Delivery allows you to transmit video, audio and data while simultaneously powering your laptop through just one cable. This simplifies your desk setup, reduces cable clutter and makes hot-desking effortless. The built-in RJ45 (LAN) port provides a stable wired network connection directly through the monitor, eliminating the need for extra adapters and ensuring reliable performance throughout the working day. The 27” QHD IPS panel (2560×1440) delivers sharp detail and accurate colour reproduction with wide viewing angles, making it ideal for spreadsheets, creative projects and multitasking. A DisplayPort output enables easy daisy-chaining for a dual-monitor configuration, helping you expand your workspace and increase productivity without complication. A 15cm height-adjustable stand with tilt, swivel and pivot functions, including portrait mode, allows you to tailor the screen position to your exact ergonomic needs. TÜV Rheinland Eye Comfort certification confirms reduced blue light emissions and flicker-free performance, supporting comfortable viewing and sustained concentration during long working hours.
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 350 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| DDC/CI | Yes |
| Maximum refresh rate | 75 Hz |
| sRGB coverage (typical) | 100% |
| Display surface | Matt |
| HD type | Quad HD |
| Display technology | LCD |
| Contrast ratio (dynamic) | 80000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.233 x 0.233 mm |
| Horizontal scan range | 30 - 112 kHz |
| Viewable size, horizontal | 59.7 cm |
| Viewable size, vertical | 33.6 cm |
| Display resolution | 2560 x 1440 pixels |
| Display diagonal | 68.6 cm (27") |
| Contrast ratio (typical) | 1000:1 |
| NTSC coverage (typical) | 72% |
| Touchscreen | No |
| Panel type | IPS |
| Display diagonal (metric) | 68.5 cm |
| Response time (MPRT) | 1 ms |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in camera | No |
| AMD FreeSync | Yes |
| Flicker-free technology | Yes |
| Management features | |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Power | |
| Power cable length | 1.5 m |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 21 W |
| Power consumption (typical) | 21 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 21.4 kWh |
| Design | |
| Market positioning | Office |
| Product colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| Headphone out | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Number of USB Type-C upstream ports quantity | 1 |
| DisplayPort out quantity | 1 |
| Number of downstream ports | 4 |
| Technical details | |
| Height (without stand) | 403.5 mm |
| Cable lock slot | Yes |
| User controls | picture adjust (brightness, contrast, ECO, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, RGB range, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time, OSD background, DDC/CI control, display information), language, extra 1 (sharpness, video mode adjust, opening logo, power LED, USB charge, USB-C speed, MST DP-out), extra 2 (shortcut key, Mac address, FW version), input select, audio settings (volume, mute), reset (reset all?) |
| Sustainability certificates | ErP, TCO |
| Compliance certificates | CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Packaging content | quick start guide, safety guide |
| Weight (with stand) | 5.8 kg |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | -60 - 60° |
| Pivot | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Weight & dimensions | |
| Width (with stand) | 613 mm |
| Depth (with stand) | 209.5 mm |
| Height (with stand) | 547.5 mm |
| Package width | 691 mm |
| Package depth | 142 mm |
| Package height | 447 mm |
| Package weight | 8 kg |
| Width | 613 mm |
| Weight | 5.8 kg |
| Depth | 209.5 mm |
| Packaging data | |
| USB cable length | 1 m |
| Cables included | AC, HDMI, USB Type-C |
| HDMI cable length | 1.5 m |
| Other features | |
| Control panel | Joystick: Power/Menu (Centre), Up/Signal Select, Down, Left/Shortcut, Right/Volume |
