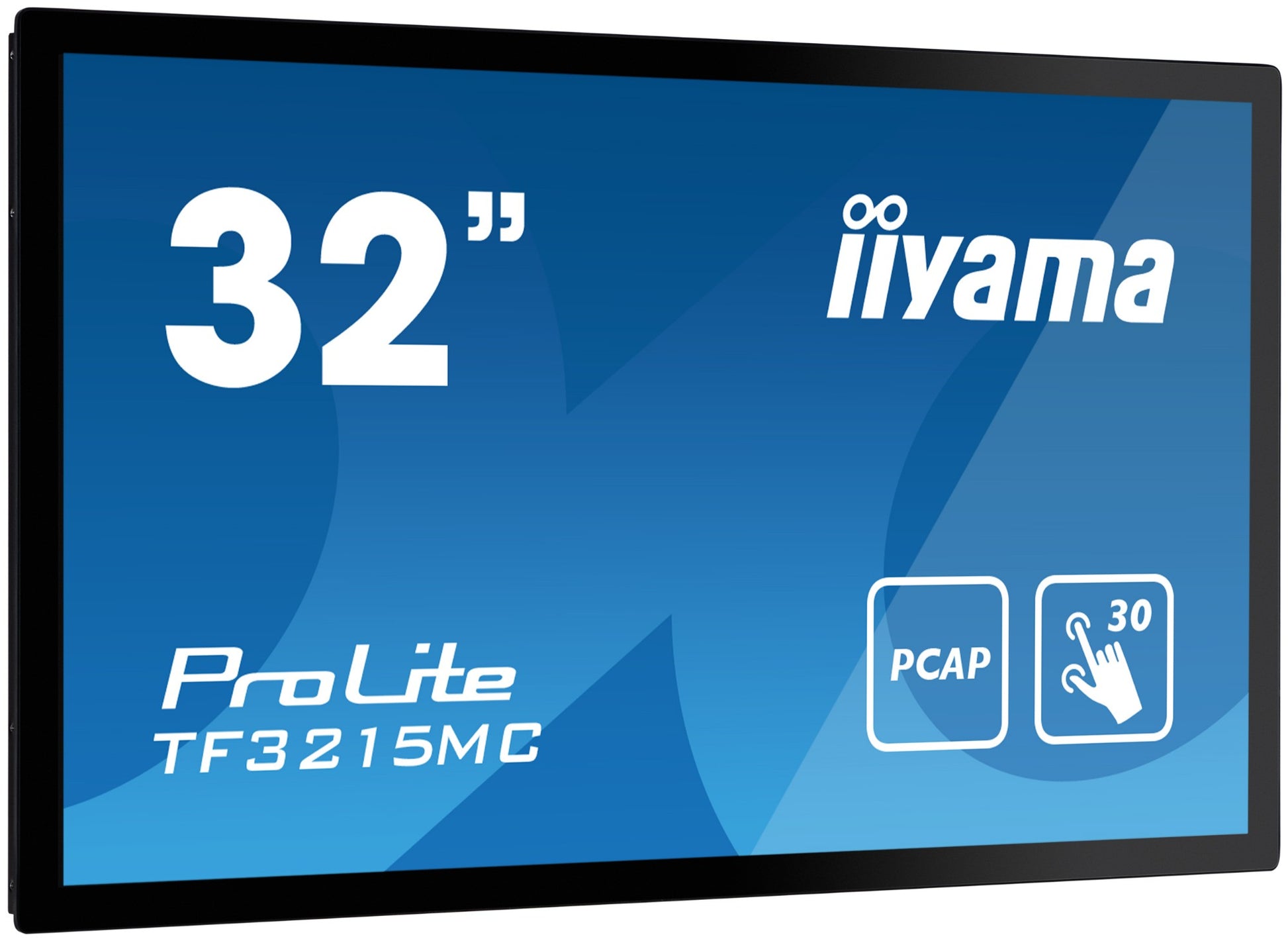

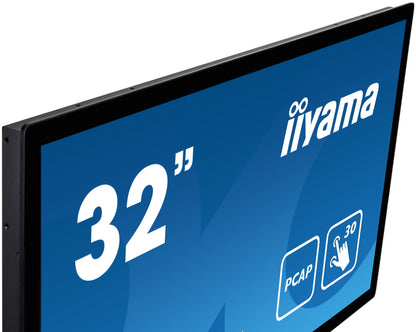

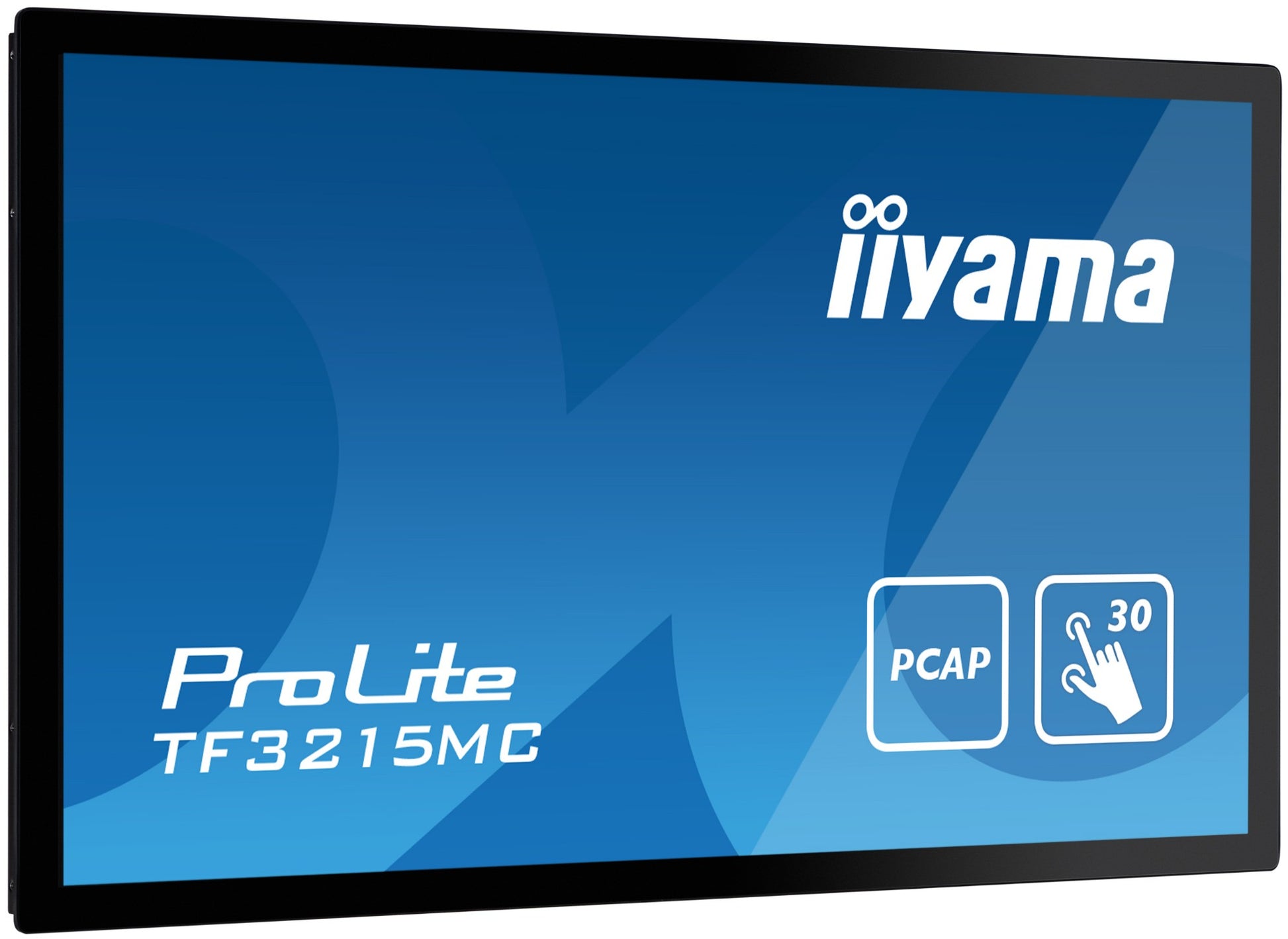

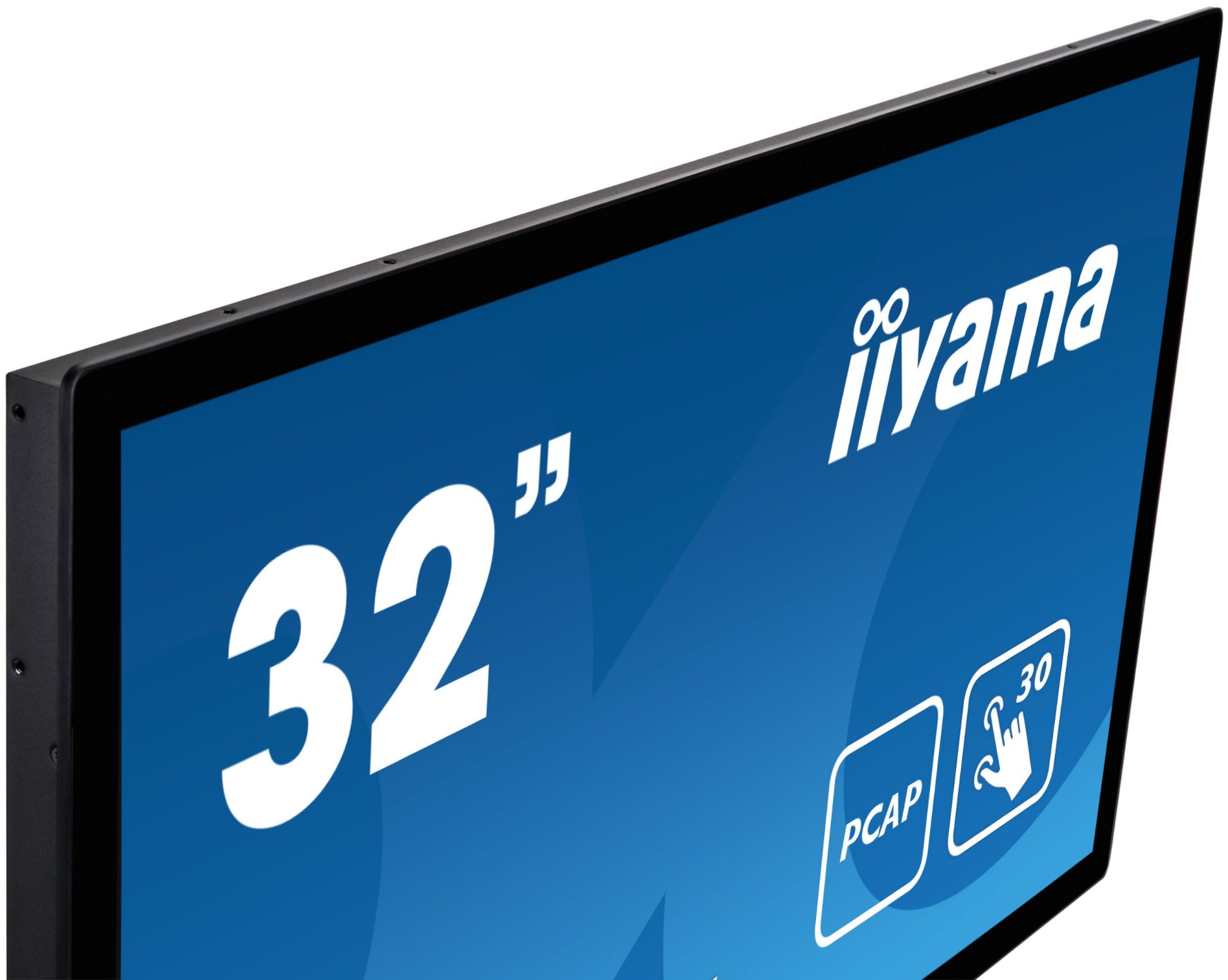

iiyama ProLite TF3215MC-B2 31.5" Full HD VA Touch Monitor
iiyama ProLite TF3215MC-B2 31.5" Full HD VA Touch Monitor
Couldn't load pickup availability
The iiyama ProLite TF3215MC-B2 brings touch control to a 31.5" Full HD 1920x1080 VA monitor — ideal for POS, kiosks and interactive work.

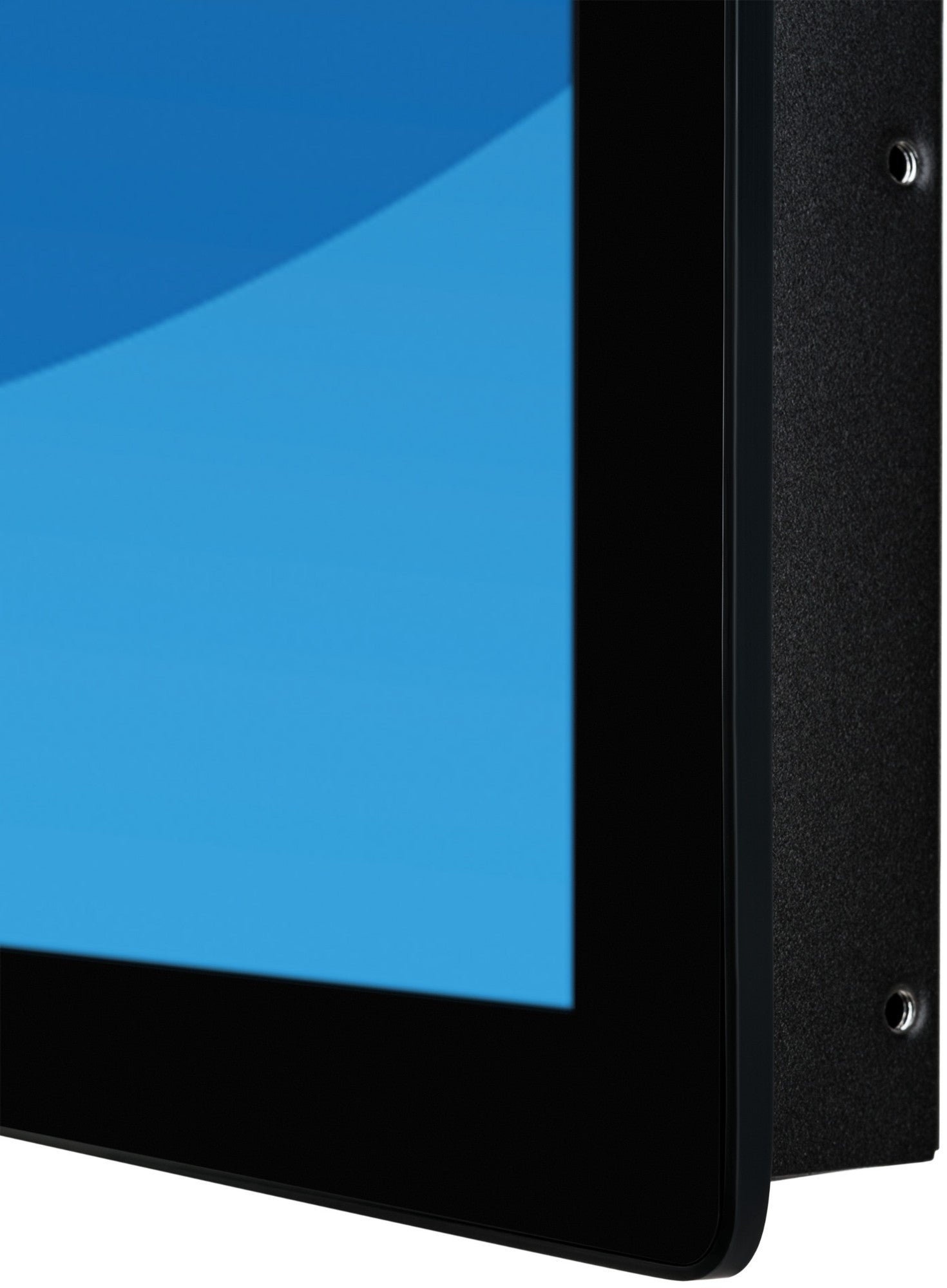

The ProLite TF3215MC-B2 with 30-point PCAP touch technology is a open frame monitor with an eye-catching edge-to-edge glass design. Thanks to this completely frame-less glass surface, it guarantees high durability and scratch resistance, making it perfect for kiosk systems and high-traffic public applications. The VA panel technology offers higher contrast and darker blacks. Equipped with a foam seal, the monitor supports seamless integration and the IP65 rating ensures dust and water resistance from the front. Portrait and landscape orientation ensures flexible mounting options for 24/7 operation in almost any installation. The TF3215MC-B2 is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media applications.
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 500 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.3637 x 0.3637 mm |
| Horizontal scan range | 30 - 68 kHz |
| Vertical scan range | 47 - 63 Hz |
| Viewable size, horizontal | 69.8 cm |
| Viewable size, vertical | 39.3 cm |
| Display resolution | 1920 x 1080 pixels |
| Response time | 8 ms |
| Display diagonal | 80 cm (31.5") |
| Contrast ratio (typical) | 3000:1 |
| Surface hardness | 7H |
| Display brightness (peak) | 500 cd/m² |
| Touchscreen type | Kiosk |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 30 |
| Panel type | VA |
| Colour depth | 8 bit |
| Display diagonal (metric) | 80 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 460 cd/m² |
| Positional accuracy | 2 mm |
| Response time measurement type | GTG (Gray to Gray) |
| Audio | |
| Built-in speaker(s) | No |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| Built-in camera | No |
| AMD FreeSync | No |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| NVIDIA G-SYNC | No |
| Operating hours (hours/days) | 24/7 |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Plug and Play | Yes |
| Design | |
| Market positioning | Office |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Housing material | Metal |
| Glass thickness | 3 mm |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| USB Touch port | Yes |
| Technical details | |
| Height (without stand) | 437 mm |
| Depth (without stand) | 61 mm |
| Width (without stand) | 742.5 mm |
| Cable lock slot | No |
| User controls | Picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, poition, H-Position, V-Position, touch switch), option (reset, language, source select, display mode, factory) |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Brightness | 460 cd/m² |
| Power supply type | Internal |
| Active display area (W x H) | 698.4 x 392.8 mm |
| Weight (with stand) | 10 kg |
| Touch method | finger, glove (latex), capacitive stylus |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| Cable management | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 32 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 27.5 kWh |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width (with stand) | 743 mm |
| Depth (with stand) | 61 mm |
| Height (with stand) | 437 mm |
| Weight (without stand) | 10 kg |
| Package width | 890 mm |
| Package depth | 155 mm |
| Package height | 630 mm |
| Package weight | 13.3 kg |
| Width | 743 mm |
| Weight | 10 kg |
| Height | 437 mm |
| Depth | 61 mm |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI |
| Other features | |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| Supplied AC adapter type | AC |
