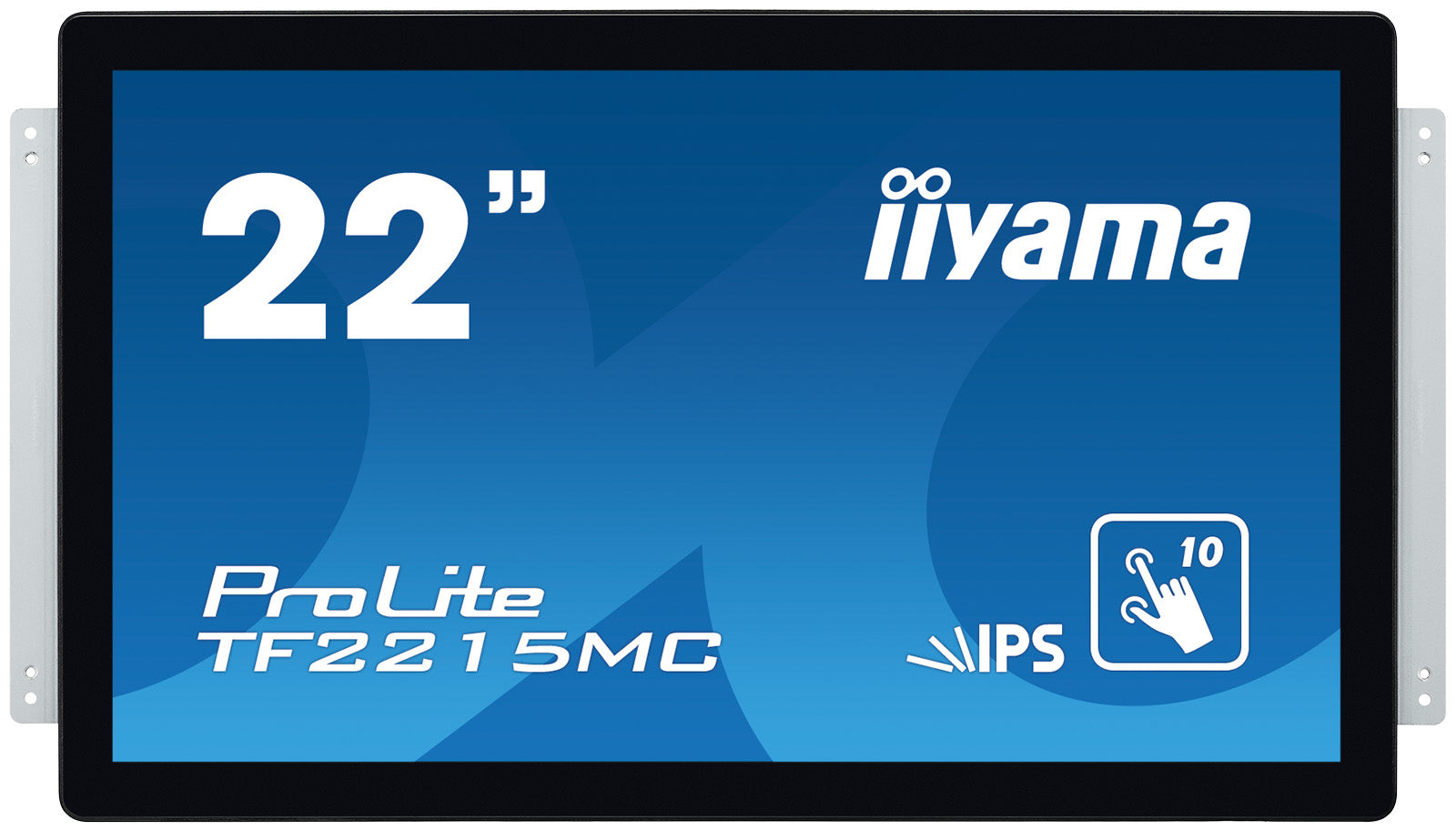

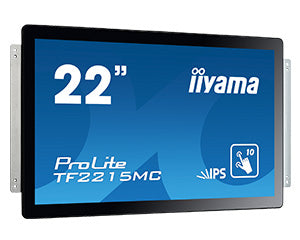

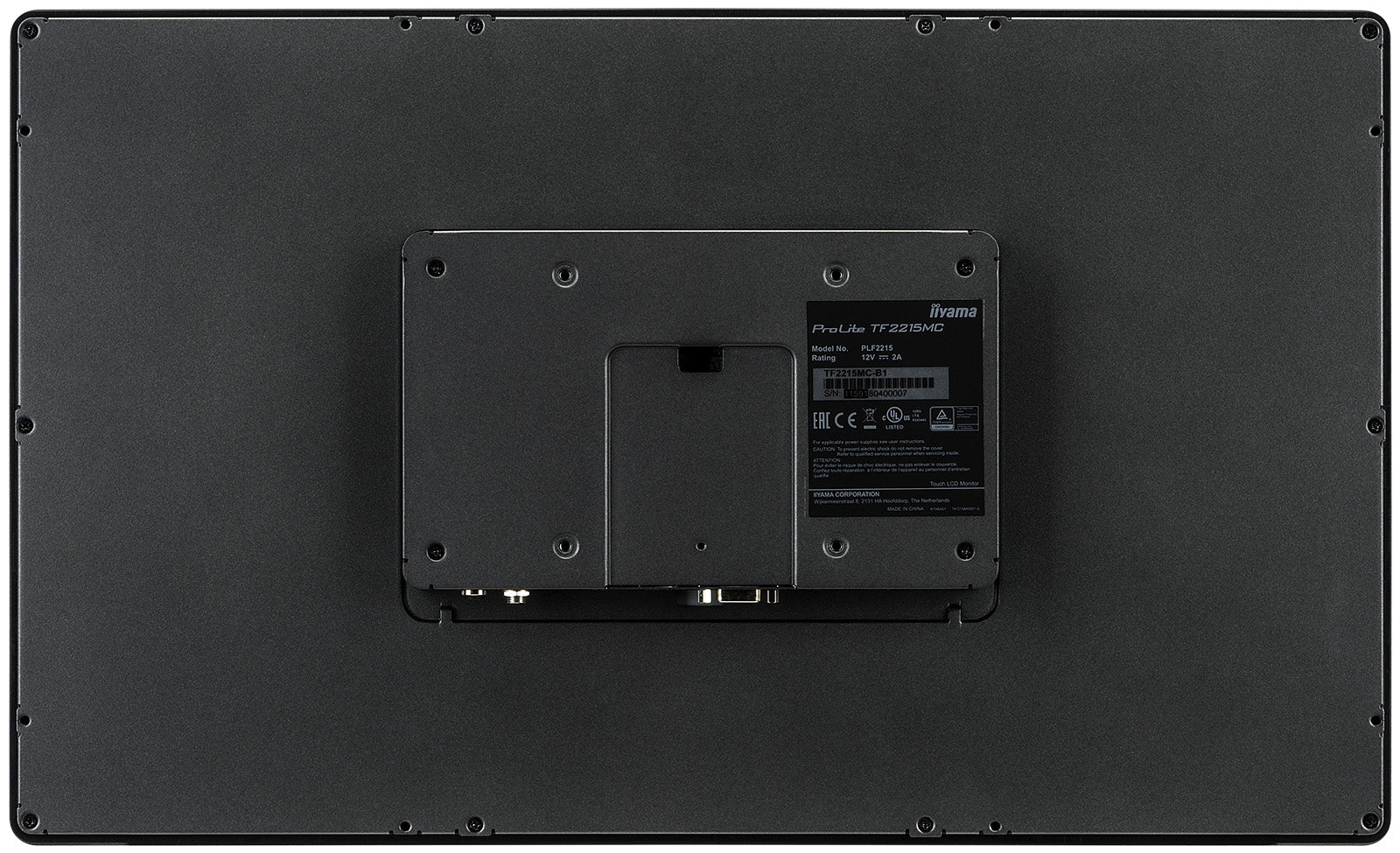

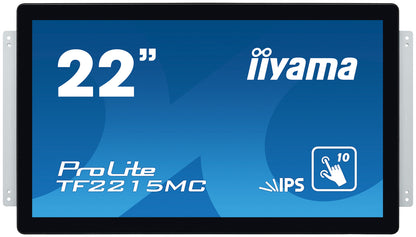

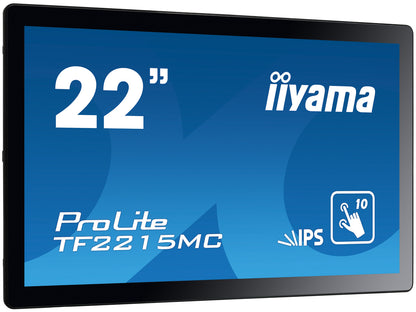

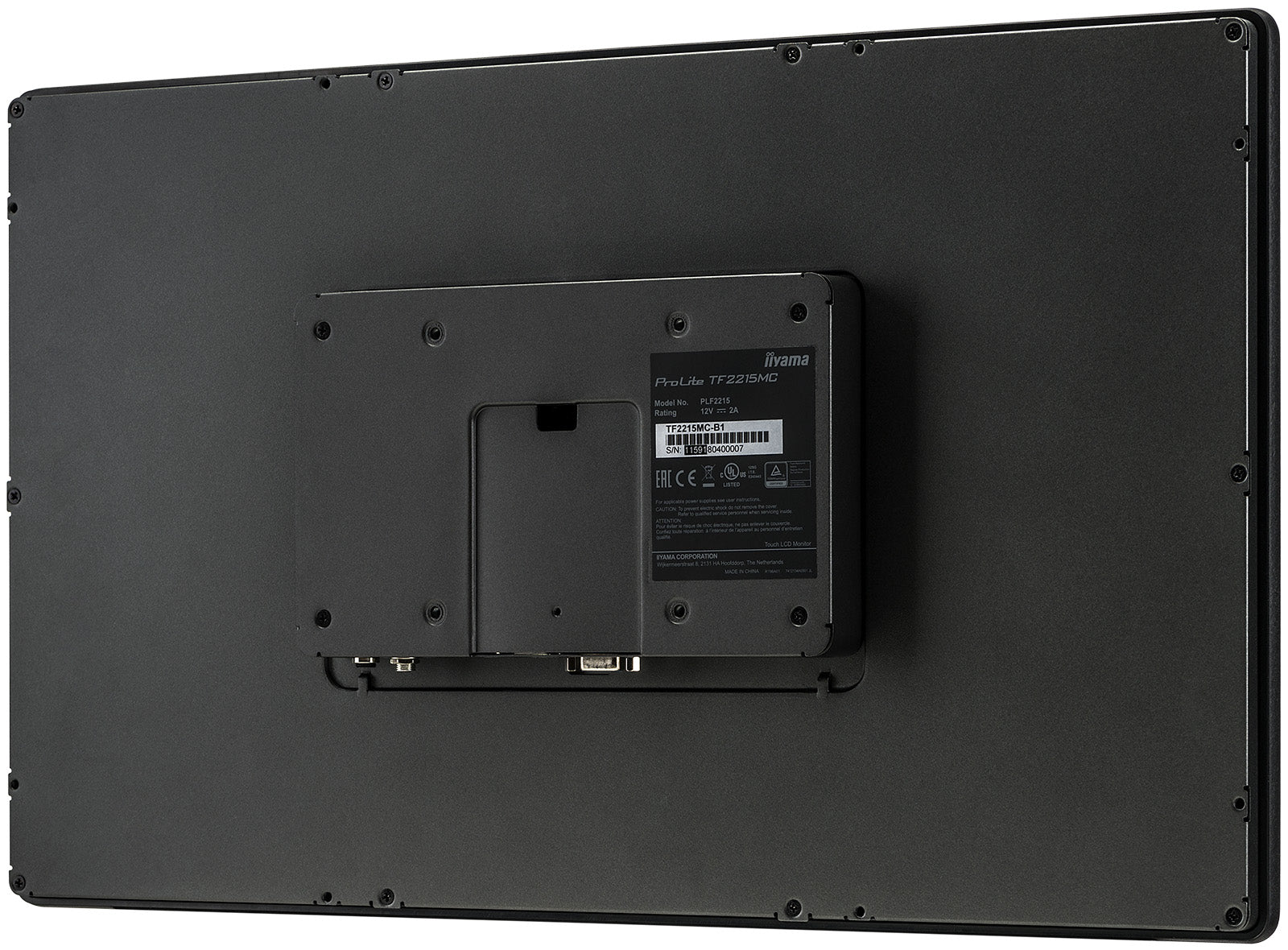

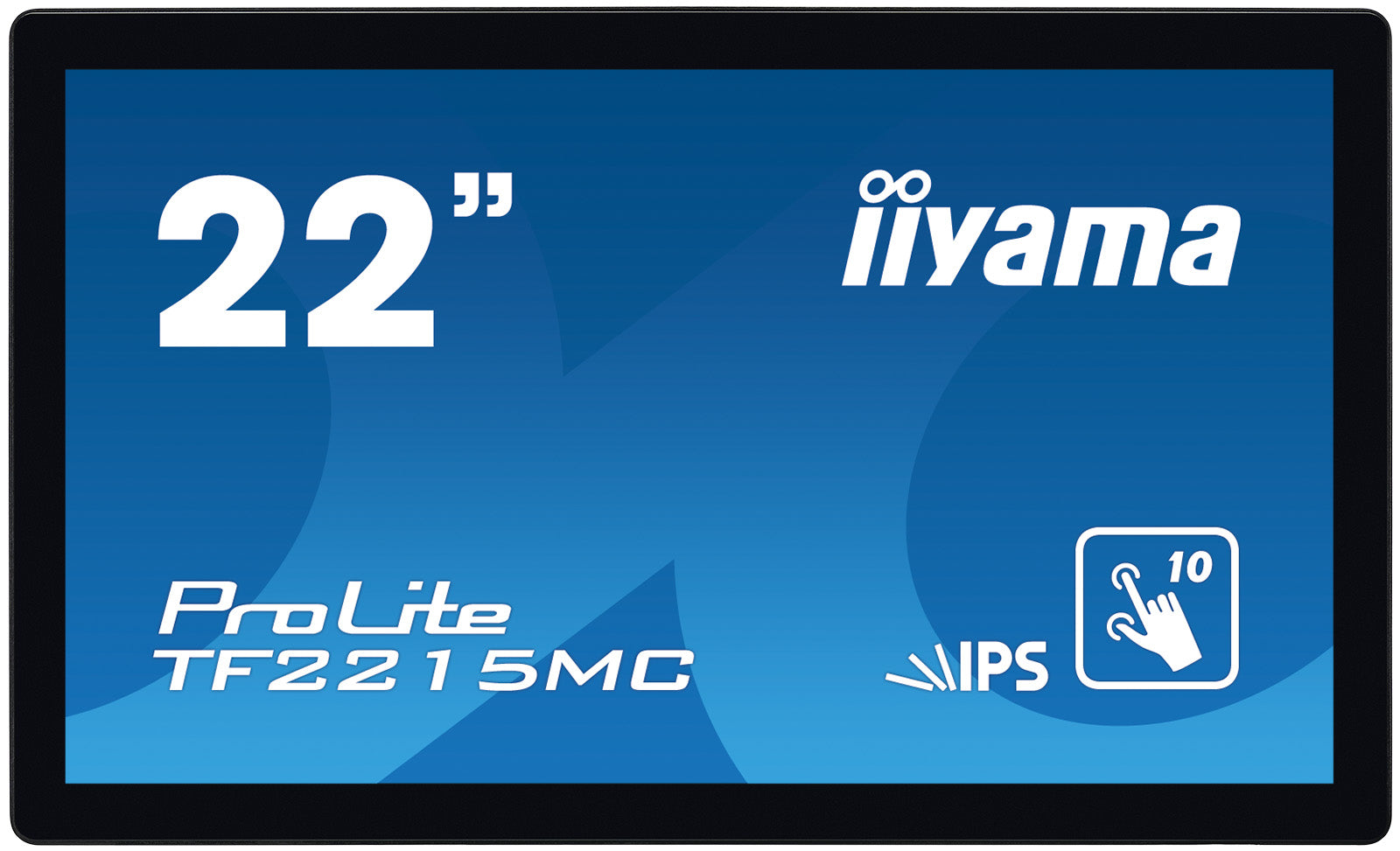

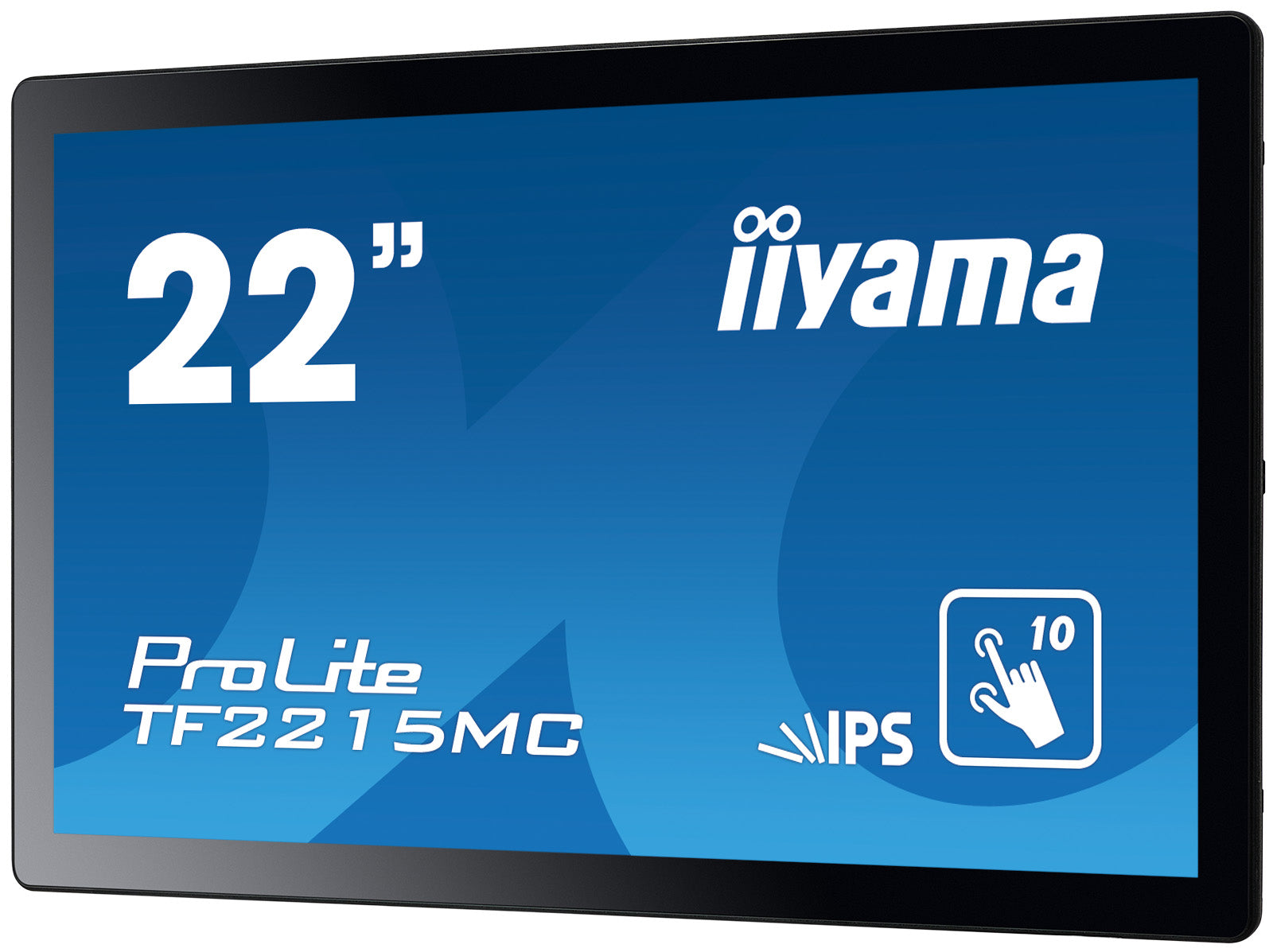

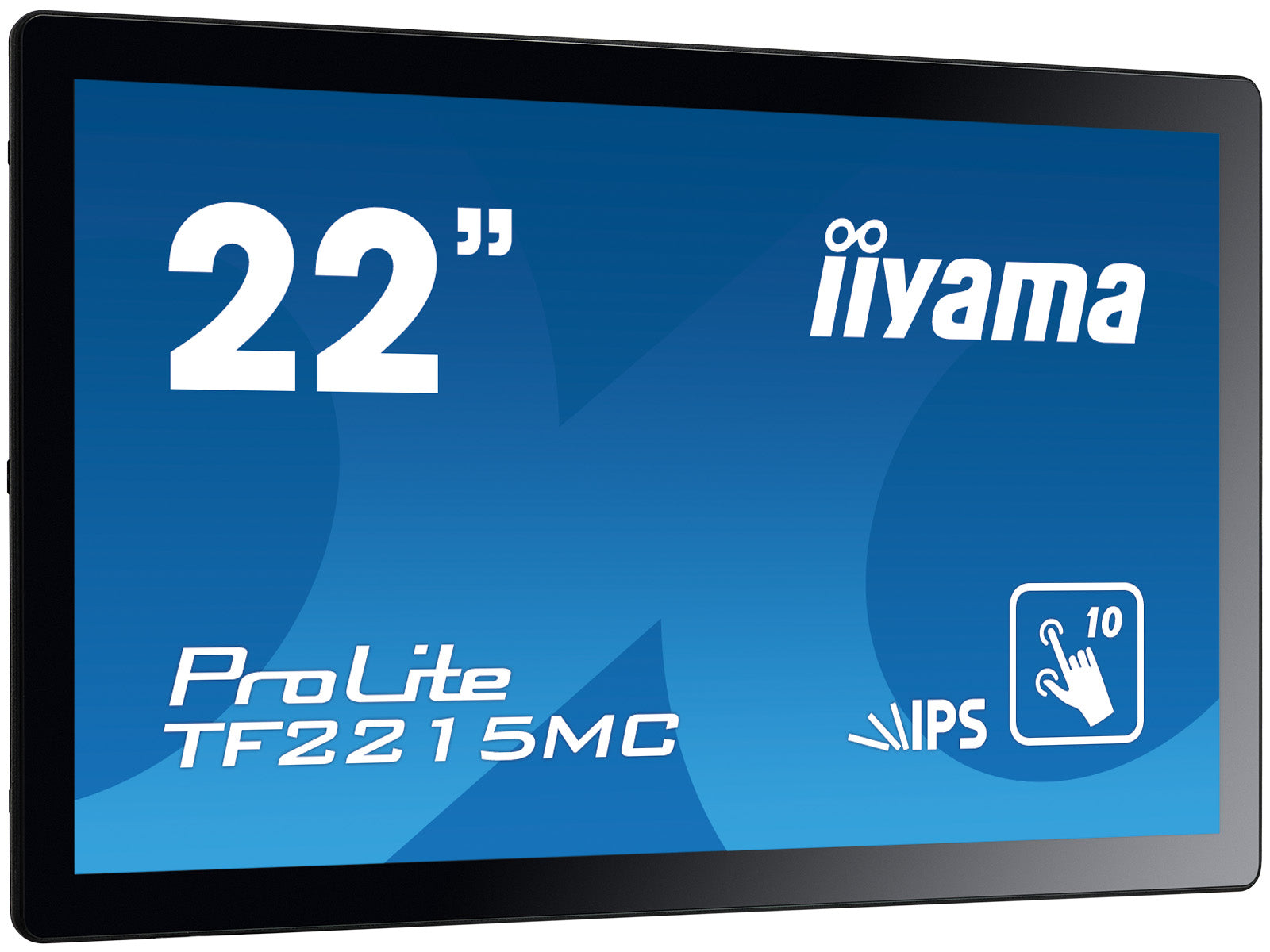

iiyama ProLite TF2215MC-B2 21.5" Full HD IPS Touch Monitor
iiyama ProLite TF2215MC-B2 21.5" Full HD IPS Touch Monitor
Couldn't load pickup availability
The iiyama ProLite TF2215MC-B2 brings touch control to a 21.5" Full HD 1920x1080 IPS monitor — ideal for POS, kiosks and interactive work.
The ProLite TF2215MC-B2 (21.5 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2215MC-B2 can be equipped with optional external mounting brackets ( OMK3-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 350 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.78 million colours |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.24795 x 0.24795 mm |
| Horizontal scan range | 31.4 - 82 kHz |
| Vertical scan range | 56 - 75 Hz |
| Aspect ratio | 16:9 |
| Viewable size, horizontal | 47.6 cm |
| Viewable size, vertical | 26.8 cm |
| Separate H/V sync | Yes |
| Display resolution | 1920 x 1080 pixels |
| Response time | 14 ms |
| Display diagonal | 54.6 cm (21.5") |
| Contrast ratio (typical) | 1000:1 |
| Surface hardness | 7H |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Display diagonal (metric) | 54.6 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 315 cd/m² |
| Performance | |
| Built-in microphone | No |
| Built-in camera | No |
| AMD FreeSync | No |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| NVIDIA G-SYNC | No |
| OmniTapps Multitouch compatibility | No |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 6 |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Plug and Play | Yes |
| Design | |
| Certification | CB, CE, TÜV-Bauart, CU, cULus, REACH |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| HDMI | Yes |
| USB Touch port | Yes |
| Technical details | |
| Height (without stand) | 315 mm |
| Depth (without stand) | 42.5 mm |
| Width (without stand) | 520 mm |
| Placement supported | Horizontal/Vertical |
| Display viewable area (HxV) | 476.064 x 267.786 mm |
| User controls | picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, cULus, REACH, RoHS, WEEE |
| Packaging content | AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad |
| Brightness | 315 cd/m² |
| Power supply type | External |
| Active display area (W x H) | 476.064 x 267.786 mm |
| Weight (with stand) | 4.4 kg |
| Touch method | stylus, finger, glove (latex) |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Power | |
| Power consumption (standby) | 1.05 W |
| Power consumption (typical) | 20.8 W |
| Power consumption (off) | 0.32 W |
| Energy efficiency scale | A to G |
| AC adapter output voltage | 12 V |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width (with stand) | 520 mm |
| Depth (with stand) | 42.5 mm |
| Height (with stand) | 315 mm |
| Weight (without stand) | 4.4 kg |
| Width | 520 mm |
| Weight | 4.4 kg |
| Height | 315 mm |
| Depth | 42.5 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort |
| AC adapter included | Yes |
| Other features | |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Supplied AC adapter type | AC |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
