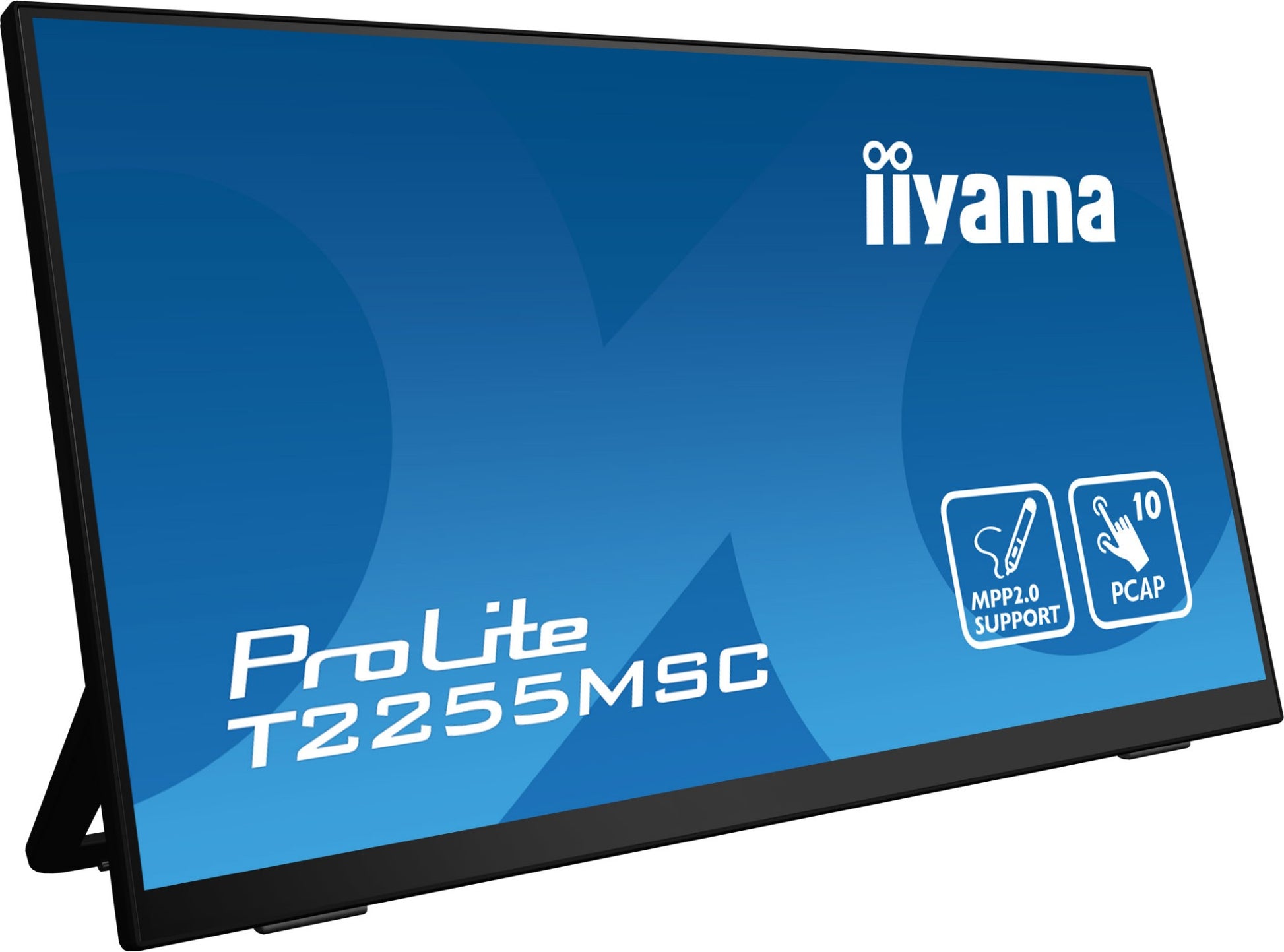

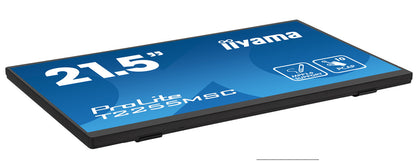

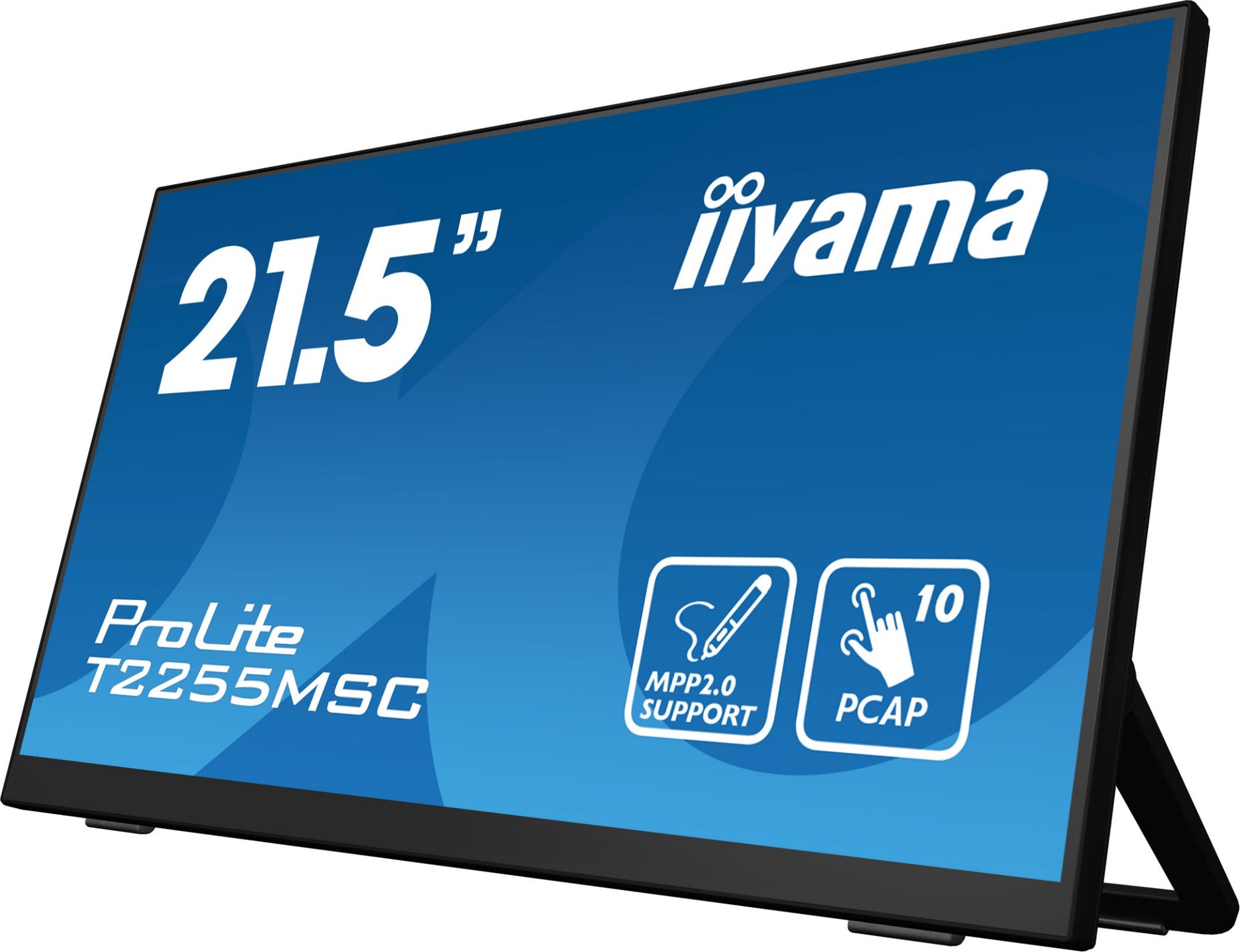

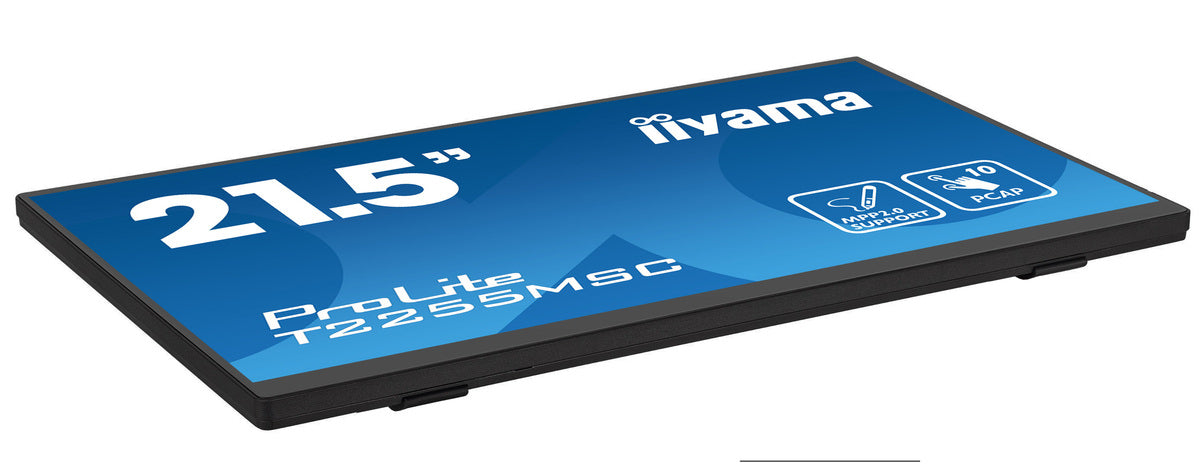

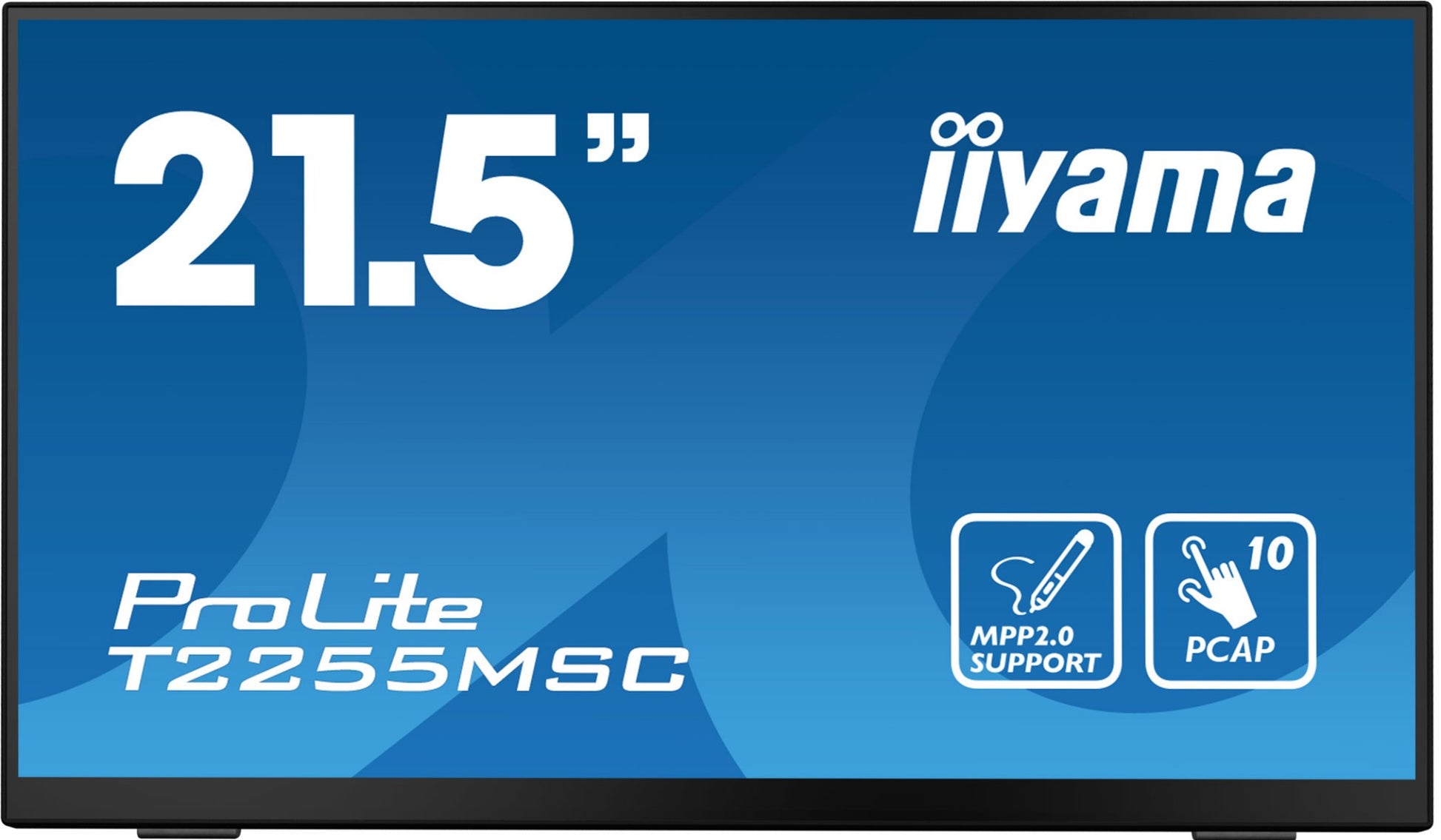

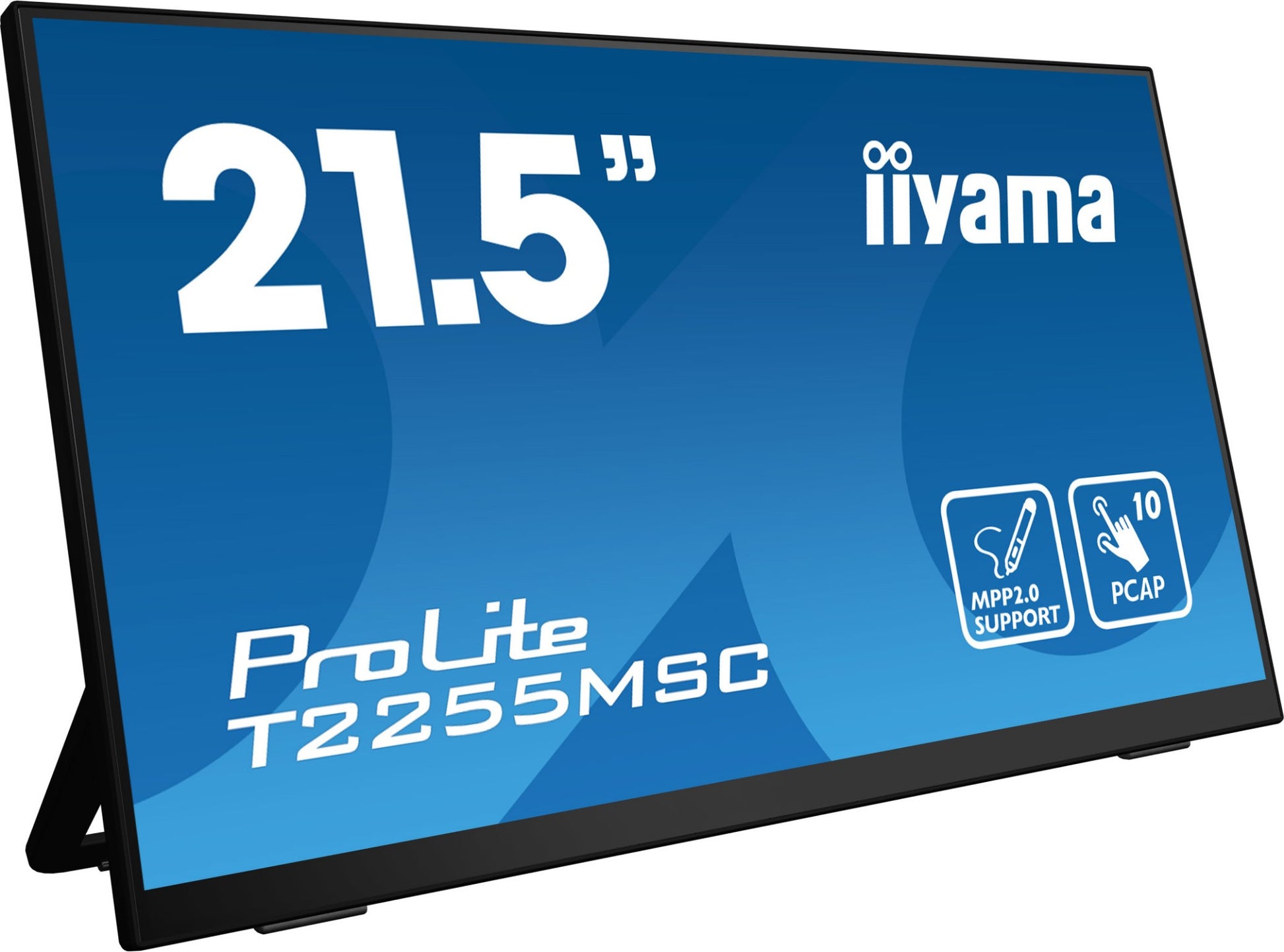

iiyama ProLite T2255MSC-B1 21.5" Full HD IPS Touch Monitor
iiyama ProLite T2255MSC-B1 21.5" Full HD IPS Touch Monitor
Couldn't load pickup availability
The iiyama ProLite T2255MSC-B1 brings touch control to a 21.5" Full HD 1920x1080 IPS monitor — ideal for POS, kiosks and interactive work.

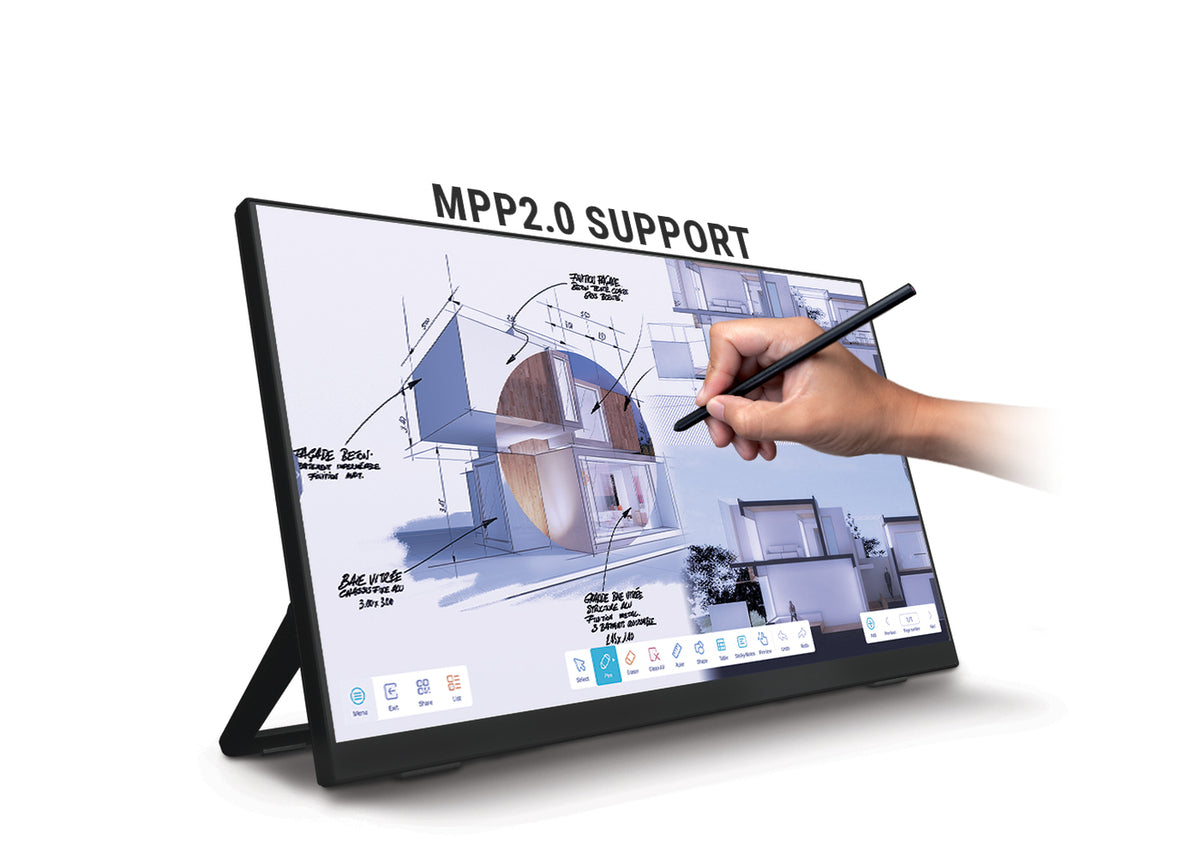

The ProLite T2255MSC with its Full HD (1920x1080) resolution and accurate PCAP 10 point touch technology, delivers a seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels. A special anti-fingerprint coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust and fingerprints. The monitor supports MPP2.0 (Microsoft Pen Protocol) technology, which is used in digital pens and styluses for use with compatible devices. The pen or stylus can interact with the ProLite T2255MSC, allowing users to write, draw, and navigate on the screen. It is very precise and supports tilt functionality, meaning the users can adjust the thickness and angle of their lines by tilting the pen, providing a more natural and intuitive writing and drawing experience.Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. A perfect choice for a vast array of creative applications.
Specifications
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 6 W |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| AMD FreeSync | No |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| NVIDIA G-SYNC | No |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Palm rejection | Yes |
| Display | |
| Display brightness (typical) | 400 cd/m² |
| Screen shape | Flat |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 60 Hz |
| HD type | Full HD |
| Display technology | LCD |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.249 x 0.249 mm |
| Horizontal scan range | 30 - 83 kHz |
| Viewable size, horizontal | 47.9 cm |
| Viewable size, vertical | 26 cm |
| Display resolution | 1920 x 1080 pixels |
| Response time | 5 ms |
| Display diagonal | 54.6 cm (21.5") |
| Contrast ratio (typical) | 1000:1 |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Display diagonal (metric) | 54.5 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 360 cd/m² |
| Positional accuracy | 2 mm |
| Response time measurement type | GTG (Gray to Gray) |
| Management features | |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian |
| Plug and Play | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio output | Yes |
| HDMI | Yes |
| USB Touch port | Yes |
| Number of downstream ports | 2 |
| Technical details | |
| User controls | Picture adjust (brightness, contrast, i-Style Color, adv. contrast, ECO, OverDrive, X-Res technology), color settings (gamma, RGB range, color temp.), image settings (video mode adjust, blue light reducer, sharp and soft), OSD (horizontal pos., vertical pos., OSD time, OSD background, language, display information), extra (reset, DDC/CI, signal select, volume, mute, opening logo, led, touch switch) |
| Sustainability certificates | ErP |
| Compliance certificates | REACH, RoHS, WEEE |
| Brightness | 360 cd/m² |
| Power supply type | Internal |
| Active display area (W x H) | 478.7 x 260 mm |
| Weight (with stand) | 3.2 kg |
| Touch method | stylus, finger, glove (latex) |
| Ergonomics | |

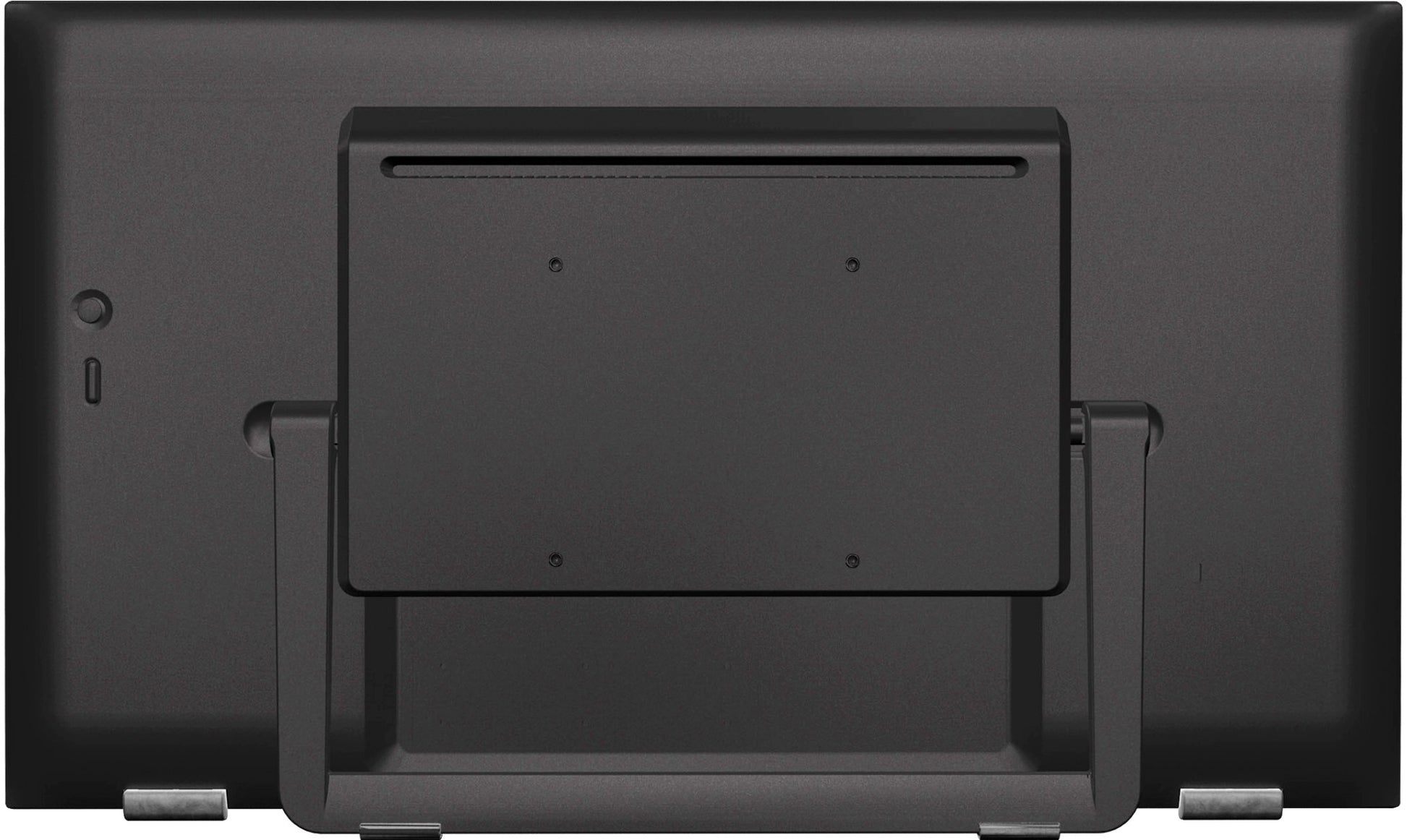

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | -15 - 70° |
| Tilt adjustment | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 16 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 12.4 kWh |
| Weight & dimensions | |
| Width (with stand) | 493.5 mm |
| Depth (with stand) | 48.5 mm |
| Height (with stand) | 289.5 mm |
| Width | 493.5 mm |
| Weight | 3.2 kg |
| Height | 289.5 mm |
| Depth | 48.5 mm |
| Packaging content | |
| Cables included | AC, USB, HDMI |
| Other features | |
| USB ports quantity | 2 |
| Control panel | Joystick: right / menu / enter, left / input / exit, up / eco, down |
