iiyama

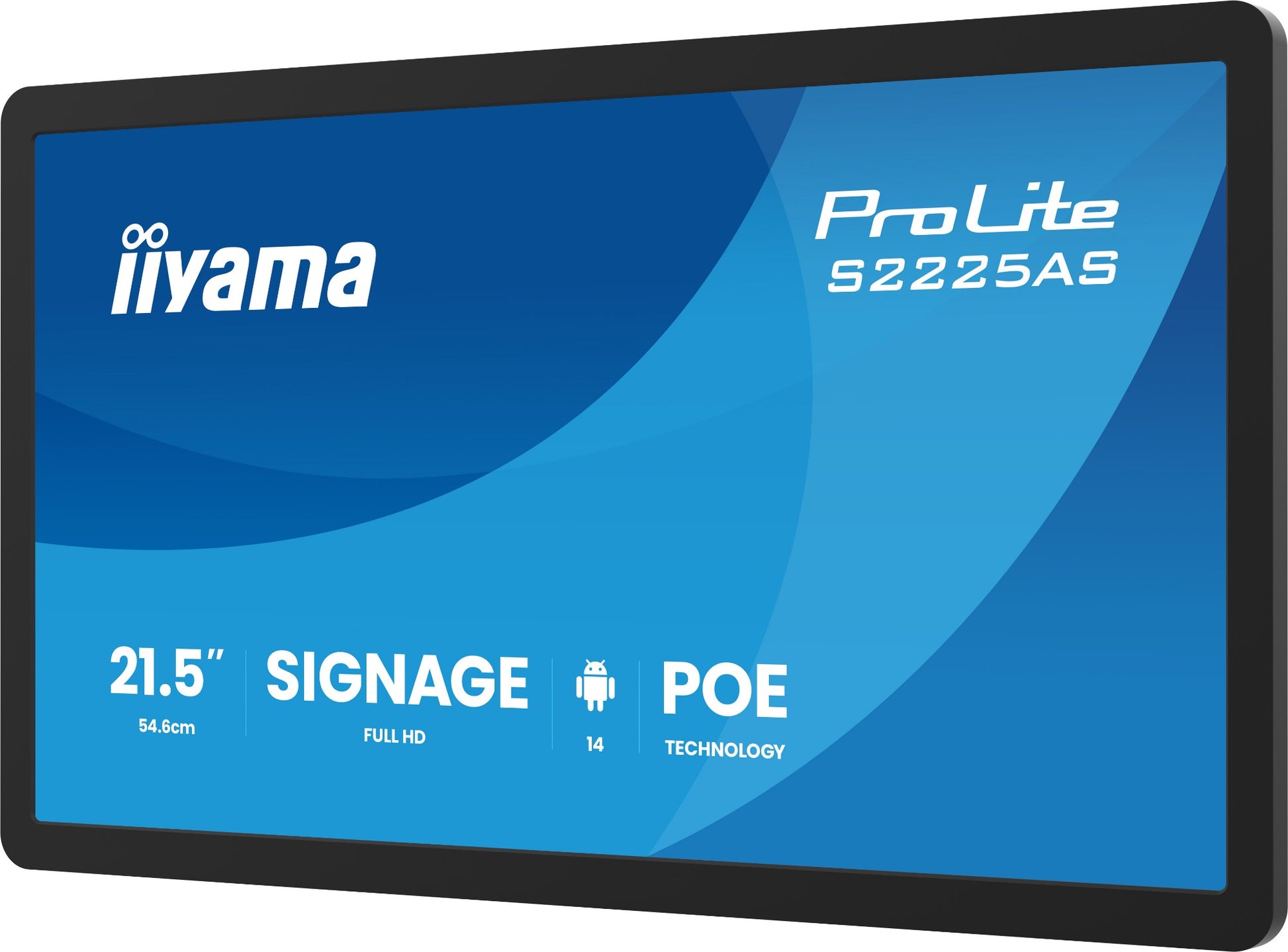

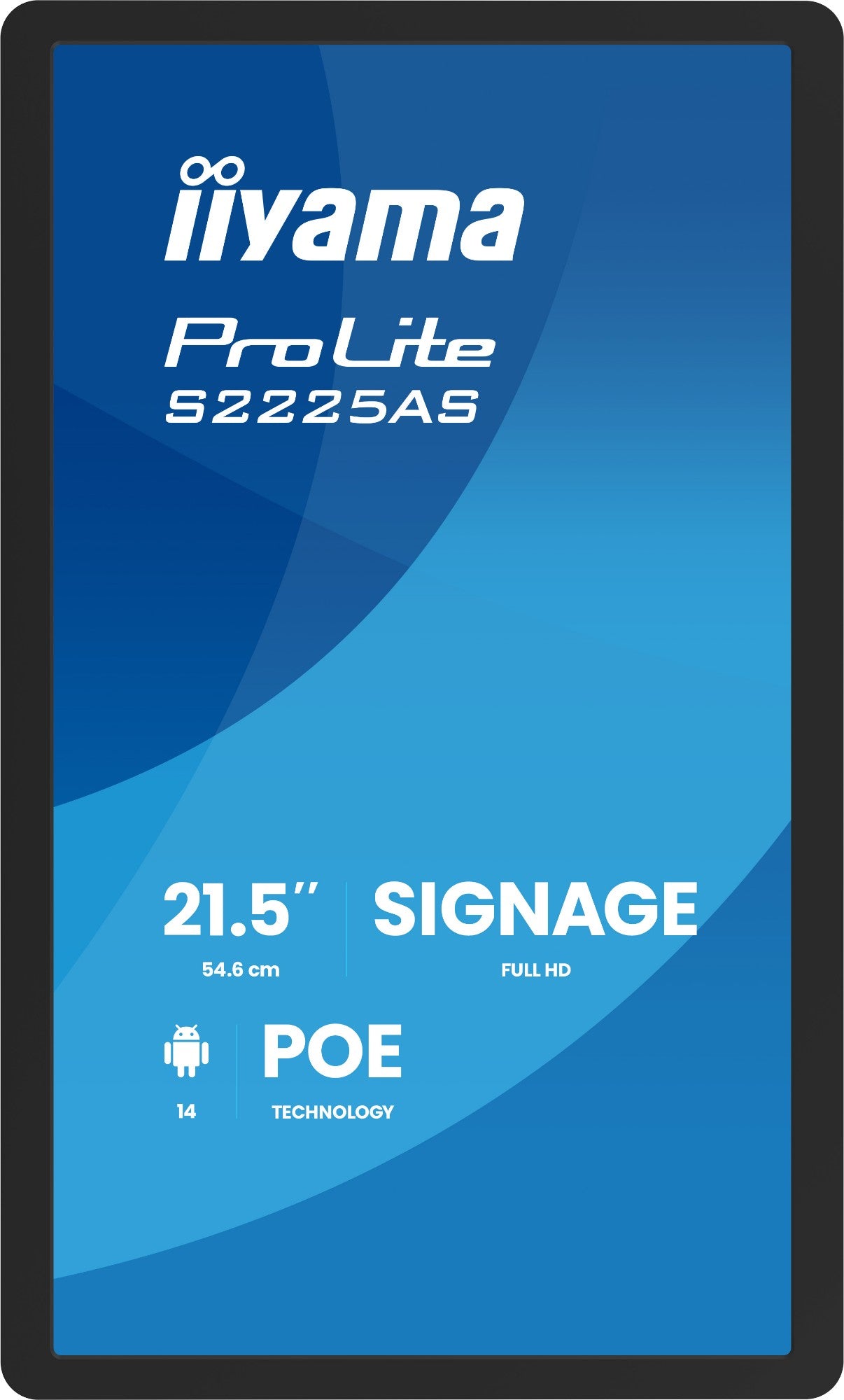

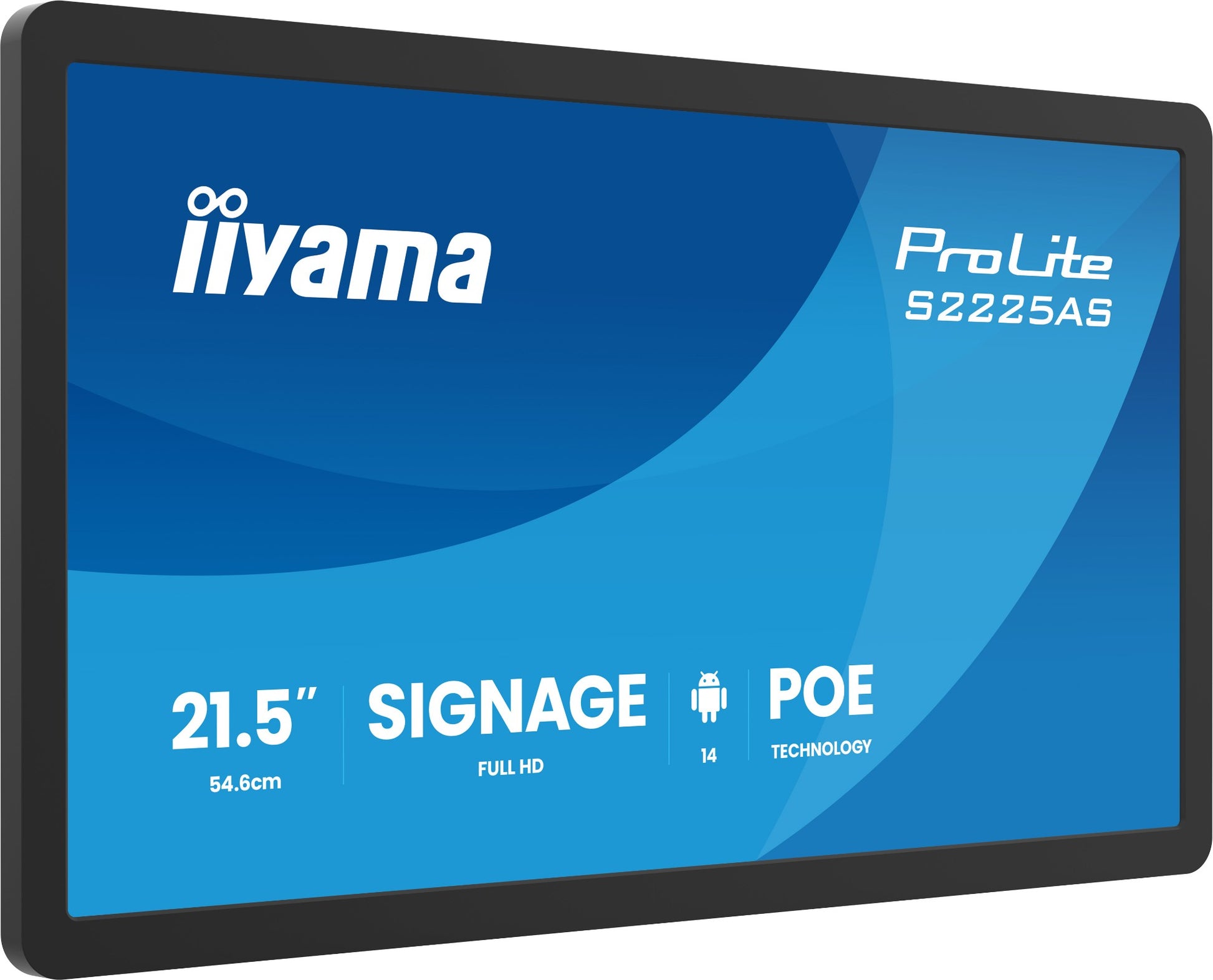

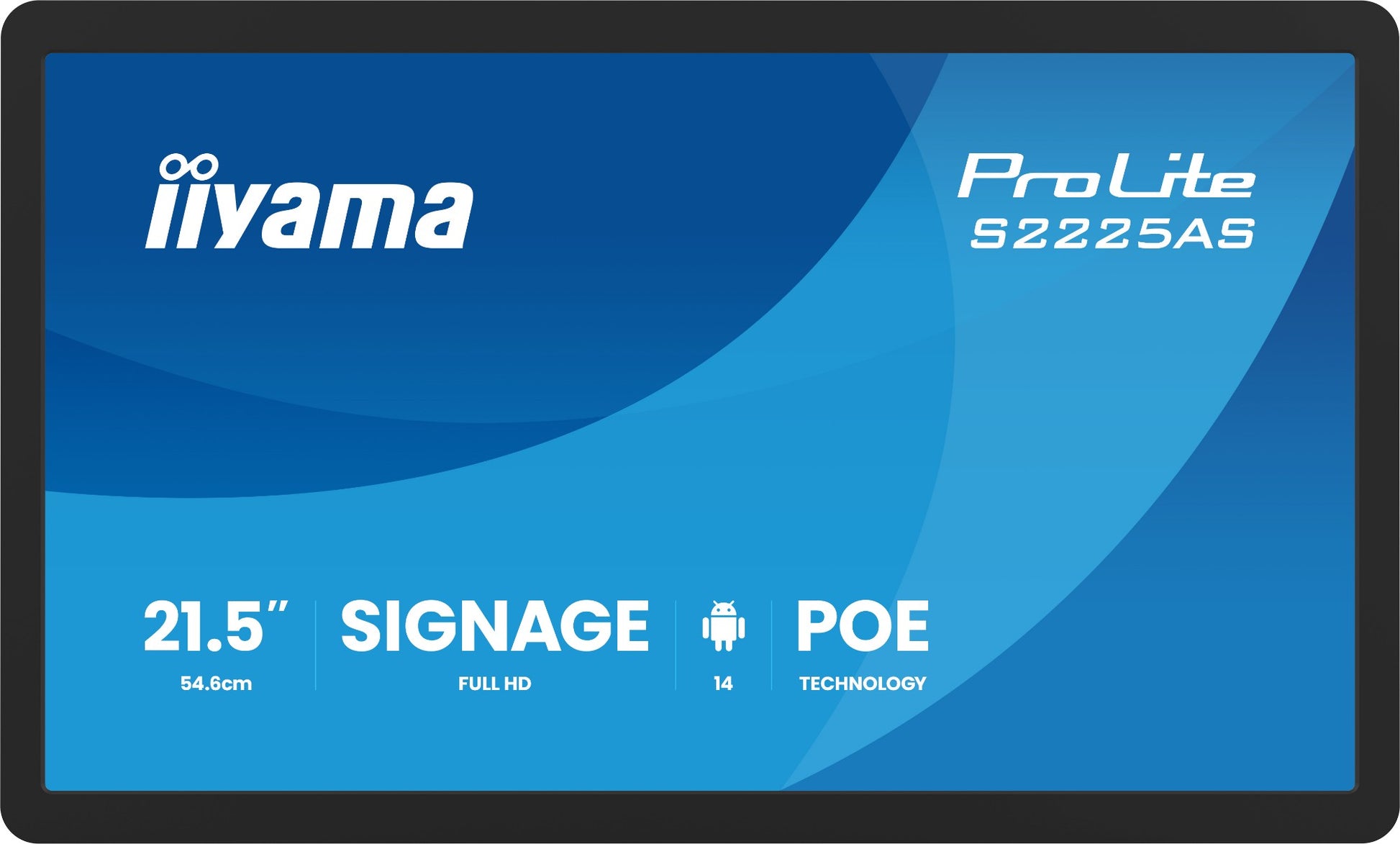

iiyama ProLite S2225AS-B1P Digital signage flat panel 21.5" Full HD IPS Monitor

£357.87 GBP

Sale Sold out

Taxes included.

Condition New

The iiyama ProLite S2225AS-B1P Digital signage flat panel delivers a crisp 21.5" Full HD 1920x1080 IPS monitor that handles everyday work and entertainment with ease.

The ProLite S2225AS-B1P is a 21.5” Android-based display created specifically for reliable content playback in professional environments. This specialist signage display is ideal for supermarkets, retail stores and public spaces where clear, continuous visual communication is required. The Full HD IPS panel with 500cd/m² brightness ensures excellent visibility, while Power over Ethernet (PoE) allows for a simple and efficient installation using a single cable for power and data. iiyama guarantees compatibility with this platform for a minimum of 5 years, ensuring long-term reliability and peace of mind for professional installations.

Specifications

Display
Panel type	IPS
Display number of colours	16.7 million colours
Touchscreen	No
Active display area (W x H)	476.1 x 267.8 mm
Display technology	LCD
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Display brightness	500 cd/m²
HD type	Full HD
Response time	14 ms
Contrast ratio (typical)	1500:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.284 x 0.284 mm
Display diagonal (metric)	54.6 cm
Native aspect ratio	16:9
Horizontal scan range	31 - 83 kHz
Anti-glare screen	Yes
Surface hardness	3H
Haze rate	25%
Ports & interfaces
USB connector type	USB Type-A, USB Type-C
USB port	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Wi-Fi	Yes
Microphone in	Yes
DisplayPorts quantity	0
Ethernet LAN	Yes
HDMI ports quantity	1
Ethernet LAN data rates	1000 Mbit/s
DVI port	No
Ethernet LAN (RJ-45) ports	1
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Audio
Number of built-in speakers	2
RMS rated power	10 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Placement supported	Indoor
Orientation	Horizontal/Vertical
Product colour	Black
Panel mounting interface	100 x 100 mm
VESA mounting	Yes
Screen shape	Flat
Bezel colour	Black
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
Mean time between failures (MTBF)	50000 h
Number of microphones	2
Power
Power consumption (off)	3.5 W
Power consumption (typical)	17.5 W
Power consumption (standby)	14 W
Computer system
Computer system	Yes
Computer system type	System on Chip (SoC)
Processor cores	8
Processor family	ARM Rockchip
Processor model	Rockchip RK3576
Operating system installed	Android
Internal memory	4 GB
Internal storage capacity	32 GB
Processor manufacturer	Rockchip
Built-in processor	Yes
On-board graphics card model	ARM Mali-G52
Operating system version	14
Weight & dimensions
Width	510.5 mm
Depth	33.5 mm
Height	308.5 mm
Weight	2.8 kg
Display width	510.5 mm
Display depth	33.5 mm
Display height	308.5 mm
Display weight	2.8 kg
Packaging data
Package width	578 mm
Package depth	123 mm
Package height	374 mm
Cables included	AC
Packaging content
Power adapter included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Technical details
Power supply type	External
User controls	Power switch, Volume
Sustainability certificates	ErP
Compliance certificates	CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
USB 2.0 ports quantity	2
Built-in microphone	Yes
Bluetooth version	5.3
Bluetooth	Yes
