iiyama

iiyama LH5565UHSB-B1 Signage Display Kiosk design 54.6" 4K UHD IPS Monitor

£881.47 GBP

Sale Sold out

Taxes included.

Condition New

The iiyama LH5565UHSB-B1 Signage Display Kiosk design delivers a crisp 54.6" 4K UHD 3840x2160 IPS monitor that handles everyday work and entertainment with ease.

Create dynamic, show stopping content, designed to entice and captivate your audience. The LH5565UHSB vivid-bright display, boasting 800cd/m², can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and smoothly run third party applications, including multiple CMS platforms. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The Signal FailOver feature ensures your content is always actively displayed through your choice of inputs for mission critical environments. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. With iiControl (DMS), iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

Specifications

Display
Panel type	IPS
Display number of colours	1.07 billion colours
Touchscreen	No
Active display area (W x H)	1209.6 x 680.4 mm
Display technology	LED
Display diagonal	138.7 cm (54.6")
Display resolution	3840 x 2160 pixels
Display brightness	800 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.315 x 0.315 mm
Display diagonal (metric)	139 cm
Native aspect ratio	16:9
Horizontal scan range	28 - 160 kHz
Native refresh rate	60 Hz
Haze rate	1%
RGB colour space	NTSC
Ports & interfaces
Remote (IR) input	1
DisplayPort version	1.2
USB port	Yes
HDMI version	2.0
RS-232C	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
DisplayPorts quantity	1
Ethernet LAN	Yes
HDMI ports quantity	2
Audio (L/R) in	1
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
USB version	2.0
USB ports quantity	2
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Kiosk design

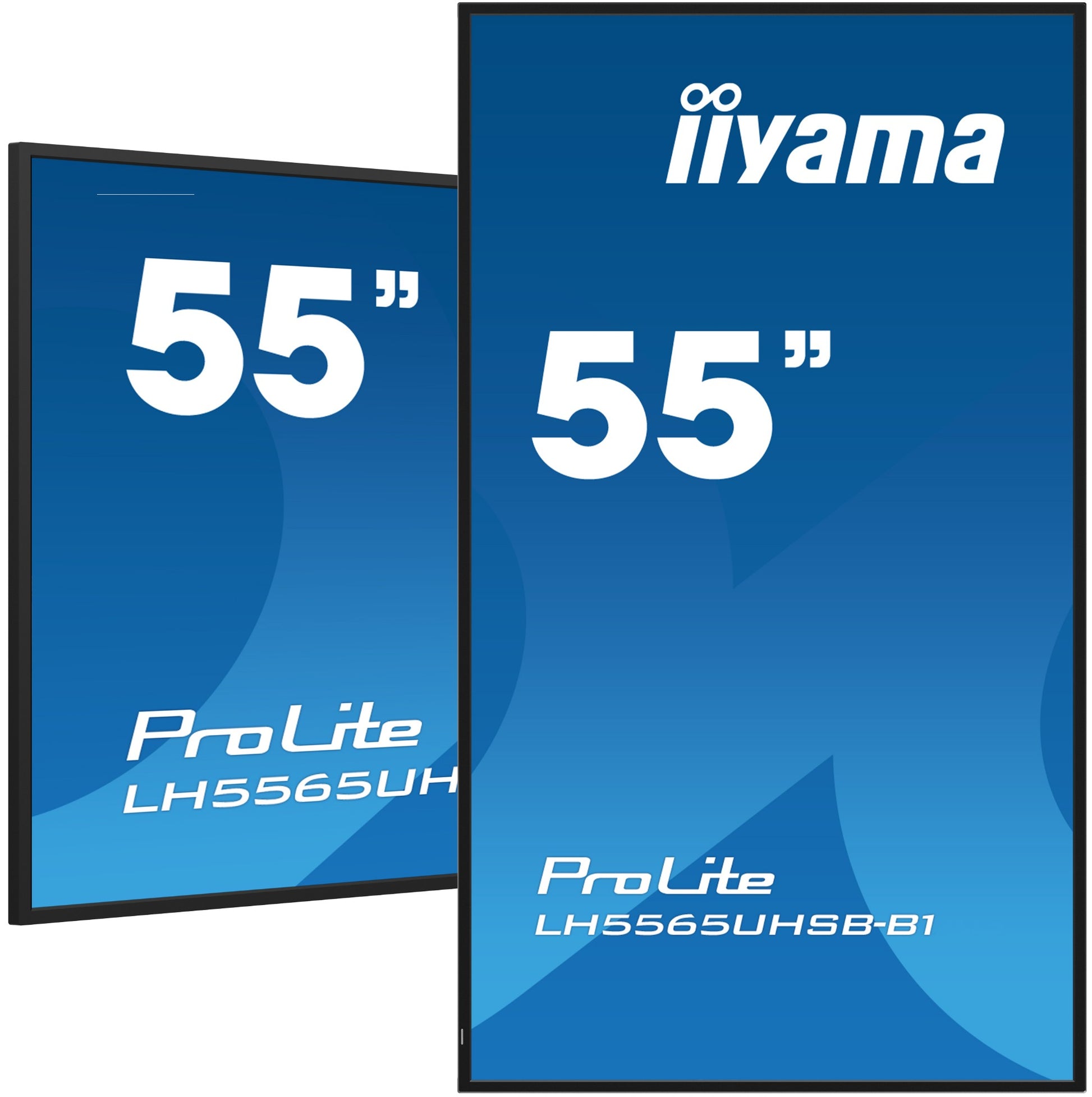

Orientation	Horizontal/Vertical
Bezel width (top)	1.49 cm
Bezel width (side)	1.49 cm
Bezel width (bottom)	1.49 cm
Product colour	Black
Panel mounting interface	400 x 400 mm
VESA mounting	Yes
Bezel colour	Black
Performance
Purpose	Commercial
Operating hours (hours/days)	24/7
Mean time between failures (MTBF)	50000 h
On Screen Display (OSD) languages	Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
On Screen Display (OSD)	Yes
Number of OSD languages	8
HDCP	Yes
HDCP version	2.2
Power
Power consumption (off)	0.3 W
Power consumption (typical)	78 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	77.7 kWh
Computer system
Computer system	Yes
Processor cores	8
Processor family	ARM Cortex
Operating system installed	Android 11
Internal memory	4 GB
Internal storage capacity	32 GB
Processor manufacturer	ARM
Built-in processor	Yes
On-board graphics card model	ARM Mali-G52
Processor architecture	ARM Cortex-A73
Weight & dimensions
Width	1237.5 mm
Depth	55 mm
Height	710 mm
Weight	14.6 kg
Display width	1237.5 mm
Display depth	55 mm
Display height	710 mm
Display weight	14.6 kg
Packaging data
Package width	1386 mm
Package depth	130 mm
Package height	845 mm
Package weight	19.8 kg
Quick start guide	Yes
Remote control included	Yes

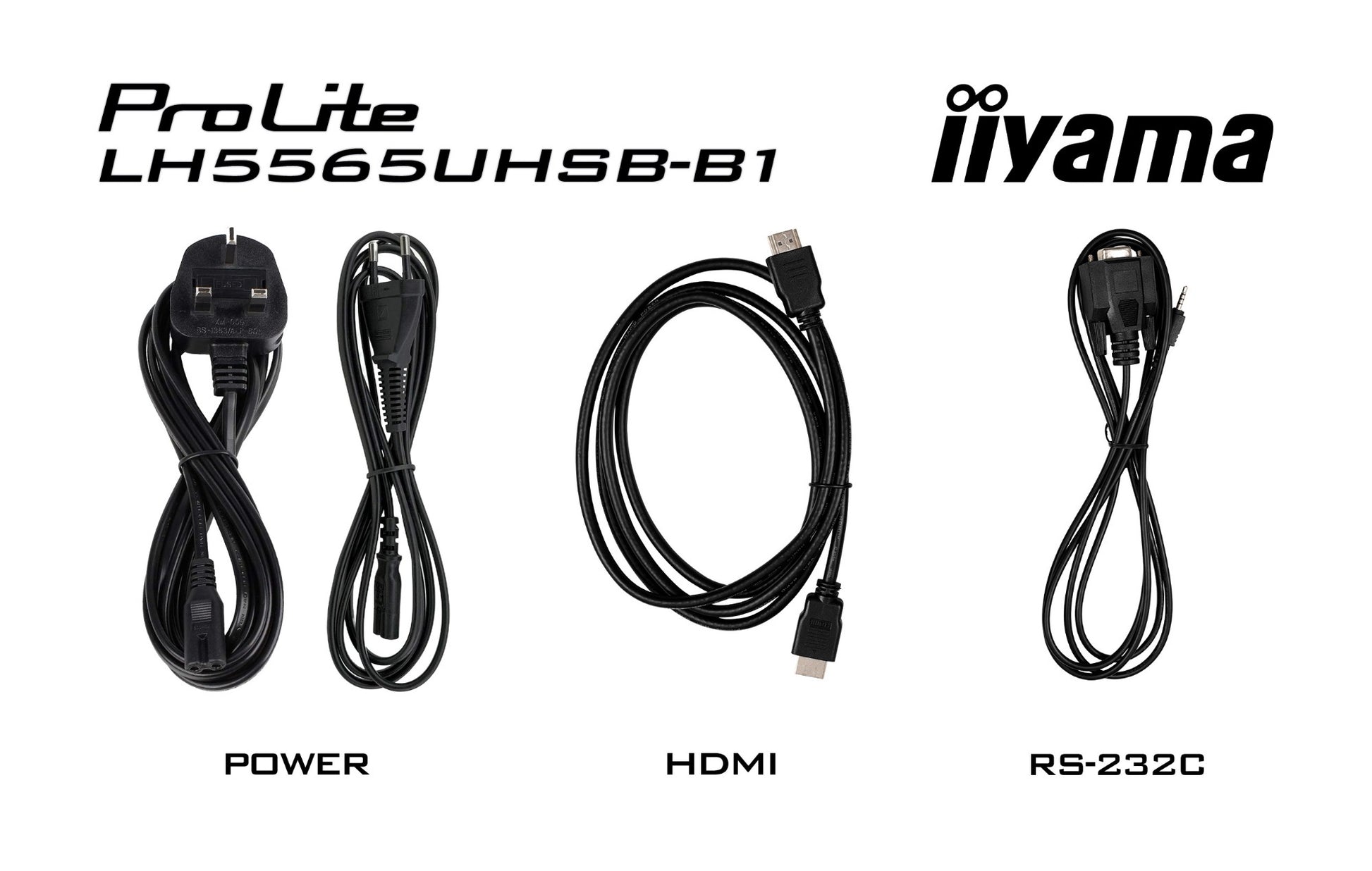

Cables included	AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	-20 - 60%
Storage temperature (T-T)	-20 - 60 °C
Technical details
Power supply type	Internal
Playback media	Yes
User controls	picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, low blue light, colour temperature, colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (no signal image, IR control, power LED light, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, auto power off, advanced option reset)
Sustainability certificates	ErP
Compliance certificates	CE, REACH, RoHS, TÜV mark, UKCA, WEEE
